Product description: BleBox framePanelM - wall frame for the BleBox controlPanelM screen/panel - black
The BleBox framePanelM is an accessory fully dedicated to the BleBox controlPanelM smart display/control panel. This black frame allows for quick and easy wall mounting, while ensuring a high level of aesthetic finish. The product can be mounted using a standard Ø 60 mm electrical box or directly on the wall, making it suitable for both new installations and existing automation systems. The frame is made of high-quality photopolymer material covered with a matte, decorative, and protective varnish coating. The BleBox framePanelM provides magnetic, tool-free mounting of the panel to the frame using two Ø 12 mm neodymium magnets , allowing for efficient screen installation. The frame's design ensures the panel is flush with the surface, while the side glass edges of the screen are better protected against accidental impacts and damage. If you need to remove the control panel from the frame, a suction cup is included for easy removal. The BleBox framePanelM has an IP20 protection rating. The compact dimensions and aesthetics of the frame make it a perfect fit for various interiors.

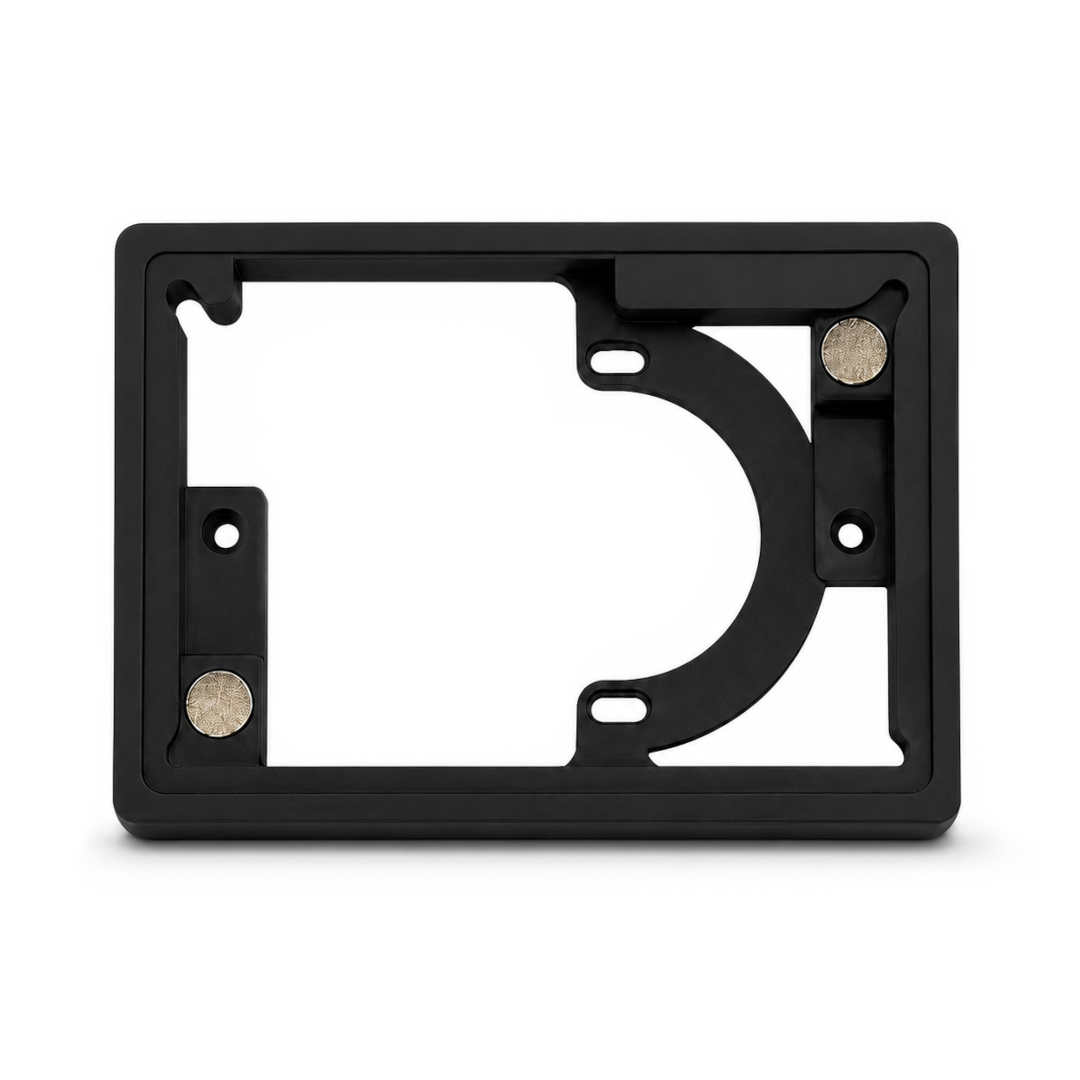

BleBox framePanelM - wall frame for the BleBox controlPanelM screen/panel - black.
The frame structure has been designed in such a way that after installation the screen is flush with its surface and its side edges are better protected against any damage.
Main features of BleBox framePanelM
- Dedicated accessory for BleBox controlPanelM: full compatibility with the BleBox controlPanelM smart screen/WiFi control panel, allowing you to achieve an aesthetic and professional finish of the panel on the wall
- Control panel protection: the frame structure is designed in such a way that after installation the screen is flush with its surface and its side edges are better protected against any damage
- Installation using a Ø 60 mm flush-mounted box: surface mounting possible using a standard Ø 60 mm electrical installation box, with mounting using 3 Ø 4 mm through holes and a 60 mm screw spacing
- Direct wall mounting: alternative mounting to the wall surface using 2 Ø 4 mm through holes, spaced 109.50 mm apart on the short sides of the frame
- Magnetic screen mounting: tool-free mounting system based on 2 neodymium magnets Ø 12 mm facilitating efficient panel placement in the frame
- Convenient panel removal: a suction cup is included in the set to facilitate screen removal
- Aesthetic finish: the use of high-quality material in a black color version, which fits well with interiors of various types of arrangements
- Compact dimensions: ensuring compatibility with electrical installation equipment and the possibility of installation next to existing switches
- IP20 protection class: can be installed indoors in rooms that are not exposed to high levels of humidity and pollution
An accessory as an element complementing the aesthetics of the interior

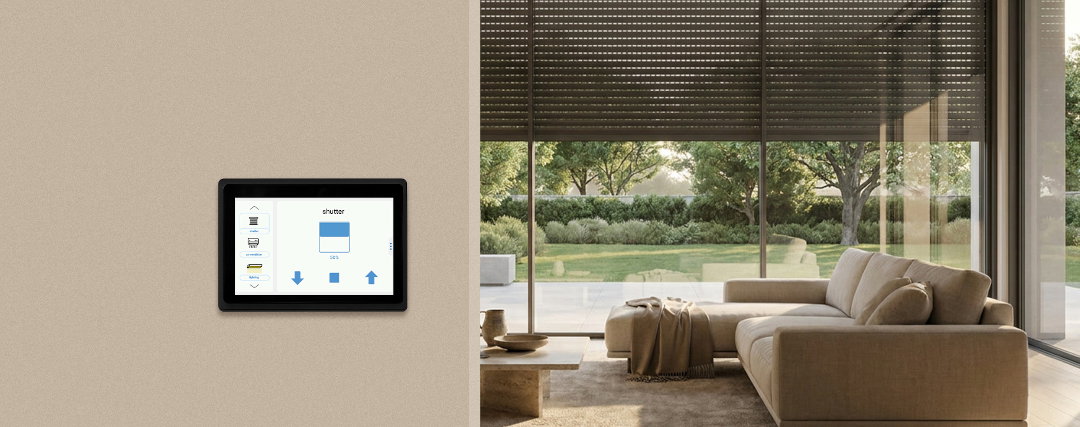

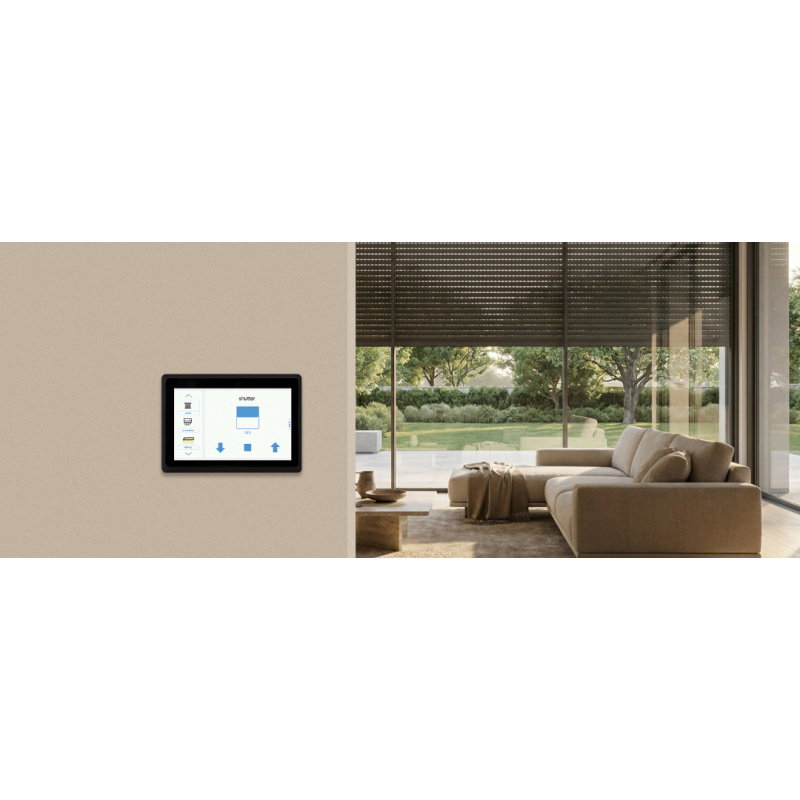

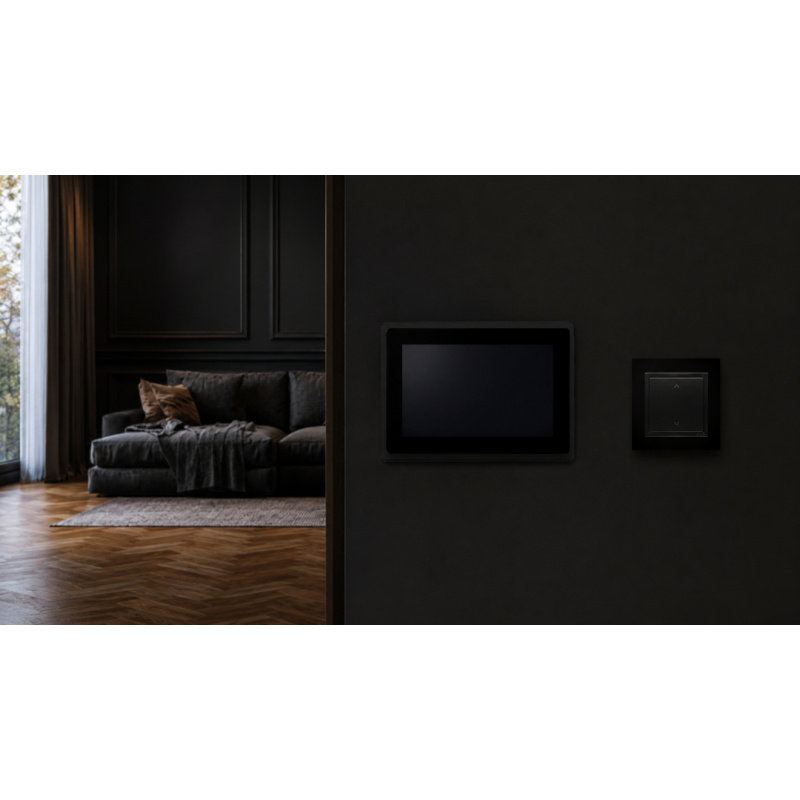

The black BleBox framePanelM frame is a detail that can significantly enhance the aesthetics of the entire Smart Home installation. Its subdued, dark finish complements modern interiors where cohesion, minimalism, and a refined look of each piece are key. The black color blends seamlessly with industrial, loft, and modern classic designs, as well as rooms finished with wood, glass, architectural concrete, or metal accents. The frame can create an elegant contrast on a light wall or blend discreetly into a darker background, making it easy to match the room's character. The BleBox framePanelM was designed with the BleBox controlPanelM panel in mind, allowing for an aesthetically pleasing, uncluttered finish. It also helps protect the glass edges of the panel from accidental damage, combining decorative functionality with practical device protection.

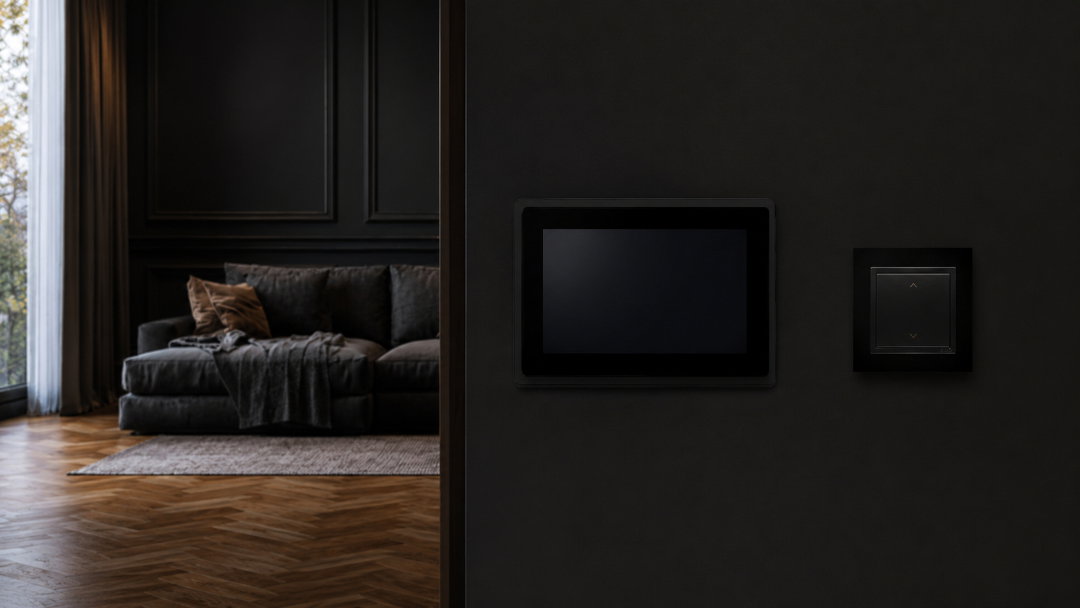

The frame can create an elegant contrast on a light wall or blend discreetly into a darker background, making it easy to match the character of the room.

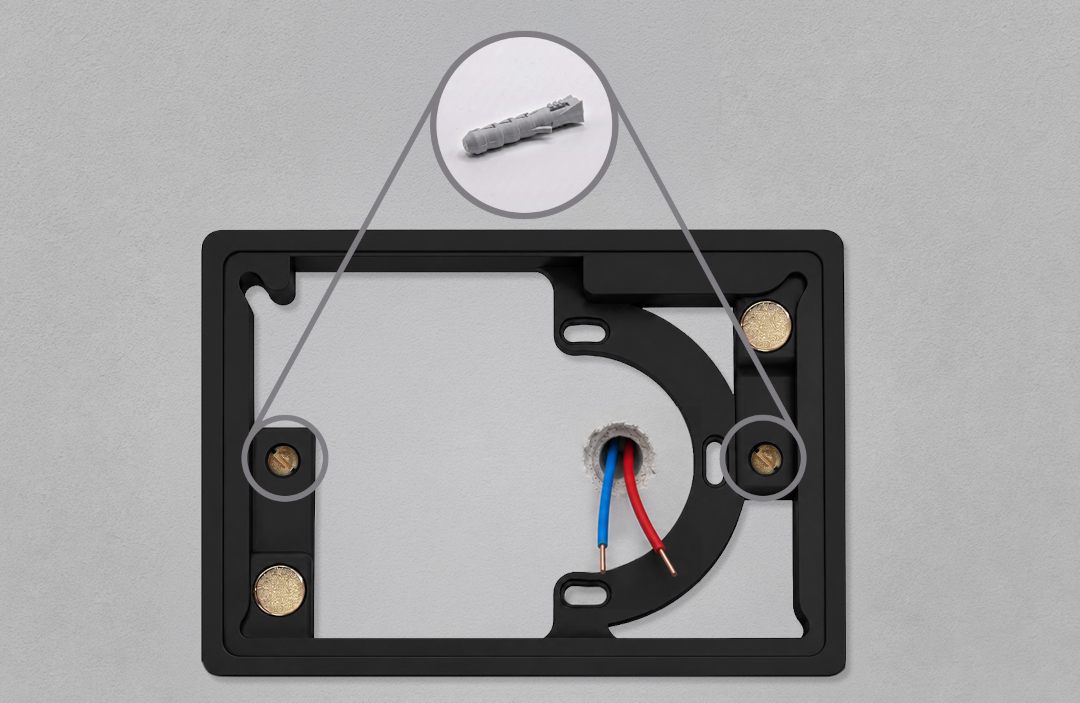

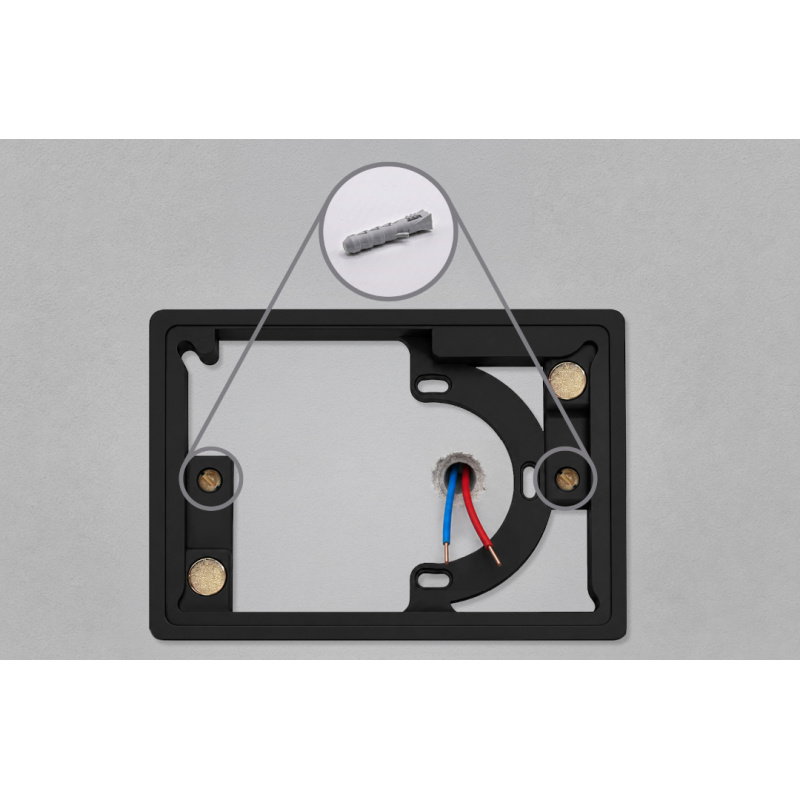

The BleBox framePanelM frame enables efficient surface mounting using a standard Ø 60 mm electrical installation box, in which the user can place the power supply for the BleBox controlPanelM screen.
Versatile mounting options for increased comfort in everyday use

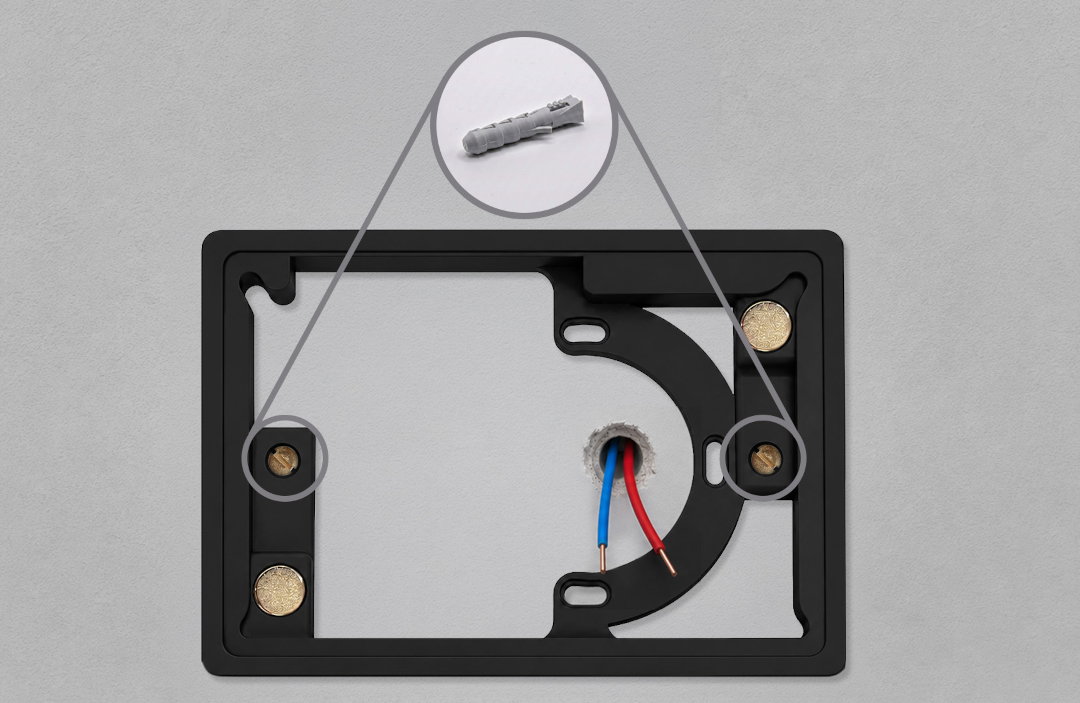

The BleBox framePanelM frame is designed to facilitate aesthetic and stable installation of the BleBox controlPanelM panel in various installation conditions . The accessory measures 144 x 101 x 13 mm , allowing it to fit neatly into the proportions of electrical installation equipment and can be mounted next to existing connectors without disrupting the wall's appearance. The manufacturer provides surface mounting using a standard Ø 60 mm electrical installation box. The frame is attached to it using three Ø 4 mm pass-through holes, spaced like a standard flush-mounted box, with a 60 mm screw spacing. This solution ensures a solid fit, and the box itself can provide additional space for the panel's power supply. Alternatively, the frame can be mounted directly to the wall using two Ø 4 mm pass-through holes located on the inside of the frame's shorter sides, spaced 109.5 mm apart. This method is especially useful when a 12V to 24V DC power supply is already available and there's no need to create additional installation space for the power supply. The panel itself is mounted in the frame using two strong 12mm Ø neodymium magnets, allowing for quick, tool-free installation. A suction cup is also included to facilitate screen removal, for example, during servicing, connection inspection, or access to the power supply. Once installed, the screen is flush with the frame surface, and the BleBox framePanelM design further protects its glass edges from accidental impacts and mechanical damage.
Technical specifications of BleBox framePanelM
- Compatibility: BleBox controlPanelM WiFi screen/panel
- Material: high-quality photopolymer material
- Color: black
- Finish: matte, decorative and protective varnish coating
- Dimensions: 144 x 101 x 13 mm
- Screen mounting method: magnetic, tool-free mounting system
- Magnets: 2 strong neodymium magnets with a diameter of 12 mm
- Installation method for the installation box: 3 through holes Ø 4 mm arranged in the standard flush-mounted box Ø 60 mm
- Screw spacing when mounting to the box: 60 mm
- Mounting method directly to the wall: 2 through holes Ø 4 mm on the inside of the shorter sides of the frame
- Hole spacing for direct mounting: 109.50 mm
- Degree of protection: IP20
- Operating temperature: from 0°C to +40°C
- Installation method: flush-mounted / recessed
- Additional function: protection of the glass edges of the panel against damage
- Included accessory: suction cup for easy screen removal
Kit contents
- 1 x BleBox framePanelM - wall frame for the BleBox controlPanelM screen/panel - black
- mounting accessories
- suction cup for easy panel removal

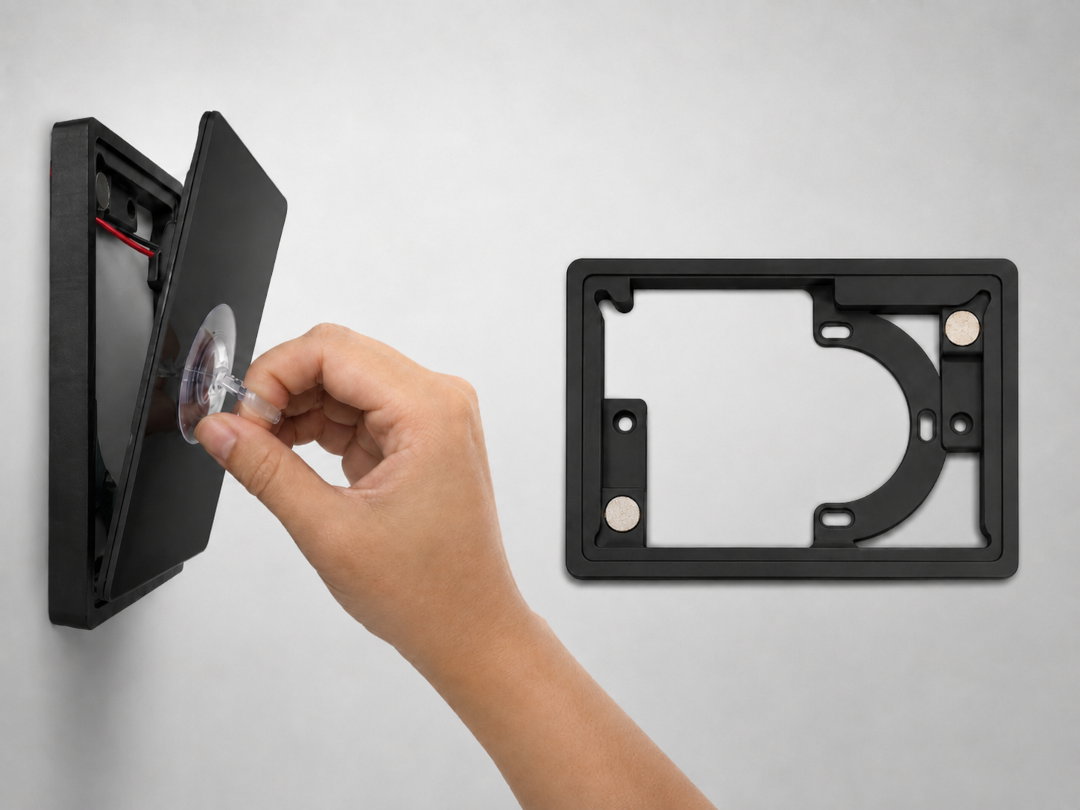

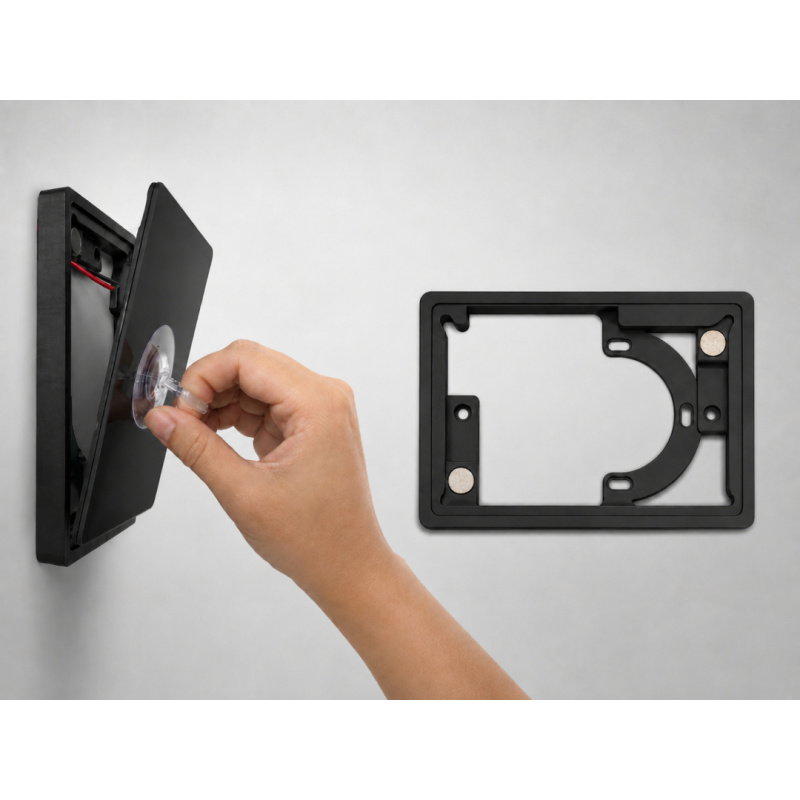

The BleBox framePanelM frame enables aesthetic installation of the BleBox controlPanelM, and the included suction cup facilitates quick and safe removal of the screen if access to, among other things, the power supply, cables or assembly connections is required.
