Universal double sided board 60x80mm

Index: DNG-20272 EAN: 5904422380564

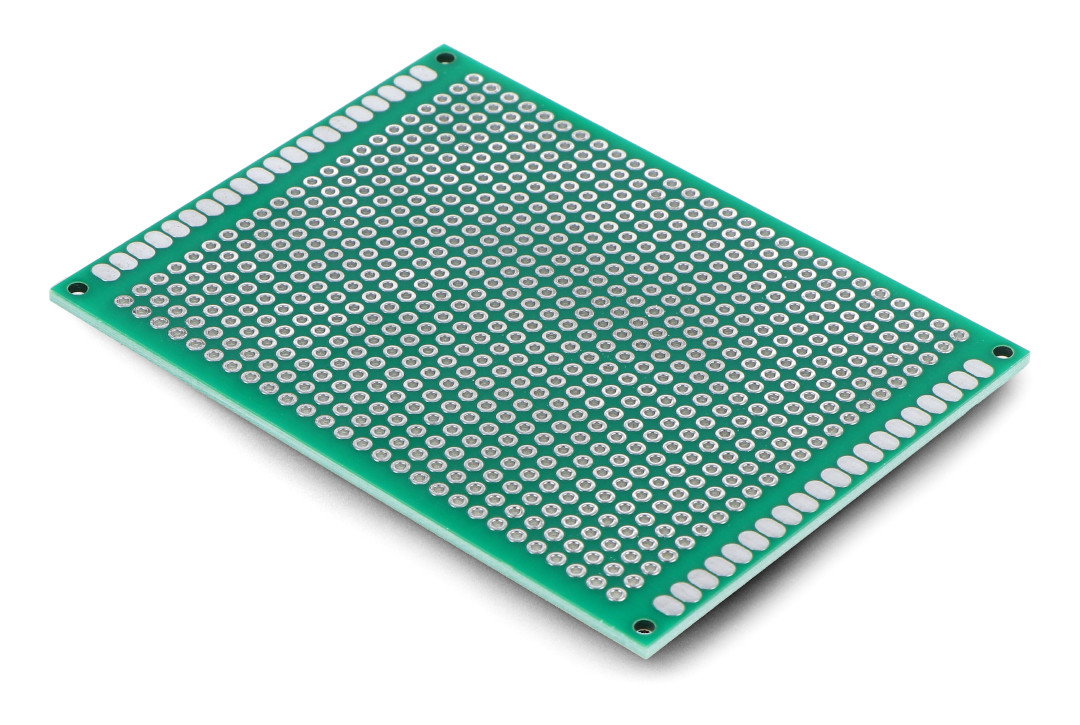

The board allows assembling of any electronic circuit by soldering the components into the ready made holes on the board. Double-sided universal board with 594 holes arranged in 27 x 22  pattern for mounting THT elements and 2 x 20 silver plated flat pads. The board measures 60 x 80 mm. Soldermask of the board was made in green color and all soldering holes are silver plated.
Universal double sided board 60x80mm
€1.50
€1.22 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Product description: Universal double sided board 60 x 80 mm

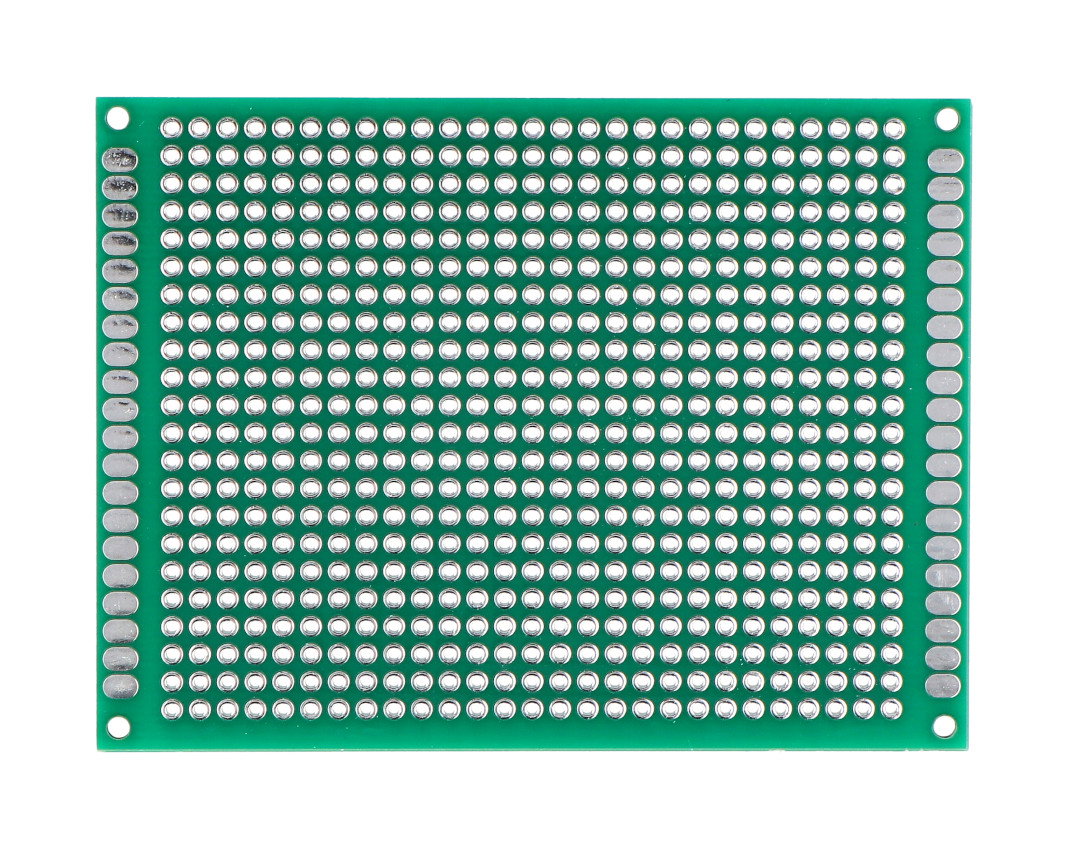

The board allows you to assemble any electronic circuit by soldering individual components into the ready-made holes on the board. Double-sided PCB has 594 holes arranged in 27 x 22 pattern for mounting THT components and 2 x 20 silver plated flat pads. The board measures 60 x 80 mm. Soldermask of the board was made in green color and all soldering holes are silver plated. The holes on each side are numbered with letters of the alphabet and numbers from 01 to 27.

What are PCBs?

Universal printed circuit boards are designed for creating electronic projects. Boards are made of laminate (usually glass-epoxy) and copper, which is used to conduct signals.

There are 3 main methods of mounting components on a PCB: through-hole assembly (THT), surface mount assembly (SMD) and mixed-mode assembly.

Płytka drukowana uniwersalna dwustronna 60x80mm o grubości 1,6mm Double-sided universal PCB 60 x 80 x 1.6 mm.

Płytka drukowana uniwersalna dwustronna 90x150mm o grubości 1,6mm Universal PCB, double-sided, green.

PCB specification

  • Soldermask color: green
  • Mounting: THT through-hole
  • Four mounting holes with 3 mm diameter
  • Number of holes for through-hole mounting: 594
  • Number of surface mount holes: 40
  • PCB dimensions: 60 x 80 x 1.6 mm

Package width 8 cm
Package height 12 cm
Package depth 1 cm
Package weight 0.014 kg
