Product description: A708 12 MPx IMX708 USB UVC Fixed-Focus Camera with Metal Housing - ArduCam B03041
The ArduCam A708 B030401 is a USB UVC camera module designed for applications requiring high image quality and reliable operation. The 12MP Sony IMX708 sensor captures detailed photos and videos at resolutions up to 4608 x 2592 px . HDR technology preserves detail in both light and dark areas of the image, making the camera suitable for variable lighting conditions. The module utilizes the USB UVC standard, allowing plug-and-play operation with most popular operating systems without the need for additional drivers. The robust metal housing increases the device's durability and improves heat dissipation during long-term operation.
A708 12 MPx IMX708 USB UVC Fixed-Focus Camera with Metal Housing - ArduCam B03041.

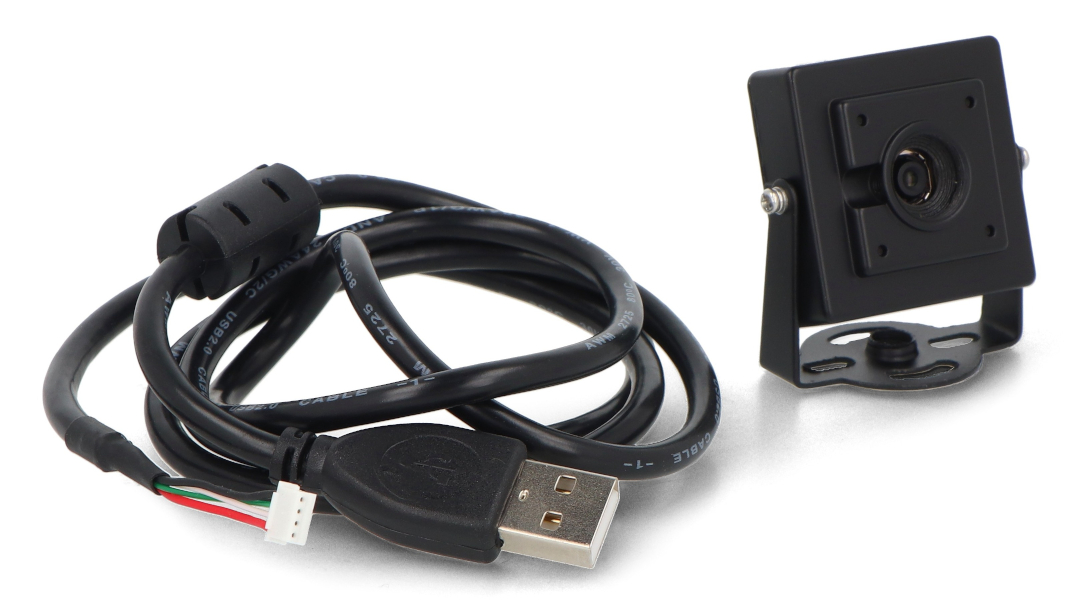

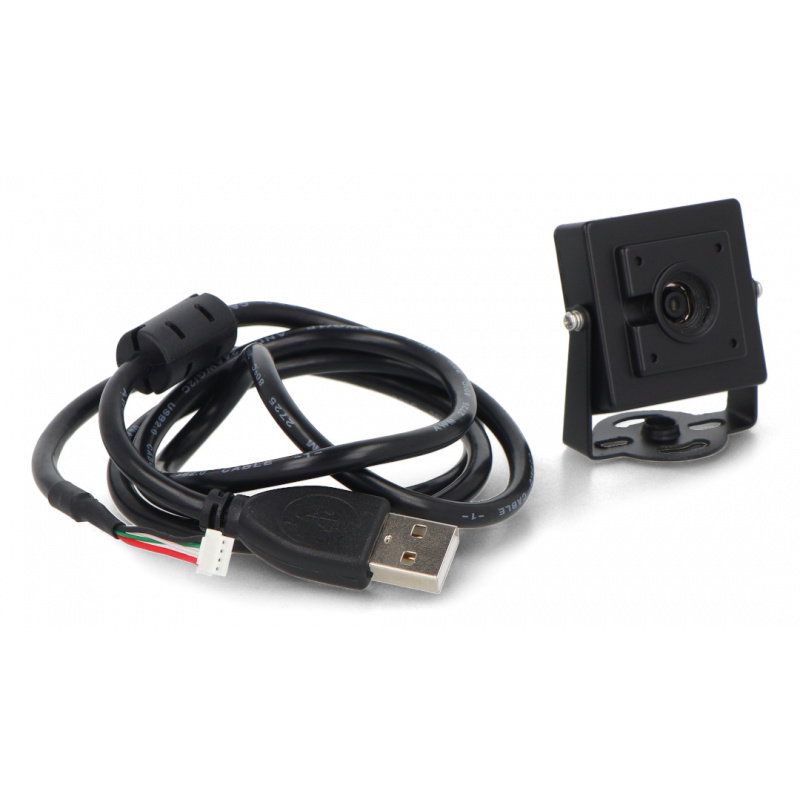

The kit includes a camera module with a UVC adapter board in a metal housing and a USB cable.
Main features of the ArduCam A708 camera
- 12 MPx resolution : maximum resolution of 4608 x 2592 px provides a very detailed image
- HDR technology : better detail reproduction in bright and shadow areas of the frame
- USB UVC plug and play : works with Windows, Linux, Android and macOS without installing drivers
- Fixed focal length lens : fixed focus from 150 cm to infinity
- 650nm IR-cut filter : improves color reproduction by eliminating infrared radiation
- Wide viewing angle : 75° (D), 66° (H), 41° (V)
- Metal housing : effectively dissipates heat and protects the module from damage
- MJPG and YUY2 format support : easy integration with applications and vision systems
Camera technical specifications
- Image sensor: Sony IMX708
- Resolution: 12 MPx
- Maximum resolution: 4608 x 2592 px
- Shutter type: Rolling Shutter
- Color format: color
- Sensor size: 1/2.43''
- Pixel size: 1.4µm x 1.4µm
- Interface: USB 2.0 UVC
- Image format: MJPG, YUY2
- HDR: yes
- Focus type: prime
- Focus range: 150 cm to infinity
- Focal length: 4.74 mm
- Lens aperture: F1.8
- IR filter: integrated 650 nm IR-cut filter
- Field of view: 75° (D), 66° (H), 41° (V)
- Supply voltage: 5 V
- Maximum power consumption: 1.5 W
- Operating temperature: 0°C to 70°C
- Supported systems: Windows, Linux, Android, macOS
- Housing: metal
- Camera board dimensions: 24 x 25 mm
Contents of the set
- ArduCam IMX708 camera - B03041
- 1 m USB 2.0 cable
The camera supports High Dynamic Range (HDR) technology.
