16MPx IMX519 camera - with M12 wide angle lens - for Raspberry Pi and OpenHD - ArduCam B0449

Index: ACM-24987 EAN: 5904422385071
The Arducam brand camera equipped with a Sony IMX519 sensor with a 16 Mpx matrix is a high-quality module designed for Raspberry Pi and OpenHD users. It provides excellent image resolution and has a wide-angle M12 lens with a rolling shutter and manual focus . The camera will work well for applications requiring precise image recording, such as drones, monitoring or vision systems.
16MPx IMX519 camera - with M12 wide angle lens - for Raspberry Pi and OpenHD - ArduCam B0449
€45.50
€36.99 tax excl.
Delivery 5 pcs scheduled for 2024-12-27
Waiting for delivery
PayPal payment
Manufacturer: ArduCam
Compatibility: Raspberry Pi

Product description: 16 MPx IMX519 camera - with M12 wide-angle lens - for Raspberry Pi and OpenHD - ArduCam B0449

ArduCam camera module designed for a wide range of applications, from hobby projects on Raspberry Pi to professional vision systems. Equipped with a Sony IMX519 sensor with a resolution of 16 MPx , it offers a detailed image and supports Rolling Shutter technology, making it ideal for recording fast movement. The wide viewing angle and interchangeable M12 lens allow for flexible adjustment of the camera to various usage scenarios, from wide-angle landscape shots to precise close-ups. The camera is compatible with all Raspberry Pi camera boards, including Raspberry Pi Zero, and supports the OpenHD platform , which allows for high-quality video transmission over long distances.

16 MPx IMX519 Camera - with M12 Wide Angle Lens - for Raspberry Pi and OpenHD - ArduCam B0449

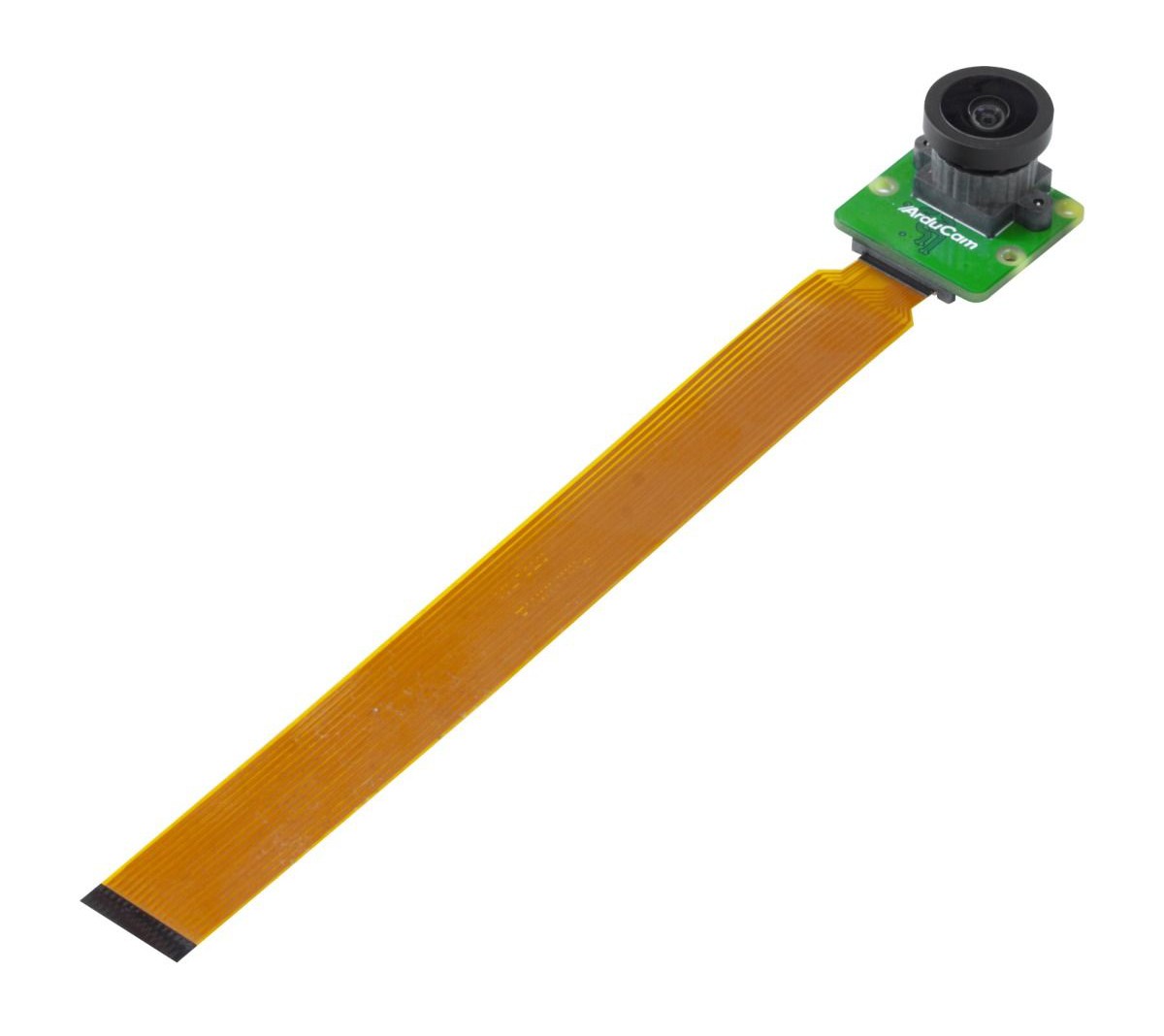

16 MPx IMX519 camera - with M12 wide-angle lens - for Raspberry Pi and OpenHD - ArduCam B0449.

16 MPx IMX519 Camera - with M12 Wide Angle Lens - for Raspberry Pi and OpenHD - ArduCam B0449

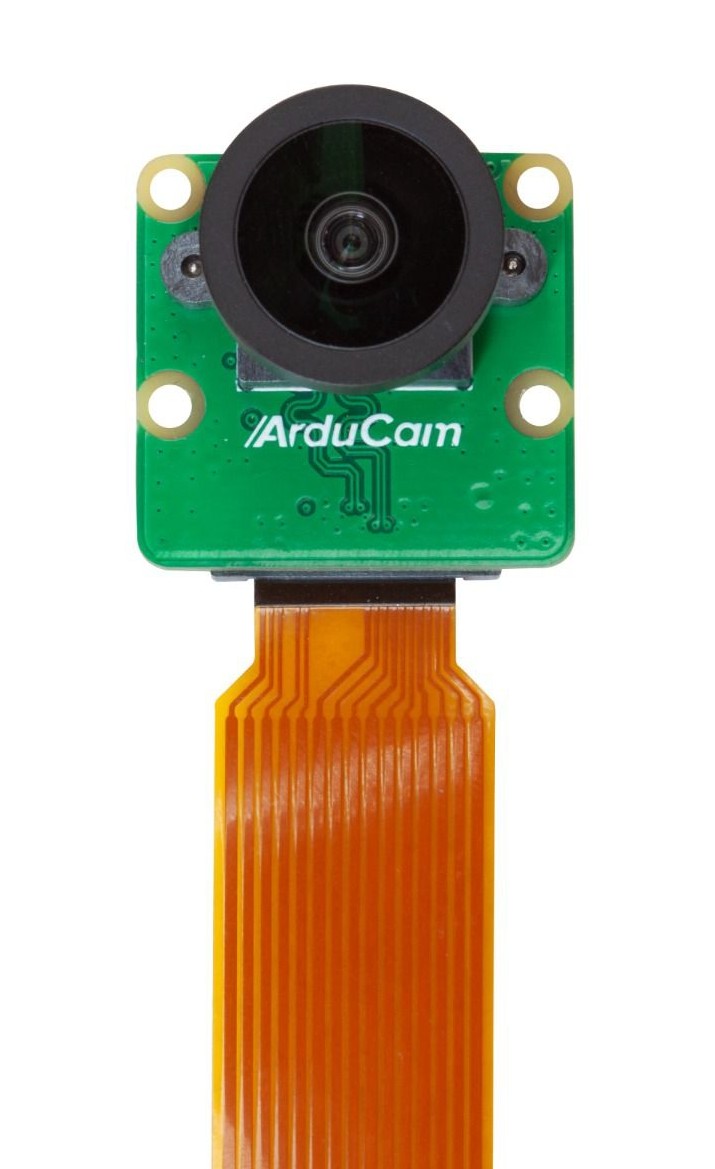

The camera has a wide-angle M12 lens with a viewing angle of 120°.

Main camera features

  • Sensor : Sony IMX519 sensor with 16 MPx resolution, provides detailed and clear images, ideal for applications requiring high-quality video.
  • Interchangeable M12 lens : The camera has an interchangeable M12 lens that offers a wide viewing angle of 120°, allowing you to capture a larger field of view.
  • Manual Focus : The camera lens features manual focus, giving you complete control over image sharpness and allowing you to precisely adjust the focus to suit your specific application.
  • Rolling Shutter : The color Rolling Shutter provides smooth image capture, which is especially beneficial for fast movements such as drones or surveillance systems. This shutter reduces the effects of image distortion that can occur with traditional shutters.
  • Compatibility : dedicated to Raspberry Pi, offering full compatibility and operation without the need to install additional drivers, making it easy to integrate with the system.
  • OpenHD support : the camera supports the OpenHD system, enabling high-quality video transmission over long distances.

Applications

The camera finds application in many fields, such as:

  • Drones and UAVs : ideal for high-quality flight recording.
  • Monitoring systems : suitable for recording images over long distances.
  • Hobby and Educational Projects : Great for experimenting and learning, especially on the Raspberry Pi platform.
  • Vision systems : used in industrial applications for image analysis and automation.

In our offer you will also find compatible lenses and camera tapes and housings .

16 MPx IMX519 Camera - with M12 Wide Angle Lens - for Raspberry Pi and OpenHD - ArduCam B0449

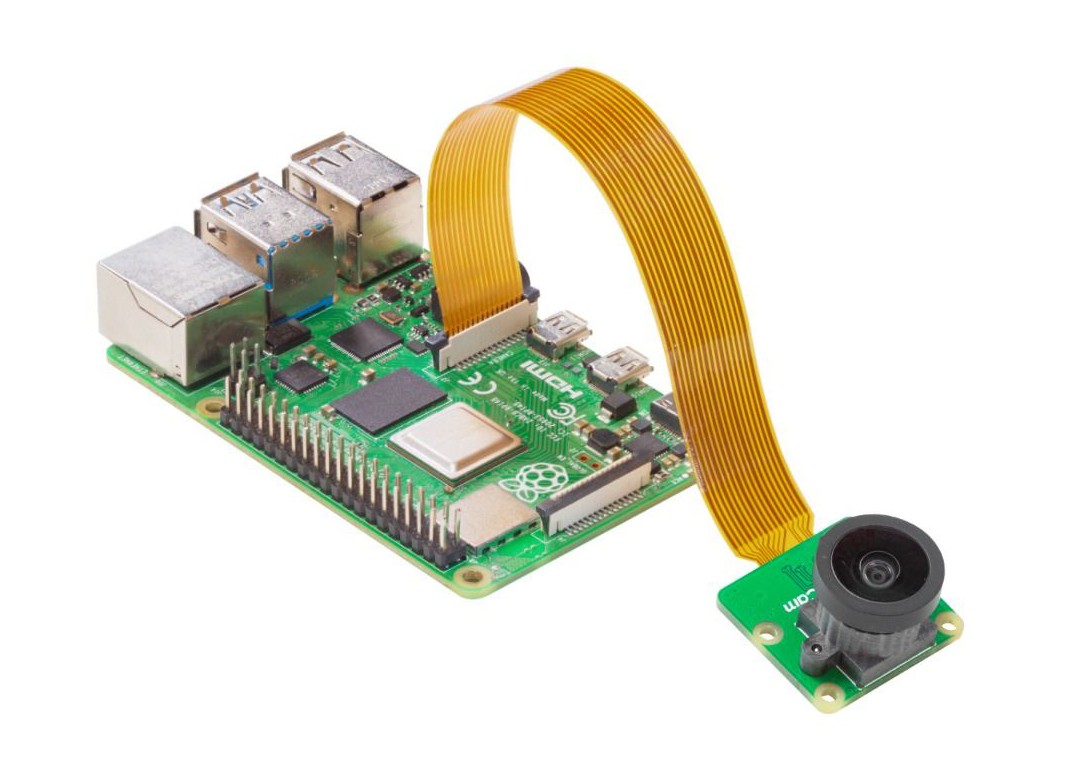

The module is compatible with all Raspberry Pi and OpenHD platforms.

What is OpenHD?

OpenHD is an advanced video transmission platform that allows high-resolution video transmission over long distances using standard radio modules. With OpenHD support, the Arducam camera can be used in drones and other mobile systems where stable and high-quality video transmission is crucial.

Technical specification

  • Sensor: Sony IMX519
  • Matrix: 16 MPx
  • Resolution: 4656 x 3496 px
  • Pixel size: 1.22 x 1.22 µm
  • Optical size: 1/2.53"
  • IR filter: integrated
  • Maximum image resolution and fps:
    • 1080px @ 30fps
    • 720px @ 60fps
  • Output data format: RAW8 / RAW10 / COMP8
  • Lens: M12, wide-angle, interchangeable
  • Shutter type: Rolling Shutter
  • Focus setting: manual focus
  • Focal ratio: 2.85 ± 5%
  • Focal length: 2.87 ± 5%
  • Field of View (FOV): 122° x 110° x 94°
  • Lens size: M12
  • IR Sensitivity: Integrated IR-cut filter, visible light only
  • Compatibility: Raspberry Pi 5 / 4B / 3B+ / 3A+ / Zero / Zero 2W (Additional adapter board required for Raspberry Pi CM3 / CM3+ / CM4)
  • Dimensions: 25 x 24 mm

Kit Contents

  • 1x 16MPx IMX519 Camera - with M12 wide-angle lens - for Raspberry Pi and OpenHD - ArduCam B0449
  • 1x FPC 22-pin cable
  • 1x FPC 15-pin Cable
  • 1x User Manual
16 MPx IMX519 Camera - with M12 Wide Angle Lens - for Raspberry Pi and OpenHD - ArduCam B0449

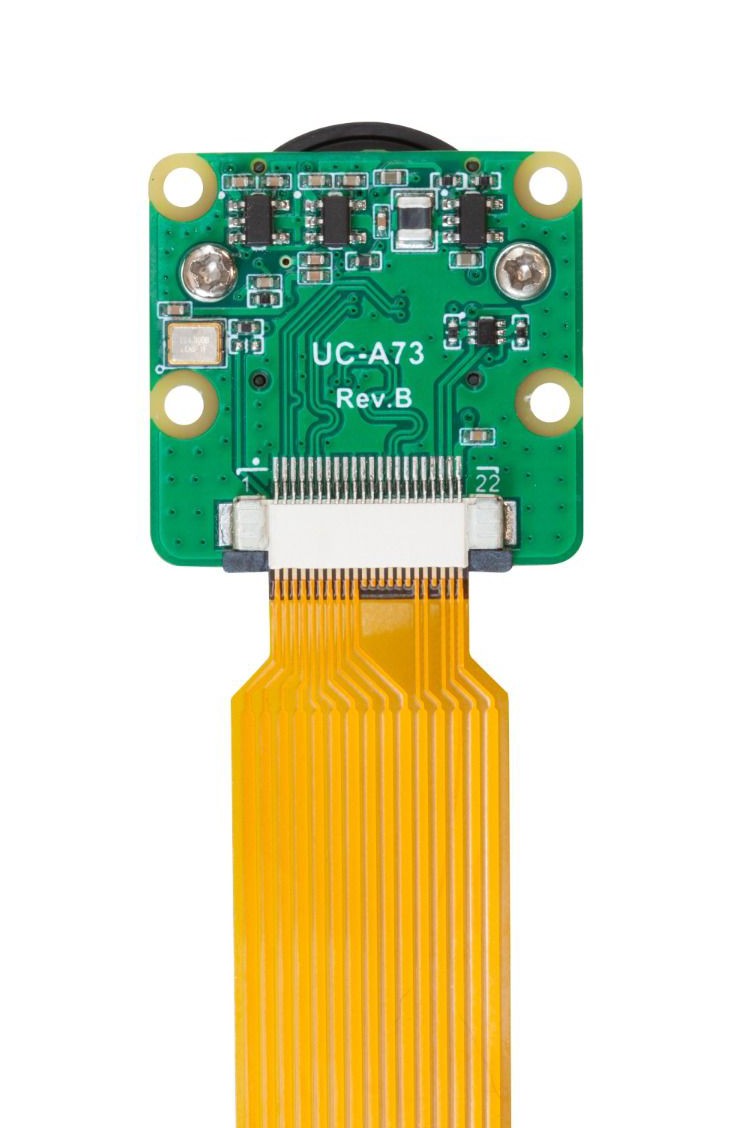

The kit includes cables for connecting the module.

Interface CSI - Raspberry Pi
Resolution 16 MPx
Camera - matrix IMX519
Camera - IR filter Yes
Camera - lens M12x0.5
Camera - format 1/2,53 ''
Camera - type module
Package width 4.3 cm
Package height 4.5 cm
Package depth 4.1 cm
Package weight 0.015 kg
