Pivistation 5 Klarity Lite - IMX283 20MPx camera with M16 lens - for Raspberry Pi 5 - ArduCam B0502
The Arducam Pivistation 5 Klarity Lite is a complete kit for machine vision projects , designed to work with the Raspberry Pi 5. Equipped with a high-quality IMX283 camera with a resolution of 20 MPx with a 16 mm C-mount lens, it provides exceptional sharpness and image detail. The set includes a 32 GB microSD card with pre-installed software (OpenCV, TensorFlow, PyTorch), allowing you to start working immediately. A solid housing with active cooling guarantees stable operation. Raspberry Pi 5 is not included in the set.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Pivistation 5 Klarity Lite - IMX283 20 MPx camera with M16 lens - for Raspberry Pi 5 - ArduCam B0502
The ArduCam Pivistation 5 Klarity Lite is a versatile kit for advanced image analysis , designed for Raspberry Pi 5 users. Equipped with a high-quality Sony IMX283 sensor with a resolution of 20 MPx and a precise 16 mm C-mount lens , it allows you to record detailed and sharply contrasting images. The camera supports various recording modes, including 1080p at 50 fps and 720p at 120 fps. The set includes a 32 GB microSD card with a pre-installed system and software , which allows you to quickly start working without additional configuration. The housing with active cooling and holes for a tripod ensures stability and mobility. It is a perfect solution for projects based on artificial intelligence, face recognition, fatigue detection or automatic image analysis.
Attention!
The Lite version does not include a Raspberry Pi 5. The minicomputer must be purchased separately.
Pivistation 5 Klarity Lite - IMX283 20 MPx camera with M16 lens - for Raspberry Pi 5 - ArduCam B0502.
Botland is an official distributor of Arducam cameras, lenses and accessories in Poland. The brand's leading electronics complement the Raspberry Pi and Arduino platforms perfectly. Our range holds original Arducam products only.

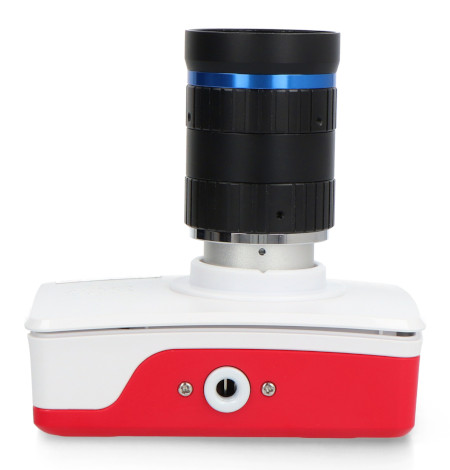

The housing allows the camera to be mounted on a tripod. The tripod is not included.
Key Features of Pivistation 5 Klarity Lite
- Professional image quality : Sony IMX283 matrix (20 MPx) guarantees detailed and sharp photos
- 16mm C-mount lens : provides a wide field of view and high image precision
- Ready to use : 32GB microSD card with pre-installed system and software
- High performance : supports resolutions of 5472 x 3648 px at 6 fps, 3840 x 2160 px at 8 fps, 2732 x 1538 px at 25 fps, 1080p at 50 fps and 720p at 120 fps
- Advanced software : supports OpenCV, TensorFlow, PyTorch, libcamera
- Stable housing : housing with cooling and tripod holes for mobility
- Compatibility : Designed to work with Raspberry Pi 5 (not included)
Camera applications in practice
ArduCam Pivistation 5 Klarity Lite is suitable for a variety of projects, such as:
- Facial recognition and emotion detection - ideal for AI projects and automatic monitoring
- Image analysis and anomaly detection - useful in quality control and security systems
- Object recognition - use in robotics and intelligent systems projects
- Vision systems for IoT - possibility of integration in intelligent solutions
- Research and development - a great tool for scientists and students

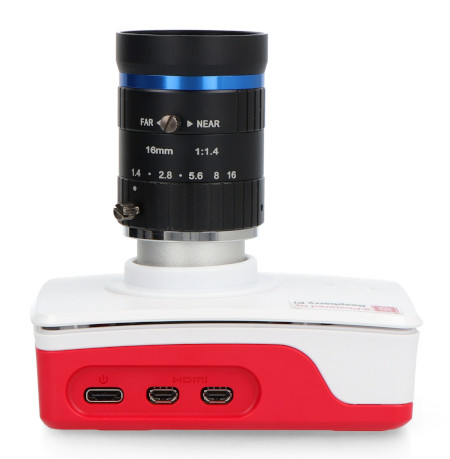

The Pivistation 5 has a USB Type-C socket and miniHDMI ports.
The set includes a 32 GB microSD card.
Pivistation 5 Software
The Pivistation 5 Klarity Lite is ready to go right out of the box with a 32GB microSD card pre-installed with Raspberry Pi OS (Bookworm) and image analysis tools. Software includes OpenCV-Python, TensorFlow, PyTorch, libcamera and rpicam-apps , allowing you to seamlessly implement your computer vision projects. Simply insert the card into your Raspberry Pi 5 and get started - no additional configuration required.
Camera Technical Specifications
- Sensor: Sony IMX283
- Resolution: 20MPx
- Color Filter Type: Color
- Shutter: Rolling shutter
- Pixel size: 2.4μm x 2.4μm
- Optical format: 1''
- Sensor output format: RAW10
- Platform Output Format: JPEG/YUV/RGB/RAW10
- Maximum Resolution: 5472 (H) x 3648 (V) @ 6 fps
- Lens: C Mount
- Focus type: manual focus
- Viewing angle (FOV): 60° (D) x 49° (H) x 38° (V)
- Lens Brightness (F.NO): F1.4-16
- Effective focal length (EFL): 16 mm
- Focus range: 5m to ∞
- IR Filter: Built-in IR-cut filter (visible light only)
- Case: Official Raspberry Pi case with cooling fan
- Operating voltage: 5V +/- 5%
- Power consumption: 7.5 W
- Compatibility: Raspberry Pi 5
- Supported Operating Systems: Bookworm
- Pre-installed software:
- OpenCV-Python, TensorFlow, PyTorch
- Libcamera, RPicam-apps
- C++ application development environment
- Camera-streamer, ArduCam camera server
- Camera module dimensions: 38 x 38 mm
- Dimensions of the complete set: 99 x 70 x 101 mm
Contents of the set
- 1x ArduCam Klarity Lite Camera
- 1x Raspberry Pi Case with Cooling Fan
- 1x 32GB SD card with pre-installed software
Items included in the set.
Useful links
- Manufacturer's website
- User Guide
- Raspberry Pi Camera Review
| Name | Value |
|---|---|
| Camera - matrix | IMX283 |
| Camera - IR filter | Yes |
| Camera - lens | C-mount |
| Camera - format | 1 " |
| Camera - type | module |
| Width | 11.5 cm |
| Height | 13 cm |
| Depth | 6.5 cm |
| Weight | 0.359 kg |
