Description: Arducam spy camera OV5647 5Mpx 1/4" for Raspberry Pi Zero
A small camera module integrated with a flexible connection tape that connects the camera to our Raspberry Pi Zero, this type of solutionallows you to reduce the space thatour project takes up.The module is based on the OV5647 sensorwith5 Mpx resolution and 1/4"diagonal. The viewing angle of the camera is160°.The camera has an integratedIRfilter.

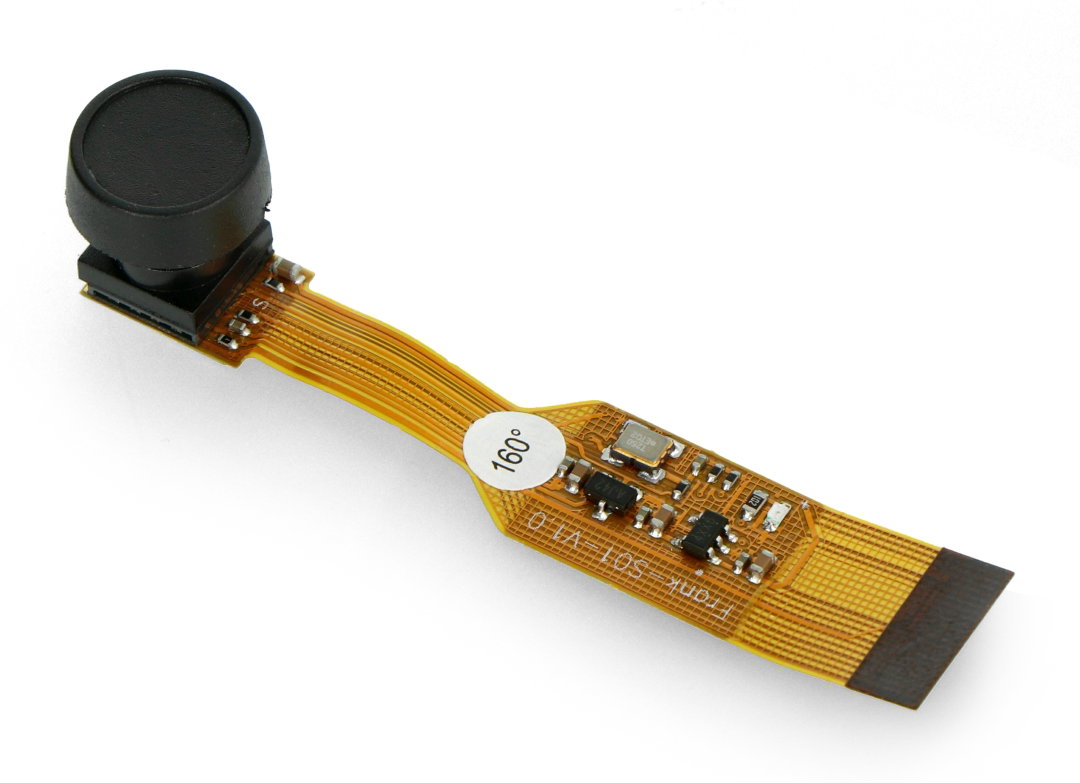

Spy camera module integrated with connection tape.
Mounting and configuration of the camera with Raspberry Pi mini-computers
Video showing how to connect the camera module with Raspberry boards and perform basic configuration.
Module specification
- Sensor: OV5647
- Resolution: 5 Mpx
- Diagonal: 1/4"
- Viewing angle: 160° (D)
- Maximum photo resolution: 2592x 1944 px
- Maximum video resolution: 1080p
- Frame rate: 30 fps at 1080p, 60 fps at 720p, 60/90 fps at 640 x 480p
- Equipped with IR filter
- Focus type: fixed
- Connector: 15-pin MIPI CSI
- Tile size: 60 x 11.5 mm
