Product description: OV5693 5 MPx USB camera - Auto-Focus - compatible with Raspberry Pi and Jetson Nano - Waveshare 24710
The Waveshare module is an advanced camera equipped with an OV5693 sensor and a USB 2.0 interface . The device offers a static image resolution of 2592 x 1944 pixels and support for Auto-Focus. It has an f/2.1 aperture and a focal length of 2.5 mm , and provides a wide field of view of 135° (D), 95° (H), 70° (V) . It supports MJPG and YUY2 formats , with the ability to record video in various resolutions, from 640 x 480 to 2592 x 1944 pixels , with frame rates from 3 to 15 FPS depending on the format and resolution. It operates at a voltage of 5 V and consumes a current of 500 mA. The small size of the camera and module makes this component highly compact and versatile for a variety of applications.
All necessary information about the product can be found on the manufacturer's website.

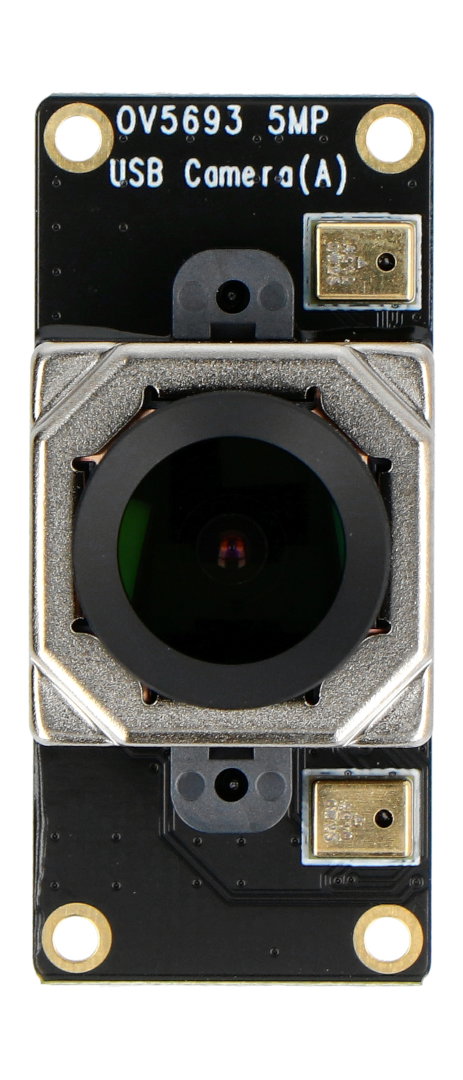

OV5693 5 MPx USB camera - Auto-Focus - compatible with Raspberry Pi and Jetson Nano - Waveshare 24710.
The camera has an OV5693 sensor, which provides a resolution of 5 MPx.
Main features of the camera
- It provides high image quality thanks to the OV5693 sensor with a resolution of 5 megapixels
- It allows you to record video in various resolutions and formats, including MJPG and YUY2
- It has Auto-Focus for better image and video quality
- Offers a wide field of view with an angle of 135° (D), 95° (H), 70° (V), thanks to the f/2.1 aperture and 2.5 mm focal length
- Works with a USB 2.0 interface, ensuring easy connection to computers and other devices
- It is equipped with a compact size, which makes it easy to integrate into various projects and systems
OV5693 sensor
The OV5693 sensor in the camera is an advanced component that allows you to record images in high resolution of 5 megapixels . Its use guarantees high image quality, good performance in various lighting conditions and precise color reproduction. This is a key element of the camera that is responsible for processing visual input data.
Compatible with Raspberry Pi and Jetson Nano
The OV5693 5 MPx USB camera is compatible with popular development platforms - Raspberry Pi and Nvidia Jetson Nano . This means it can be easily integrated with these platforms to implement a variety of projects , from simple applications to more complex embedded systems and IoT solutions.
Also check out other Waveshare products available in our offer.
The product offers an automatic focus function.

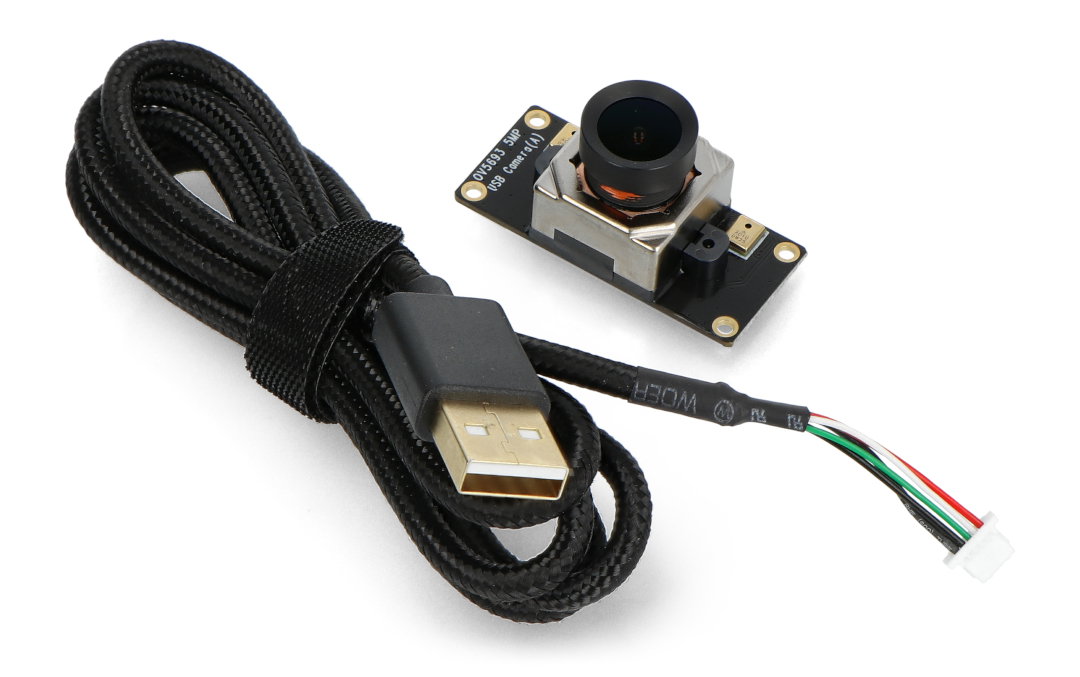

Set contents.Technical specifications of the camera
- Sensor resolution: 5 MPx
- Sensor type: OV5693
- Interface: USB 2.0
- Camera sensor size: 1/4 inch
- Aperture (F): 2.1
- Focal length (EFL): 2.5 mm
- Field of view (FOV): 135° (D), 95° (H), 70° (V)
- Focusing features: Auto-Focus
- Supported image formats: MJPG, YVY2
- Static image resolution: 2592 x 1944 pixels
- Video recording resolutions:
- MJPG: 2592 x 1944 15 FPS, 1920 x 1080 15 FPS, 1280 x 720 15 FPS, 640 x 480 15 FPS
- YUY2: 2592 x 1944 3 FPS, 1920 x 1080 5 FPS, 1280 x 720 10 FPS, 640 x 480 15 FPS
- Working voltage: 5V
- Operating current: 500 mA
- Camera dimensions: 18 x 18 x 19.69 mm
- Module dimensions: 18 x 40 mm
