Camera HD F Night Vision OV5647 5Mpx - IR with focus adjustment for Raspberry Pi + IR modules - Waveshare 10299
Camera module with adjustable focus connected to the special connector of minicomputer Raspberry Pi version 3, 2, B+, A+ and older A and B. The device has a matrix CCD 1/4" with the resolution of 5 Mpx, supports mode HD 1080p. Thanks to the included modules IR with power of 3 W, allows you to record at night.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Camera module with adjustable focus connected to the special connector of minicomputer Raspberry Pi version 3, 2, B+, A+ and older A and B. The device has a matrix CCD 1/4" with the resolution of 5 Mpx, supports mode HD 1080p. Raspberry Pi has hardware support for this camera so the device does not consume CPU resources.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
Thanks to the included modules of the IR illumination 850 nm, with a power of 3 W, kit allows you to record at night, even in very dark places. This version has the ability to change focus, that is, to change focus using the knob on the lens.
A detailed description of the device can be found inthe user guide Wikiand in the documentation. |
Specification
- Camera compatible with Raspberry Pi version 3, 2, B+, A+ and older A and B
- Matrix: 5 MPx
- Sensor: OV5647
- CCD Matrix: 1/4 "
- Aperture: 1,8
- Focal length: 3.6 mm
- The ability to adjust the focus (Adjustable-Focus)
- The ability to change focus using the knob on the lens
- Angle of view - diagonal: 75,7 °
- Has 4 mounting holes
- Dimensions: 25 x 24 mm

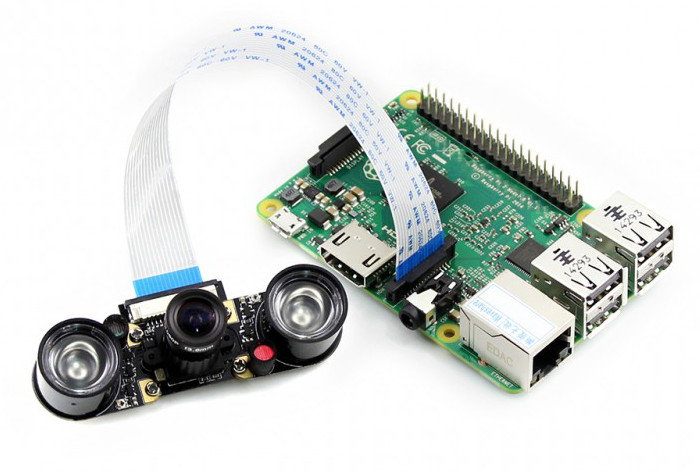

Included
- Camera 5 MPx
- Tape to connect to the Raspberry Pi
- 2 x IR backlight modules with power of 3 W
- Mounting screws
A video showing how to connect the camera to minicomputer.
Useful links
| Name | Value |
|---|---|
| Interface | CSI - Raspberry Pi |
| Resolution | 2592x1944px |
| Camera - matrix | 5Mpx OV5647 |
| Camera - IR filter | No |
| Camera - format | 1/4 '' |
| Camera - type | module |
| Width | 7 cm |
| Height | 11 cm |
| Depth | 3 cm |
| Weight | 0.034 kg |
