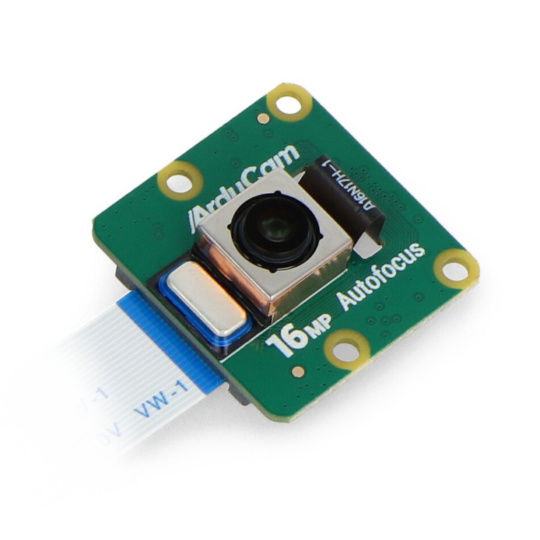

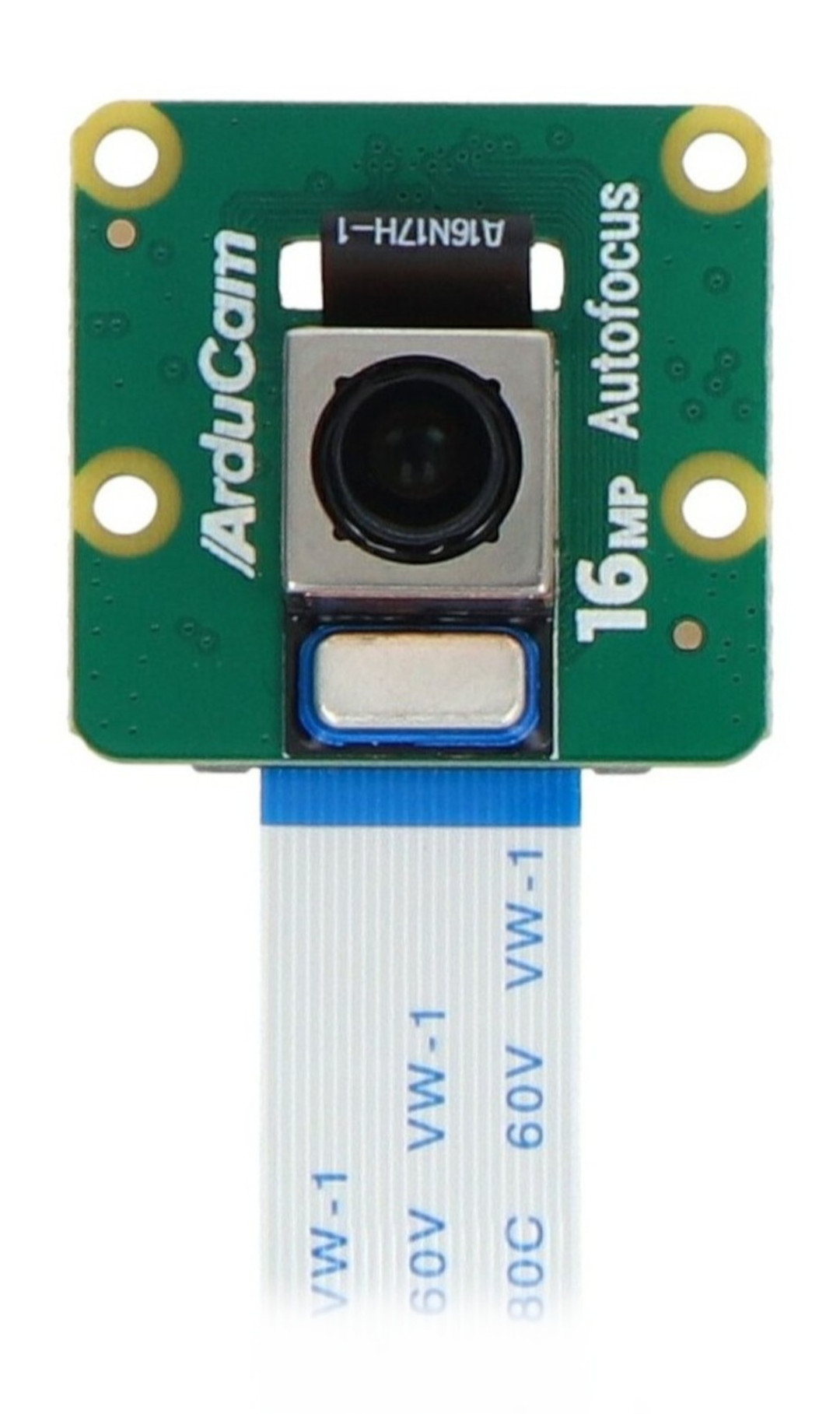

Product description: Sony IMX519 16 Mpx camera - with autofocus - for Raspberry Pi and Nvidia Jetson Nano - ArduCam B0371
The ArduCam camera is equipped with a Sony IMX519 sensor with a 16 Mpx matrix. The module has an autofocus lens and a high image resolution of 4656 x 3496 px. The focusing range is from 100 mm to infinity . The camera module is equipped with a MIPI CSI interface, making it compatible with microcontrollers such as the Raspberry Pi and Nvidia Jetson Nano.
Contents of the set
- Sony IMX519 16 Mpx camera - with autofocus - for Raspberry Pi and Nvidia Jetson Nano - ArduCam B0371

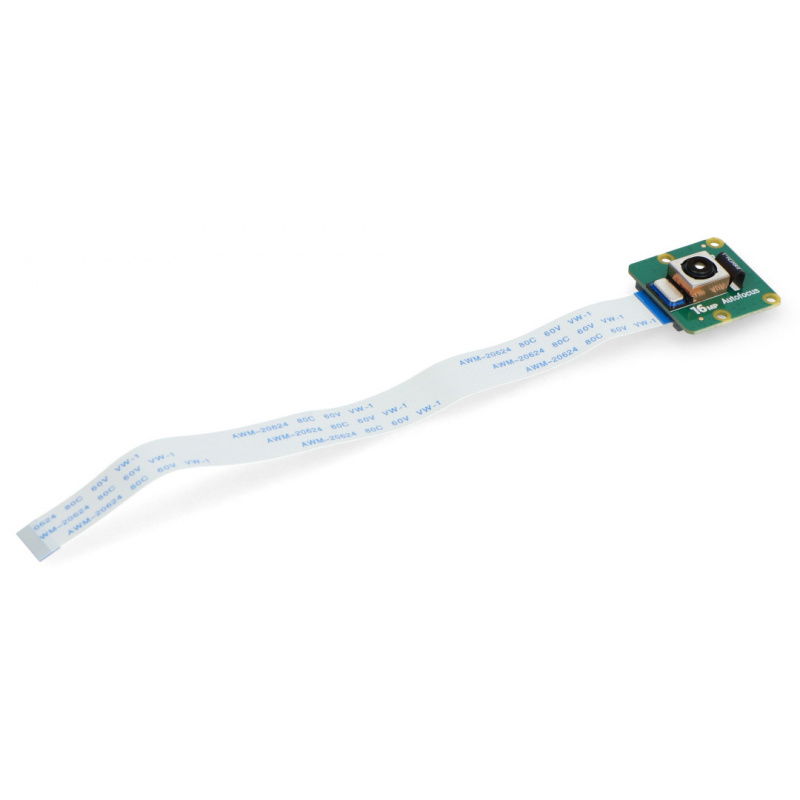

- 150mm long FPC cable
Sony IMX519 16 Mpx camera - with autofocus - for Raspberry Pi and Nvidia Jetson Nano - ArduCam B0371.
The set does not include a housing.
Camera technical specifications
- Compatible with Raspberry Pi and Nvidia Jetson Nano
- Sensor: Sony IMX519
- Matrix: 16 Mpx
- Resolution: 4656 x 3496 px
- Pixel size: 1.22 x 1.22 µm
- Data format: RAW8 / RAW10 / COMP8
- Optical size: 1/2.5"
- Built-in autofocus
- Focusing range: 100 mm to infinity
- EFL: 4.28
- FoV: 80°
- IR filter: integrated
- Maximum image resolution and fps:
- 1080 px at 30 fps
- 720 px at 60 fps
