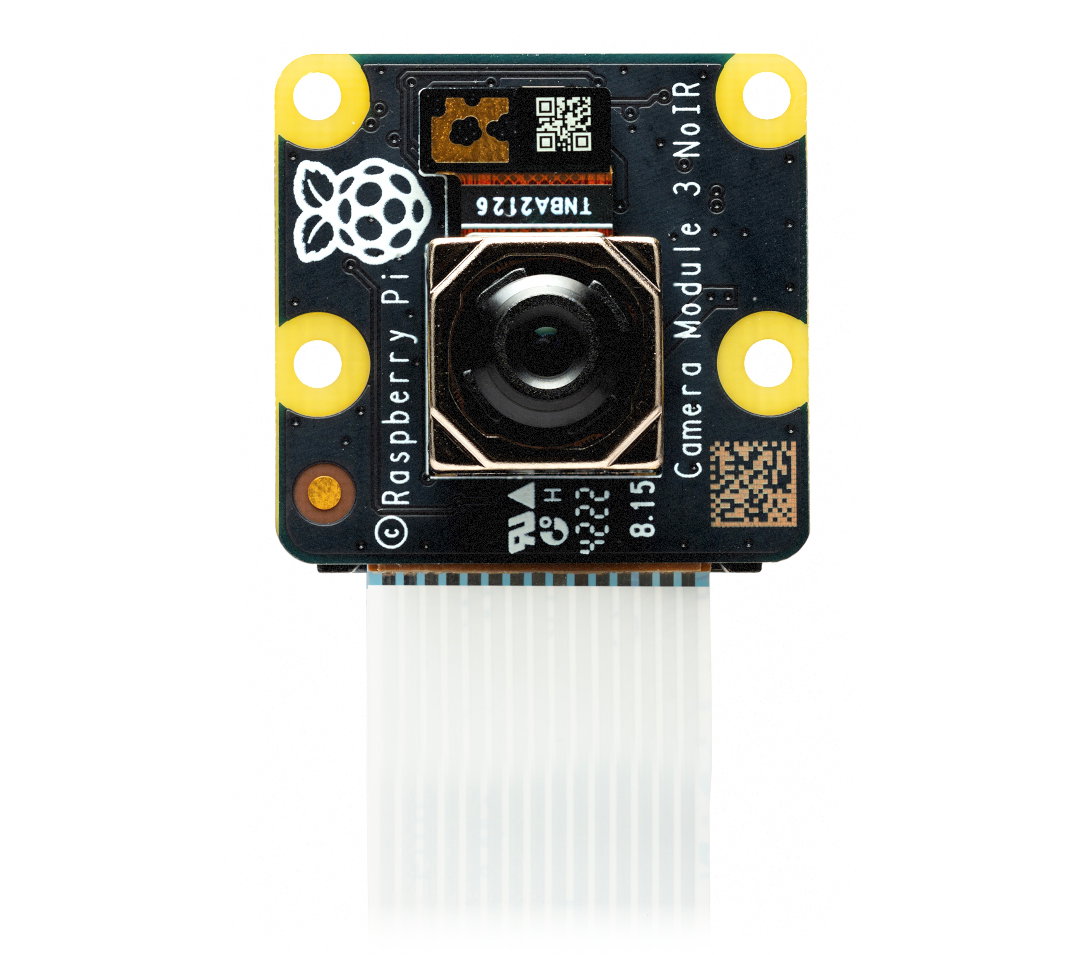

Product description: Raspberry Pi NoIR Camera HD v3 12MPx - original camera for Raspberry Pi
Raspberry Pi NoIR Camera HD v3 is a camera module that is not equipped with an IR filter. The camera without the IR filter allows you to record images after dark and in very dark rooms. The module has a Sony IMX708 sensor with a resolution of 12 MPx . The third version of the official Raspberry Pi camera supports high dynamic range (HDR - High Dynamic Range) and autofocus, the sensitivity in low light has also been improved. The camera's angle of view (FoV) is 76° . Raspberry Pi minicomputers have hardware support for the official cameras of the Raspberry Pi foundation, thanks to which it does not consume the computing power of the processor. Appropriate drivers for the camera have been implemented in the Raspberry Pi OS system, thanks to which there is no need to install them yourself, and the configuration of the camera itself is simple and user-friendly. In our offer you will also find a night camera with a larger viewing angle of up to 120 °, a camera with an IR filter and a camera with an IR filter with a larger viewing angle .
To use this camera with the Raspberry Pi Zero, it is necessary to purchase the appropriate adapter. The Raspberry Pi 5 also requires a special tape to connect the camera.
Official NoIR Raspberry Pi Camera v3.Our store's offer also includes housings, holders and connecting tapes of various lengths for Raspberry Pi cameras. We also recommend HQ cameras with C-mount and M12 lenses.
Simple setup and full compatibility with Raspberry Pi
The third installment of the popular camera from the Raspberry Pi foundation is fully compatible with the drivers found in the latest version of the Raspberry Pi OS (previously known as Raspbian). By choosing the official Raspberry Pi camera, you can count on full support in the field of documentation, guides and programming libraries, as well as a large community.
How to run the Raspberry Pi camera?
In order to run the camera from the Raspberry Pi minicomputer, connect it to the CSI connector on the board, run the camera interface via raspi-config and run the appropriate command from the terminal to take a photo or record a video, e.g. raspistill.
Main Features of Raspberry Pi Camera v3
- 12-megapixel Sony IMX708 CMOS sensor
- High signal-to-noise ratio (SNR)
- Built-in 2D Dynamic Pixel Defect Correction (DPC)
- Phase Detection Autofocus (PDAF) for fast autofocus
- QBC re-teasing function
- HDR mode (output up to 3 megapixels)
- CSI-2 serial data output
- 2-line serial communication (supports I2C fast mode and fast mode plus)
- 2-line serial control of the focus mechanism
Raspberry Pi NoIR Camera HD v3 specification
- Sensor: Sony IMX708
- Matrix resolution: 11.9 MPx
- Sensor size: 7.4 mm diagonal
- Focal length: 4.74mm
- Pixel size: 1.4 x 1.4 μm
- Resolution: 4608 x 2592 px
- Video modes: 1080p50, 720p100, 480p120
- Output: RAW10
- Viewing angle: 75°
- Aperture: F1.8
- Focus setting: autofocus
- Focus range: from 10 cm to infinity
- HDR: yes
- IR filter: yes
- Belt length: 200 mm
- Connector: 15x1mm FPC
- Dimensions: 25x24x11.5mm
Raspberry Pi NoIR Camera HD v3 12MPx - original camera for Raspberry Pi.
