5MPx OX05B1S RGBIR Global Shutter camera + USB 3.0 adapter - ArduCam EK039
Arducam camera equipped with OX05B1S image sensor with 5 Mpx matrix, global shutter and RGBIR . Supports resolution up to 2592 x 1944 px at 30 fps and has USB 3.0 adapter for fast data transmission. Equipped with M12 lens with low level of distortion, provides wide angle of view (94°). Camera module supports Python / C++ and Windows, facilitating integration with ARM / FPGA / DSP systems.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 5MPx OX05B1S RGBIR Global Shutter camera + USB 3.0 adapter - ArduCam EK039
The ArduCam 5MPx camera module is an advanced tool for evaluating and prototyping vision applications such as object detection systems, cabin monitoring, and machine vision. The module is based on the OX05B1S image sensor with global shutter and RGBIR , offering the best quantum efficiency in the 940 nm range . The camera supports resolutions up to 2592 x 1944 px at 30 fps and uses a fast USB 3.0 interface, enabling integration with various hardware platforms.The M12 lens with a 3.6 mm focal length provides a wide field of view (94°) and low distortion (< -0 ,35%). The camera is supported by Arducam GUI and SDK tools, making it easy to configure parameters such as white balance or exposure time. Thanks to its versatility, the camera can be used in systems built on ARM, FPGA or DSP.
There is a user guide on the manufacturer's website that will help you install drivers for the USB adapter.
5MPx OX05B1S RGBIR Global Shutter camera + USB 3.0 adapter - ArduCam EK039.
Botland is an official distributor of Arducam cameras, lenses and accessories in Poland. The brand's leading electronics complement the Raspberry Pi and Arduino platforms perfectly. Our range holds original Arducam products only.

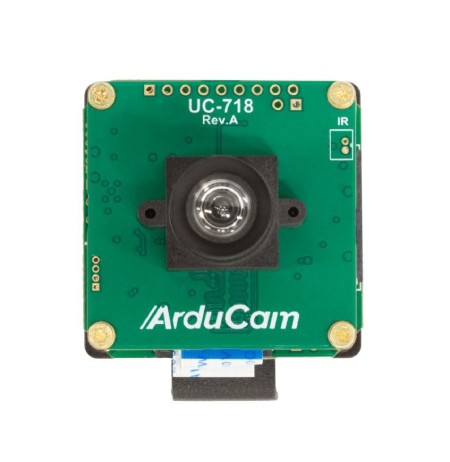

The camera is equipped with a precision M12 lens with low distortion.
Main camera features
- OX05B1S sensor : 5 MPx RGBIR with global shutter, optimized for NIR (940 nm) operation
- Fast USB 3.0 interface : enables lightning-fast data transfer
- M12 lens : low distortion, wide field of view (94°)
- Resolutions and speeds : 2592 x 1944 px at 30 fps, 1296 x 972 at 90 fps
- SDK and API : Python/C++, Windows and GUI support
- Low power consumption : 1.3W max at full performance
Camera Applications
- Object Detection : Ideal for image analytics and object recognition applications
- In-cabin monitoring : high infrared sensitivity supports driver monitoring systems
- Machine vision systems : used in industry for automation and visual inspection
- ARM/FPGA/DSP Platforms : Optimized for a wide range of hardware systems

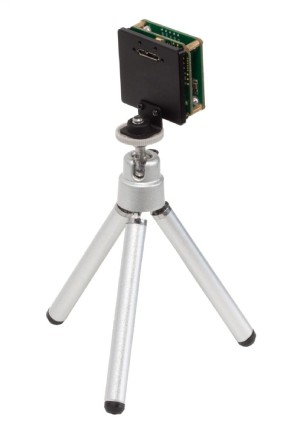

The camera has a tripod mount. The tripod is not included.

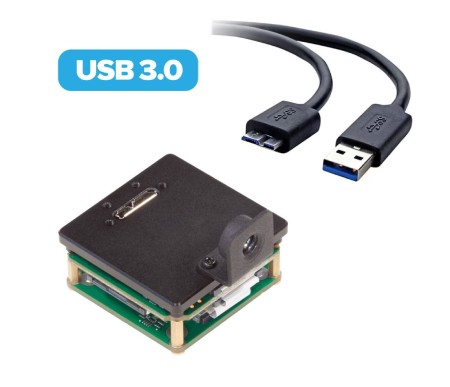

The USB 3.0 Camera Shield adapter supports fast data transfer.
Wide compatibility with USB 3.0
The USB 3.0 Camera Shield adapter is a key element of the kit that allows you to directly connect the camera module to your computer via USB . This allows you to easily adjust camera parameters (white balance, exposure, gain) using intuitive GUI software . The adapter supports fast data transfer and a variety of functions image processing, eliminating the need to write low-level code .
Technical specification of the ArduCam EK039 camera
- Sensor: OX05B1S
- Matrix: 5 MPx
- Resolution: 2592 x 1944 px @ 30 fps, 1296 x 972 px @ 90 fps
- Exposure control range: 12 µs to 33333 µs
- Gain Control Range: 1x to 15.9x
- Color filter type: RGB-IR
- Focal length: 3.6mm
- Field of view: 94°(D) x 81°(H) x 65°(V)
- Aperture: F2.8
- Focus type: manual
- Distortion: < -0.35%
- IR Sensitivity: No IR-cut Filter
- Power consumption: max. 1.3 W, min. 0.67 W
- Output format: RAW10
- File format: JPEG
- Supported programming languages: Python / C++
- Supported operating systems: Windows x86 / x86_64
- Operating temperature: 0°C to 50°C
- Dimensions: 40 x 40 mm

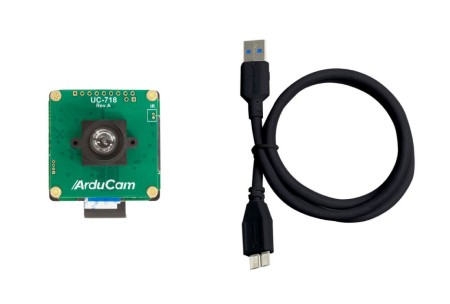

Kit Contents
- Arducam 5 MPx OX05B1S RGBIR Global Shutter with USB 3.0 Camera Shield Adapter and Tripod Mount
- 1m USB 3.0 cable
Items included in the set.
Useful links
- Manufacturer's website
- USB 3.0 Camera Shield User Manual
- Windows Driver Installation Instructions
- OX05B1S External Trigger Configuration Instructions
- (Not That Hard) Choosing a Camera for Your Raspberry Pi
| Name | Value |
|---|---|
| Resolution | 2592x1944px |
| Camera - matrix | OX05B1S |
| Camera - IR filter | No |
| Camera - lens | M12x0.5 |
| Camera - format | 1/2,5 '' |
| Camera - type | module |
