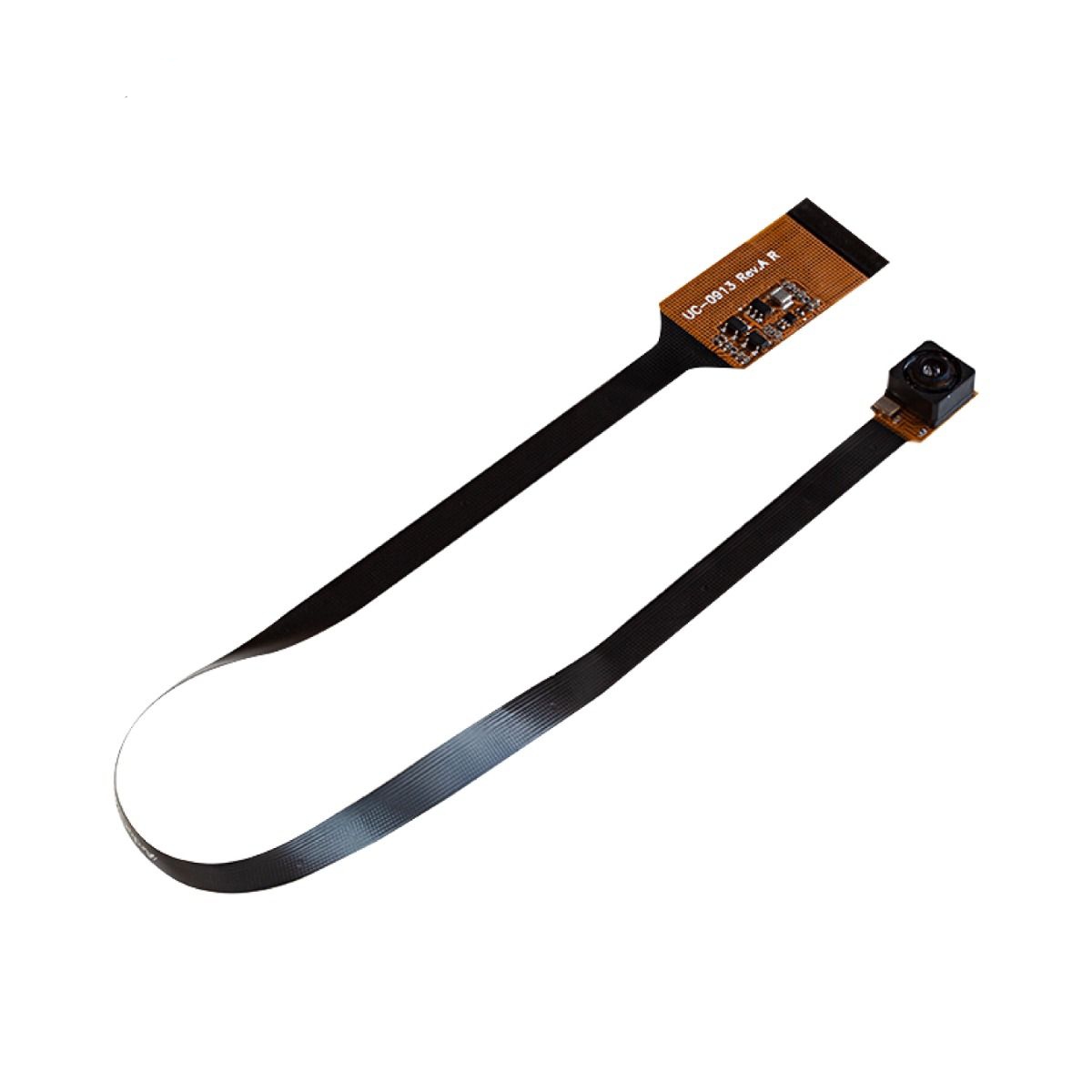

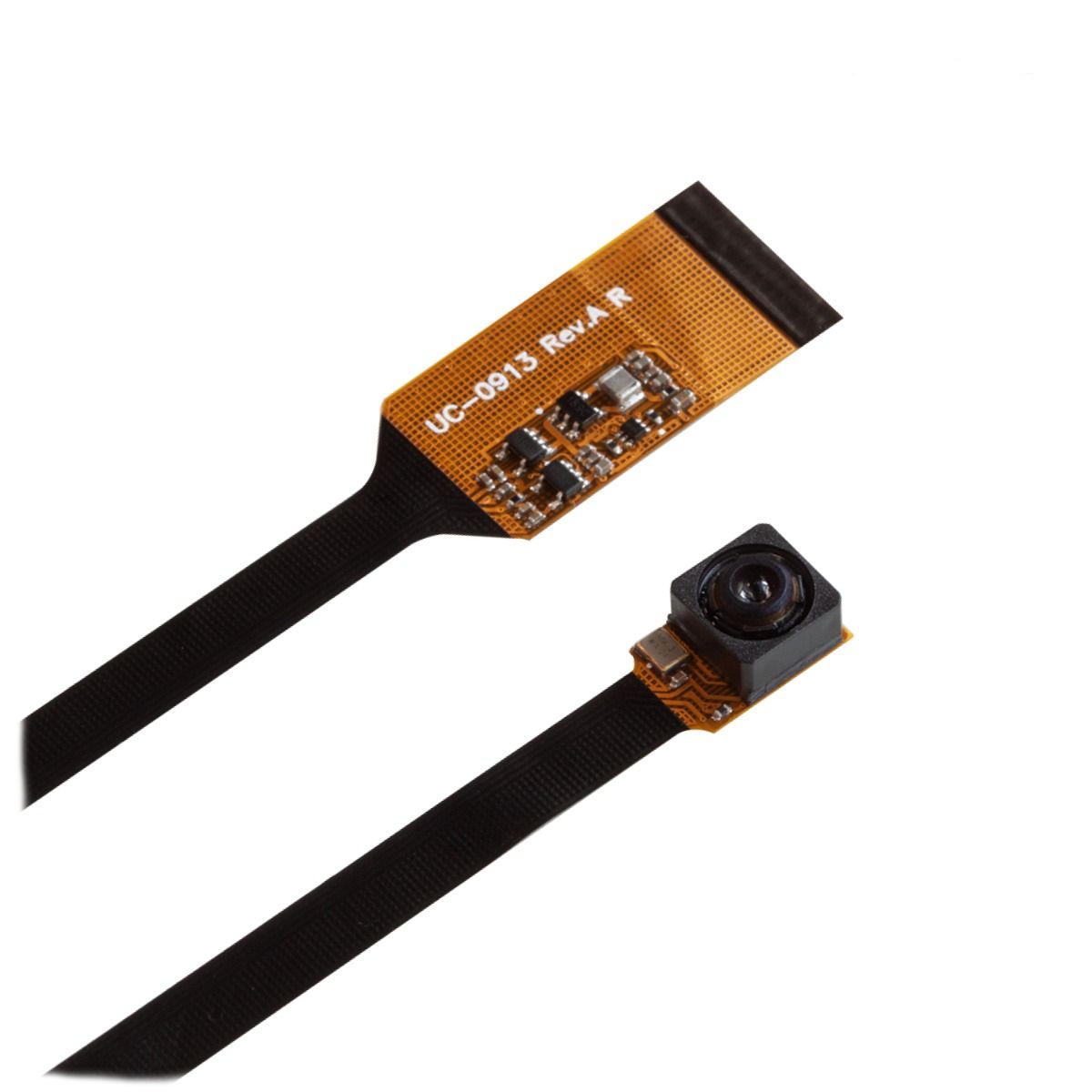

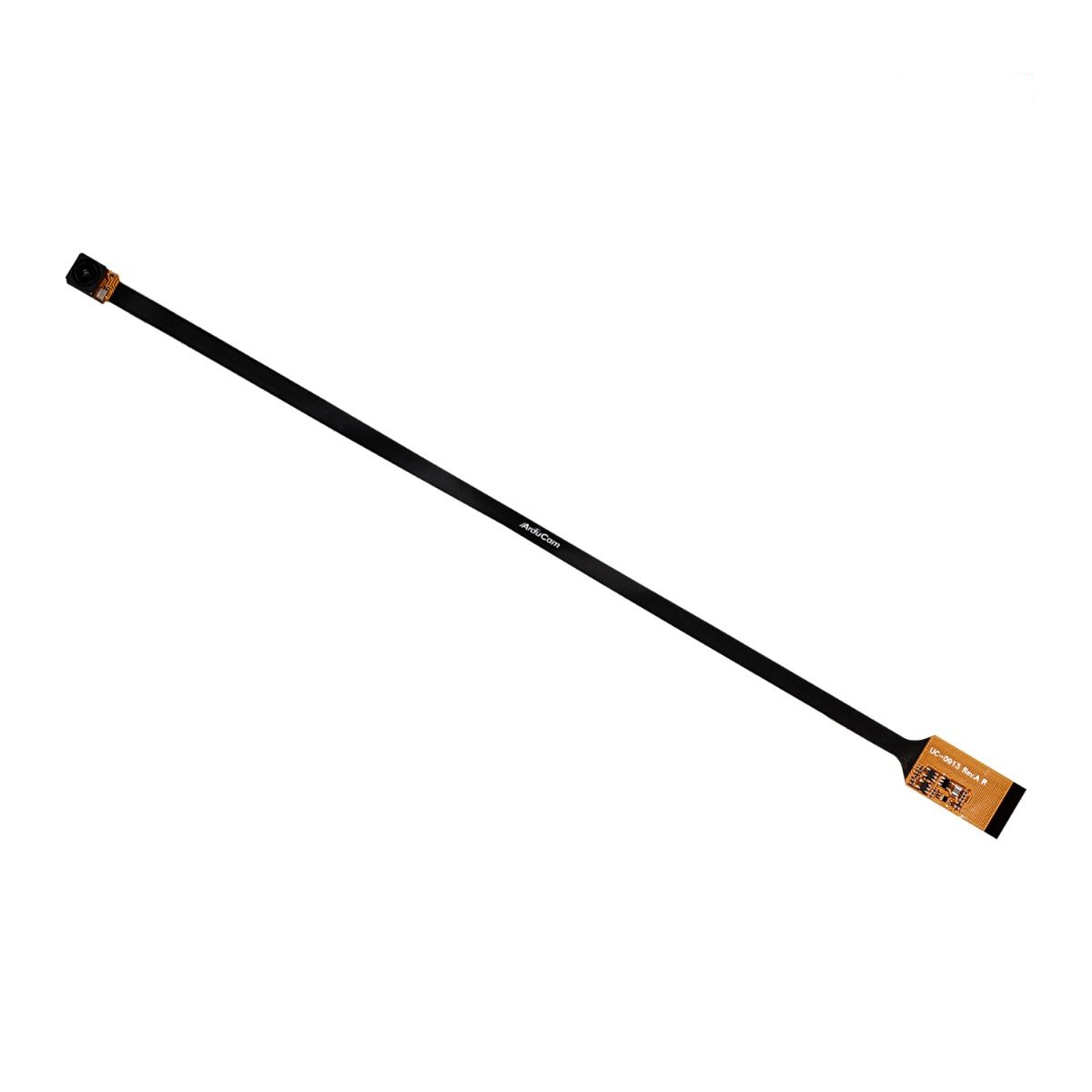

Product description: Sony IMX519 16Mpx camera module - for Raspberry Pi / Nvidia Jetson Nano / Xavier NX - ArduCam B0389
The 16 MPx mini camera with a Sony IMX519 sensor is an advanced accessory designed for Raspberry Pi and Nvidia Jetson Nano users who expect exceptional image quality and versatility in a compact package. The sensor offers a resolution of 4656 x 3496 px , which is twice the resolution of the v2 camera and 40% higher than the HQ camera. Thanks to this, photos and videos are characterized by incredible sharpness, clarity and natural colors, making it an ideal solution for both home and professional applications. The camera uses the MIPI CSI interface , which allows for fast data transfer directly to the Raspberry Pi processor.
Sony IMX519 16Mpx camera module - for Raspberry Pi / Nvidia Jetson Nano / Xavier NX - ArduCam B0389.
Photos and videos feature incredible sharpness, clarity and natural colors.Special features of the camera
- Simple integration - thanks to full compatibility with Raspberry Pi and Nvidia Jetson Nano, configuration is quick and hassle-free
- Versatile use - perfect for both simple DIY projects and advanced technical applications
- High image quality - thanks to 16 MPx resolution and a wide field of view, the camera is reliable in any environment
- Compact dimensions - small design is ideal for applications in limited space
- IR-Cut Filter - limited to visible light provides better image quality in standard lighting conditions
Versatile applications
- Monitoring and security - high image quality allows for precise recognition of details
- Robotics - small dimensions allow for installation in mobile robots
- IoT - the ability to integrate with IoT devices provides new opportunities for automation and data analysis
- DIY Projects - The camera is perfect for hobbyists who want to add video functionality to their devices
Versatility in a miniature version
Native compatibility with Raspberry Pi OS means the camera requires no complicated setup – just plug it into your MIPI CSI interface and get started. Both photos and videos are supported at 1080p at 30 fps and 720p at 60 fps. These capabilities make the camera suitable for applications that require smooth and detailed images, such as live streaming or real-time visual analysis.
High image quality enables accurate recognition of details.
Camera Technical Specifications
- Sensor: Sony IMX519

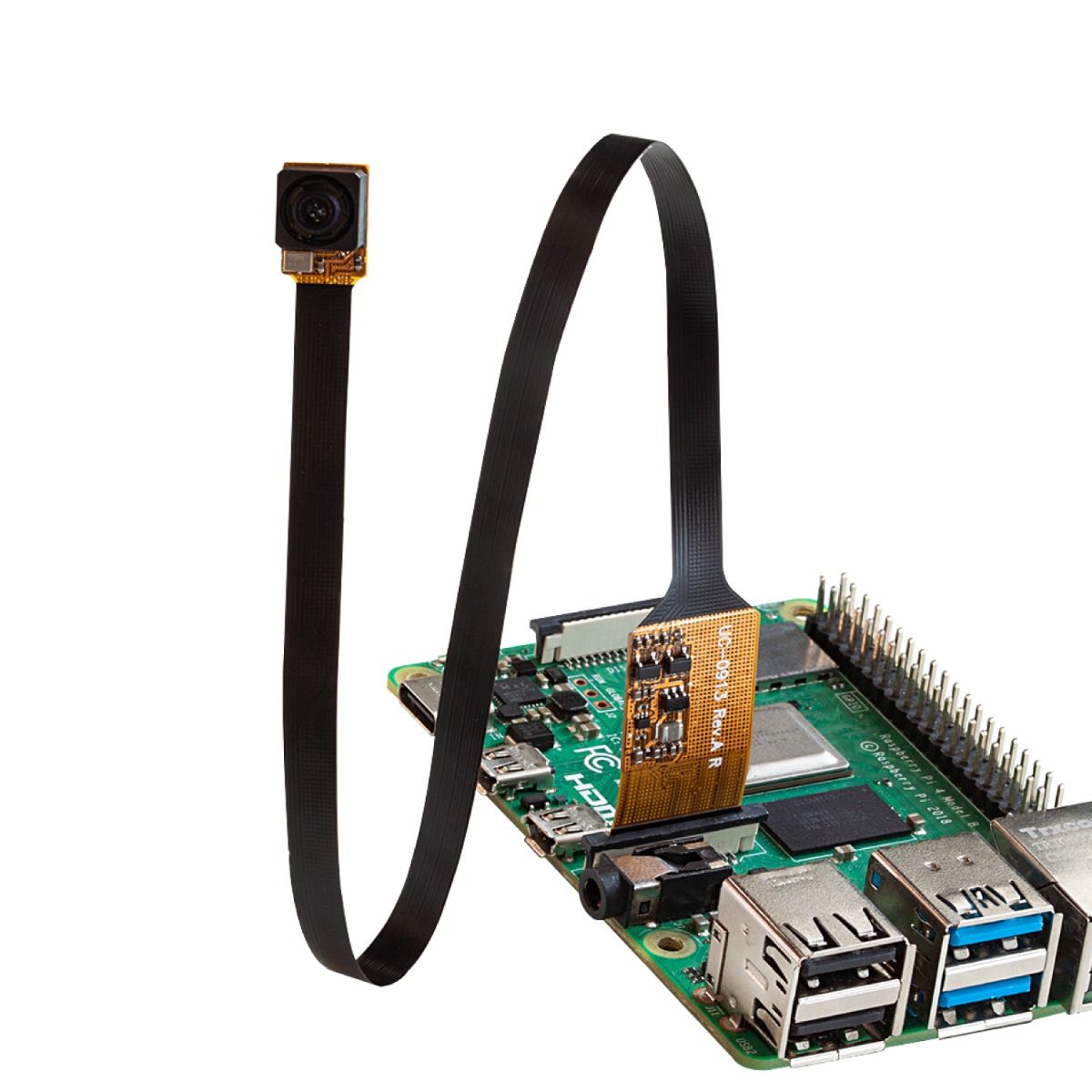

- Compatibility: All Raspberry Pi models with MIPI CSI interface, Nvidia Jetson Nano
- Resolution: 4656 x 3496 px
- Video modes:
- 1080p at 30 fps (Full HD)
- 720p@60fps (HD)
- Aperture: f/1.75
- Focal length: 4.28mm (EFL)
- Field of view: 66° (horizontal) x 49.5° (vertical) x 80° (diagonal)
- Pixel size: 1.22 x 1.22 μm
- Filter: IR-Cut
- Interface: MIPI CSI
- Data format: RAW10/8, COMP8
- Tape length: 300 mm
- Camera module width: 6 mm (at narrowest point)
- Dimensions: 30 x 16 mm
