Description of product: Set of quad camera 64 Mpx with autofocus for Raspberry Pi - Arducam B0402
A kit from Arducam that allows you to use up to four 64 MPx cameras with autofocus. Designed for minicomputers Raspberry Pi. By default, the product operates in a four-channel mode where all cameras are configured to capture photos or videos at exactly the same time. The kit includes four 64 MPx cameras, connection cables, an overlay for RPI - Camarray Hat and mounting screws.
Set of quad camera 64Mpx with autofocus for Raspberry Pi - Arducam B0402 .
Arducam B0402 presentation prepared by the manufacturer .
Illustrative photo. The set does not include the RPI and camera stands .
Supported operating modes
- Single channel (no synchronization): four cameras work sequentially, capturing images one by one. Each camera works with full resolution.
- Dual-channel (Synchronized): Two cameras combined into 1 full-resolution frame, working synchronously. 1/2 resolution for each camera.
- Four-channel (Synchronized): 4 cameras combined into 1 full-resolution frame, working synchronously. 1/2 resolution for each camera.
Additional information
- The four 64 MPx cameras included in the kit are designed exclusively for the Camarray Hat and can only be used with this cap. They will not work if they are connected directly to the Raspberry Pi.
- Arducam 64 MPx cameras can get maximum resolution and video streaming only on RPI 4B and RPI CM4 platforms. Camera resolution and video streaming will be limited on other Raspberry Pi platforms. For RPI 2/3 / CM3 / Zero / Zero 2W, the resolution is 16 MPx.
Specification of the quad camera set - Arducam B0402
- Optical size: 1 / 1.7 '' (9.25 mm diagonal; 7.4 x 5.55 mm)
- Focal length: manual / automatic
- Sensor resolution: 9152 x 6944 px
- Video mode (Raspberry Pi): 1080 px (30), 720 px (60) and 640 x 480 px (60/90)
- Video mode (camera module): 1280 x 720 @ 120 fps; 1920 x 1080 @ 60 fps; 2312 x 1736 @ 30 fps; 3840 x 2160 @ 20 fps; 4624 x 3472 @ 10fps; 9152 x 6944 @ 2.7 fps
- Color Filter: Quad Bayer Coding
- Supported platforms (full 64 MPx resolution): RPI 4B, RPI CM4
- Supported platforms (16 MPx resolution): RPI 2/3 / CM3 / Zero / Zero 2W
- Focal length: from 80 mm
- Focal Ratio (F-Stop): F1.8
- Focal length: 5.1 mm
- Viewing angle: 84 °
- Shutter Type: Rolling
- File output formats: JPEG, YUV, RGB, RAW10
- Dimensions: 25 x 24 mm

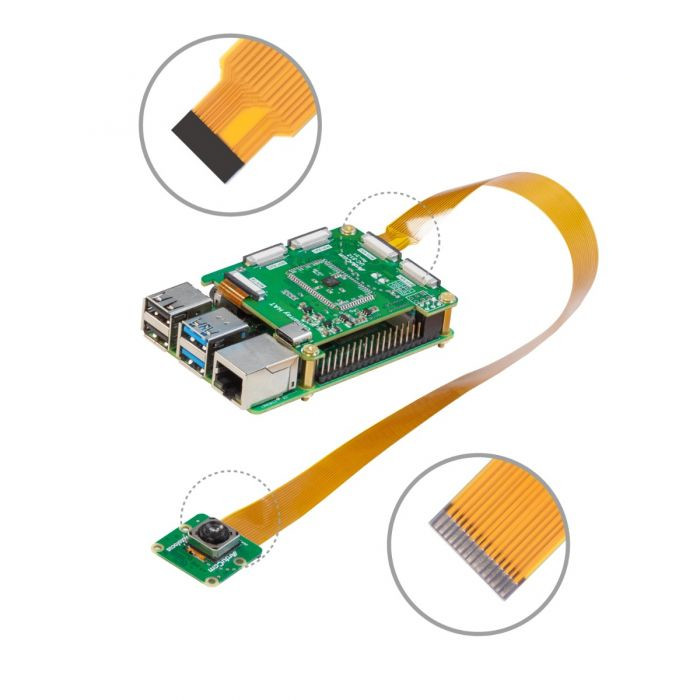

Connection example. Raspberry Pi is not included in the kit .
Elements included in the kit .
Kit contents
- Camera module 64 MPx: 4 pcs.
- UC-512 Camarray Hat: 1 pc.
- Camera cable 15 - 22 pins, 300 mm: 4 pcs.
- Camera cable 15 - 22 pins, 70 mm: 1 pc.
- Mounting screw set: 1 pc.
