Product description: 2 MPx OV2710 camera - day / night with automatic IR-CUT - USB 2.0 / UVC - ArduCam B0506
Modern USB camera from ArduCam , which provides excellent image quality thanks to the OV2710 CMOS matrix with a resolution of 2 MPx . The camera allows recording in Full HD 1080p resolution at 30 fps , which ensures smooth and clear video in various lighting conditions. Thanks to the built-in IR-CUT system and infrared diodes with a wavelength of 850 nm, the camera automatically switches between day and night mode , providing a clear image even in low light. It is equipped with a 105 ° wide-angle lens with an F1.6 aperture , which provides excellent light sensitivity, allowing you to capture small details throughout the frame. Thanks to compliance with the UVC protocol , the camera is easy to connect to PCs, laptops, Android devices and Raspberry Pi , without the need to install additional drivers. Thanks to the plug and play function, the camera is ready to use immediately after connection.
2 MPx OV2710 camera - day / night with automatic IR-CUT - USB 2.0 / UVC - ArduCam B0506.

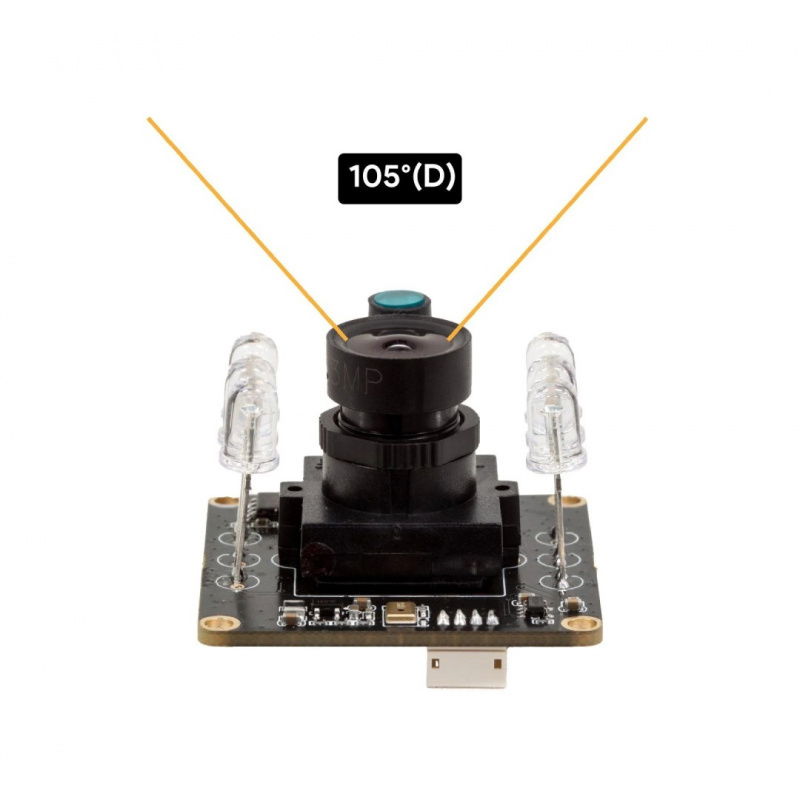

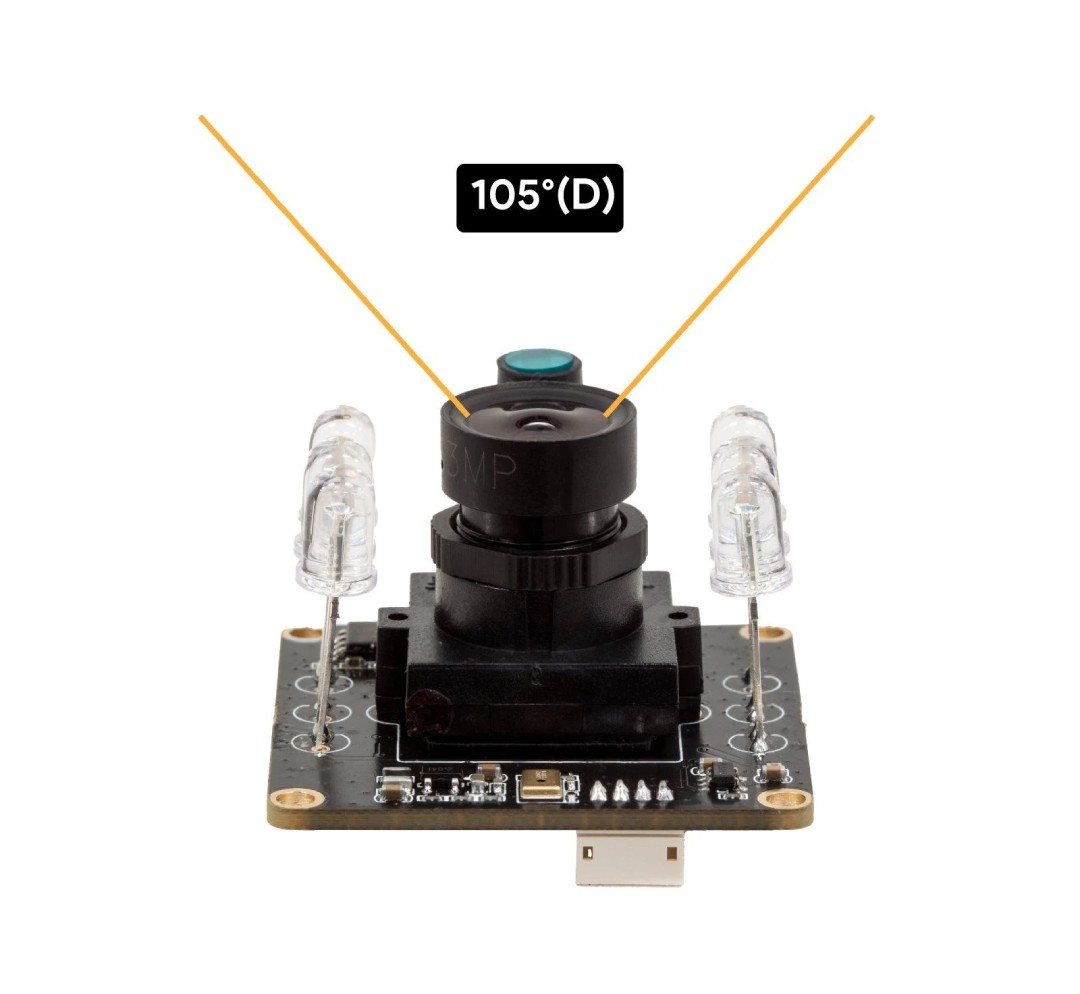

The Starlight lens with a 105° viewing angle and F1.6 aperture allows you to capture even the smallest details.
Main camera features
- Full HD 1080p: Recording in 1080p resolution at 30 fps for clear images
- Day/Night Vision: 6 x 850nm IR LEDs and photoresistor for clear night vision
- Wide-angle lens: 105° starlight lens with F1.6 aperture allows you to capture details in various lighting conditions
- IR-CUT automatic switching: seamlessly change from day to night mode with the activation of IR LEDs
- Easy to install: UVC compliant and no need to install drivers, works with computers, laptops, Android devices and Raspberry Pi
Compatibility with multiple devices
The camera offers convenient USB 2.0 connectivity and is fully compatible with Windows, Linux, Android and macOS . It has been designed in accordance with the UVC (USB Video Class) protocol, which means that it does not require additional drivers - just connect it to the device via USB 2.0. Thanks to this, it is compatible with a wide range of devices, such as PCs, laptops, Android systems and Raspberry Pi , making it extremely versatile and easy to use. The camera is an ideal solution for applications in monitoring, videoconferencing or as a car camera.

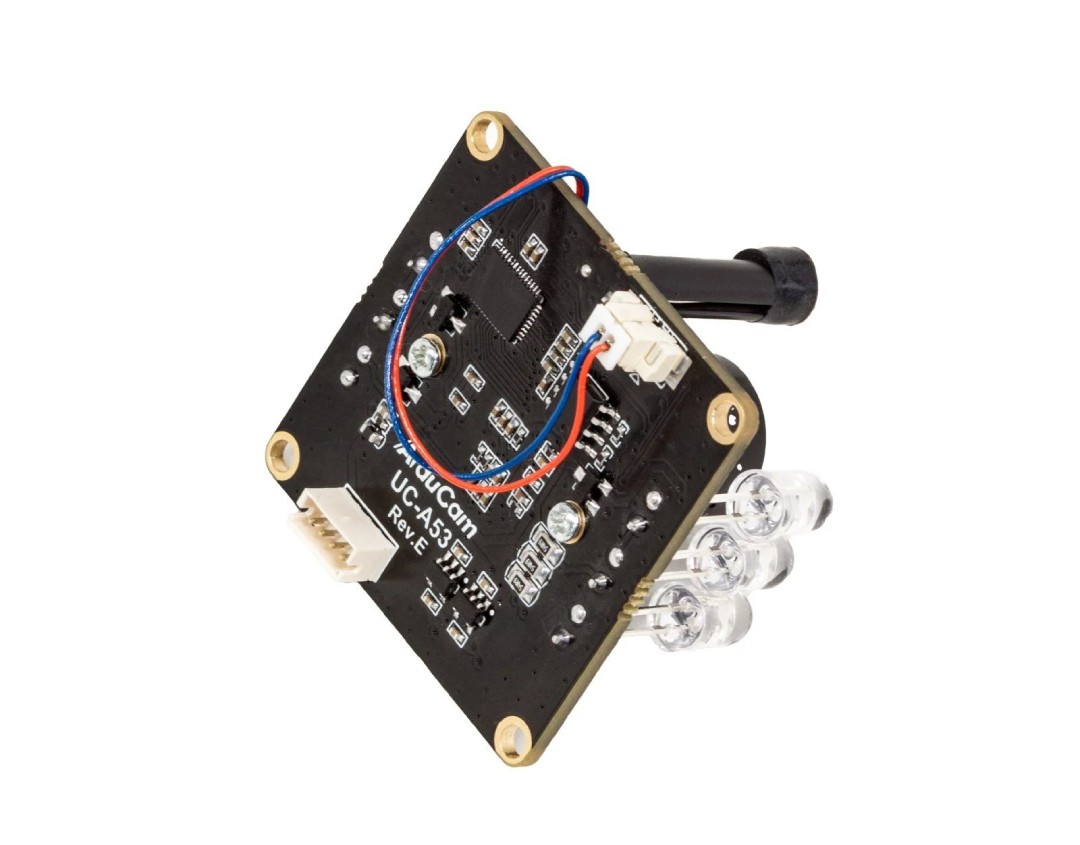

Simply connect the camera via USB to your computer, laptop, Android device or Raspberry Pi.

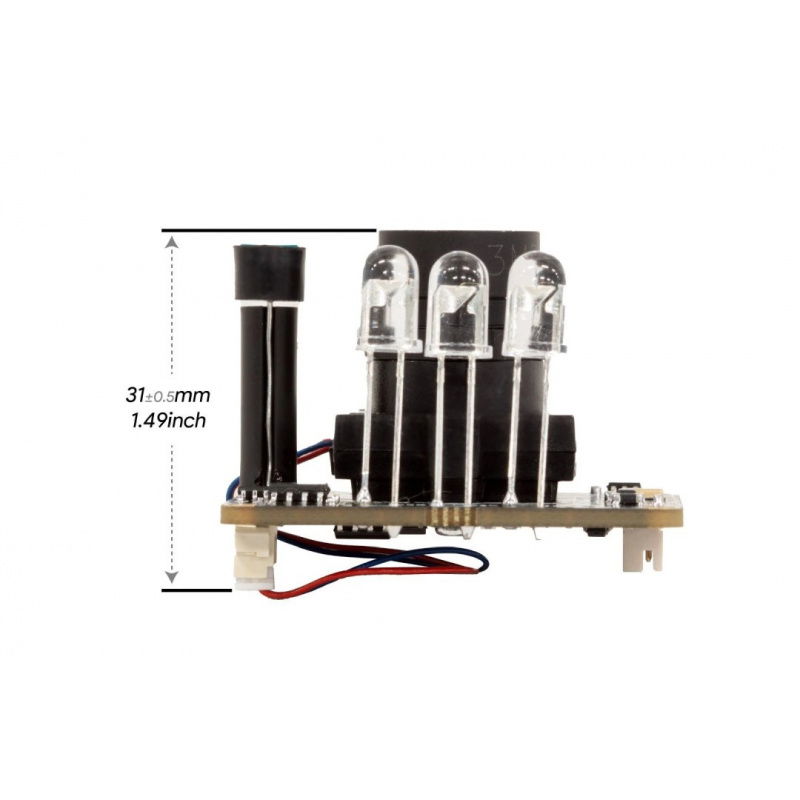

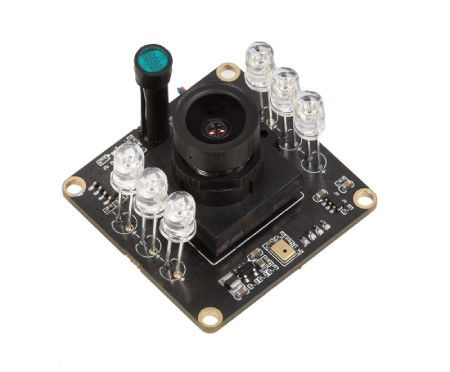

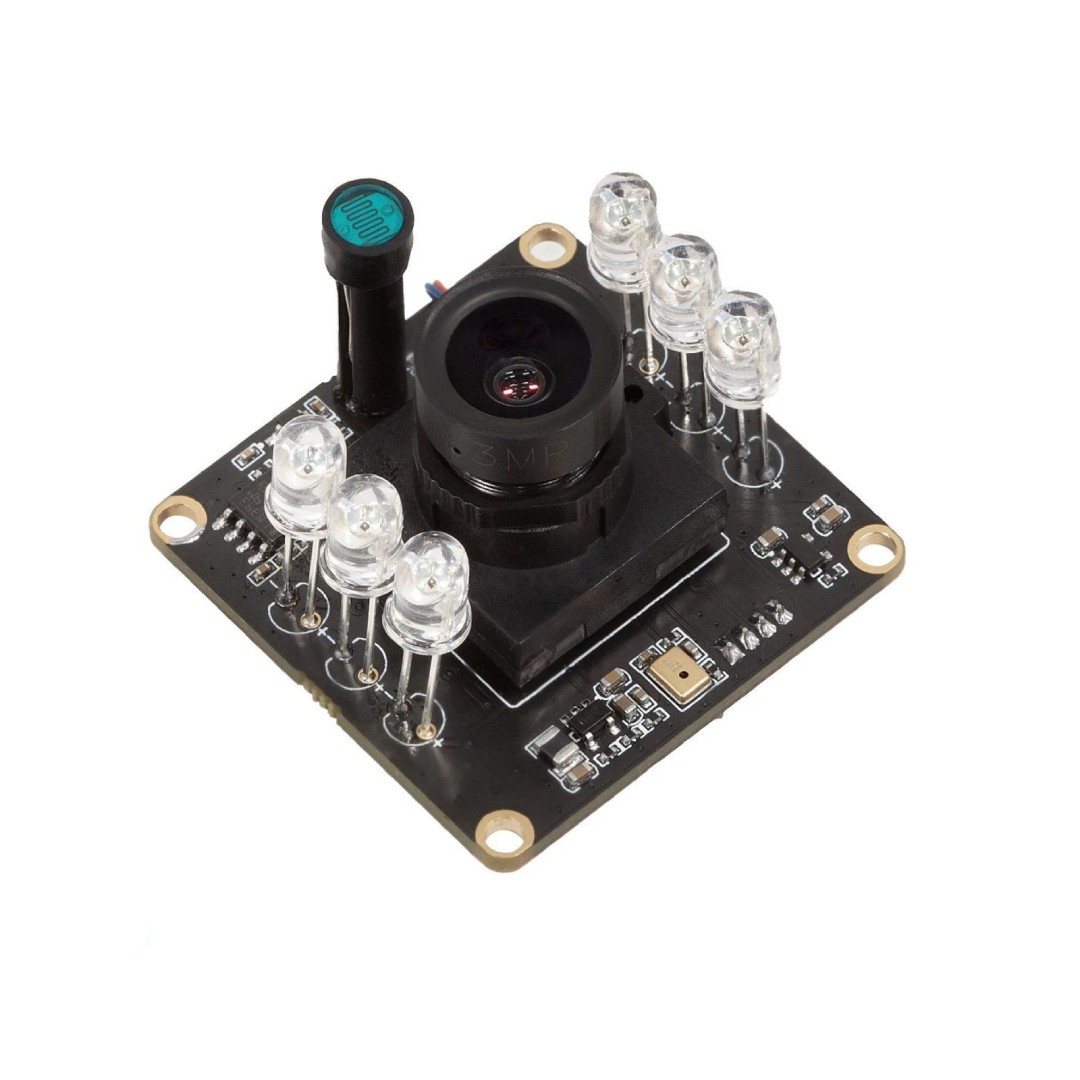

6 IR LEDs and a photoresistor provide clear images in low light conditions.
Camera Technical Specifications
- Sensor: OV2710
- Resolution: 2MPx
- Color Filter Type: Color
- Shutter type: rolling
- Matrix size: 1/2.7''
- Output format: MJPG / YUY2
- Pixel size: 3 x 3 µm
- Active sensor area: 1920 (H) x 1080 (V) px
- Video Resolution: MJPG: 30 fps at 320 x 240 px to 1920 x 1080 px
- Focus type: manual
- Viewing angle: 105° (D) x 92° (H) x 76° (V)
- Lens mount: M12 (S-mount)
- Aperture (F.NO): F1.6 ±10%
- Effective focal length (EFL): 4.3 ±5%
- IR Sensitivity: Integrated IR-CUT filter (sensitive only to visible light during the day, IR sensitive at night with 850nm IR LEDs on)
- Focus range: 2m to infinity
- Interface: USB 2.0
- Connector: B4B-ZR
- UVC compliant: no driver installation required
- Supported operating systems: Windows, Linux, Android and macOS
- Power supply: 5V ±5%
- Operating temperature: 0°C to 70°C
- Power requirements: max: 2 W

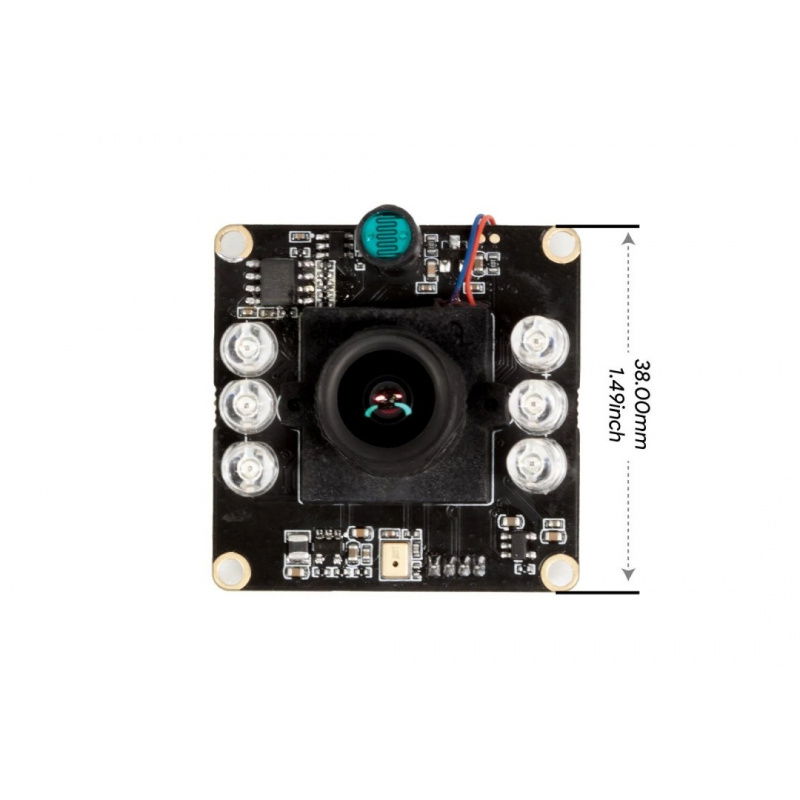

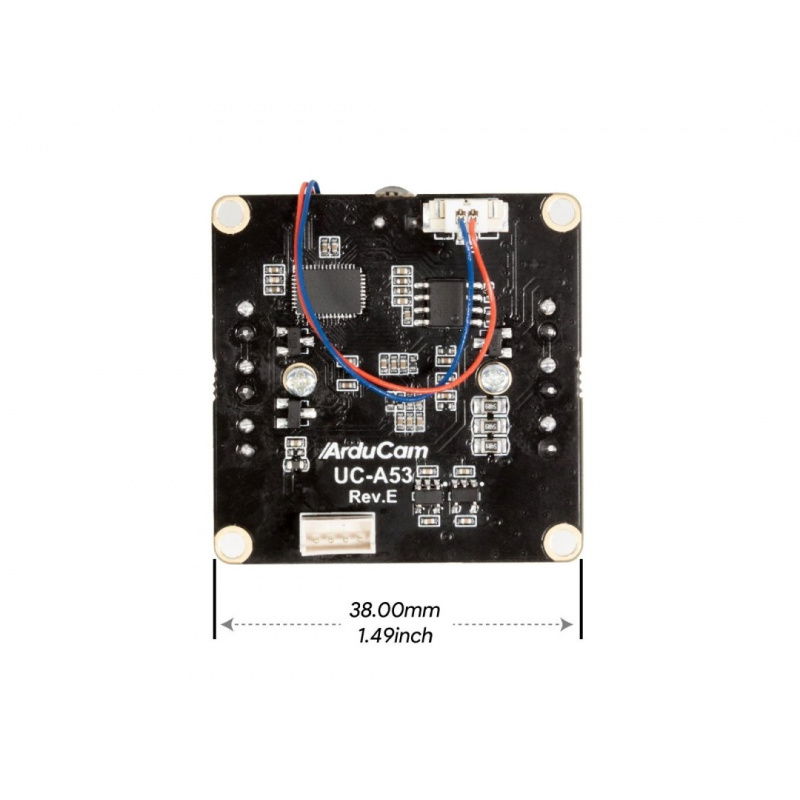

- Dimensions: 38 x 38 mm
Kit Contents
- 1x USB 2.0 Camera OV2710
- 1x 1m USB 2.0 cable
