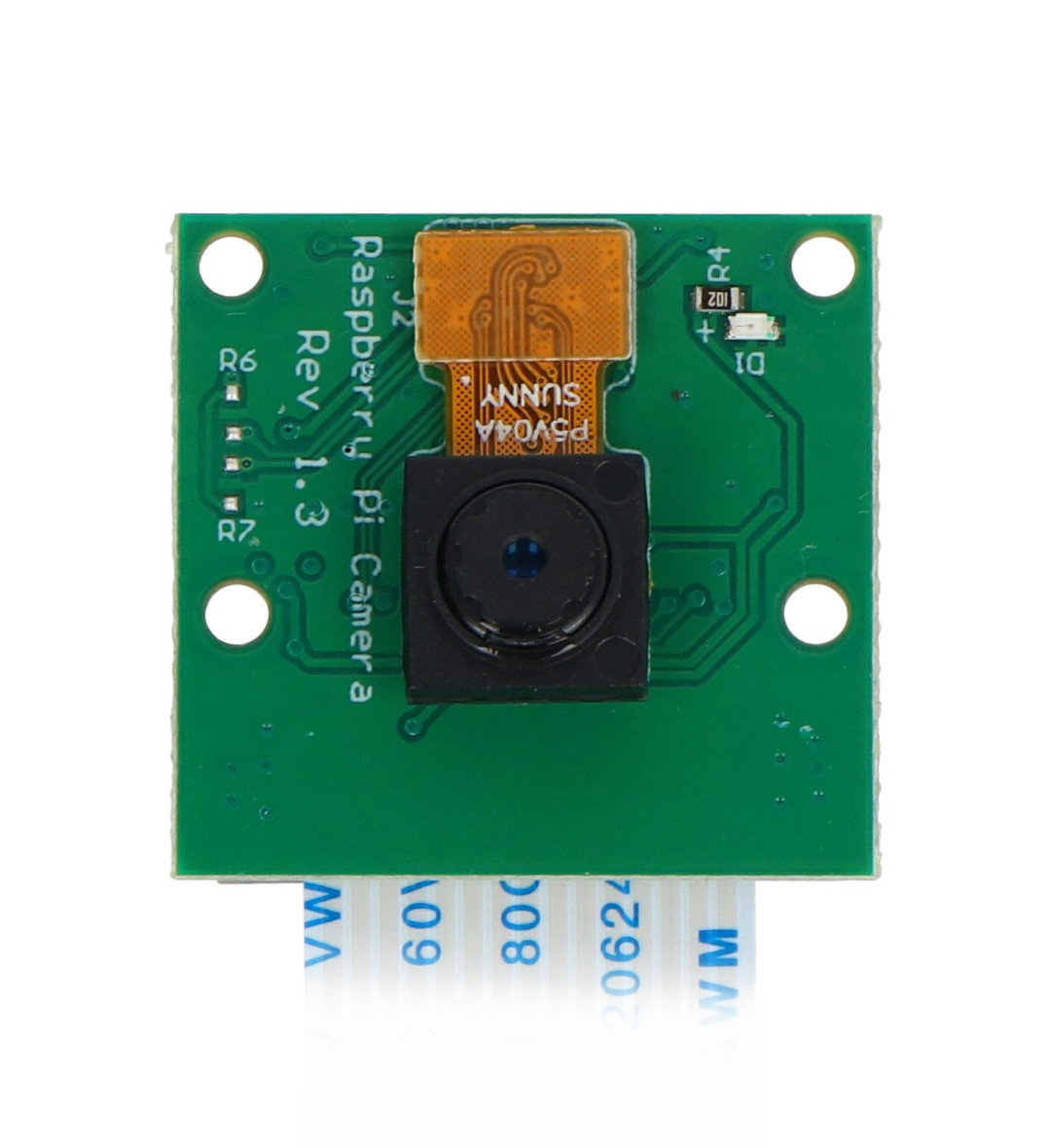

Camera wide angle OV5647 5Mpx - Fisheye lens 62 FOV for Raspberry Pi 3B, 3B+, 4B - Seeedstudio 114110127
Camera module compatible with Raspberry Pi version 3B, 3B+, 4B , equipped with high quality OV5647 sensor allowing to record video in 1080p quality (at 30 fps) and 720p (at 60 fps). Allows to take pictures with resolution of 2592 x 1944 pixels. The camera is equipped with a lens with angle of view of 62° , focal length of 3.4 mm and integrated infrared filter.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: OV5647 5 Mpx Wide Angle Camera - Fisheye 62 FOV for Raspberry Pi 3B, 3B+, 4B - Seeedstudio 114110127
Camera module compatible with Raspberry Pi version 3B, 3B+, 4B , equipped with a high-quality sensor OV5647 allows you to record video in 1080p quality (at 30 fps) and 720p (at 60 fps). It allows you to take photos with a resolution of 2592 x 1944 pixels. The camera is equipped with a lens with a viewing angle of 62° and a focal length of 3.4 mm. The built-in integrated infrared filter allows you to use the camera to monitor large areas and monitoring in low light conditions.
OV5647 5 Mpx Wide Angle Camera - Fisheye 62 FOV for Raspberry Pi 3B, 3B+, 4B - Seeedstudio 114110127.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
OV5647 5 Mpx camera - Seeedstudio 114110127.
Main camera features

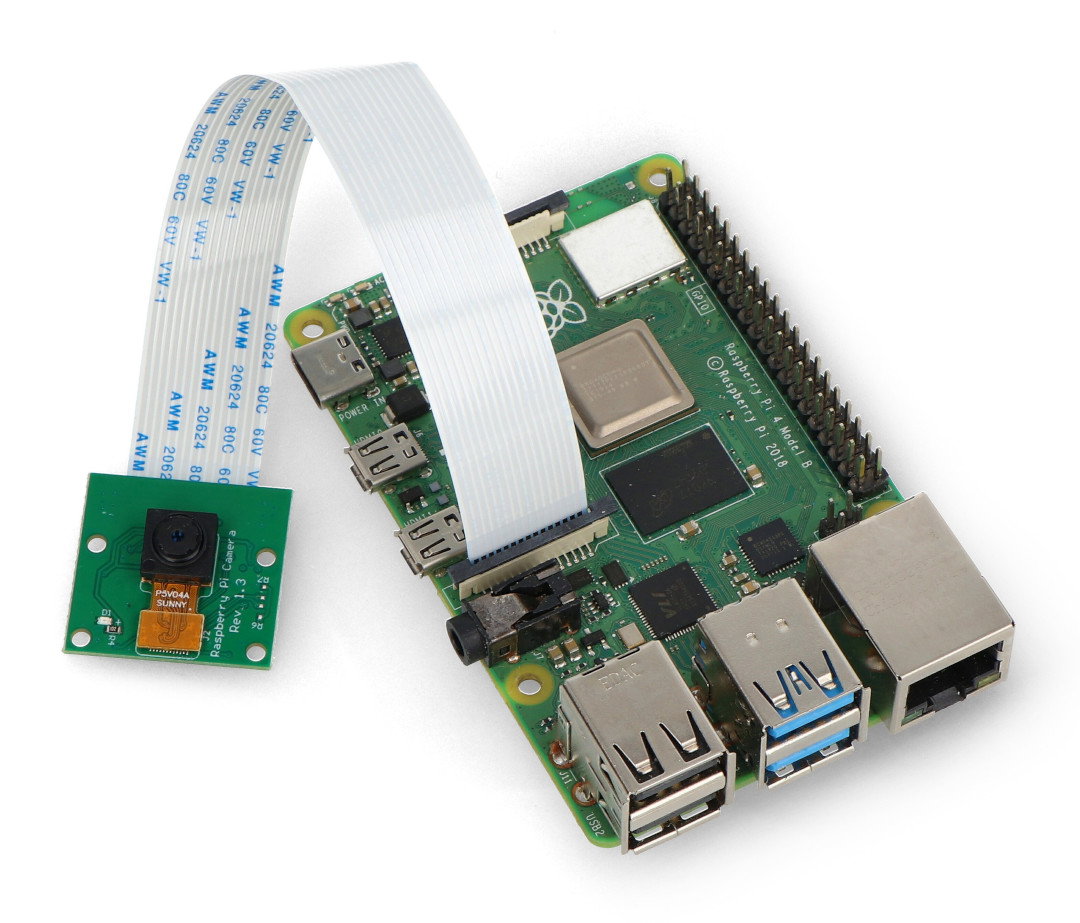

- Compatible with Raspberry Pi : the camera supports Raspberry Pi 3B, 3B+, 4B
- Fisheye lens : the module provides a wider image thanks to the fisheye lens with a 62° field of view
- OV5647 sensor : the camera is equipped with an Omnivision OV5647 sensor with a resolution of 5 MPx
- IR Filter : has an integrated IR infrared filter to capture images in the visible light range
- HD video recording : records video in 1080p at 30 fps, 720p at 60 fps
- Adjustable lens : 3.4mm focal length lens adjustment option
Seeedstudio 114110127 Camera Specification
- Sensor: Omnivision OV5647
- Optical format: 1/4''
- Resolution: 5 Mpx, 2592 x 1944 px
- Pixel size: 1.4µm x 1.4µm
- Viewing angle: 62°
- Focal ratio: 2.8
- Video:
- 1080p, 30fps
- 720p, 60fps
- Effective focal length (EFL): 3.4 mm
- Operating temperature: -20°C to 70°C
- Infrared Filter: IR filter for visible light
- Mounting: 4 mounting holes
- Supply voltage: 3.3 V
- Camera compatible with: Raspberry Pi version 3B, 3B+, 4B
- Dimensions: 25 x 23 x 9 mm

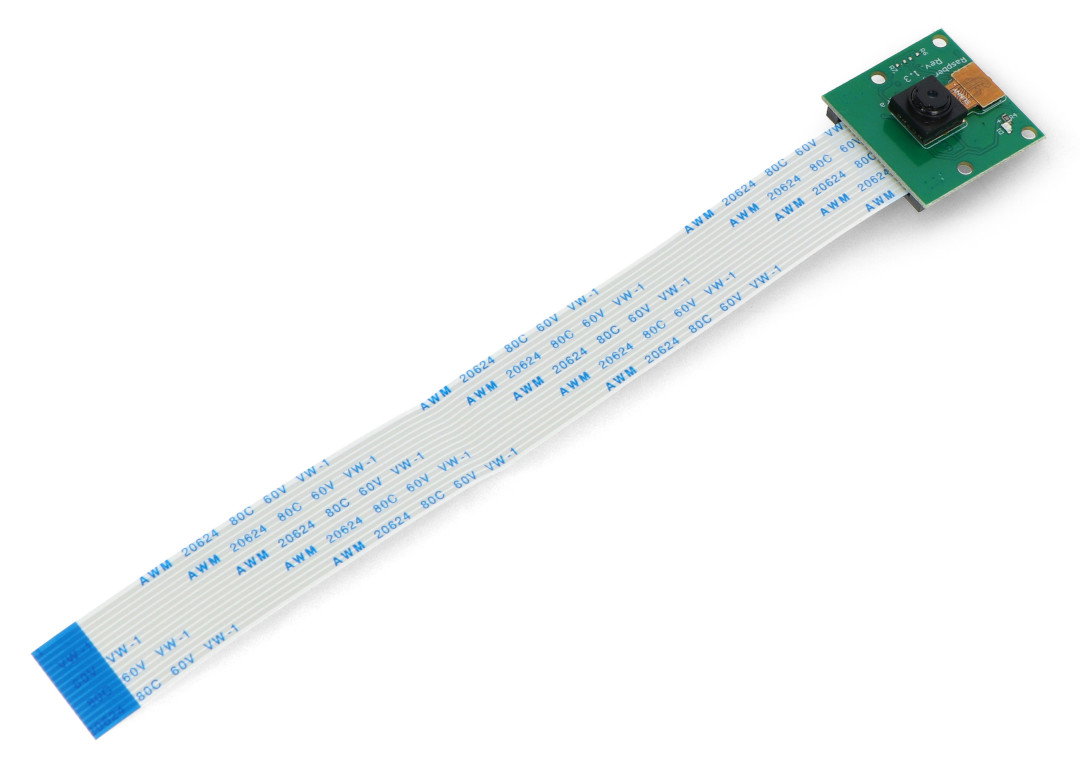

Kit Contents
- 1x OV5647 5 Mpx Fisheye Wide Angle Camera - 62 FOV fisheye for Raspberry Pi - Seeedstudio 114110127
- 1x FFC 15-pin cable
Kit contents.
Useful links
| Name | Value |
|---|---|
| Resolution | 2592x1944px |
| Camera - matrix | 5Mpx OV5647 |
| Camera - IR filter | Yes |
| Camera - format | 1/4 '' |
| Camera - type | module |
| Width | 9 cm |
| Height | 13 cm |
| Depth | 1 cm |
| Weight | 0.005 kg |
