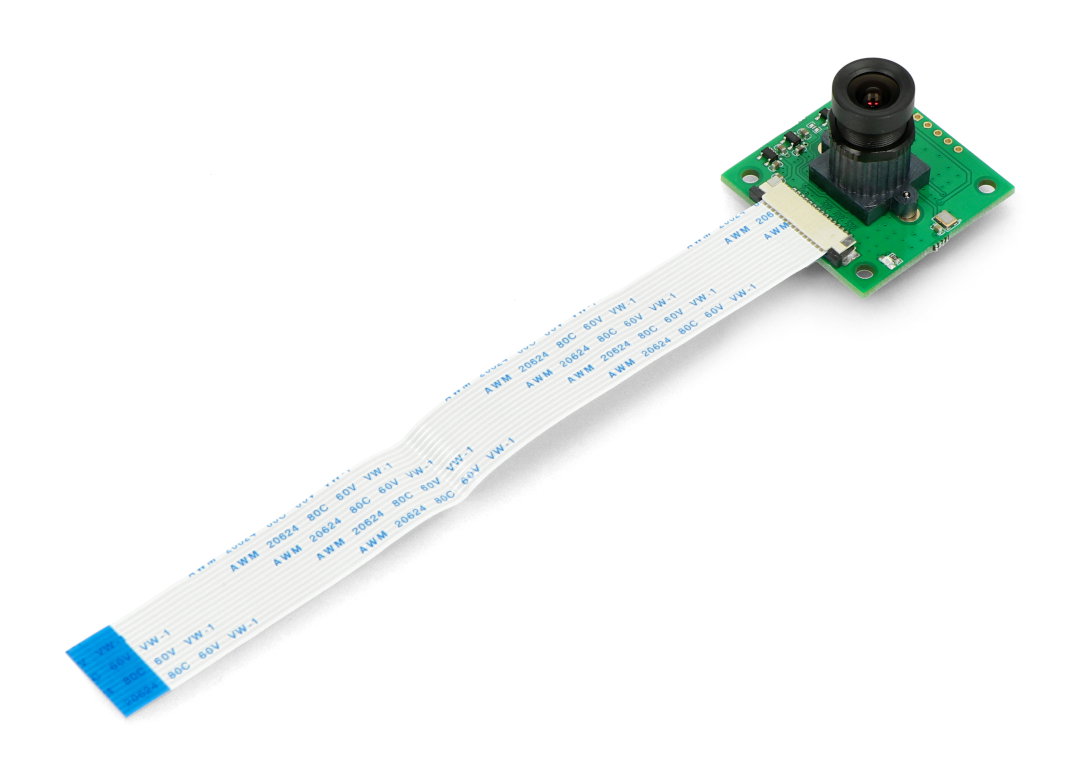

ArduCam OV5647 5Mpx camera with HX-27227 M12x0.5 lens - for Raspberry Pi

Index: ACM-06634 EAN: 5904422375171

Camera module with OV5647 sensor equipped with HX-27227 M12x0.5 lens, with parameters: focal length 4.0 mm, angle 56

°, iris 1.8, 1/2.7 format. Connected to dedicated connector of Raspberry Pi minicomputer (version 4B, 3B+, 3B, 2B, B+, A+). The device has a 5 Mpx sensor, supports HD 1080 px / 30 fps mode.

ArduCam OV5647 5Mpx camera with HX-27227 M12x0.5 lens - for Raspberry Pi
€22.50
€18.29 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: ArduCam
Compatibility: Raspberry Pi

Product description: ArduCam OV5647 5 Mpx camera with HX-27227 M12x0.5 lens

Camera module with OV5647 sensor equipped with HX-27227 M12x0.5 lens, with parameters: focal length 4.0 mm, angle 56°, iris 1.8, 1/2.7 format. Connected to dedicated connector of Raspberry Pi minicomputer ( version 4B, 3B+, 3B, 2B, B+, A+ ). The device has a 5 Mpx sensor, supports HD 1080 px / 30 fps mode.

ArduCam z obiektywem HX-27227 - dla Raspberry Pi

The camera is compatible with the original device for Raspberry Pi, just connect it to the dedicated CSI connector and enable it in the operating system settings.

Video showing how to connect the camera to the minicomputer.

Specifications

  • Camera compatible with Raspberry Pi versions 4B, 3B+, 3B, 2B, B+, A+
  • Matrix: 5 MPx
  • Sensor: OV5647(documentation)
  • Lens mounting: CS mount or M12x0.5
  • Lens: HX-27227(documentation)
    • Focal length: 4.0 mm
    • Aperture: 1.8
    • Viewing angle: diagonal: 56° (the camera does not support this angle, see the documentation for details)
    • Format: 1/2.7 ''
  • It has 4 mounting holes
  • Dimensions of board module : 36 x 36 mm

Included

  • 5 MPx camera with LS-40180 lens
  • Tape to connect with Raspberry Pi

ArduCam OV5647 5 Mpx camera with HX-27227 M12x0.5 lens - for Raspberry Pi

ArduCam OV5647 with HX-27227 lens is a modern camera for Raspberry Pi equipped with 5 Mpx sensor. The device allows you to record high-resolution images, so it will be useful in many electronic projects.

You can use it for example when creating your own monitoring systems, IoT installations or building automation, as well as a part of robots, drones, toys or remotely controlled vehicles. The kit comes with a high-quality connection tape, allowing you to quickly plug the camera into your Raspberry Pi.

Multifunctional camera with lens for Raspberry Pi

The ArduCam OV5647 camera allows you to mount the lens using two popular mounts: CS Mount and M12. Thanks to that you can equip it with additional lenses and exchange them depending on current needs and preferences.

The module is compatible with Raspberry Pi boards versions A+, B+, 2 and 3. For more information about the camera and lens, please refer to the manufacturer's website and technical documentation, which are linked in the "Useful Links" box below.

Interface CSI - Raspberry Pi
Resolution 2592x1944px
Camera - matrix 5Mpx OV5647
Camera - IR filter Yes
Camera - lens CS-mount / M12
Camera - format 1/2,7 ''
Camera - type module
Package width 5 cm
Package height 5 cm
Package depth 4 cm
Package weight 0.02 kg

Michał

01/07/21

Question: Do you need a tool for this camera to adjust the focus?
Answer: The specified camera does not require a focus tool.
