Product description: IR-CUT IMX477P 12.3 MPx HQ camera with M12 3.9 mm lens - for Raspberry Pi - ArduCam B0262
Mini camera equipped with IMX477P sensor in 1/2.3" format and 12.3 MPx resolution from ArduCam , offering increased image quality and versatility in a compact form. This module is ideal for advanced applications that require high image quality in small and lightweight designs, such as drones or monitoring systems. The camera uses Rolling Shutter color shutter technology, which allows for high image quality in various lighting conditions. Thanks to the integral IR filter , the camera is sensitive only to visible light, which eliminates the impact of infrared light on image quality. Additionally, the module has an installed M12 lens with an 88° field of view , which can be easily replaced, allowing you to adjust the focal length and viewing angle to the user's needs.

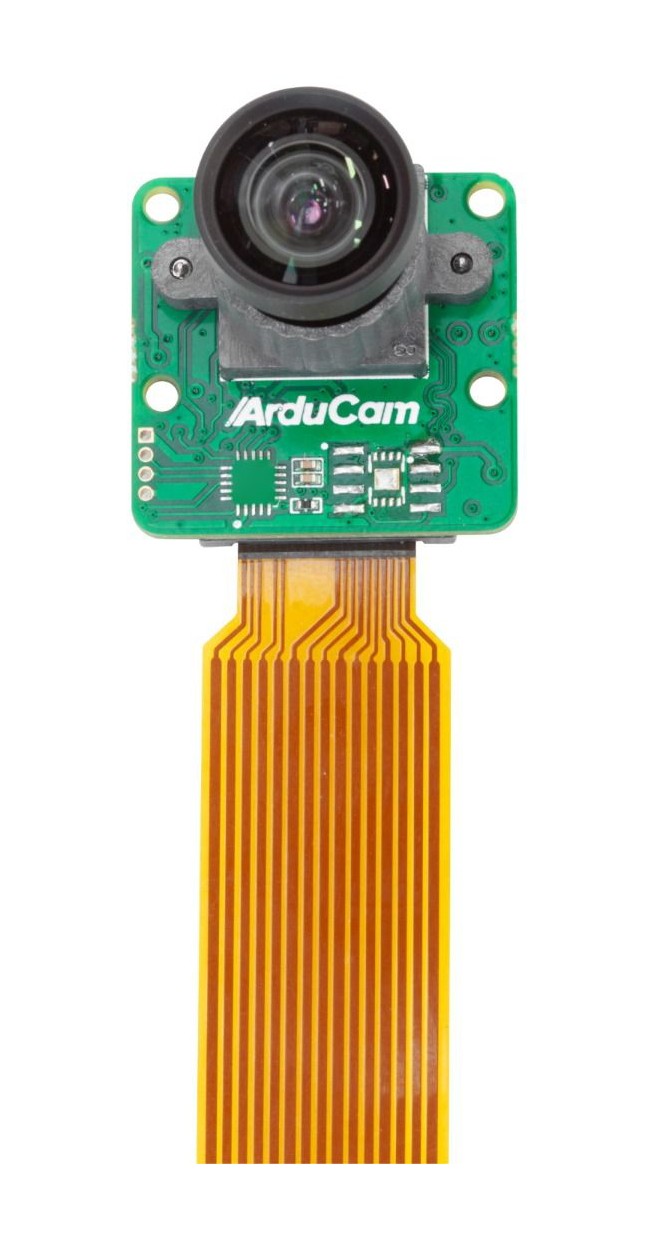

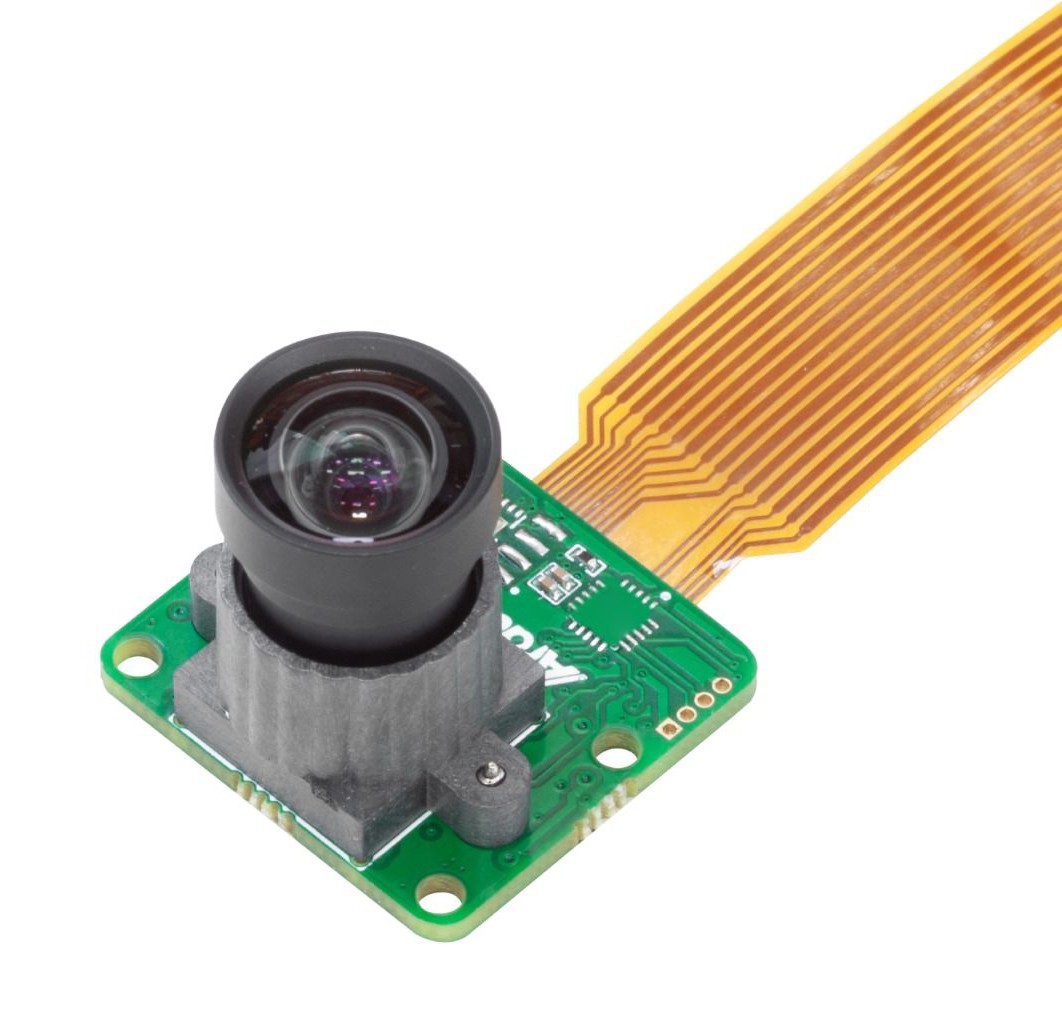

IR-CUT IMX477P 12.3 MPx HQ camera with M12 3.9 mm lens - for Raspberry Pi - ArduCam B0262.
The camera has an integrated IR filter.
Main camera features
- High resolution : offers a resolution of up to 12.3 MPx (4056 x 3040 px).
- Interchangeable lenses : Supports various M12 lenses, giving you the flexibility to adjust the viewing angle and focal length.
- Compatibility : compatible with Raspberry Pi 5 / 4B / 3B+ / 3 / 2 / CM3 / CM4 / Zero W / Zero 2 W mini computers without the need to install additional drivers.
- IR Filter : The integrated IR filter ensures that the camera is only sensitive to visible light.

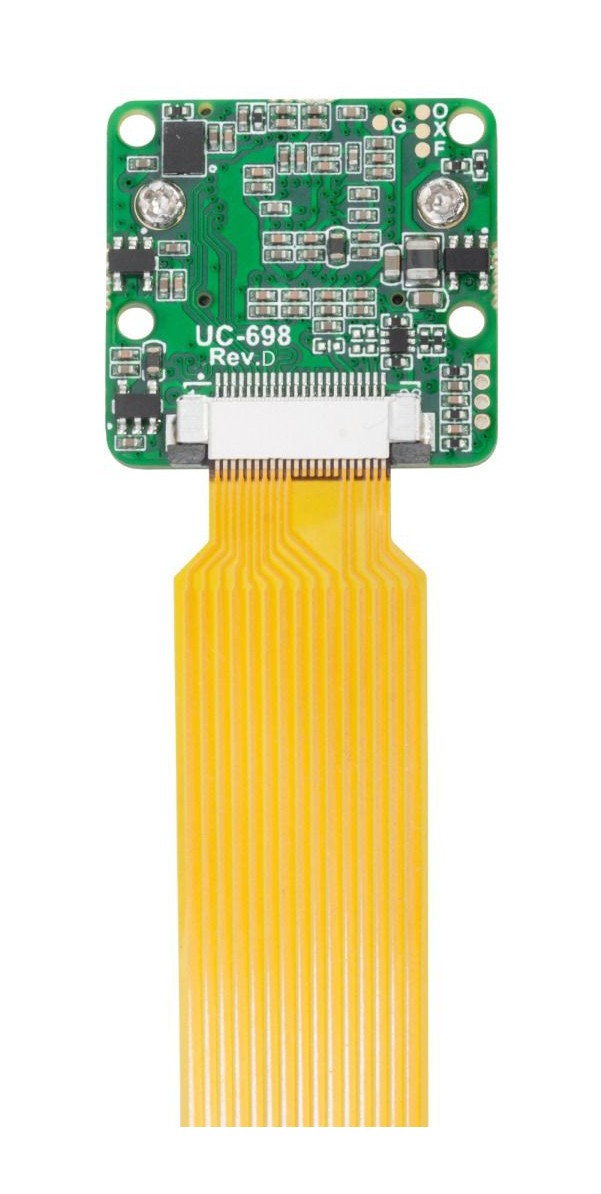

- Compact dimensions : the dimensions of the board are 25 x 24 mm, which allows for use in small and confined spaces.
Camera Applications
The IMX477P mini camera is ideal for various applications such as:
- Drones/UAV/FPV : Perfect for use in drones and FPV systems where low weight and high image quality are key.
- Machine vision : used in image analysis and detection applications.
- Robotics : Can be used in robotic projects to recognize and analyze the environment.
- Facial Recognition : Ideal for facial recognition and tracking applications.
- Defect detection : used in systems to detect defects and monitor production quality.
The kit includes cables for connecting the camera.
Camera Technical Specifications
- Camera:
- sensor: IMX477P
- format: 1/2.3"
- resolution: 4056 x 3040 px, 12.3 MPx
- Pixel size: 1.55 x 1.55 um
- IR sensitivity: visible light
- interface: 4-lane MIPI CSI-2
- video modes:
- 2028x1080p/50fps
- 2028x1520p/40fps
- 1332x990p/120fps
- Lens:
- focal length: 3.9 mm
- aperture: F2.8
- viewing angle: 88° x 75°
- lens mounting method: M12
- Compatible with: Raspberry Pi 5 / 4B / 3B+ / 3 / 2 / CM3 / CM4 / Zero W / Zero 2 W
- Dimensions: 25 x 24 mm
Kit Contents
- 1x IMX477P 12.3MPx HQ Mini Camera with M12 3.9mm Lens - for Raspberry Pi - ArduCam B0262

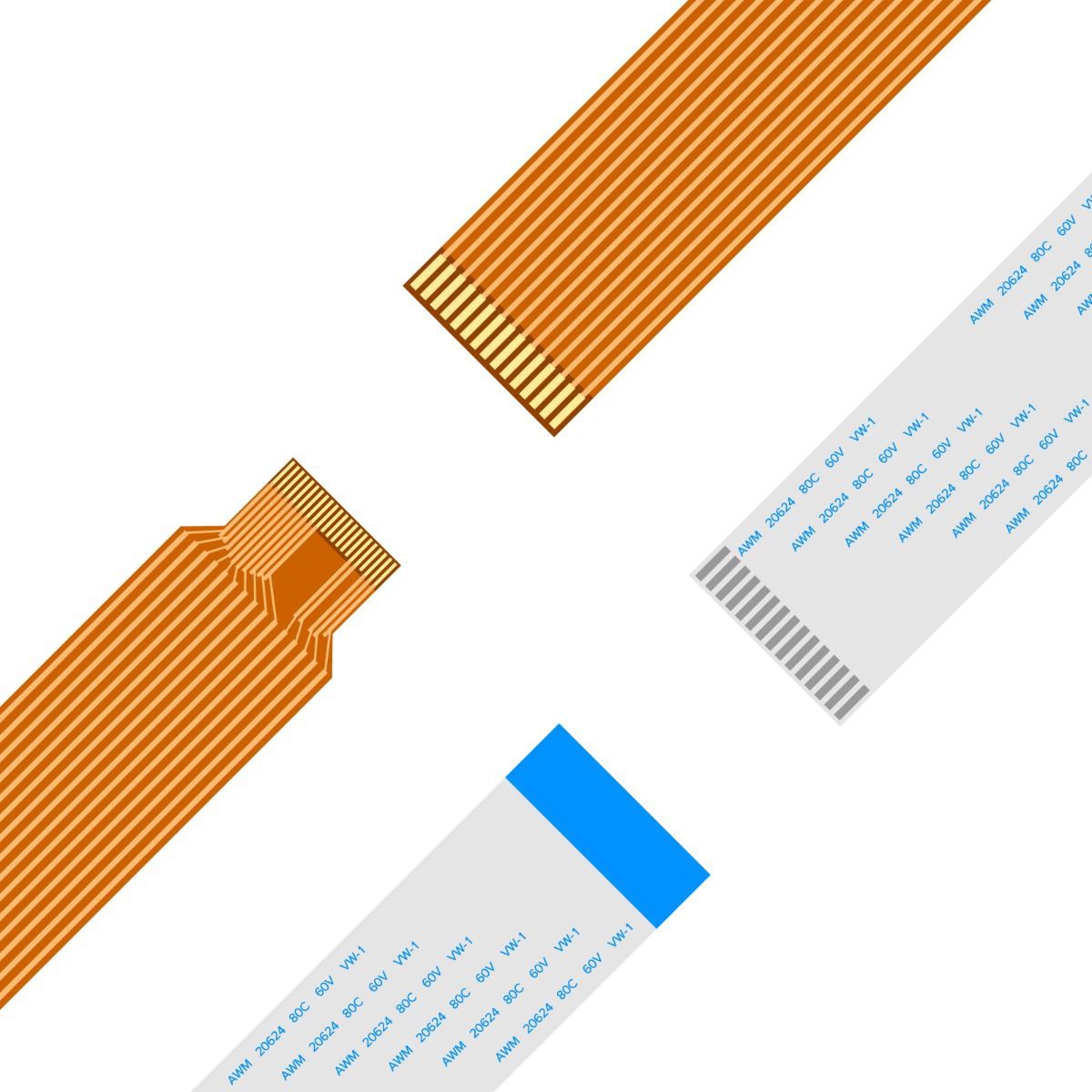

- 1x Ribbon cable 15-22 pin - 150 mm
- 1x 22-pin ribbon cable - 150mm
