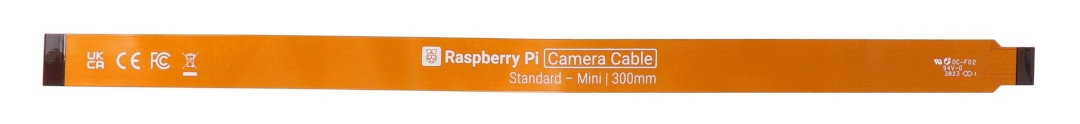

Raspberry Pi camera tape 22-core 0,5mm raster - 15-core 1mm raster - 30cm

Index: RPI-23928 EAN: 5056561803548
The 30 cm long tape dedicated to Raspberry Pi is used to connect cameras with a 15-pin connector with a 1 mm pitch to the Raspberry Pi 5 minicomputer, which has 22-pin connectors with a 0.5 mm pitch . Raspberry Pi 5 is equipped with two 4-line MIPI CSI/DSI connectors that allow you to connect a screen or camera. These connectors have the identical 22-line "mini" format and 0.5 mm pitch as the Raspberry Pi Compute Module CM4IO expansion module. To use current cameras and displays, it is necessary to use an adapter for a 15-line connector with a pitch of 1 mm.
Raspberry Pi camera tape 22-core 0,5mm raster - 15-core 1mm raster - 30cm
€2.50
€2.03 tax excl.
Available
Shipping in 24 hours
PayPal payment
Camera tape:
Manufacturer: Raspberry Pi
Compatibility: Raspberry Pi

The shipping date has not been confirmed by the Raspberry Pi Foundation. We will process orders as soon as possible, in the order they were placed.

Product description: Raspberry Pi tape - camera 22 wires, 0.5 mm pitch - 15 wires, 1 mm pitch - 30 cm

The 30 cm long tape dedicated to Raspberry Pi is used to connect cameras with a 15-pin connector with a 1 mm pitch to the Raspberry Pi 5 minicomputer, which has 22-pin connectors with a 0.5 mm pitch . Raspberry Pi 5 is equipped with two 4-line MIPI CSI/DSI connectors that allow you to connect a screen or camera . These connectors have the identical 22-line "mini" format and 0.5 mm pitch as the Raspberry Pi Compute Module CM4IO expansion module. To use current cameras and displays, it is necessary to use an adapter for a 15-line connector with a pitch of 1 mm.

FPC tapes for Raspberry Pi 5 FPC tapes for Raspberry Pi 5.
Raspberry Pi 5 equipped with two MIPI CSI DSI connectors
Raspberry Pi 5 is equipped with two four-line MIPI CSI / DSI connectors.

The offer includes tapes in various lengths, both for cameras and displays.
Cameras:

Displays:

FPC tape specification

  • Application: cameras
  • Format: mini
  • Type of connectors:
    • 22-pin pitch 0.5 mm
    • 15-pin pitch 1 mm
  • Length: 30 cm

Package width 8 cm
Package height 12 cm
Package depth 2 cm
Package weight 0.004 kg
