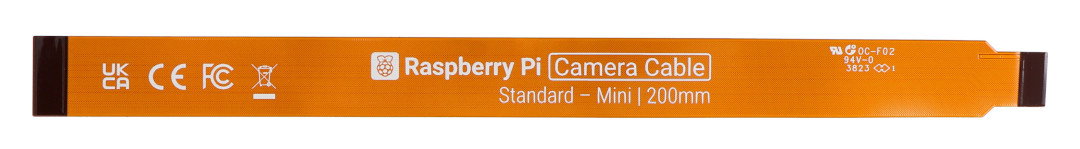

Raspberry Pi camera tape 22-core 0,5mm raster - 15-core 1mm raster - 20cm

Index: RPI-23927 EAN: 5056561803555
Raspberry Pi cable, 20 cm long, intended for connecting cameras with a 15-pin connector, 1 mm pitch, to the Raspberry Pi 5 minicomputer with 22-pin connectors, 0.5 mm pitch . Raspberry Pi 5 is equipped with two 4-line MIPI CSI / DSI connectors to which you can connect a screen or camera. These connectors use the same 22-line "mini" format and 0.5 mm pitch as the Raspberry Pi Compute Module CM4IO expansion board. To support current cameras and displays, an adapter for a 15-line connector with a pitch of 1 mm is required.
Raspberry Pi camera tape 22-core 0,5mm raster - 15-core 1mm raster - 20cm
€1.50
€1.22 tax excl.
Available
Shipping in 24 hours
PayPal payment
Camera tape:
Manufacturer: Raspberry Pi
Compatibility: Raspberry Pi

Product description: Raspberry Pi tape - camera 22 wires, 0.5 mm pitch - 15 wires, 1 mm pitch - 20 cm

Raspberry Pi cable, 20 cm long, intended for connecting cameras with a 15-pin connector, 1 mm pitch, to the Raspberry Pi 5 minicomputer with 22-pin connectors, 0.5 mm pitch . Raspberry Pi 5 is equipped with two 4-line MIPI CSI/DSI connectors to which you can connect a screen or camera . These connectors use the "mini" 22-line format and a 0.5 mm pitch similar to the Raspberry Pi Compute Module CM4IO expansion board. The fifth version of Raspberry Pi allows you to connect two cameras or two displays to the MIPI CSI / DSI connectors. To support current cameras and displays, an adapter for a 15-line connector with a pitch of 1 mm is required.

FPC tapes for Raspberry Pi 5 FPC tapes for Raspberry Pi 5.

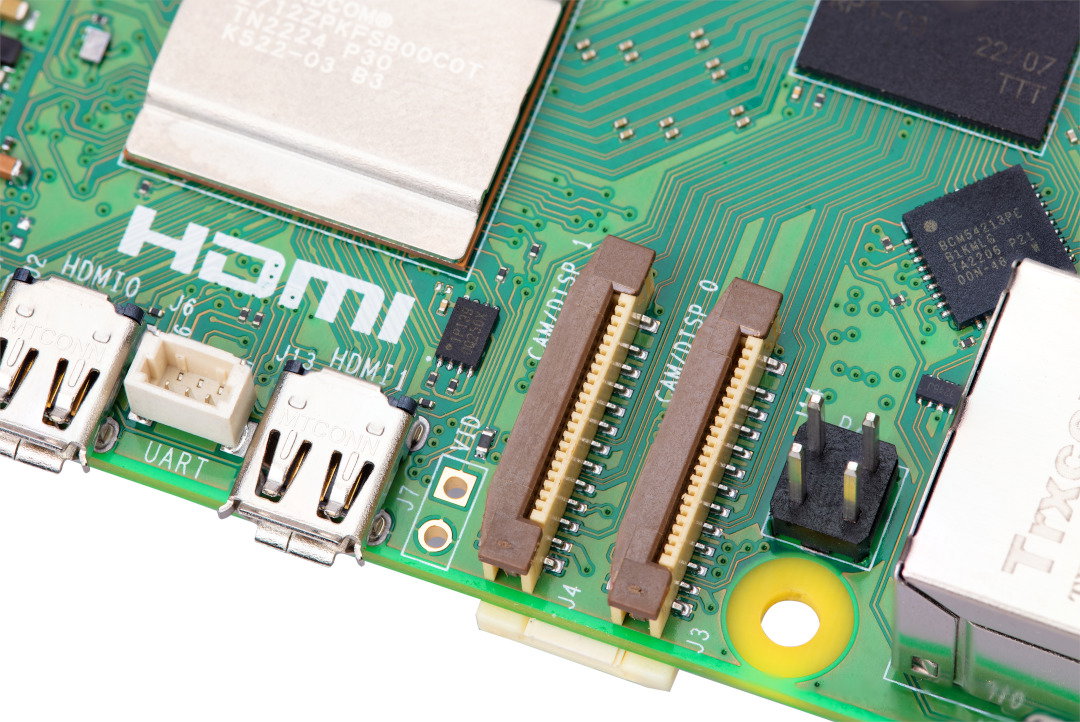

Raspberry Pi 5 equipped with two MIPI CSI DSI connectors
Raspberry Pi 5 is equipped with two four-line MIPI CSI / DSI connectors.

The offer includes tapes in various lengths, both for cameras and displays.
Cameras:

Displays:

FPC tape specification

  • Application: cameras
  • Format: mini
  • Type of connectors:
    • 22-pin pitch 0.5 mm
    • 15-pin pitch 1 mm
  • Length: 20 cm

Package width 7 cm
Package height 10 cm
Package depth 1.8 cm
Package weight 0.003 kg
