Pivistation 5 Hawkeye Lite - 64MPx PDAF/CDAF camera - for Raspberry Pi 5 - ArduCam B0513
Arducam Pivistation 5 Hawkeye is a versatile kit designed for Raspberry Pi 5 with a camera equipped with a Sony sensor with a resolution of 64 MPx and autofocus PDAF and CDAF . The kit includes a housing with a fan, a 32 GB microSD card and pre-installed software . It allows you to record high-resolution images, 10x magnification and use in facial recognition, fatigue detection or machine vision. Ideal for IoT projects, PoC and advanced embedded applications.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Pivistation 5 Hawkeye Lite - 64 MPx PDAF / CDAF camera - for Raspberry Pi 5 - ArduCam B0513
The Arducam Pivistation 5 Hawkeye is an advanced kit designed to work with the Raspberry Pi 5. The camera is equipped with a Sony sensor with a resolution of 64 MPx and PDAF and CDAF autofocus , ensuring exceptional image quality and sharpness. The kit includes an official housing with a built-in fan, a 32 GB microSD card and pre-installed software such as OpenCV, TensorFlow or PyTorch, which allow you to quickly start working on machine vision projects. With a resolution of 9152 x 6944 px and a 10x zoom, the camera will work well in applications such as object recognition, anomaly detection, research or prototyping. The user-friendly design allows for quick start-up, and the solid housing with a hole for a tripod and cooling guarantees reliability in operation.
Attention!
The Lite version does not include a Raspberry Pi 5. The minicomputer must be purchased separately.
Pivistation 5 Hawkeye Lite - 64 MPx PDAF / CDAF camera - for Raspberry Pi 5 - ArduCam B0513.
Botland is an official distributor of Arducam cameras, lenses and accessories in Poland. The brand's leading electronics complement the Raspberry Pi and Arduino platforms perfectly. Our range holds original Arducam products only.

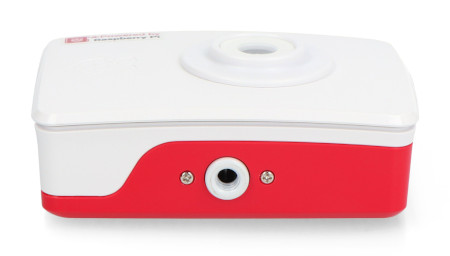

The housing allows the camera to be mounted on a tripod. The tripod is not included.
Key Features of the Pivistation 5 Hawkeye Lite
- 64MP Sony sensor: Captures ultra-high resolution images for detailed analysis
- PDAF and CDAF autofocus: ensures precise focusing even at high magnification
- 10x digital zoom: allows for detailed inspection of objects without losing image quality
- All-in-one kit: includes a case with fan, microSD card and pre-installed software, ready to go right out of the box
- Software Support: OpenCV, TensorFlow and PyTorch support the development of advanced computer vision projects
- Solid housing: durable construction with a tripod hole for easy mobility and stable positioning
Camera Applications
- Face Recognition: Precise Image Analysis in Real Time
- Fatigue Detection: Monitoring the Condition of Drivers and Machine Operators
- Machine Vision: Automatic Quality Control and Object Identification in Industrial Processes
- Prototyping: Rapidly Testing Ideas and Building a Proof of Concept
- IoT Projects: Integration with Smart Device Systems and Embedded Applications

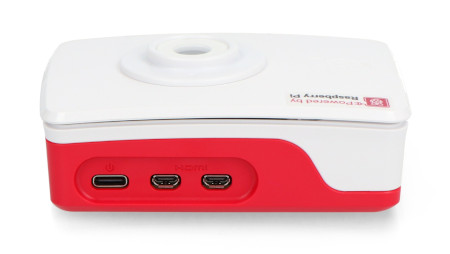

The Pivistation 5 has a USB Type-C socket and miniHDMI ports.
The set includes a 32 GB microSD card.
Pivistation 5 Software
Arducam Pivistation 5 comes with pre-installed tools such as OpenCV-Python, TensorFlow and PyTorch , which support the development of AI and computer vision applications. The system allows image streaming via HTTP or RTSP, with support for advanced features such as automatic image processing and object detection . The intuitive web interface allows for quick configuration and image preview without unnecessary complications.
Camera Technical Specifications
- Sensor: Sony 1/1.7''
- Photo resolution: 64 MPx
- Color Filter Type: Color
- Shutter: Rolling shutter
- Pixel size: 0.8μm x 0.8μm
- Sensor output format: RAW10
- Platform Output Format: JPEG/YUV/RGB/RAW10
- Maximum Resolution: 9152(H) x 6944(V) @ 2fps
- Zoom: 10x digital
- Lens: built-in
- Focus Type: PDAF + CDAF
- Viewing angle (FOV): 84° (diagonal)
- Lens Brightness (F.NO): F1.8
- Effective focal length (EFL): 5.1 mm
- Focus range: 8 cm to ∞
- IR Filter: Built-in IR-cut filter (visible light only)
- Case: Official Raspberry Pi case with cooling fan
- Operating voltage: 5V +/- 5%
- Power consumption: 7.5 W
- Compatibility: Raspberry Pi 5
- Supported Operating Systems: Bookworm
- Pre-installed software:
- OpenCV-Python, TensorFlow, PyTorch
- Libcamera, RPicam-apps
- C++ application development environment
- Camera-streamer, Arducam camera server
- Camera dimensions: 24 x 25 mm
- Housing dimensions: 99 x 70 x 37 mm
Kit Contents
- 1x Arducam Hawkeye 64 MPx camera
- 1x Raspberry Pi Case with Cooling Fan
- 1x 32 GB microSD card with pre-installed software
Items included in the set.
Useful links
- Manufacturer's website
- User Guide
- Raspberry Pi Camera Review
| Name | Value |
|---|---|
| Camera - IR filter | Yes |
| Camera - format | 1/1,7" |
| Camera - type | module |
| Width | 11.5 cm |
| Height | 12.5 cm |
| Depth | 6.5 cm |
| Weight | 0.2 kg |
