Product description: IMX477 12.3 MPx HQ camera with C-CS adapter and tripod mount - for Raspberry Pi - Arducam B024001

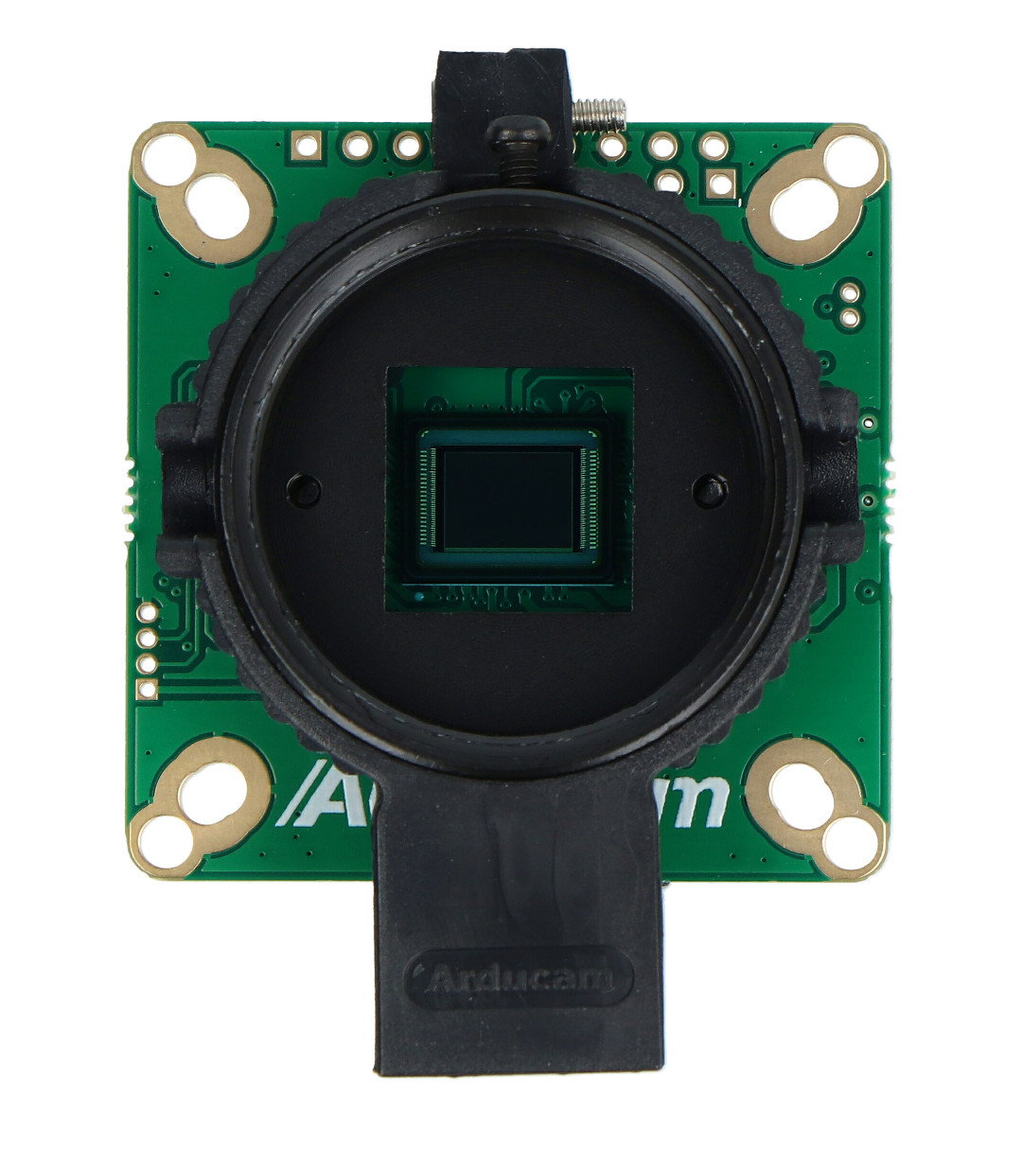

ArduCam camera module designed especially for Raspberry Pi users. The built-in Sony IMX477M sensor offers image quality with a resolution of 12.3 MPx (4056 x 3040 px). The camera has a backlit matrix design, adjustable back focus, and supports lenses with a C and CS interface . It provides excellent performance even in low light conditions, thanks to larger pixels (1.55 x 1.55 µm) compared to previous models. The device is compatible with Raspberry Pi 5 / 4B / 3B+ / 3 / 2 / CM3 / CM4 / Zero W / Zero 2 W minicomputers and communicates via the CSI-2 connector.
IMX477 12.3 MPx HQ camera with C-CS adapter and tripod mount - for Raspberry Pi - Arducam B024001.
The plate includes a C-CS adapter for mounting the lens and a tripod mount.
Main features of the camera
- 12.3 MPx resolution : the camera offers a high resolution standard of 4056 x 3040 px, allowing you to obtain detailed photos and videos.
- Easy configuration : the camera is compatible with Raspberry Pi without the need to install additional drivers. Just connect the camera to the Raspberry Pi using an FPC cable.
- Interchangeable lenses : Supports C and CS interface lenses, allowing you to adapt to different applications.
- Tripod mount : the camera is compatible with any tripod with a standard 1/4"-20 mounting thread, which facilitates stable positioning when photographing or recording.
Application
The Arducam HQ camera is perfect for many projects such as:
- High resolution photography
- DSLR Camera Control
- Remote cameras for viewing
- Monitoring systems
- Smart video ringtones
- Face recognition
- Polaroid cameras for quick photos
Technical specifications of the camera
- Sensor: Sony IMX477
- Compatible with: Raspberry Pi 4/3/Zero/CM3/CM4
- Matrix resolution: 12.3 MPx / 4056 x 3040 px
- Video modes:
- 2028 x 1080p / 50 fps
- 2028 x 1520p / 40 fps
- 1332 x 990p / 120 fps
- Pixel size: 1.55 x 1.55 μm
- Format: 1/2.3"
- IR sensitivity: integrated IR filter, visible light only
- Lens mounting method: C / CS
- Dimensions: 38 x 38 mm

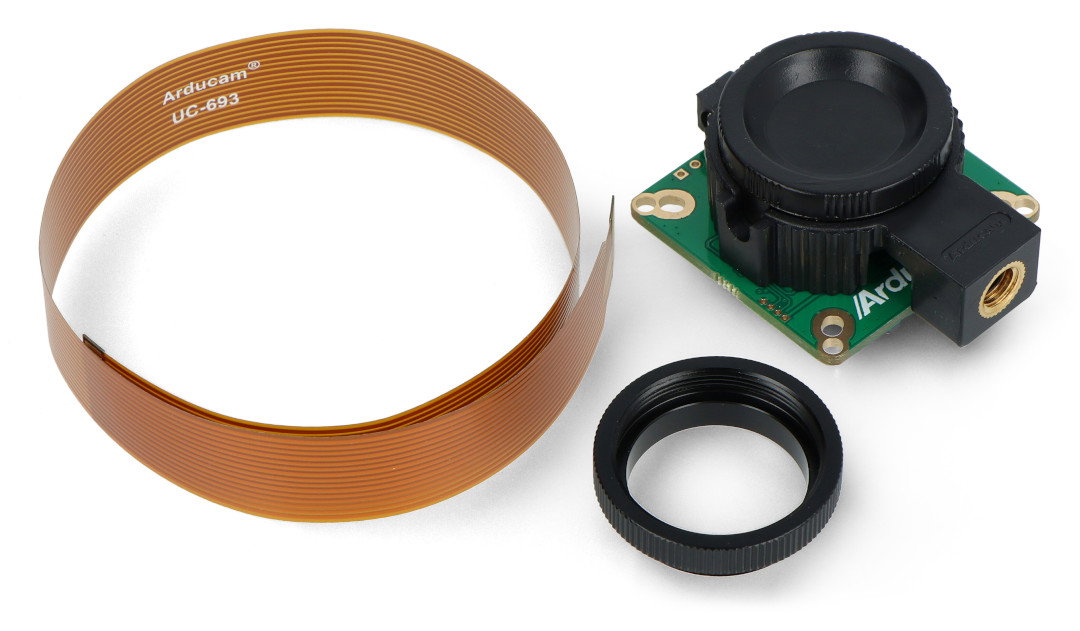

Set contents
- IMX477 12.3 MPx HQ camera with C-CS adapter and tripod mount - 1 pc.
- Ribbon cable 15-22 pin 12'' - 300 mm (for RPi series A and B) - 1 pc.
- 22-pin 3.15'' ribbon cable - 300 mm (for RPi Zero) - 1 pc.
Elements included in the set.
