Battery charge level and sound level indicator - KA2284
The module is based on the KA2284 system. It is used to measure the input signal with the 5 LEDs, which are gradually included depending on the value of the measured voltage. It can measure voltage AC or DC (selected using jumpers). Sensitivity is adjustable with a potentiometer. Works with voltages from 3.5 V to 12 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
The module is based on the KA2284 system. It is used to measure the input signal with the 5 LEDs, which are gradually included depending on the value of the measured voltage. It can measure voltage AC or DC (selected using jumpers). Sensitivity is adjustable with a potentiometer. Works with voltages from 3.5 V to 12 V.
Specification
- Power supply: 3.5 V to 12 V
- Chip: KA2284
- Built-in potentiometer for sensitivity adjustment
- The ability to measure AC signal or DC voltage: selectable with a jumper
- Application
- The indicator of electricity
- The sound level indicator
- The battery charge level indicator
- Etc.
- Dimensions: 29 x 21
Connection
The module has inputs in the form of a goldpin strap raster 2.54 mm.

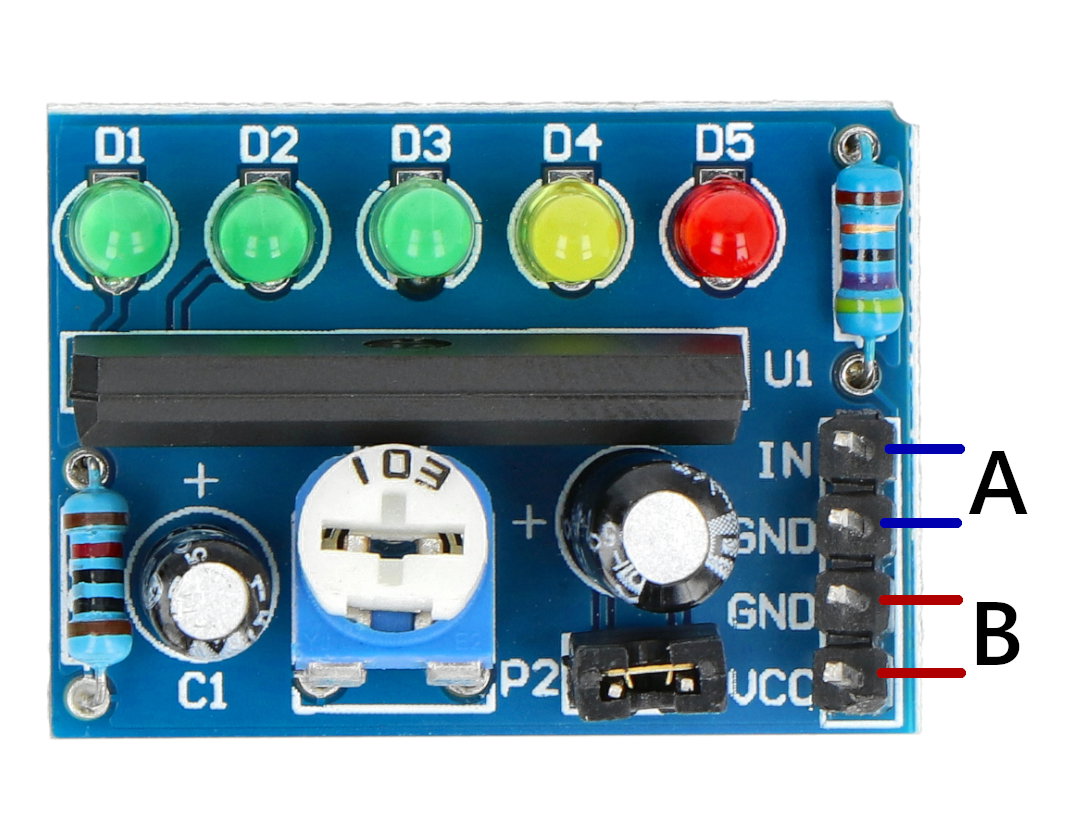

Output module KA2284. A- Measured signal inputs, B- Module power supply.
Useful links
| Name | Value |
|---|---|
| Width | 6 cm |
| Height | 1.1 cm |
| Depth | 9 cm |
| Weight | 0.005 kg |
