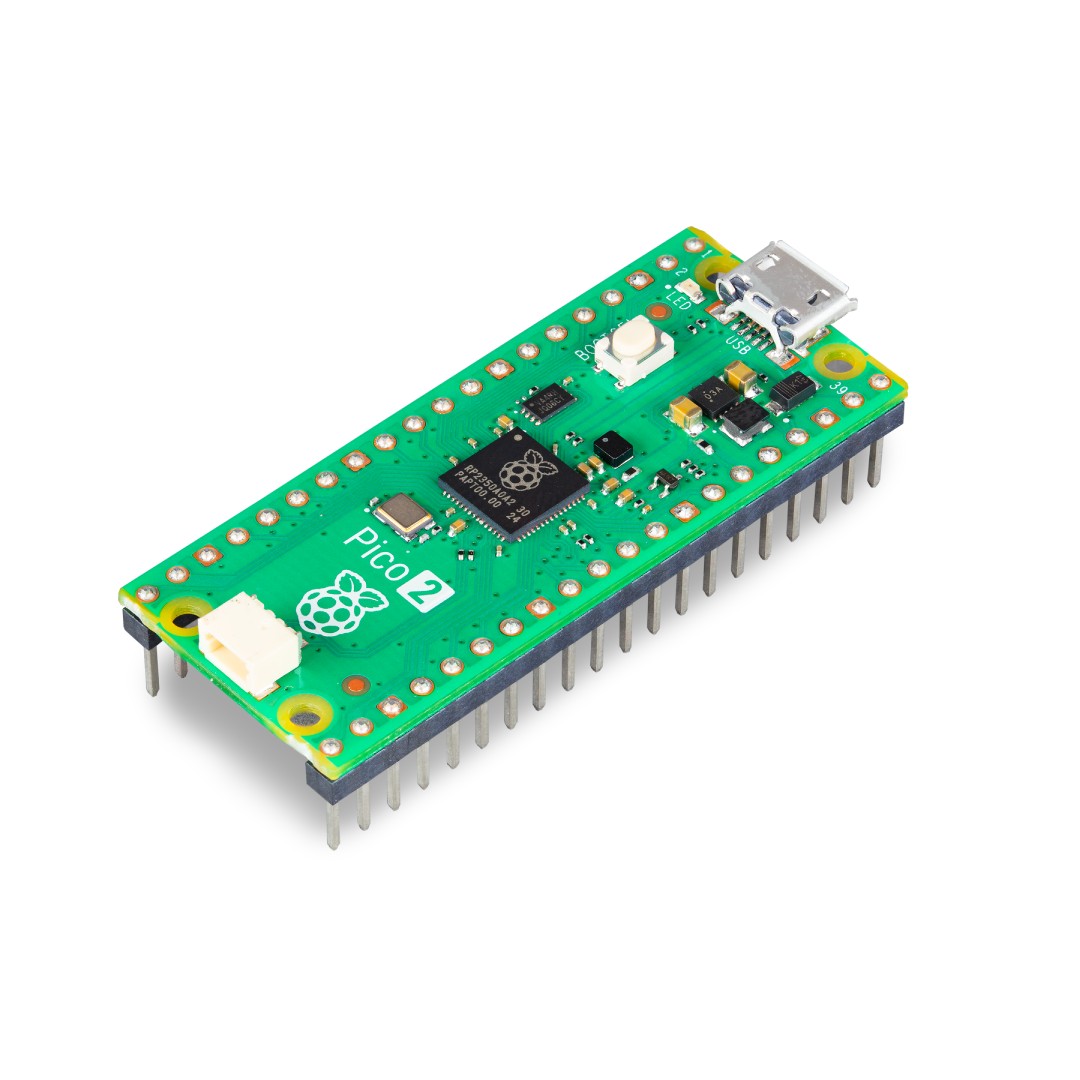

Raspberry Pi Pico 2 H - RP2350 ARM Cortex M33 - with header
The Raspberry Pi Pico 2 H is a modern microcontroller based on the RP2350 chip, clocked at 150 MHz . Equipped with 520 KB of SRAM, 4 MB of QSPI Flash , and ARM Cortex M33 and optional RISC-V cores, it offers higher performance than its predecessor. It has advanced security features, including Arm TrustZone, OTP, and Secure Boot , making it ideal for data protection. The H version has soldered headers for easy integration into projects.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Raspberry Pi Pico 2 H - RP2350 ARM Cortex M33 - with connectors
The Raspberry Pi Pico 2 H is a modern version of the popular microcontroller , equipped with the powerful RP2350 chip. Thanks to a higher processor clock speed (150 MHz), 520 KB of SRAM , and 4 MB of QSPI Flash memory , it offers noticeably better performance compared to its predecessor. The module is based on ARM Cortex M33 cores and optionally supports the RISC-V architecture, providing greater flexibility in application design. The Raspberry Pi Pico 2 H also features enhanced security features such as Arm TrustZone , OTP security, and Secure Boot , making it ideal for systems requiring data protection. The Pico 2 is programmed in C/C++ and MicroPython via a microUSB connector. The H model features soldered connectors , simplifying assembly and integration into a variety of projects.
Raspberry Pi Pico 2 H - RP2350 ARM Cortex M33 - with connectors.
Botland is an official distributor of Raspberry Pi single-board computers in Poland. Buying from us guarantees an original computer together with high quality accessories. You also support the Raspberry Pi Foundation, which helps develop the next version of this popular board.
Raspberry Pi Pico 2.
Main features of the Raspberry Pi Pico 2 H
- High performance: Dual-core ARM Cortex M33 clocked at 150MHz offers improved performance compared to the previous model
- Increased memory: 520 kB SRAM and 4 MB QSPI Flash provide more data and code storage
- Security: Arm TrustZone, OTP, and Secure Boot support enable advanced application security
- PSRAM and XIP QSPI v2 support: enables memory expansion and efficient code execution from Flash memory
- Model H with soldered connectors: easy installation in projects
Pinout of the Raspberry Pi Pico 2 module
The Raspberry Pi Pico 2 has 26 universal GPIO pins , including 4 for ADCs, operating at voltages up to 5V, facilitating integration with a wide range of sensors and peripherals. These include 2x SPI, 2x I2C, 2x UART, ADC, PWM, and USB 1.1 . The module also includes 3 PIO v2 blocks, allowing for easy development of custom digital interfaces.
Raspberry Pi Pico 2 offers a variety of peripherals such as UART, SPI, I2C, PWM and USB.
The RP2350 provides a comprehensive security architecture, built around Arm TrustZone.
Powering the Raspberry Pi Pico 2
The module has a built-in microUSB port, which is used to both power and communicate with the Raspberry Pi Pico 2 board. The board requires a 5V power supply to operate properly. The board can also be powered from the VSYS pin with a voltage between 1.8V and 5.5V , using an external power source, such as a 3.7V Li-Po battery or 3x AA batteries .
The logic part of the Raspberry Pi Pico operates at a voltage of 3.3 V. |
Raspberry Pi Pico Programming
The Raspberry Pi Pico can be programmed in C/C++ and MicroPython. To upload a program to the board, press and hold the BOOTSEL button and then connect the Raspberry Pi Pico to your computer using a microUSB cable. The module will be detected as a USB mass storage device, and you can drag and drop the program file to it. The manufacturer provides an SDK (Software Development Kit) for C/C++ and MicroPython, which can be found in the useful links below.
Pico 2 offers high performance for C/C++ and Python programming.
Raspberry Pi Pico H and Raspberry Pi Pico 2 H Model Comparison
| Parameter | Raspberry Pi Pico H | Raspberry Pi Pico 2 H |
|---|---|---|
| System | Raspberry Pi RP2040 | Raspberry Pi RP2350 |
| Core | ARM Cortex-M0+ Dual-Core 133MHz | ARM Cortex-M33 Dual-Core 150MHz |
| SRAM memory | 264 kB | 520 kB |
| Flash memory | 2 MB | 4 MB |
| Derivations | 40-pin / 23 digital GPIO + 3 ADC pins | 40-pin / 26 digital GPIO + 4 ADC pins |
| Interfaces | 2x UART, 2x I2C, 2x SPI, up to 16 PWM channels, 8x PIO | 2x UART, 2x I2C, 2x SPI, up to 24 PWM channels, 12x PIO |
| Supply voltage | 5V (USB) | 5V (USB) |
| Operating voltage of the logic part | 3.3V | 3.3V |
| Power/Data Connector | microUSB | microUSB |
| Dimensions | 51 x 21 mm | 51 x 21 mm |
Raspberry Pi Pico 2 equipped with an RP2350 microcontroller.
Raspberry Pi Pico 2 H Specifications
- Microcontroller: RP2350
- Processor: dual Arm Cortex-M33 or dual RISC-V Hazard3
- Clock speed: 150 MHz
- SRAM memory: 520 kB
- Flash memory: 4 MB
- Interfaces:
- 2x UART
- 2x SPI
- 2x I2C
- 24x PWM (limited to 16 PWM)
- 1x USB 1.1 and PHY
- 12x PIO
- Input voltage: 1.8V to 5.5V DC
- Operating temperature: -20°C to 85°C
- Dimensions: 51 x 21 mm
Useful links
| Name | Value |
|---|---|
| Voltage nominal | 5 V |
| UC - Microcontroller | RP2350 |
| UC - Core | Cortex M33 |
| UC - Flash | 4 MB |
| UC - RAM | 520 kB |
| UC - core | 2. Dual Core |
| Width | 11 cm |
| Height | 6.5 cm |
| Depth | 2 cm |
| Weight | 0.008 kg |
