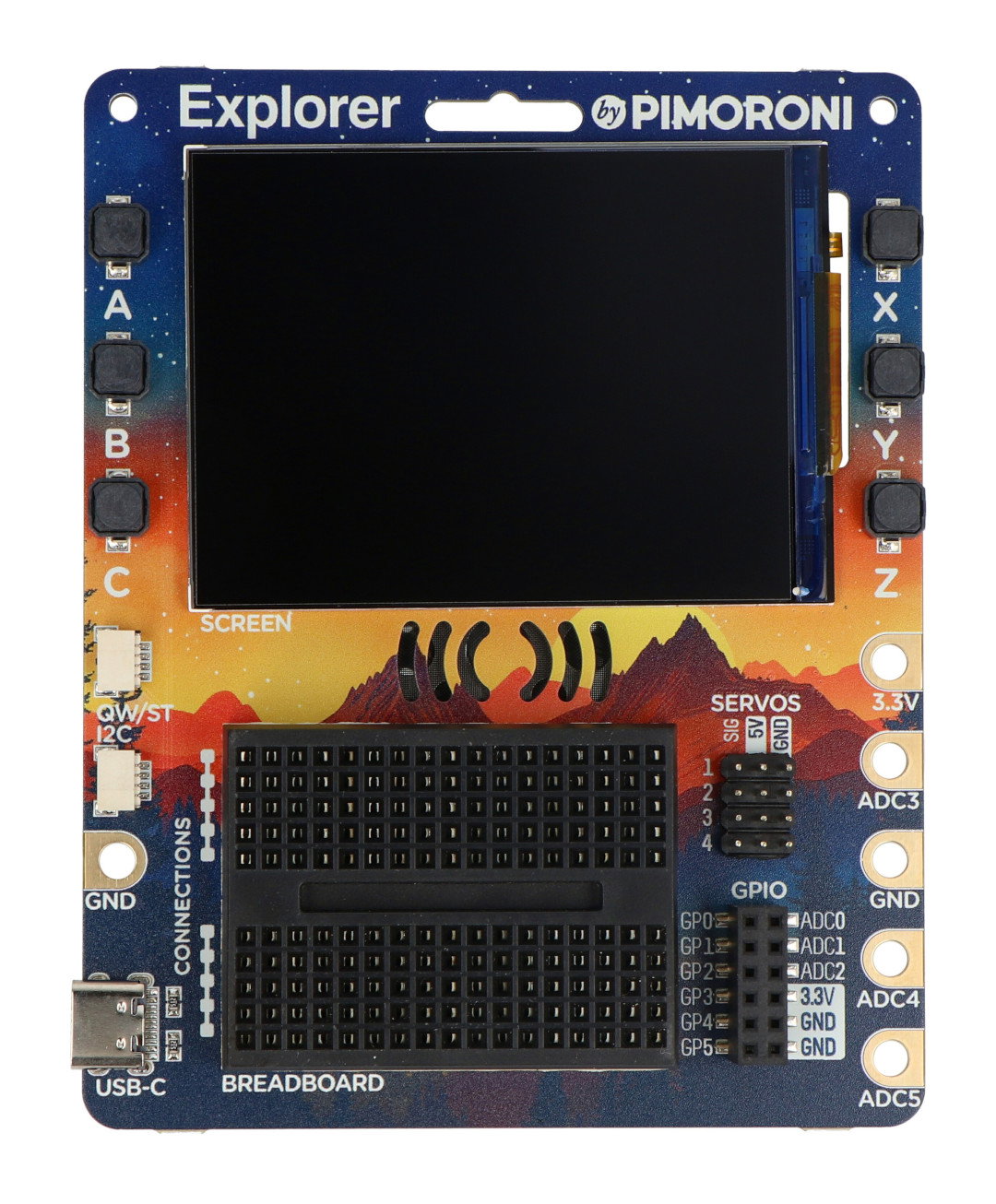

PiMoroni Explorer expansion board with RP2350B and 2,8'' LCD display - PiMoroni PIM720
PiMoroni Explorer is an expansion board designed for learning and experimenting with electrical circuits. It is based on the RP2350B Dual Arm Cortex M33 microcontroller clocked at up to 150 MHz with 520 kB SRAM. It is equipped with a 2.8'' IPS LCD display (320 x 240 px). The Explorer has analog inputs, a piezo speaker, servo outputs, Qw/ST connectors, connectors for connecting alligator clips, Reset and Boot buttons, and a small breadboard for connecting components. The USB Type-C connector is used for power, programming, and data transfer. The board does not require soldering, and its dimensions are 107 x 85 x 16 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: PiMoroni Explorer - expansion board with RP2350B and 2.8'' LCD display - PiMoroni PIM720

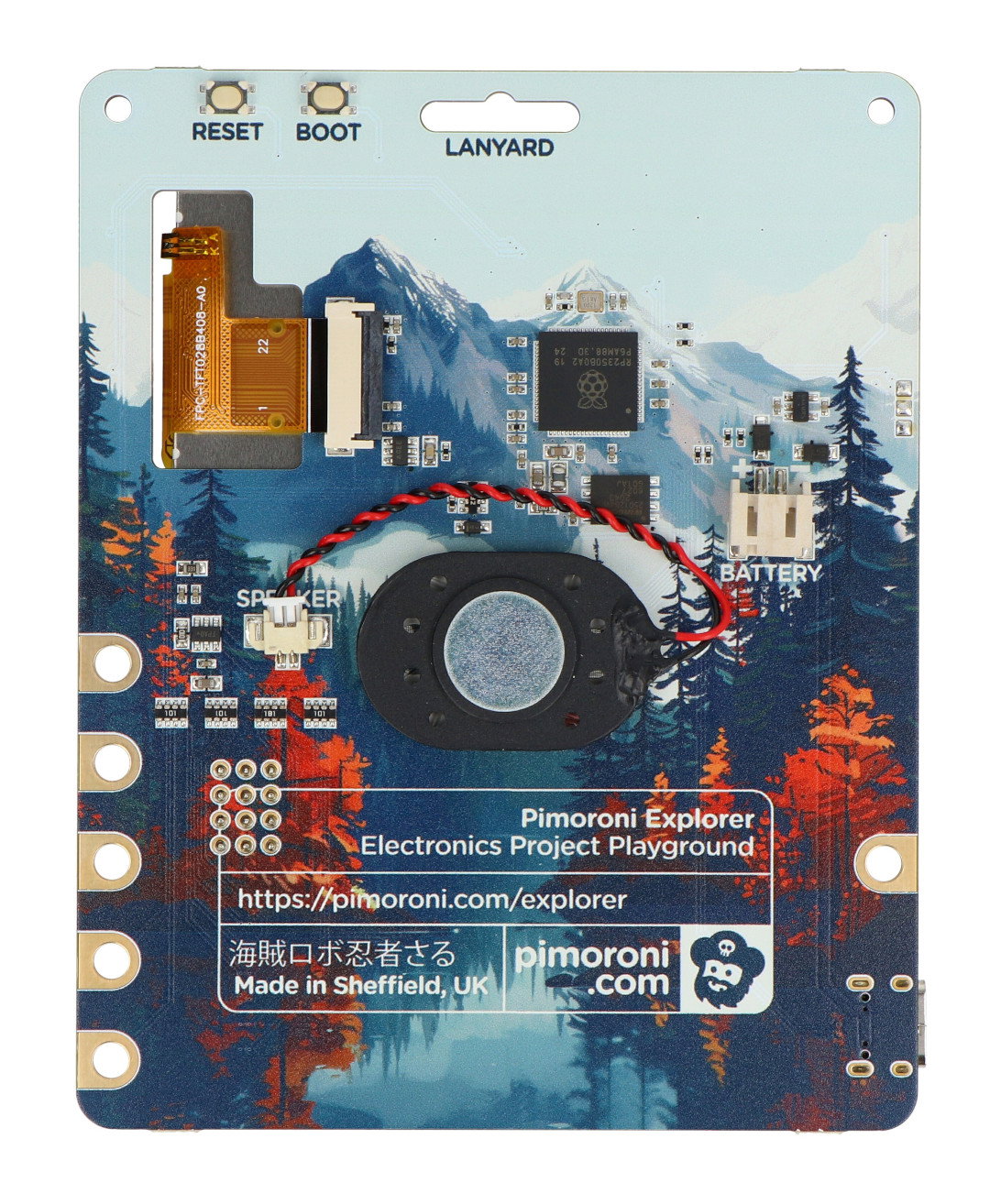

PiMoroni Explorer is an expansion board designed for learning and experimenting with electrical circuits. It allows you to build prototypes of small robots and your own electronic projects. It is based on the RP2350B Dual Arm Cortex M33 microcontroller clocked at up to 150 MHz with 520 kB SRAM memory. It is equipped with a clear 2.8'' IPS LCD display with a resolution of 320 x 240 px . On the right and left sides of the screen there are buttons that can be used to control a given project. Additionally, the Explorer has analog inputs, a piezoelectric speaker, servo outputs, Qw/ST connectors, connectors for connecting alligator clips, Reset and Boot buttons. At the bottom of the Explorer there is a small contact board for connecting components. The USB Type-C connector is used for power supply, programming and data transfer. A battery connector has also been mounted on the back of the board, so you can design and learn anywhere. The Explorer board is fully assembled and requires no soldering, and its dimensions are 107 x 85 x 16 mm. The kit includes 2 feet to allow the board to be placed vertically at an angle.
PiMoroni Explorer - expansion board with RP2350B and 2.8'' LCD display - PiMoroni PIM720.
Botland is an official distributor of the Pimoroni brand. This British company offers inventive solutions for electronics enthusiasts, covering modules, sensors, Raspberry Pi expansions, educational kits and prototyping accessories. The Botland range holds original Pimoroni products only.
Example connection.
Key Features of the PiMoroni Explorer Board
- Built-in piezo speaker
- Built-in 2.8'' IPS LCD display with a resolution of 320 x 240 pixels
- 6 User Controlled Switches - A, B, C, X, Y, Z
- GPIO and ADC pins
- Servo leads
- Mini breadboard in black
- Built-in USB C connector for programming and power supply
- No soldering required, comes fully assembled
- Programmed in C/C++ and MicroPython
Microcontroller RP2350B
The Raspberry Pi RP2350 microcontroller is based on a dual-core Arm Cortex M33 operating at 150 MHz, which provides high performance while maintaining low power consumption. It comes in two versions - A (standard) and B with 48 usable GPIO pins . Compared to the RP2040, the RP2350 operates at a higher core clock speed and offers twice the SRAM memory.
PiMoroni Explorer is based on the RP2350B microcontroller.

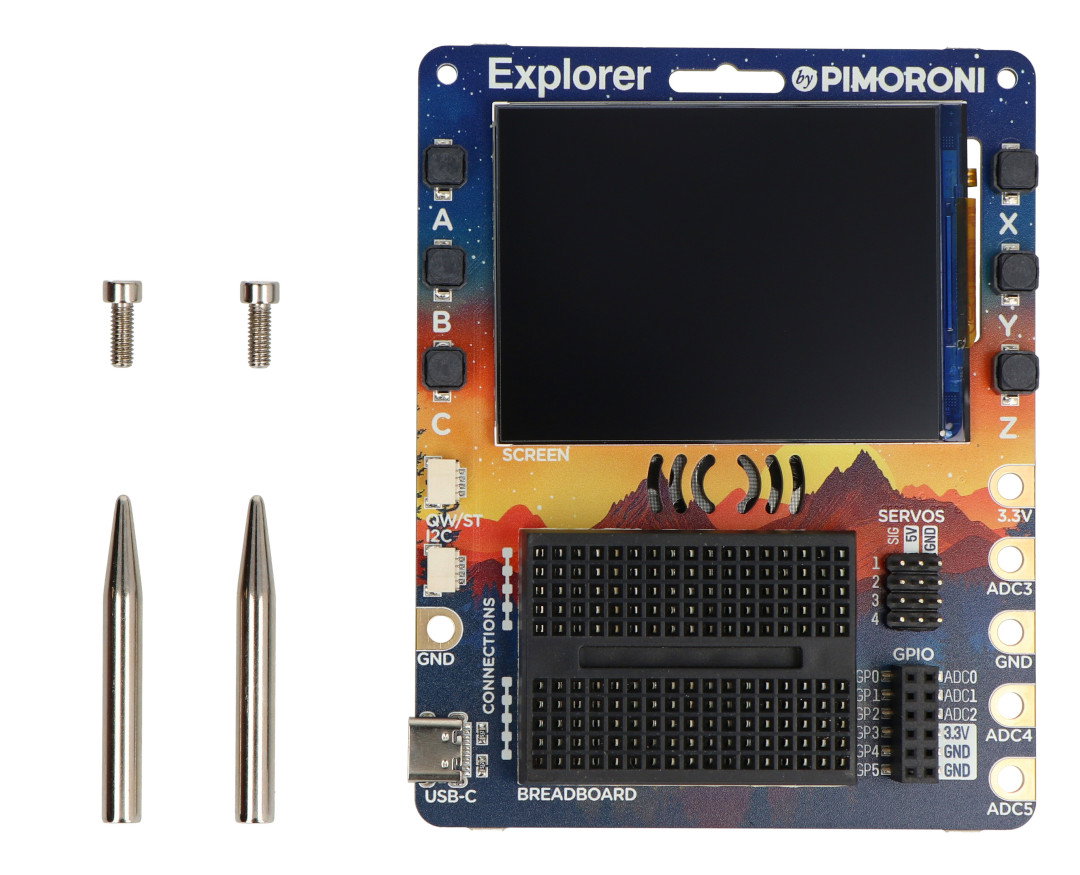

PiMoroni Explorer kit contents.
PiMoroni Explorer Board Specifications
- Microcontroller: RP2350B
- Processor: Dual Arm Cortex M33 clocked at up to 150 MHz
- SRAM memory: 520 KB
- Flash Memory: 16MB QSPI supporting XiP
- Display: IPS LCD 2.8'' (320 x 240 pixels)
- Driver IC: ST7789V
- Brightness: 250 cd/m2
- Screen dimensions: 43.2 x 57.5 mm
- Elements on the board:
- USB Type-C connector
- Miniature breadboard
- Piezoelectric speaker
- 6x User Controlled Buttons
- Reset and boot buttons
- GPIO connectors (6x GPIO and 3x ADC, 3.3V power supply, GND)
- 6x connectors for connecting alligator clips (3x ADC, 3.3V power supply and ground)
- 4x 3-pin servo outputs
- 2x Qwiic / STEMMA QT connector
- JST-PH 2-pin connector for battery connection
- Programming language: C / C++ or MicroPython
- Dimensions: 107 x 85 x 16 mm
Contents of the set
- 1x PiMoroni Explorer - expansion board with 2.8'' LCD display and RP2350B - PiMoroni PIM720
- 2x legs
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD IPS |
| Screen - diagonal | 2,8 " |
| UC - Microcontroller | RP2350 |
| UC - Core | Cortex M33 |
| UC - Flash | 16 MB |
| UC - RAM | 520 kB |
| UC - core | 2. Dual Core |
| UC - Connector | USB typ C |
| Width | 12 cm |
| Height | 18 cm |
| Depth | 2 cm |
| Weight | 0.092 kg |
