DFRobot micro: Maqueen Plus V2 with HuskyLens - advanced education robot platform - DFRobot MBT0021-EN-1
The micro: Maqueen Plus V2 robot is an advanced platform designed for use with the BBC micro: bit module. The set includes the AI HuskyLens camera module, which allows, for example, to recognize objects using artificial intelligence. The Plus version has more GPIO ports and an additional mounting plate. Intended for intermediate-advanced users.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: DFRobot micro: Maqueen Plus V2 with HuskyLens - advanced educational robot platform - DFRobot MBT0021-EN-1
The micro: Maqueen Plus V2 robot is an advanced platform designed for use with the BBC micro: bit module. The set includes the AI HuskyLens camera module, which allows, for example, to recognize objects using artificial intelligence . The Plus version has more GPIO ports and an additional mounting plate to expand the robot with additional functions. Intended for intermediate-advanced users. The robot can be controlled wirelessly using the micro: Gamepad .
Warning! The set does not include the BBC micro: bit minicomputer or Ni-MH batteries , these elements can be purchased separately. |
The micro: Maqueen Plus V2 educational robot platform.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

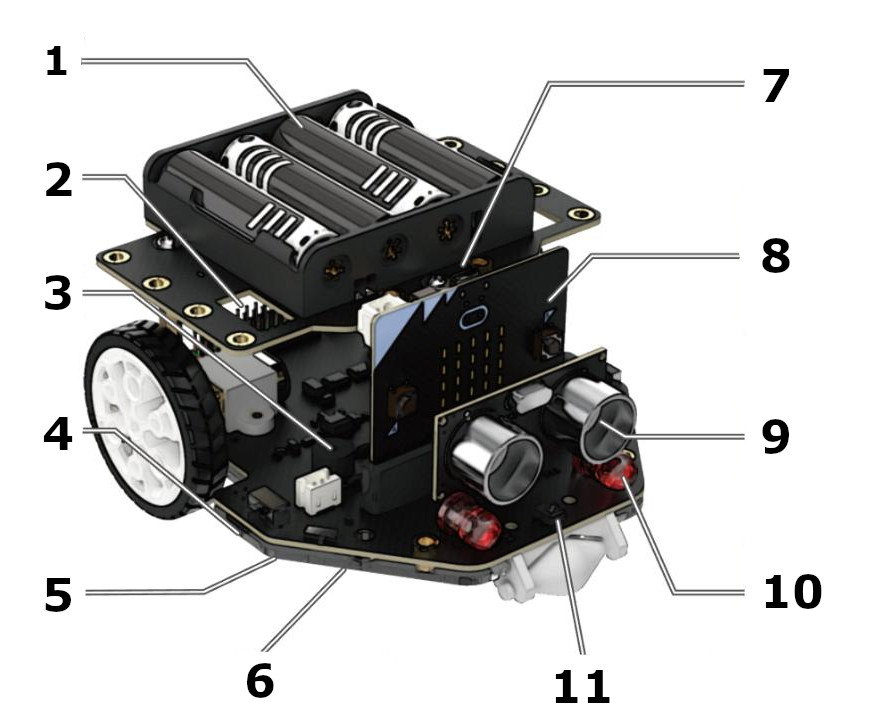

Elements on the PCB of the micro: Maqueen Plus V2
| No. | Description |
|---|---|
| 1 | Basket for 4 AA batteries |
| 2 | 14x GPIO |
| 3 | Buzzer |
| 4 | Line sensors x 5 |
| 5 | Acrylic base |
| 6 | 4x LED |
| 7 | HuskyLens |
| 8 | micro: bit (not included) |
| 9 | Ultrasonic sensor |
| 10 | 2x LED |
| 11 | IR receiver |

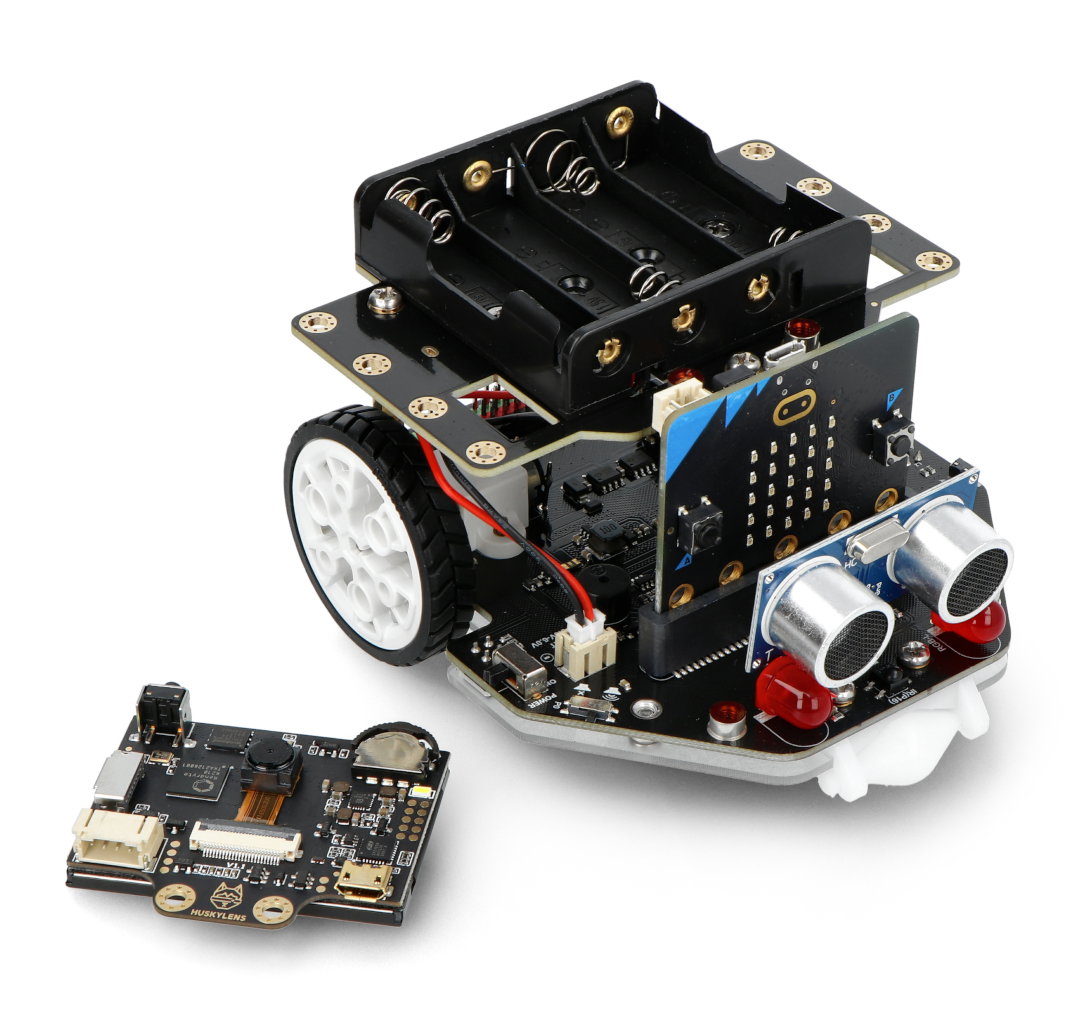

Micro platform: Maqueen Plus V2.

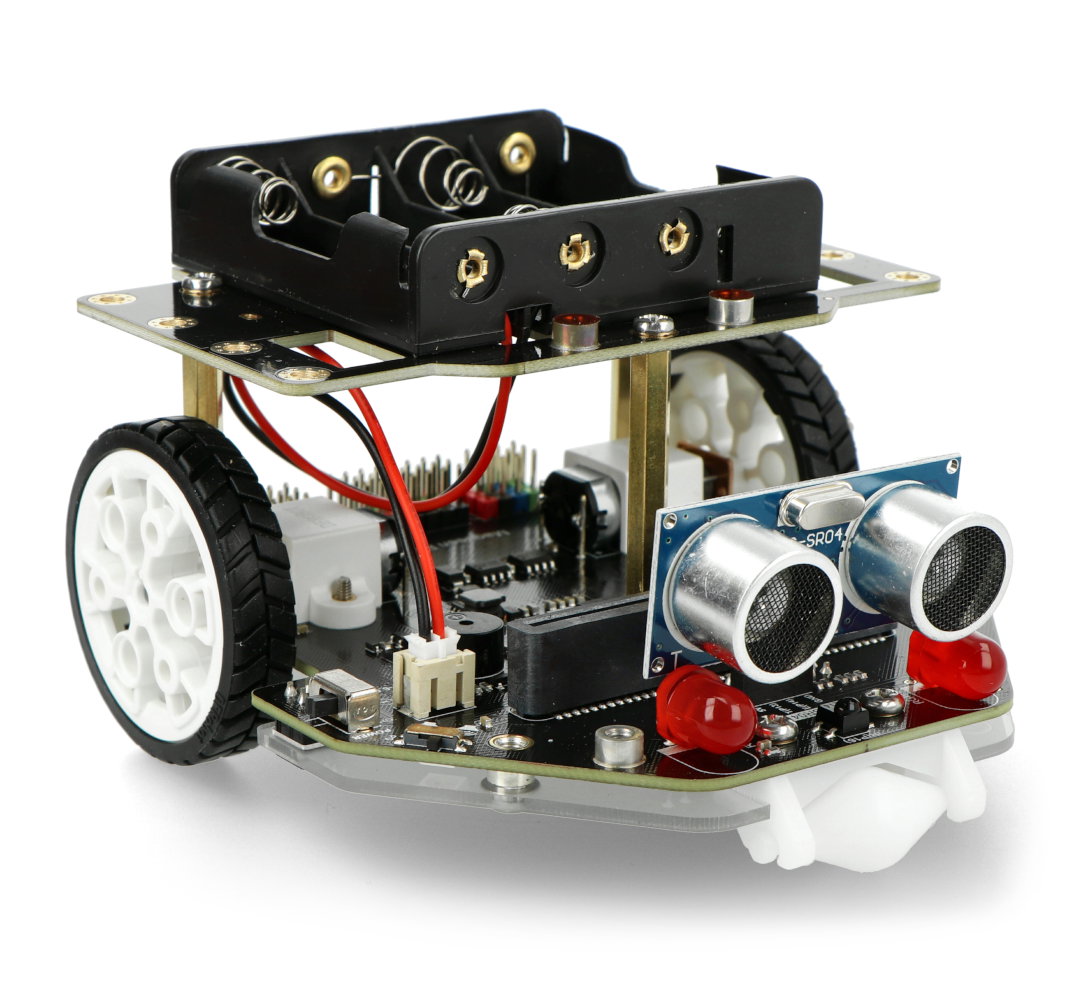

Robot Maqueen Plus V2
The robot is powered by four Ni-MH batteries (not included). Maqueen Plus V2 has five line tracking sensors that can be calibrated with the push of a button . In addition, the board has standard pins in the form of pins with a pitch of 2.54 mm , such interfaces as: 14 x GPIO, 3 x I2C. The robot is fully compatible with the AI HuskyLens camera.
Micro Specification: Maqueen Plus V2
- Power supply: 4x AA 1.5 V battery / 4x Ni-MH AA 1.2 V battery
- Compatible with: micro: bit v1 and micro: bit v2
- Engine: 2x N20 - metal
- Gear ratio: 1: 150
- Rotation speed: 133 rpm
- Buzzer
- Number of 5 V IO: 3x (P0, P1, P2)
- Number of 3.3 V IO: 7x (P0, P1, P2, P8, P9, P12, P16)
- 5V I2C quantity: x1
- The amount of 3.3V I2C: x2
- Two large LEDs (Car Lights)
- Four RGB LEDs
- Ultrasonic distance sensor H-SR04
- Programming: Mind +, MakeCode
- Dimensions: 136 x 65 mm
Micro platform: Maqueen Plus V2.
Set contains:
- Micro robot platform: Maqueen Plus V2 - 1 pc.
- Ultrasonic distance sensor: H-SR04
- HuskyLens: SEN0305 camera
- Line tracking mat: 1 pc.
- Micro robot platform: Maqueen Plus V2 - 1 pc.
- Ultrasonic distance sensor H-SR04
- HuskyLens SEN0305 camera
- Line tracking mat - 1 pc.
Check out our blog on how to connect an AI camera to a Maqueen robot. |
Useful links
| Name | Value |
|---|---|
| Robot type | 2-wheel |
| Robot power supply |
|
| Control platform | BBC micro:bit |
| Robot form | Self-assembly |
| Width | 16.5 cm |
| Height | 11.5 cm |
| Depth | 15.5 cm |
| Weight | 0.511 kg |
