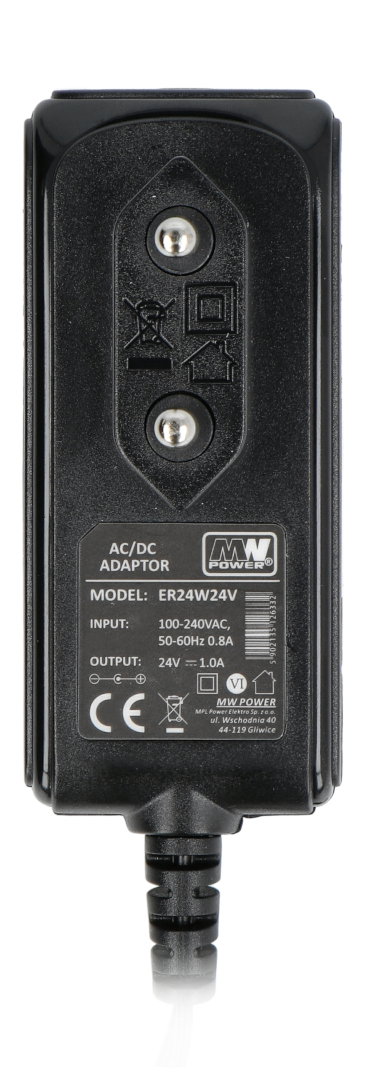

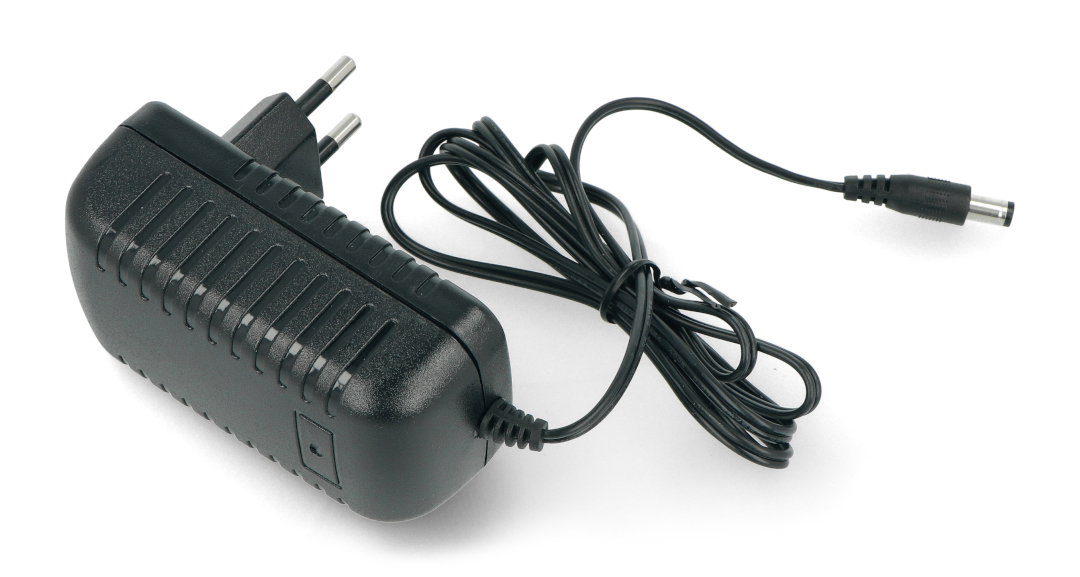

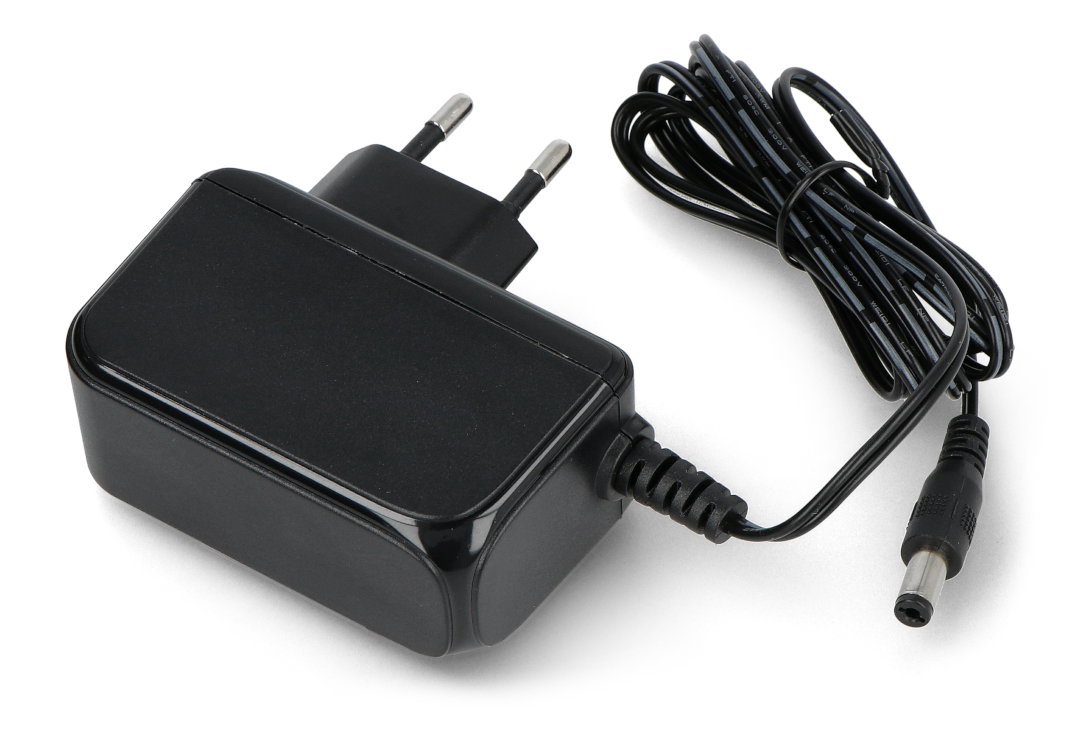

Product description: Switching-mode power supply MW Power ER24W24V 24 V / 1 A - DC 5,5 / 2,1 mm plug
ER24W24V switched-mode power supply provides 24 V DC to devices with a DC 5.5 / 2.1 mm connector. The current capacity of the module is 1A and the nominal power is 24 W. The plug-in power supply unit produced by MW Power is cooled by free air circulation. It has class II protection and overload, overvoltage and short-circuit protections. The unloaded power consumption is less than 0.3 W. The cable length is 150 cm.
The supply voltage is within the range from 100 V to 240 V AC.
Technical specifications of the switched-mode power supply from MW Power
- Model: ER24W24V
- Power supply design: Socket-mounted
- Plug type: DC 5.5 / 2.1 mm
- Supply voltage: from 100 V to 240 V AC
- Mains voltage frequency range: 50 Hz to 60 Hz
- Mains current consumption: 0,4 A
- Output voltage: 24 V
- Output current: 1 A
- Rated power: 24 W
- Cable length: 150 cm
- Dimensions: 73 x 43 x 32 mm
