Product description: Charging station for the Unitree Go2 Edu robot
The Unitree charging station is a professional solution for Go2 Edu walking robot users who expect complete autonomy from their device. Powered by 33.6V with a charging current of up to 9A , it ensures fast and safe charging. The robot automatically locates the station, positions itself, and rests on it, initiating charging . This solution is designed for the Go2 Edu – the station is not compatible with the Go2 Air or Pro versions.

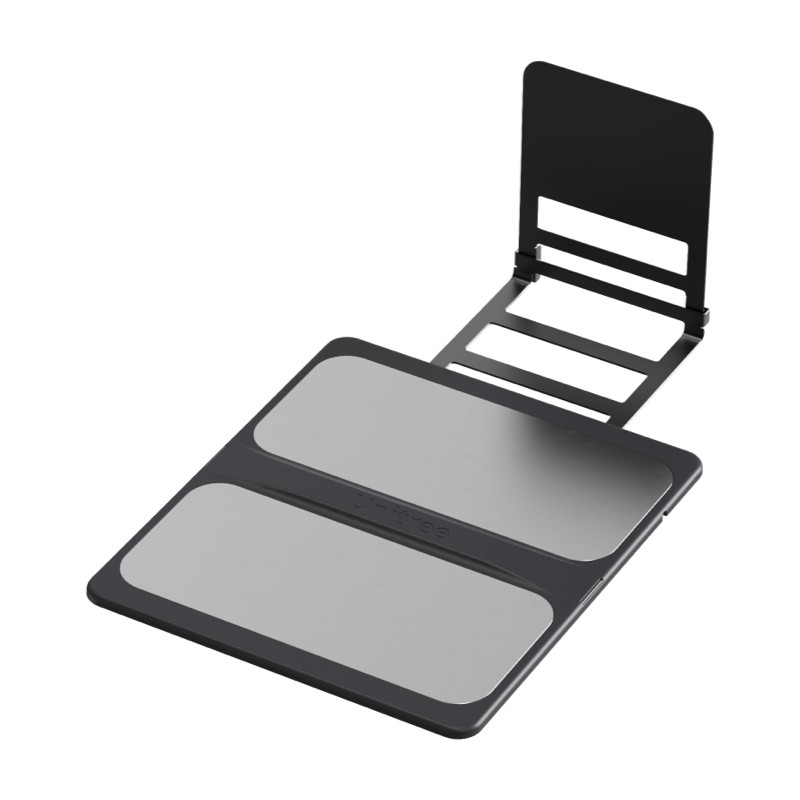

Charging station for the Unitree Go2 Edu robot.

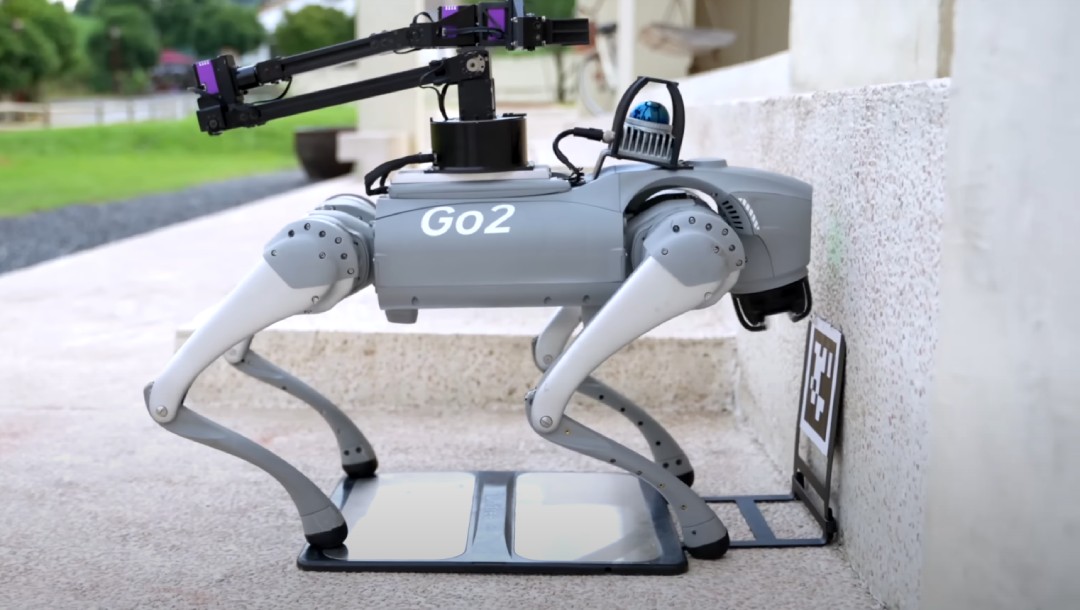

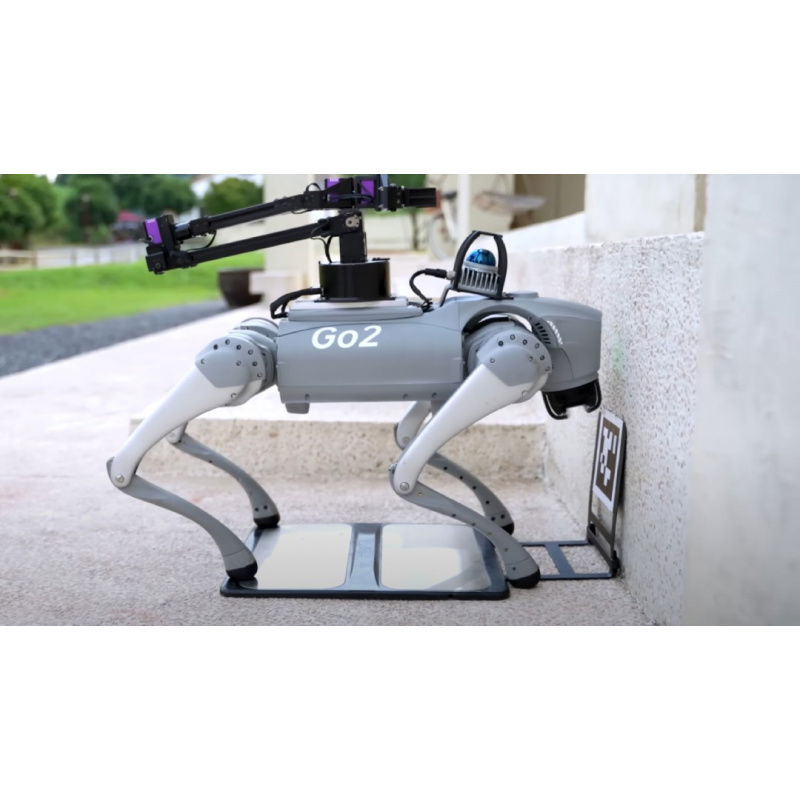

When the robot's battery runs low, Go2 Edu locates the station and places itself on its self-charging base to recharge.
Main features of the charging station
- Advanced charging automation : the robot locates the station itself and starts charging
- High power supply parameters : voltage of 33.6 V and current up to 9 A ensure fast charging of the Go2 Edu robot
- Full compatibility with Go2 Edu : a dedicated solution from Unitree
- Resistance to environmental conditions : operation at temperatures from 5°C to 40°C, humidity up to 95%

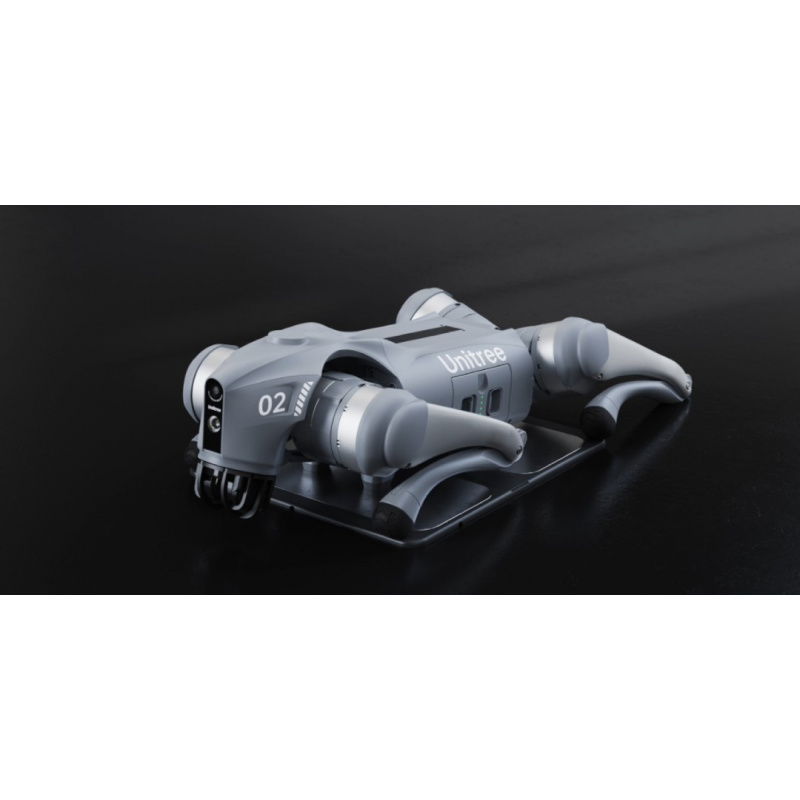

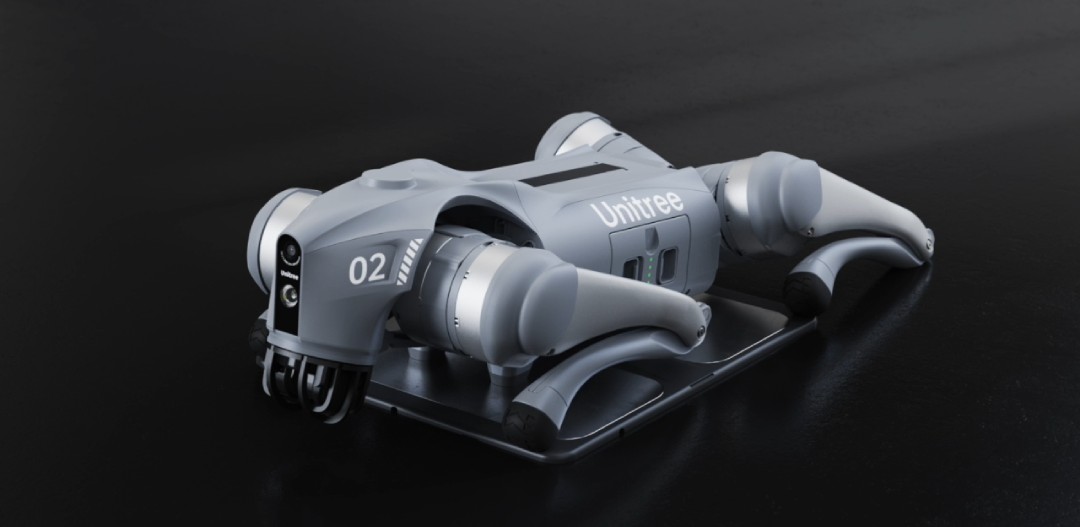

- Stable lay-down dock design : the robot lies down on the station and initiates the charging process
Advanced self-charging technology
The biggest advantage of the Unitree Go2 station is its fully autonomous charging technology . Upon detecting a low battery level, the robot automatically locates the station, precisely positions itself, and places itself on the charging plate. The charging process then begins at a voltage of 33.6 V and a current of up to 9 A. All this is done without any human intervention .
Resistance to environmental conditions
The charging station is designed for demanding environments. It supports an operating temperature range of 5°C to 40°C and relative humidity up to 95% . Storage at 22°C to 28°C protects components from degradation. The station is ideal for projects requiring uninterrupted robot operation —from monitoring and field research, through educational tasks, to automated patrols.
The station has a precise guidance system, thanks to which the robot can find it independently and connect to it without human intervention.

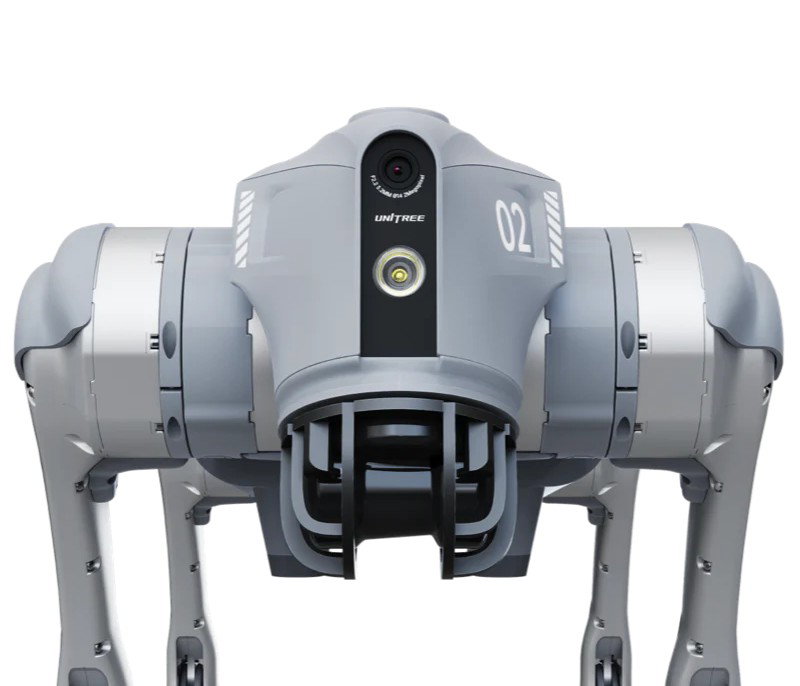

The charging station is dedicated to the four-legged walking platform Unitree Go2 Edu.
Technical specifications of the charging station
- Charging voltage: 33.6 V
- Charging current: up to 9 A
- Operating temperature: 5°C to 40°C
- Storage temperature: 22°C to 28°C
- Relative humidity: up to 95%
- Compatibility: Unitree Go2 Edu
- Charging type: contact (lay-down dock)
Contents of the set
- 1x Unitree Go2 Charging Station
