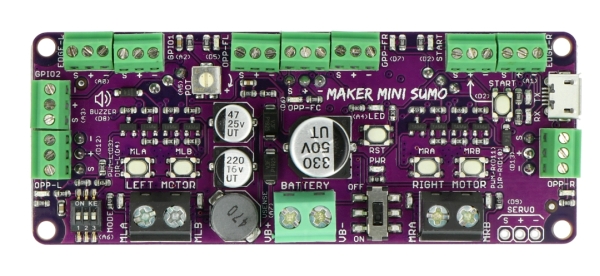

Cytron Maker Mini Sumo - robot controller
The mini sumo robot controller is compatible with Arduino Nano/Uno because it is based on the ATmega328P microcontroller and can be programmed using Arduino IDE. The module is powered from 7 V to 18 V DC, the power input has reverse polarity protection. The cover allows to supply two DC motors working with voltage from 7 to 18 V with current consumption up to 6 A.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Cytron Maker Mini Sumo - robot controller
The mini sumo robot controller is compatible withArduino Nano/Unobecause it is based onthe ATmega328P microcontrollerand can be programmed usingArduino IDE. The module is poweredfrom 7 V to 18 V DC, the power input is protected against reverse polarity. The cover allows to power two DC motors operating from 7 to 18 V, with current consumption up to 6 A.

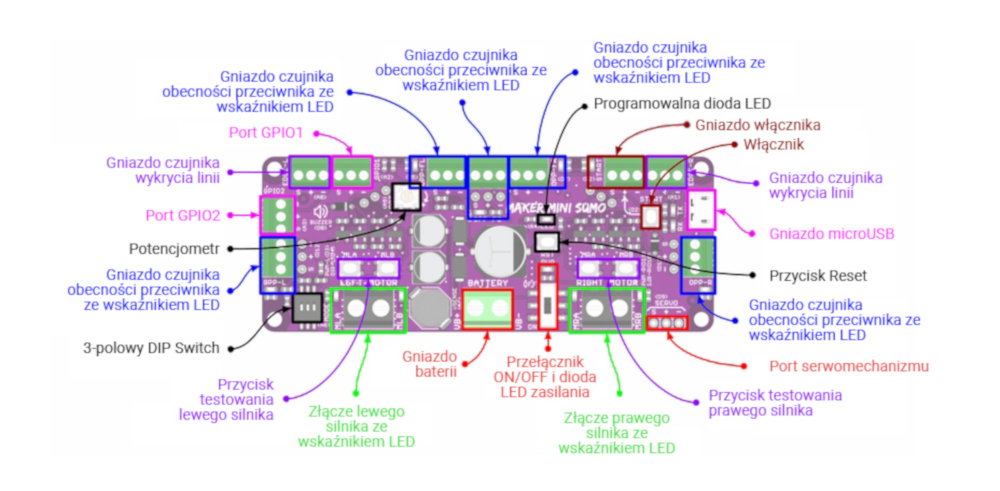

Outputs Cytron Maker Mini Sumo - robot controller
The board is equipped with screw connections, which reduces the risk that one of the wires may fall out due to an impact. The board has 5 digital inputs to connect distance sensors, 2 analogue inputs to connect the Dohyo overrun sensors and a digital inputtowake up the controller. Additionally, the board has an output for servo and 2 general purpose I/O ports, which can be used both as an analogue input and digital input/output.
| Name | Description |
|---|---|
Nest of presence opponent + LED | Socket to connect a presence sensor orany other sensor communicating through a digital interface.
|
Programmable LED | User-controlled LED. |
Switch socket | Socket connected in parallel with the switch, allows the connection of an external switch or IR switch module. The signal pin is pulled up to 5 V.
|
Switch | Programmable button, usually used to start the program. |
Sensor socketline detection | Socket to connect a line detection sensor or any other communication through an analog interface.
|
MicroUSB socket | Allows you to transfer the program from your computer to the board. |
| Reset button | Used to reset the system. |
Servomechanism port | The connector allows you to connect a servo.
|
Right hand engine test button | A button that allows you to quickly check the operation and proper connection without having to write a code. |
Right/left motor connector with LED indicator | Connectors for connecting motors, direction of rotation depends on the connection:
|
ON/OFF switch and power LED | The switch responsible for the operation of the device, the LED lights up when the power is on. |
Battery socket | ARK connectors for battery connection
|
3-field DIP Switch | The 3-field DIP-Switch allows you to select up to 8 different operating modes |
Potentiometer | Connected to analog input |
GPIO port 1/2 | General destination entry/exit port, Can be used as a digital signal input/output or analogue signal input
|
The apparatus and the receiver should be purchased separately.

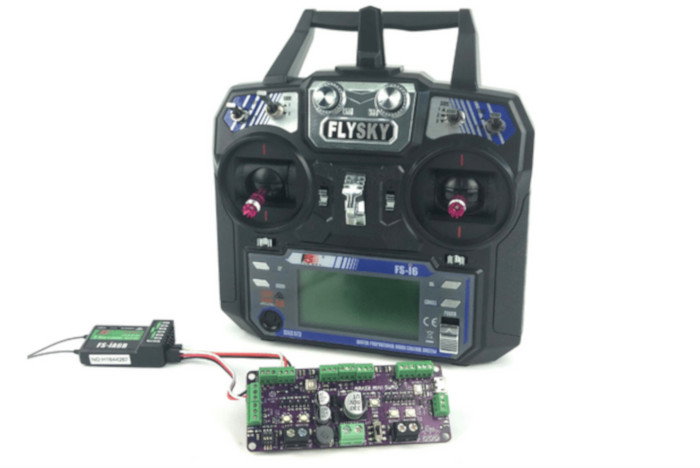

Support for RC mode - Cytron Mini Sumo Maker - robot controller
The module supports the possibility of remote control by means ofRCequipment.To do this, connect the receiver to the additional pins on the board, this ensures full control over the robot's movements. The manufacturer has prepared a sample code for control. The receiver and the control equipment must be purchased separately.
Troubleshooting problems with the Cytron Mini Sumo Maker Robot Controller
The controller is designed for quick fault diagnosis and configuration, thanks to the built-in buttons it is possible to test the connection of motors without the need to write a code. Built-in LEDs and a potentiometer allow for a very simple adjustment of the sensor range.
The board has a programmable piezo buzzer.
Specification Cytron Maker Mini Sumo - robot controller
- Supply voltage: 7 V to 18 V DC
- Power current
- Continuous: 3 A
- Momentary: 6 A
- PWM signal frequency: up to 20 KHz
- Digital input voltage
- Low state: 0 V to 0.5 V
- High condition: 1.7 V to 5 V
- Analog input voltage: 0 to 5 V
- Power output
- Voltage: 5 V
- Current: 500 mA
Useful links
| Name | Value |
|---|---|
| Width | 12.4 cm |
| Height | 6.9 cm |
| Depth | 3.4 cm |
| Weight | 0.062 kg |
