Product description: Maker Pi RP2040 - Cytron
A board equipped with a microcontroller designed byRaspberry Pi -RP2040. It featuresa dual channelDCmotor controller,4leads for servo control and7Grovecompatible I/O ports. The Maker Pi RP2040 from Cytron is a turnkey solution for DIY robot projects that require intelligent control.
Kit contents
- Maker Pi RP2040 - Cytron
- Grove connection cable - JST - 4 pieces
- Star screwdriver
- Anti-slip feet - 4 pieces

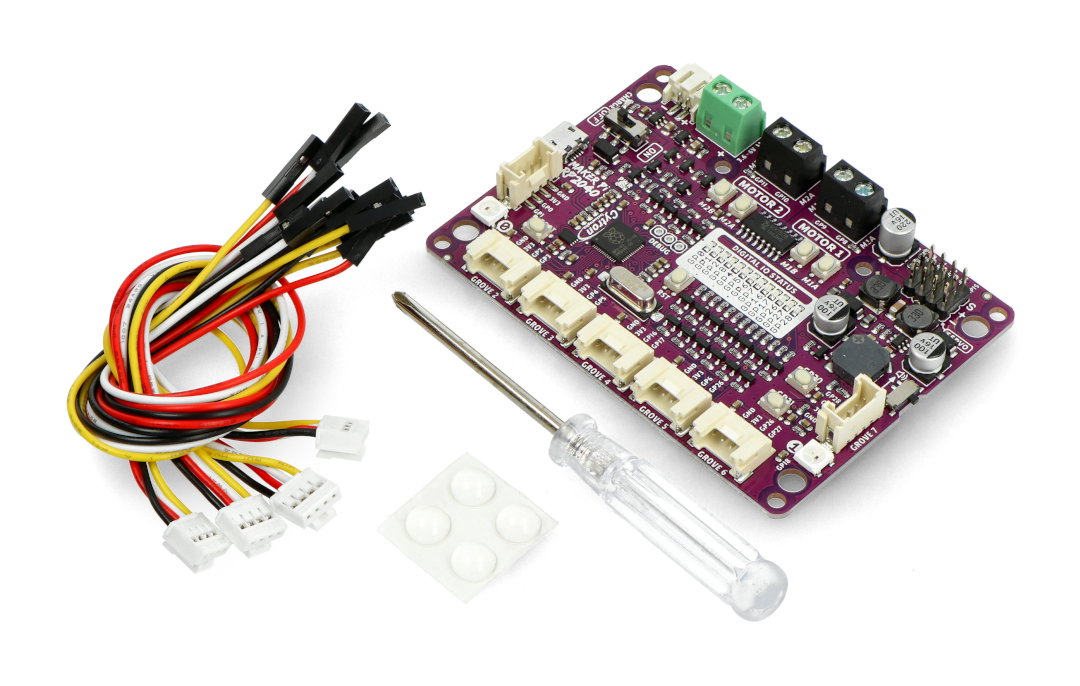

Maker Pi RP2040 kit components from Cytron.

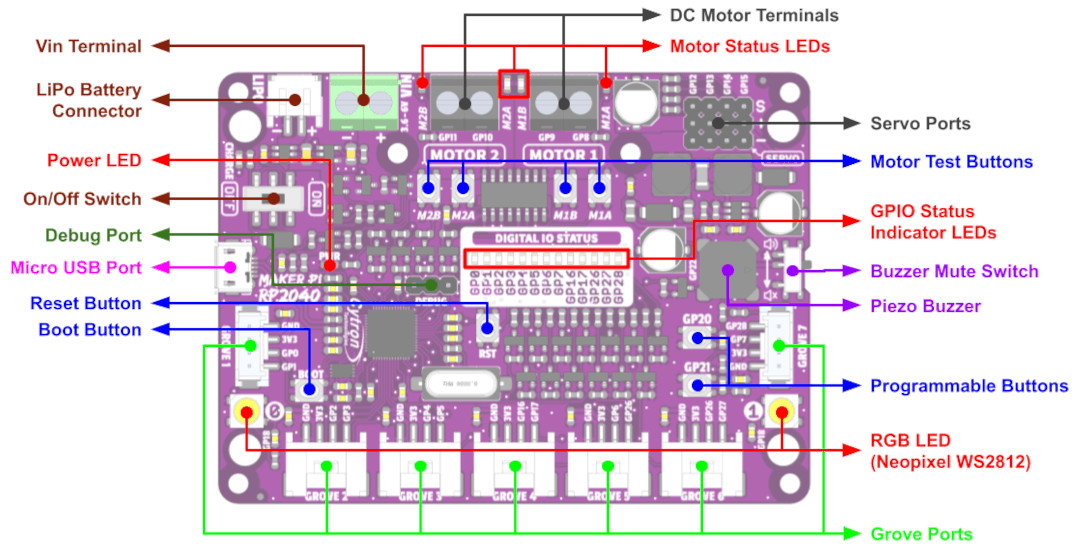

Arrangement of components on the board.

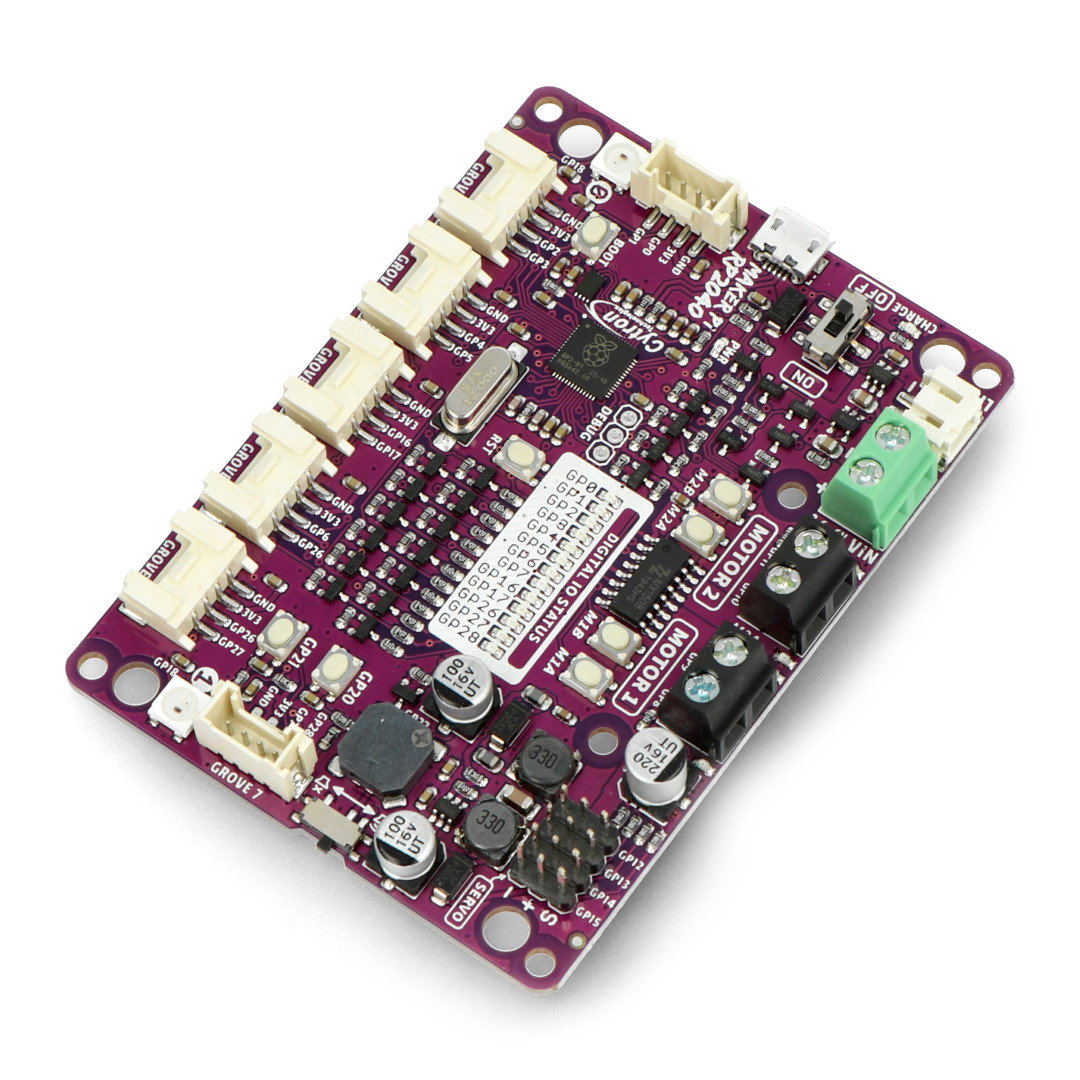

Overview of the Maker Pi RP2040 from Cytron
- RP2040 microcontroller board
- Motor controllers to control two DC motors or one stepper motor with a voltage range of 3.6 V to 6 V
- Built-in Quick Test buttons and LEDs for motor testing - no need to implement code
- Board equipped with piezo buzzer
- Possibility to connect up to 7 peripheral devices via Grove connector
- Three power options: battery, VIN connector or microUSB port
- Compatible withRaspberry Pi Picoseries - software, firmware, libraries and resources developed for Raspberry Pi Pico work with Maker Pi RP2040 from Cytron
Maker Pi RP2040 technical specifications
- System parameters:
- embedded chip: Raspberry Pi RP2040
- processor: ARM Cortex-M0+ Dual-Core
- processor clocking: 133 MHz
- internal RAM: 264 kB
- Flash memory: 2 MB
- Power supply:
- 5 V - supplied via microUSB connector (USB type B)
- 3.6 V to 6 V - supplied through the VIN connector
- 3.7 V - supplied through Li-Pol/Li-Ion battery
- Motor controllers
- Number of supported motors: 2x DC motor / 1x stepper motor
- motor supply parameters: from 3.6 V to 6 V
- allows control of a motor with a current consumption of up to 1 A
- Connections for servos: 4
- Status indication: 13x LEDs indicating operating status for GPIO pins
- 2x RGB LED
- Built-in piezo buzzer
- Utility buttons: 2x
- Grove connectors for peripherals: 7 universal I/O: digital, analog, I2C, SPI, UART, etc.
- Development environment: C/C++, MicroPython, CircuitPython
- Mounting holes:
- 4x mounting hole 4.8 mm (compatible with LEGO series pins)
- 6x M3 screw hole
- Dimensions: 88 x 64 mm
The Maker Pi RP2040 has 7 Grove connectors for connecting peripherals.
