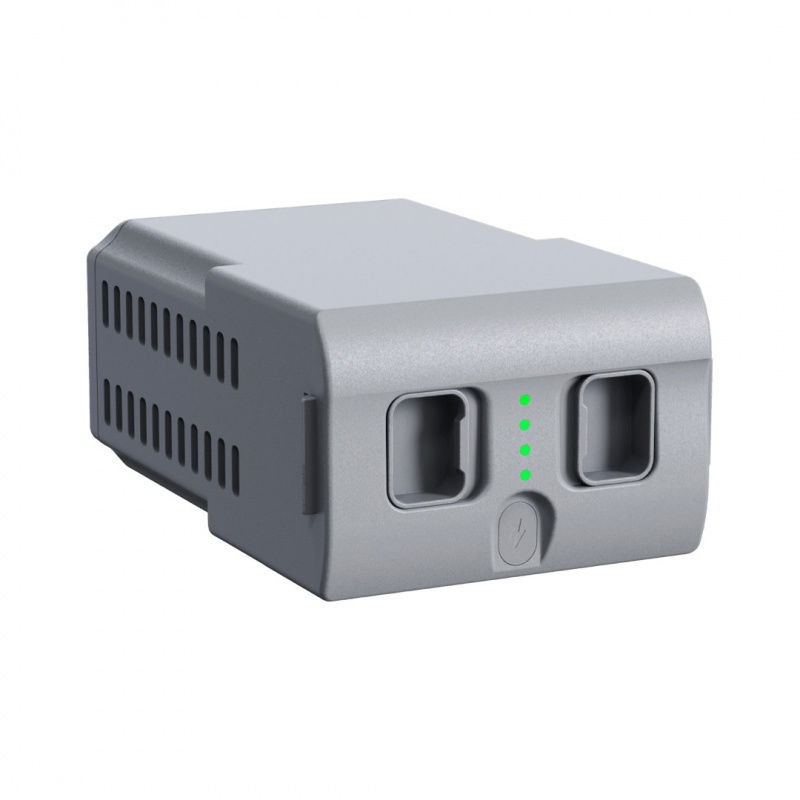

Product description: Unitree Go2 Robot Battery - 15000 mAh - Long Range - BT2-06
The Unitree Go2 Long Range battery is designed for users requiring extended robot runtime and the highest reliability. Thanks to the use of high-capacity 15,000 mAh (432 Wh) lithium-ion cells and an advanced BMS system , the battery provides stable power even during intensive tasks. It is compatible with Unitree Go2 robots , offering up to 3-5 hours of operation on a single charge . Thanks to its increased capacity, the battery allows for terrain exploration, complex missions, or long test sessions.
Before using the battery for the first time, make sure it is fully charged.

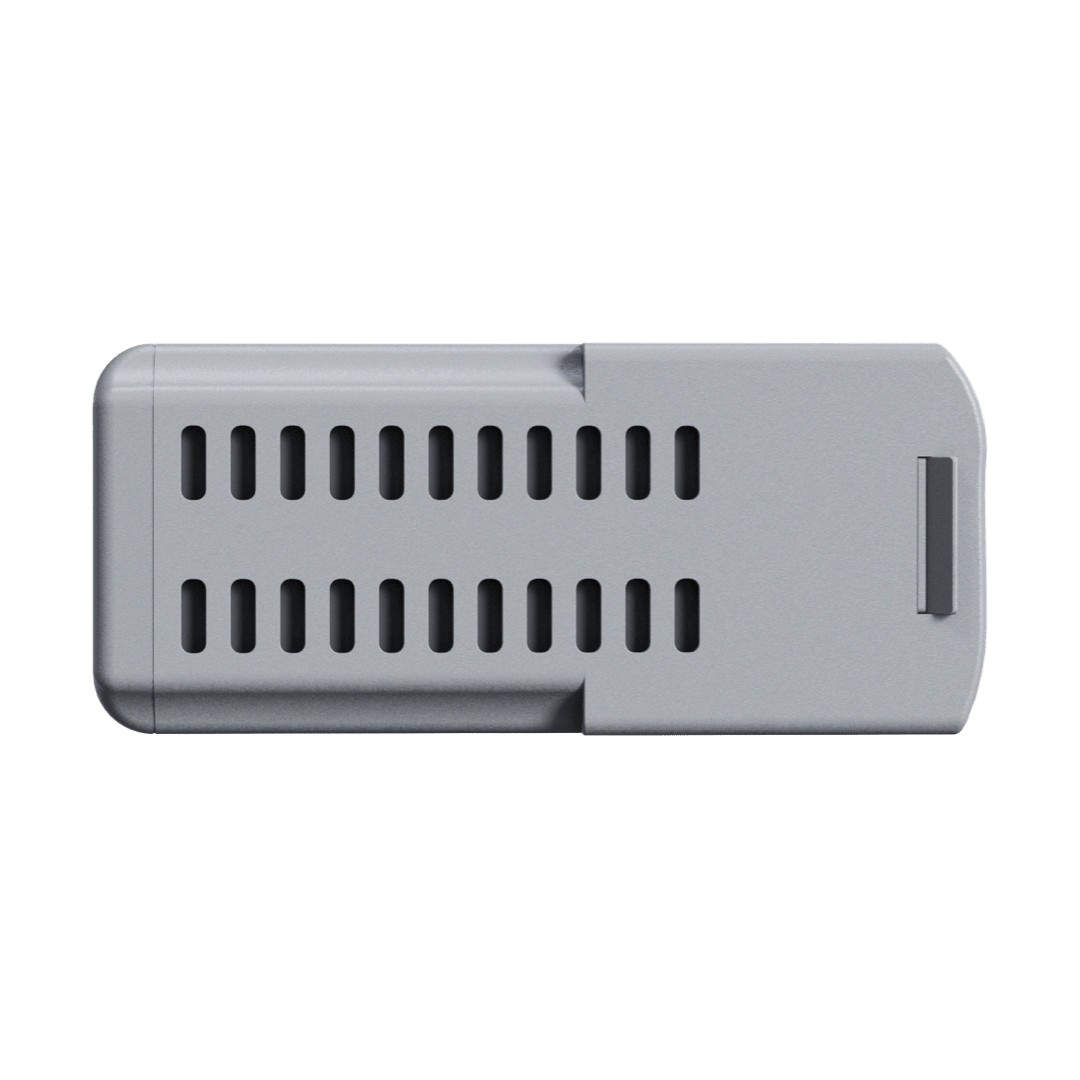

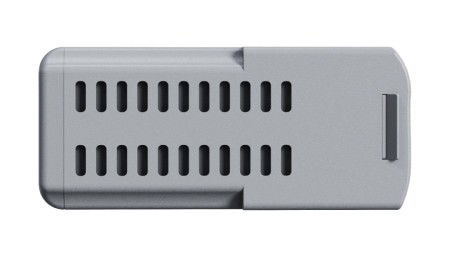

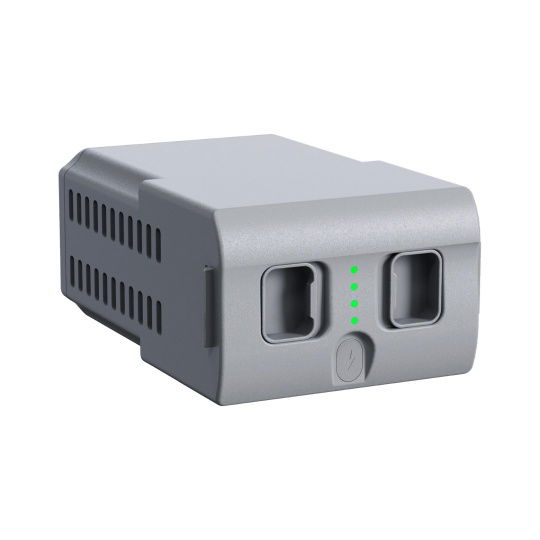

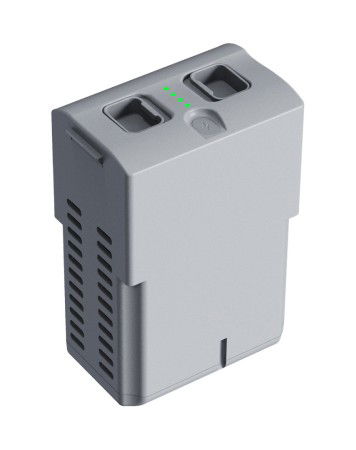

Unitree Go2 Robot Battery - 15000 mAh - Long Range - BT2-06.

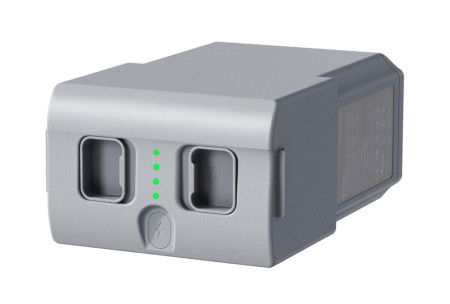

The 15000 mAh battery significantly extends the robot's operating time on a single charge.
Main features of the Long Range battery
- High capacity 15000 mAh (432 Wh) : provides up to 5 hours of operation for the Unitree Go2 robot
- Full compatibility : designed for Unitree Go2 robots
- Intelligent BMS system : manages energy and protects cells, protecting the battery against overcharging, overheating, short circuiting and excessive discharge
- Fast charger compatibility : supports chargers up to 9 A and can charge the battery in just 1.5 hours

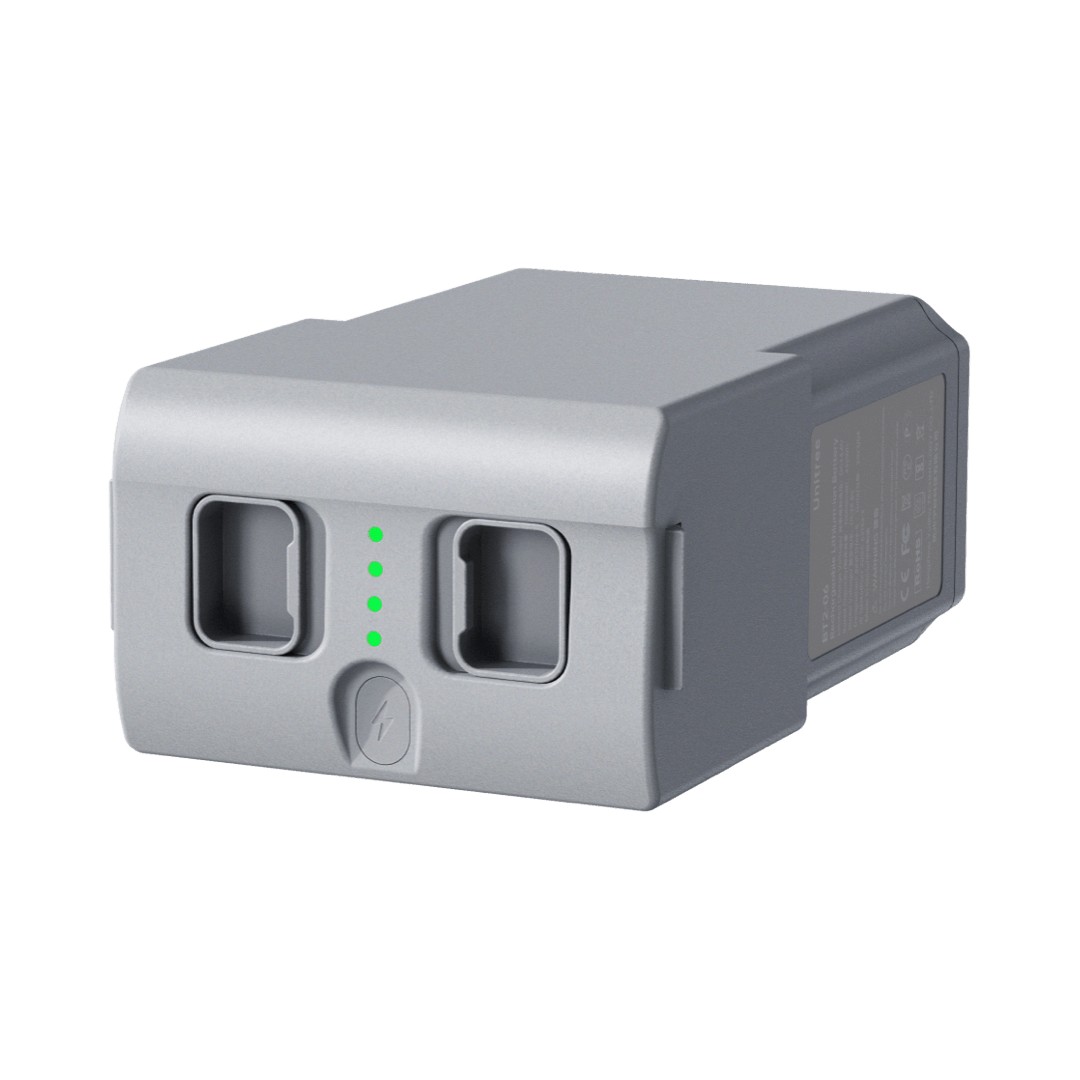

- LED power level indicator : allows you to monitor the charge status at all times
- Robust housing and safety ports : minimize the risk of incorrect connection and mechanical damage
Battery durability and protection
The battery is equipped with an 8-stage protection system , including protection against overheating, short circuits, overcharging, over-discharging, balanced cell charging, overcurrent protection, and automatic discharge in storage mode. This ensures the battery operates safely, efficiently, and with long durability —even with intensive use.
Practical applications
The Long Range battery is ideal for field applications, patrols, industrial inspections, educational and scientific activities . Its high capacity and intelligent safety features make it a reliable power source for robots operating continuously.
The battery is equipped with an advanced management system (BMS).

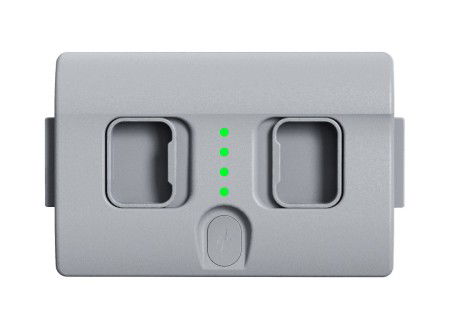

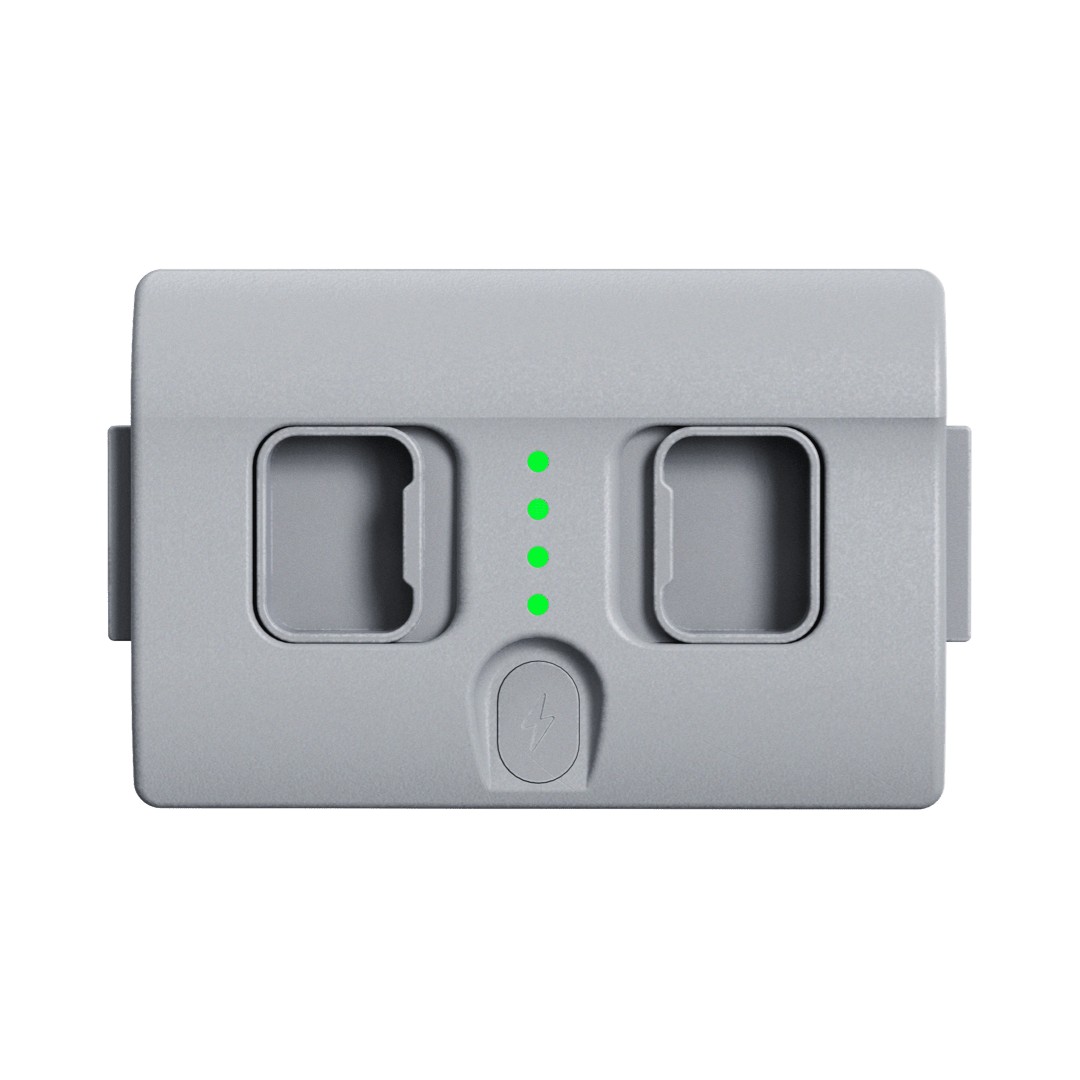

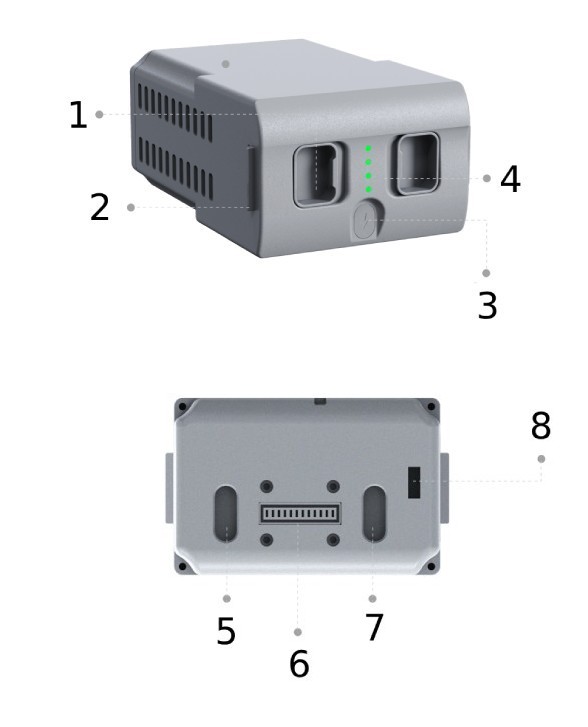

Arrangement of elements.

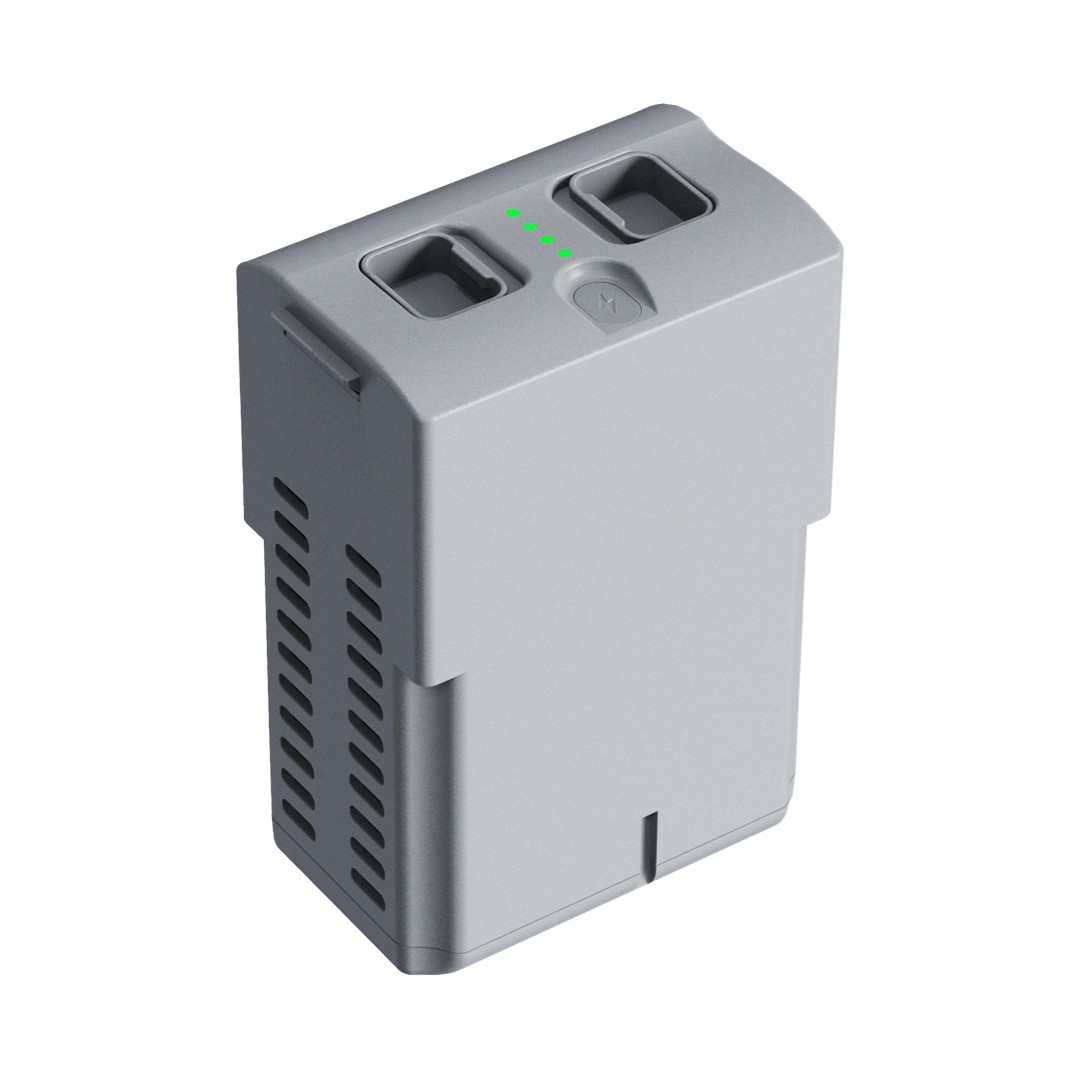

Battery construction
- Mechanical latch securing the battery to the robot
- Handle for easy assembly and disassembly
- Power button to turn the battery on/off
- Charge level and operating status indicators
- Protection against incorrect connection
- Battery charging connector
- Protection against incorrect connection
- Main power output for the robot
Battery technical specifications
- Model: BT2-06
- Nominal voltage: 28.8 V
- Charging voltage: 33.6 V
- Capacity: 15000 mAh / 432 Wh
- Working time: up to 3-5 hours
- Charging current: 3.5 A to 9 A
- Security: 8-stage BMS system
- Compatibility: Unitree Go2
- Dimensions: 120 x 80 x 182 mm
Contents of the set
- 1x Long Range Battery
The battery is dedicated to Unitree Go2 four-legged walking robots.
