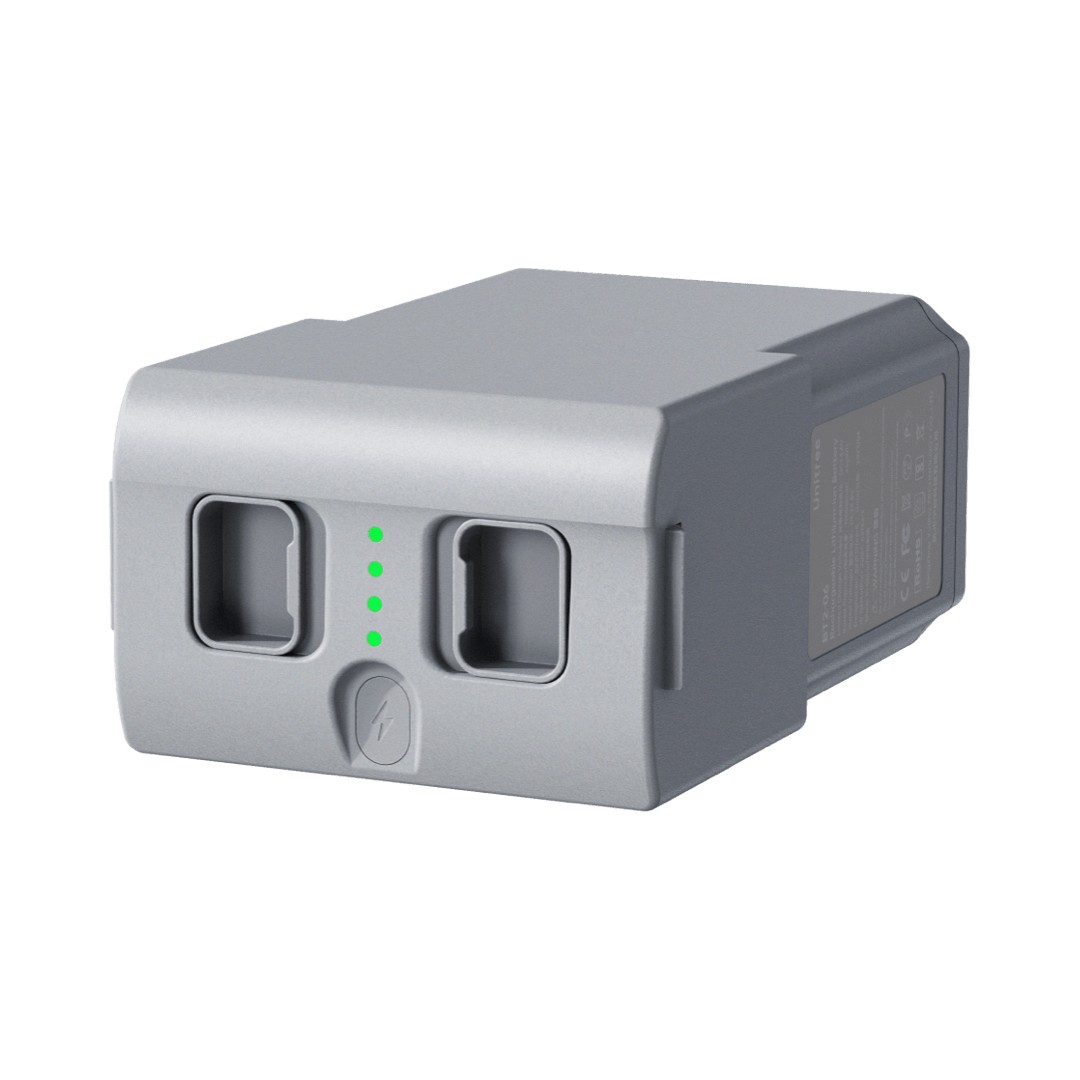

Product description: Unitree Go2 Robot Battery - 8000 mAh - Standard - BT2-05
The Unitree Go2 Standard Battery is the primary power source for the Unitree Go2 robot . It offers an 8000 mAh (236.8 Wh) capacity , sufficient for 1-2 hours of continuous operation . The use of high-quality lithium-ion cells and a proprietary BMS system ensures safety and long battery life. It's an ideal solution for testing, patrolling, and everyday robot operation in a variety of conditions.
Before using the battery for the first time, make sure it is fully charged.

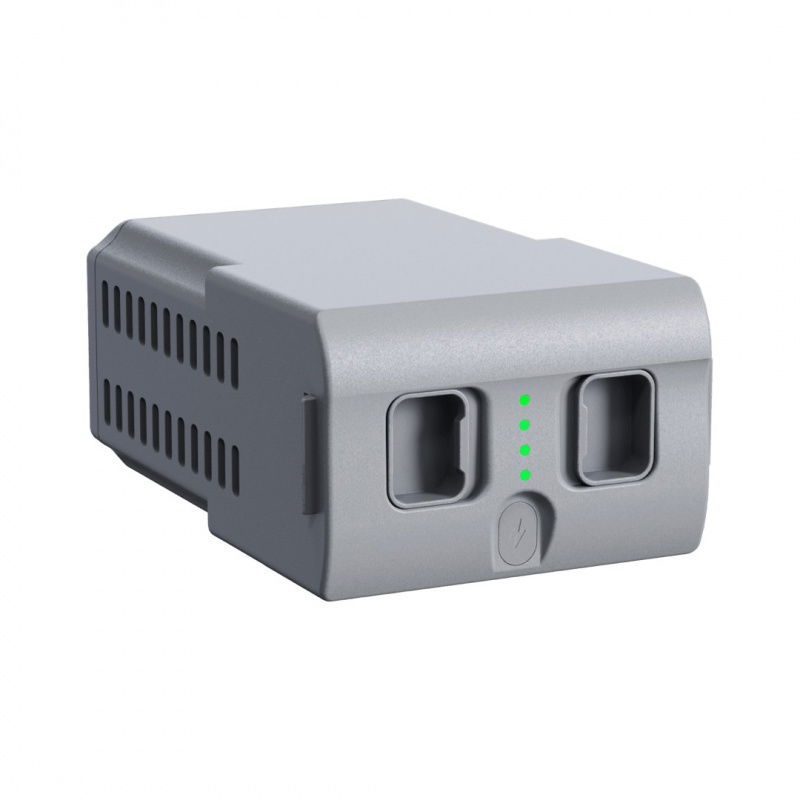

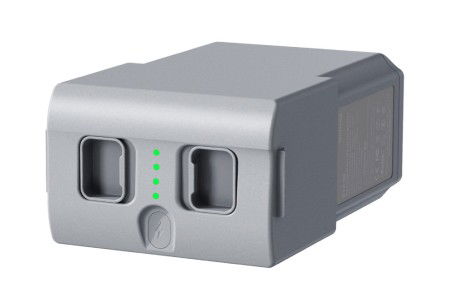

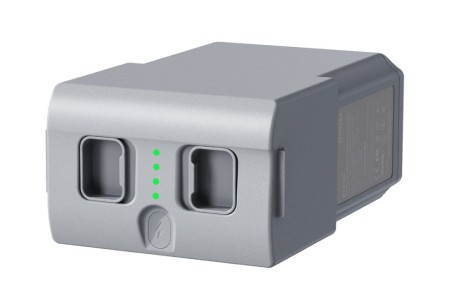

Unitree Go2 Robot Battery - 8000 mAh - Standard - BT2-05.
The standard battery provides up to 2 hours of robot operation.
Main features of the Standard battery
- 8000 mAh (236.8 Wh) capacity : enough for up to 2 hours of work
- Full compatibility : designed for the Unitree Go2 robot
- Advanced BMS system : protection against short circuit, overheating, overcharging and other hazards
- Fast charging support : charging current up to 9 A

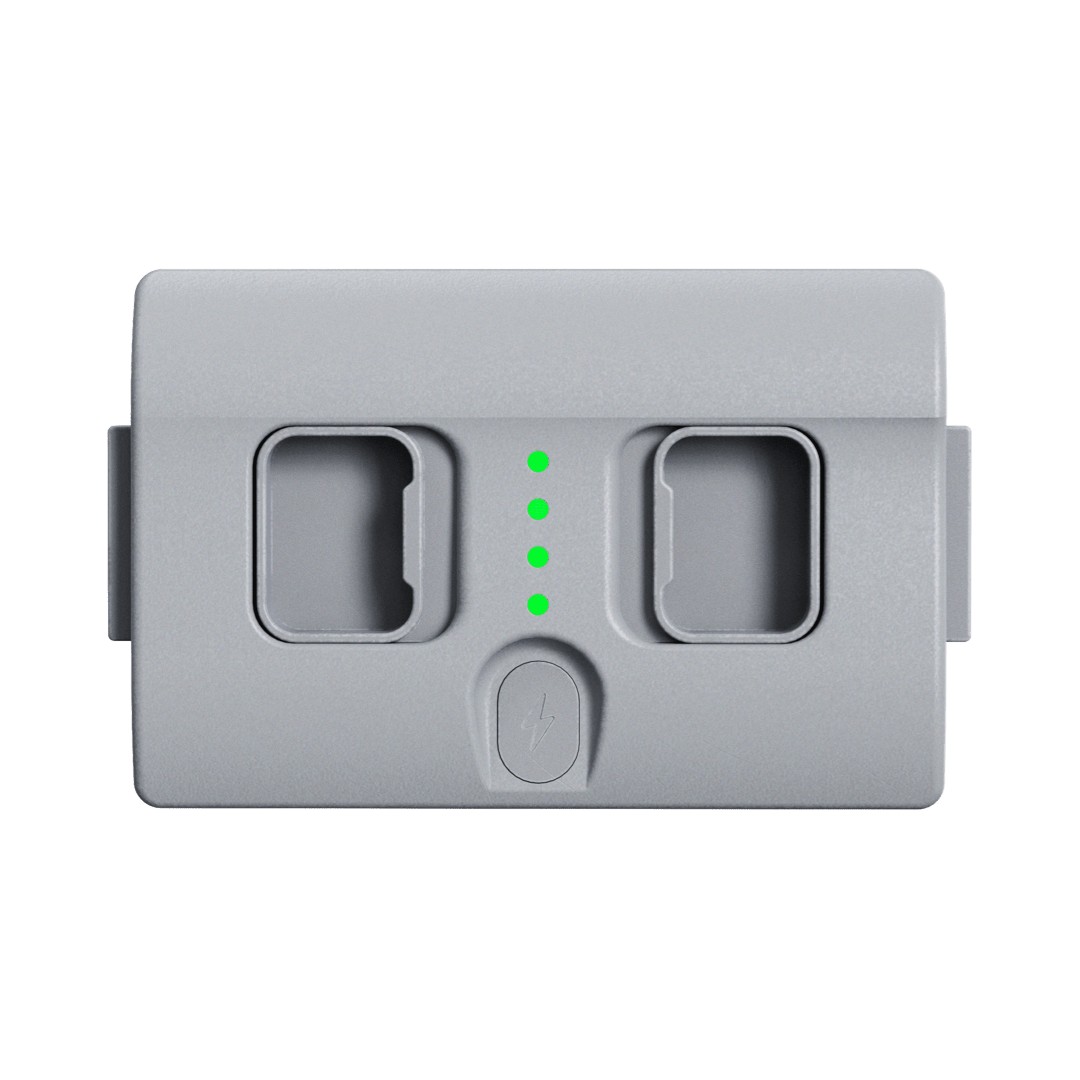

- Charge status indication : built-in LEDs inform about the energy level
- Compact housing : resistant to damage and well-fitting to the robot
Battery durability and protection
The Standard BT2-05 model utilizes the same 8-stage protection system as the Long Range version. The battery provides protection against short circuits, overheating, overcurrent, overcharge, and deep discharge, as well as balanced charging and auto-discharge for extended storage. This ensures reliable operation and long life, even in cyclical applications.
Practical applications
Ideal for patrol, inspection, testing, education, and everyday use . Its compact design and robust construction make it ideal for industrial, educational, and laboratory environments.
The battery is equipped with an advanced BMS protection system.

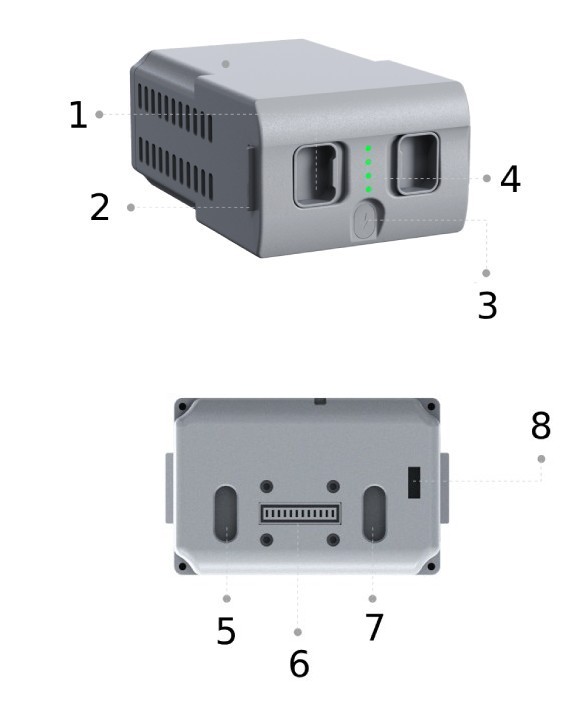

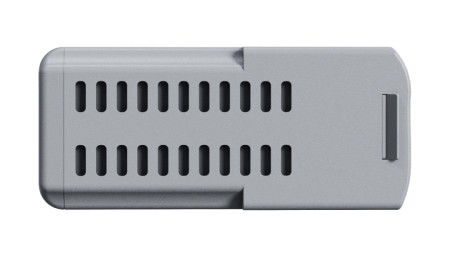

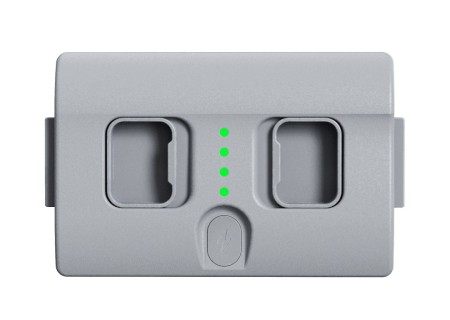

Arrangement of elements.
Battery construction
- Mechanical latch securing the battery to the robot
- Handle for easy assembly and disassembly
- Power button to turn the battery on/off
- Charge level and operating status indicators
- Protection against incorrect connection
- Battery charging connector
- Protection against incorrect connection
- Main power output for the robot
Battery technical specifications
- Model: BT2-05
- Nominal voltage: 29.6 V
- Charging voltage: 33.6 V
- Capacity: 8000mAh / 236.8Wh
- Working time: up to 1-2 hours
- Charging current: 3.5 A to 9 A
- Security: 8-stage BMS system
- Compatibility: Unitree Go2
- Dimensions: 120 x 80 x 182 mm
Contents of the set
- 1x Standard Battery
The battery is dedicated to Unitree Go2 four-legged walking robots.
