Product description: Unitree G1 Robot Battery - 9000 mAh
The Unitree battery is a dedicated power source for the Unitree G1 robot . It utilizes high-performance cells and a proprietary BMS (Battery Management System ) that controls the charging and discharging process, supporting stable and predictable robot operation. Its 9000 mAh capacity ensures long operating time even during demanding tasks. Monitoring functions and a built-in LED indicator allow for a quick check of the battery level. The battery's design has been optimized for easy assembly, facilitating integration and everyday use.
Before using the battery for the first time, make sure it is fully charged.

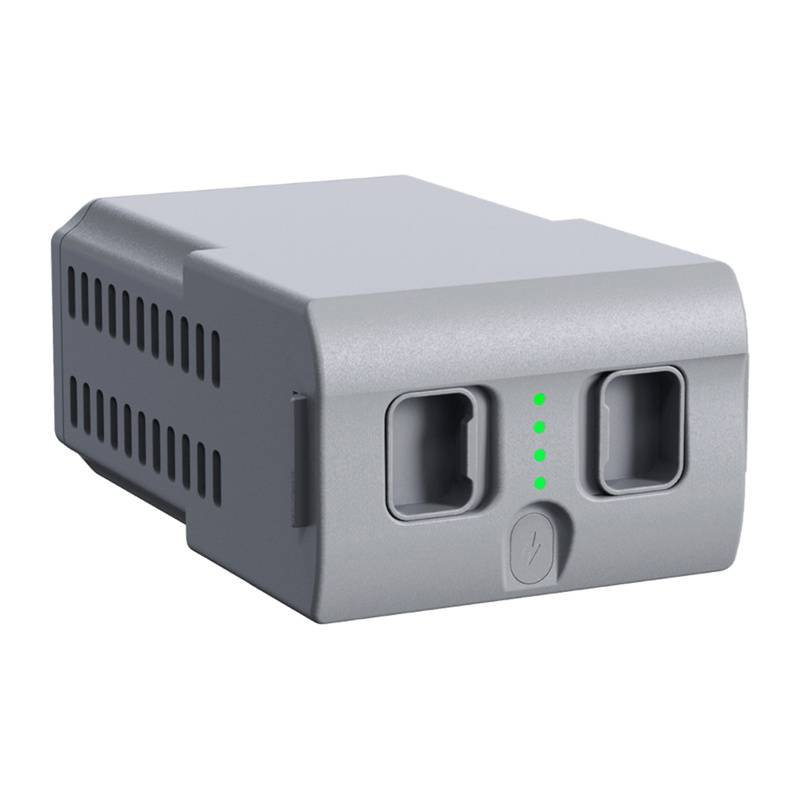

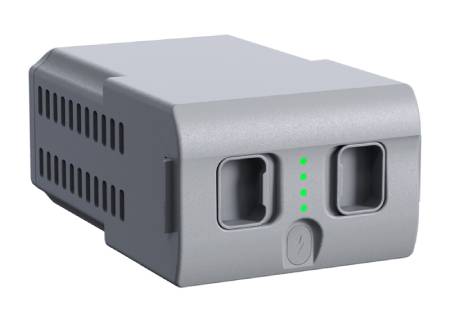

Unitree G1 Robot Battery - 9000 mAh.

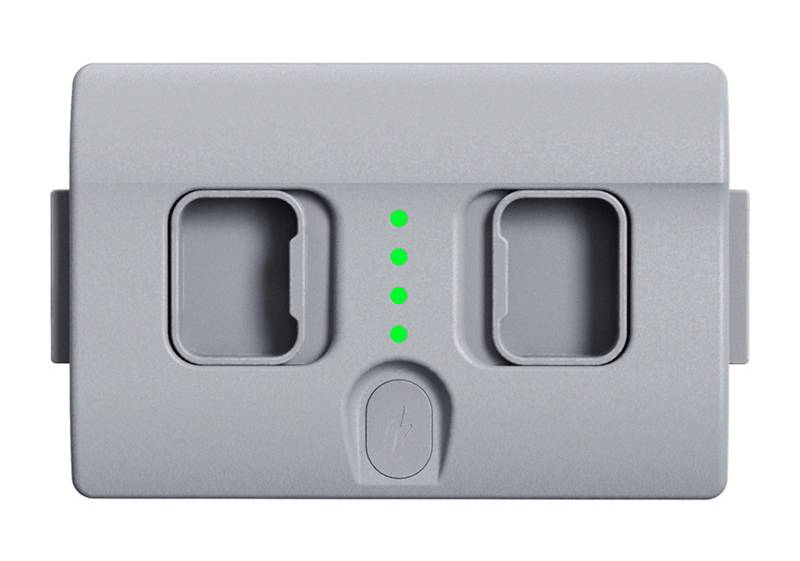

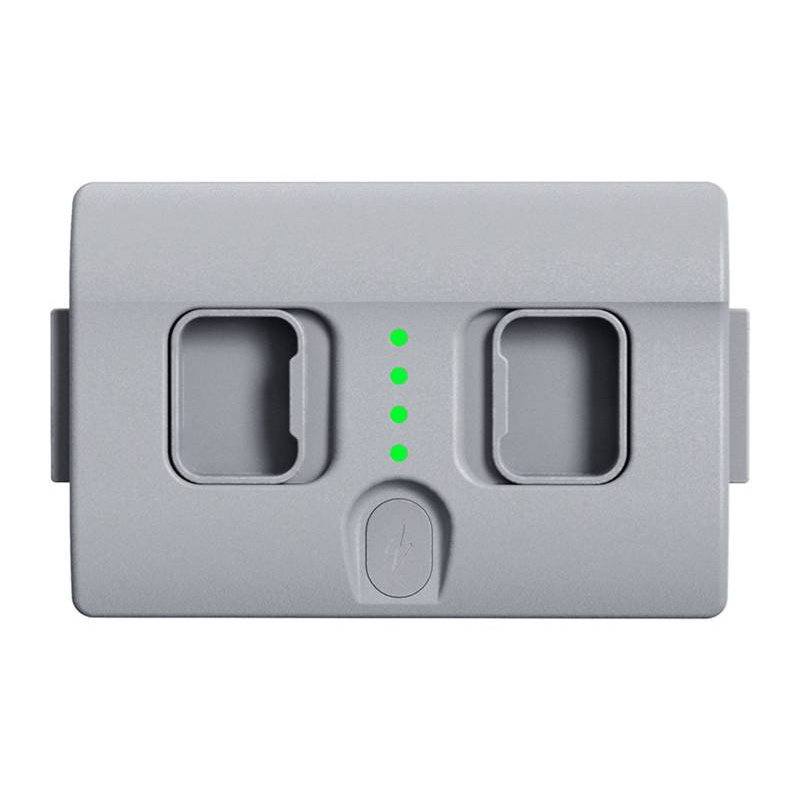

Built-in LEDs indicate energy level.
Main features of the Unitree G1 robot battery
- Dedicated design : full compatibility with the Unitree G1 robot
- High capacity : 9000 mAh and 421.2 Wh of energy ensure optimal working time of the robot
- Proprietary BMS : intelligent charging and discharging management
- LED indicator : quick view of battery level
- Stable power supply : high-performance cells support reliable robot operation
- Compact housing : easy installation and convenient operation
- Storage mode : the battery automatically maintains a safe energy level when not in use for a long time.
- Comprehensive security : advanced security package to protect the robot's sensitive electronics
Intelligent energy management and security system
The Unitree G1 battery is equipped with a proprietary BMS system , which monitors key operating parameters. The system monitors the charging and discharging process, supports cell balancing, and helps maintain safe operating conditions . This ensures stable battery operation even during intensive robot use in research, demonstration, or commercial environments. The model designed for the G1 robot offers an extensive set of protective features that enhance daily safety. The battery supports, among other things, protection against overcharging, over-discharging, short circuiting, excessive charging current, and abnormal charging temperature . Additionally, a self-discharge function in storage mode, load detection, and LED status indication facilitate power status monitoring and help maintain cell health.
The battery is equipped with a BMS system.
The battery is dedicated to the Unitree G1 humanoid robot.
Unitree G1 Battery Technical Specifications
- Compatibility: Unitree G1
- Nominal capacity: 9000 mAh
- Energy: 421.2 Wh
- Nominal voltage: 46.8 V DC
- Charging limit voltage: 54.6 V DC
- Management system: proprietary BMS
- Features: Energy level indicator, storage self-discharge, cell balancing, overcharge protection, over-discharge protection, short circuit protection, load detection, charging temperature protection, charging over-current protection
- Dimensions: 120 x 80 x 182 mm
Kit contents
- 1x Battery for Unitree G1 Robot
