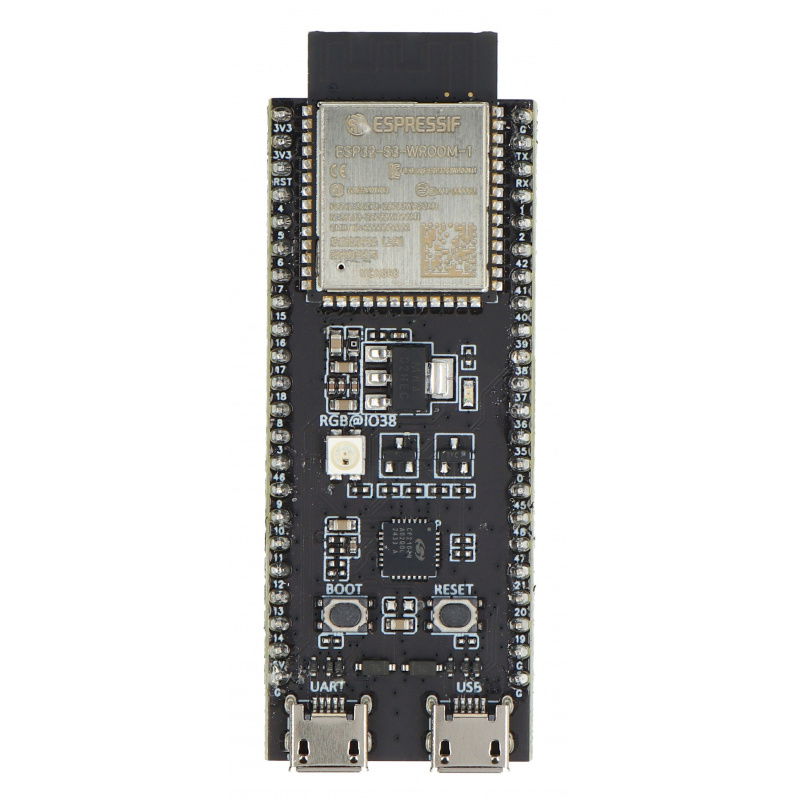

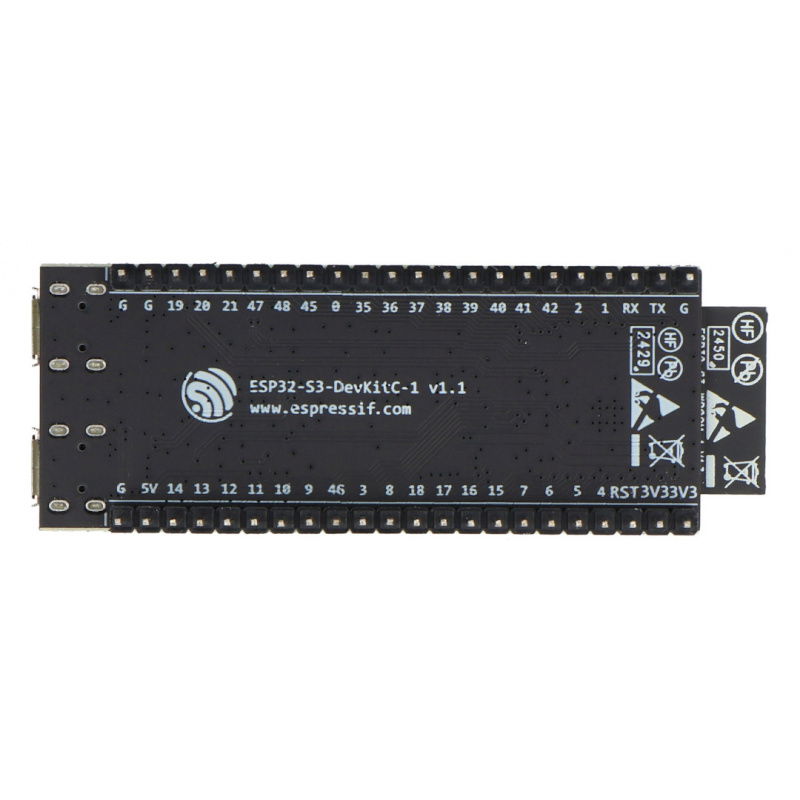

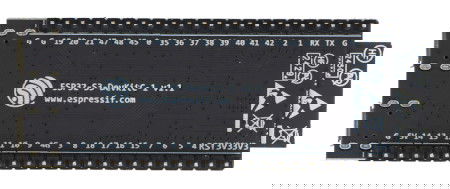

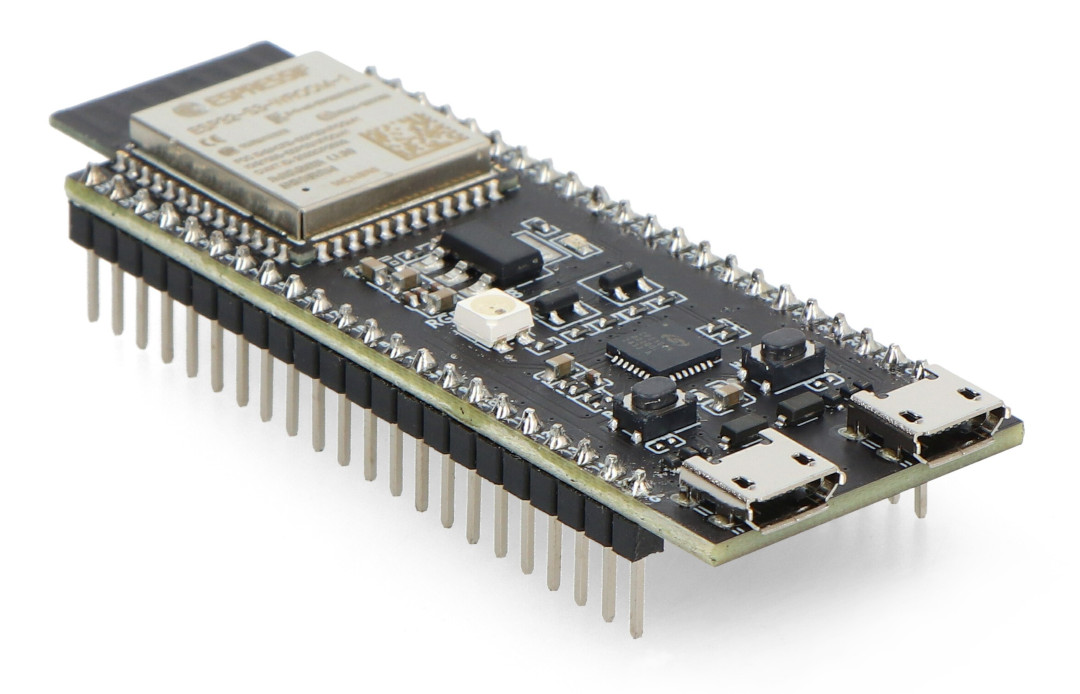

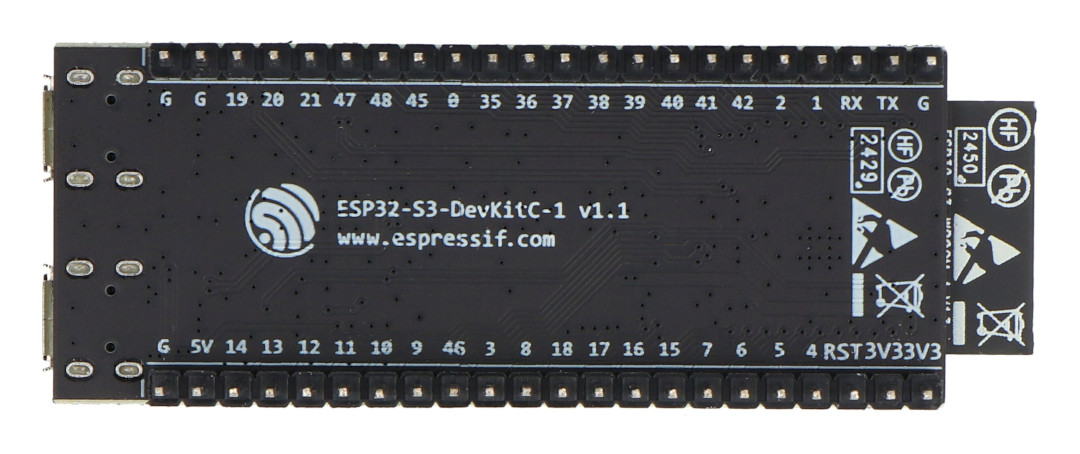

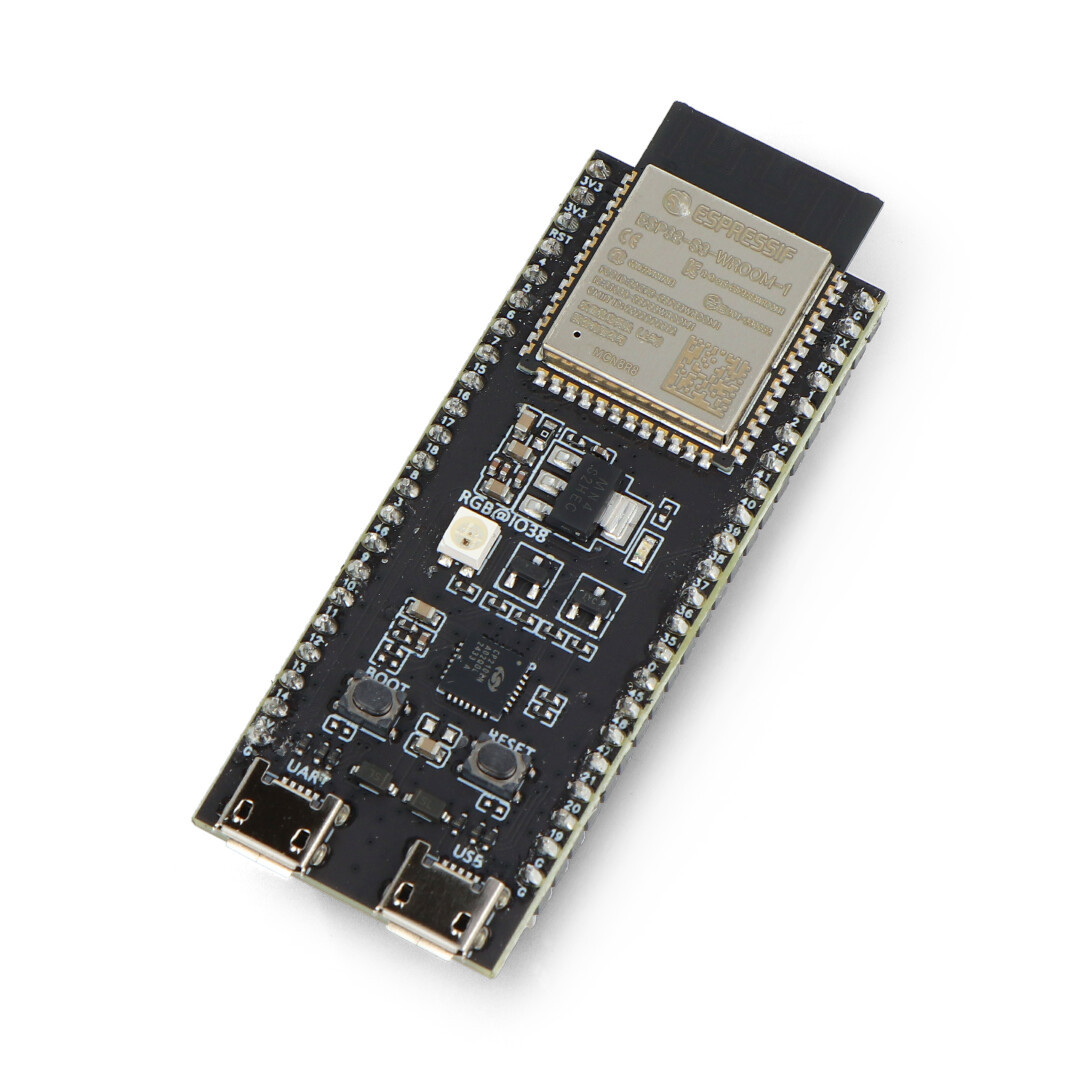

Product description: ESP32-S3-DevKitC-1-N8R8 - WiFi + Bluetooth - development board with ESP32-S3-WROOM-1
ESP32-S3-DevKitC-1-N8R8 is a compact development board from Espressif Systems, based on the efficient ESP32-S3-WROOM-1 module. The heart of the kit is the ESP32-S3R8 system equipped with two Tensilica Xtensa 32-bit LX7 cores, which supports WiFi 802.11 b/g/n (2.4 GHz) and Bluetooth 5.0 (LE) . The board was designed for rapid prototyping of IoT applications, image recognition systems, data transmission or solutions using artificial intelligence. The module offers as many as 36 programmable GPIO pins , and thanks to the presence of 8 MB Flash memory and 8 MB PSRAM, it allows for support for extensive projects. The built-in PCB antenna ensures stable wireless communication, and the supply voltage in the range from 3 V to 3.6 V guarantees compatibility with popular power systems. The board can operate in a wide temperature range from -40°C to 85°C , which makes it also suitable for industrial applications.
ESP32-S3 WiFi + BT 5.0 - development board with ESP32-S3-WROOM-1 module.
ESP32-S3-DevKitC-1-N8R8 is a compact development board from Espressif Systems, based on the high-performance ESP32-S3-WROOM-1 module.Special Features
- ESP32-S3-WROOM-1 module: a modern microcontroller with WiFi 4 and Bluetooth 5.0 LE support
- AI/ML and image processing support: the ability to implement projects using artificial intelligence
- 36 GPIO pins: fully configurable for a variety of peripherals
- Large memory capacity: 8 MB Flash and 8 MB PSRAM for demanding applications
- PCB Antenna: Integrated, no need for external solutions
- Operating temperature range: -40°C to 85°C - also for industrial conditions
- 3V to 3.6V power supply: compatible with typical microcontroller power supplies
ESP32-S3-DevKitC-1-N8R8 Technical Specification
- Module: ESP32-S3-WROOM-1
- Power supply: 3 V to 3.6 V
- Processor: ESP32-S3R8 (Tensilica LX7, dual-core, 240 MHz)
- Flash Memory: 8MB
- PSRAM memory: 8MB
- SRAM memory: 512 KB
- ROM: 384KB
- SRAM RTC: 16kB
- Interface: 45x GPIO, 4x SPI, 3x UART, 2x I2C, 14x Touch, 2x I2S, RMT, LED PWM, USB-OTG, TWAIE, 2x 12-bit ADC, 1x LCD, DVP
- Connectivity: WiFi 802.11 b/g/n (2.4GHz), Bluetooth 5.0 LE
- Antenna type: PCB
- Operating temperature: -40°C to 85°C
- Dimensions: 62.74 x 25.4 mm
The board was designed for rapid prototyping of IoT applications, image recognition systems, data transmission and solutions using artificial intelligence.
