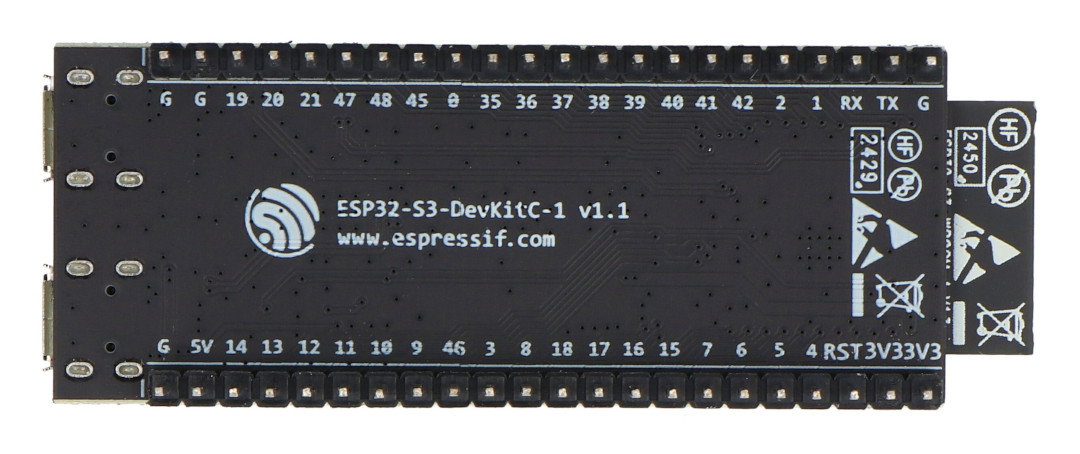

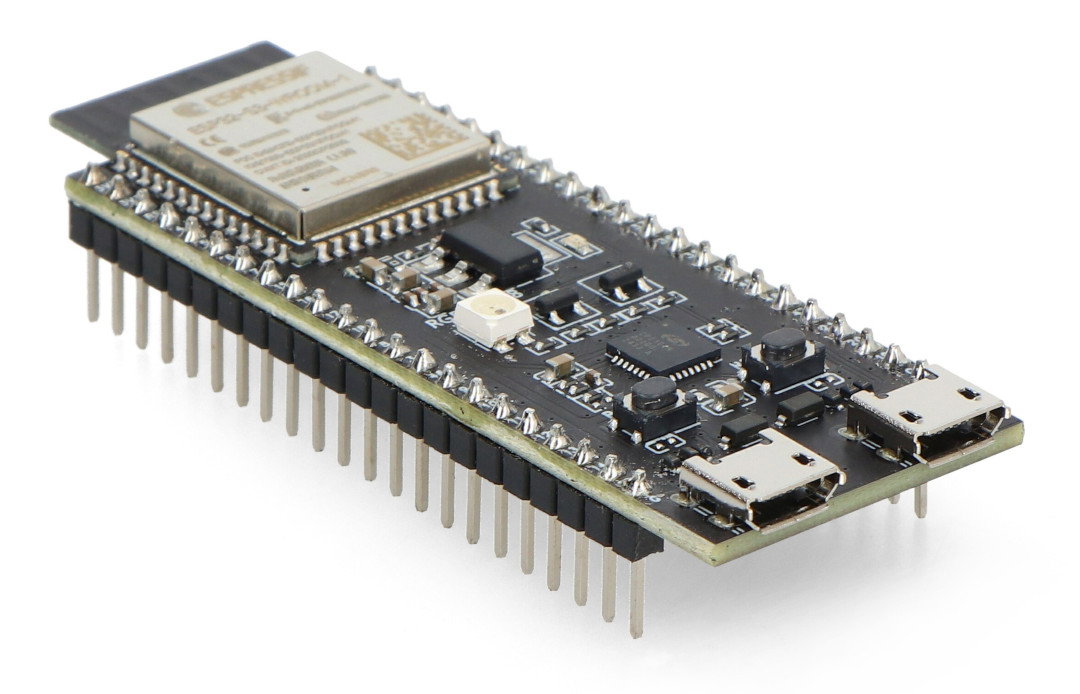

ESP32-S3-DevKitC-1-N8R8 - WiFi + Bluetooth development board with ESP32-S3-WROOM-1 chip
ESP32-S3-DevKitC-1-N8R8 is a compact development board from Espressif Systems, based on the powerful ESP32-S3-WROOM-1 module. The heart of the kit is the ESP32-S3R8 system equipped with two Tensilica Xtensa 32-bit LX7 cores, which supports WiFi 802.11 b/g/n (2.4 GHz) and Bluetooth 5.0 (LE) . The board was designed for rapid prototyping of IoT applications, image recognition systems, data transmission or solutions using artificial intelligence.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: ESP32-S3-DevKitC-1-N8R8 - WiFi + Bluetooth - development board with ESP32-S3-WROOM-1
ESP32-S3-DevKitC-1-N8R8 is a compact development board from Espressif Systems, based on the efficient ESP32-S3-WROOM-1 module. The heart of the kit is the ESP32-S3R8 system equipped with two Tensilica Xtensa 32-bit LX7 cores, which supports WiFi 802.11 b/g/n (2.4 GHz) and Bluetooth 5.0 (LE) . The board was designed for rapid prototyping of IoT applications, image recognition systems, data transmission or solutions using artificial intelligence. The module offers as many as 36 programmable GPIO pins , and thanks to the presence of 8 MB Flash memory and 8 MB PSRAM, it allows for support for extensive projects. The built-in PCB antenna ensures stable wireless communication, and the supply voltage in the range from 3 V to 3.6 V guarantees compatibility with popular power systems. The board can operate in a wide temperature range from -40°C to 85°C , which makes it also suitable for industrial applications.
ESP32-S3 WiFi + BT 5.0 - development board with ESP32-S3-WROOM-1 module.
ESP32-S3-DevKitC-1-N8R8 is a compact development board from Espressif Systems, based on the high-performance ESP32-S3-WROOM-1 module.
Special Features
- ESP32-S3-WROOM-1 module: a modern microcontroller with WiFi 4 and Bluetooth 5.0 LE support
- AI/ML and image processing support: the ability to implement projects using artificial intelligence
- 36 GPIO pins: fully configurable for a variety of peripherals
- Large memory capacity: 8 MB Flash and 8 MB PSRAM for demanding applications
- PCB Antenna: Integrated, no need for external solutions
- Operating temperature range: -40°C to 85°C - also for industrial conditions
- 3V to 3.6V power supply: compatible with typical microcontroller power supplies
ESP32-S3-DevKitC-1-N8R8 Technical Specification
- Module: ESP32-S3-WROOM-1
- Power supply: 3 V to 3.6 V
- Processor: ESP32-S3R8 (Tensilica LX7, dual-core, 240 MHz)
- Flash Memory: 8MB
- PSRAM memory: 8MB
- SRAM memory: 512 KB
- ROM: 384KB
- SRAM RTC: 16kB
- Interface: 45x GPIO, 4x SPI, 3x UART, 2x I2C, 14x Touch, 2x I2S, RMT, LED PWM, USB-OTG, TWAIE, 2x 12-bit ADC, 1x LCD, DVP
- Connectivity: WiFi 802.11 b/g/n (2.4GHz), Bluetooth 5.0 LE
- Antenna type: PCB
- Operating temperature: -40°C to 85°C
- Dimensions: 62.74 x 25.4 mm
The board was designed for rapid prototyping of IoT applications, image recognition systems, data transmission and solutions using artificial intelligence.
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller |
|
| UC - Core | Tensilica Xtensa LX7 |
| UC - Flash | 8 MB |
| UC - RAM | 512 kB |
| UC - core | 2. Dual Core |
| UC - freq | 240 MHz |
| UC - A/C | 12-bit |
| UC - WiFi | yes |
| UC - USB | microUSB |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | 5V microUSB |
| UC - SPI interface | yes |
| Width | 10.2 cm |
| Height | 6 cm |
| Depth | 2.7 cm |
| Weight | 0.053 kg |
