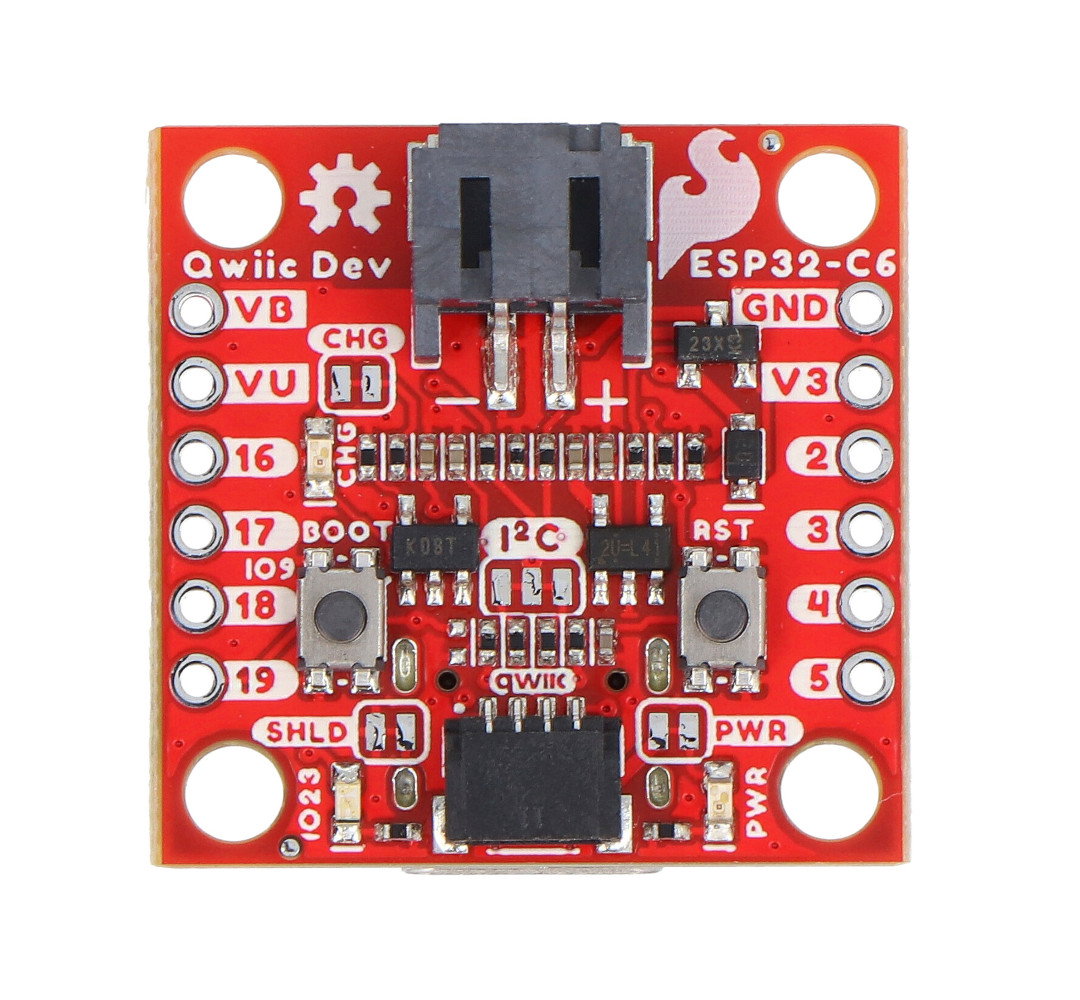

SparkFun Qwiic Pocket Development Board - with ESP32-C6 MINI-1 - SparkFun DEV-22925
SparkFun Qwiic Pocket Development Board equipped with ESP32-C6 MINI-1 - 32-bit single-core RISC-V microprocessor. It offers the user 4 MB of Flash memory and as many as 23 multi-functional GPIO pins, including 7x 12-bit ADC and 2x UART. It also supports WiFi 2.4 GHz , Bluetooth 5 LE , Zigbee and Thread (802.15.4) wireless communication, and has a built-in antenna.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: SparkFun Qwiic Pocket Development Board - development board with ESP32-C6 MINI-1 - SparkFun DEV-22925
SparkFun Qwiic Pocket Development Board equipped with ESP32-C6 MINI-1 - 32-bit single-core RISC-V microprocessor. It offers the user 4 MB of Flash memory and as many as 23 multi-functional GPIO pins, including 7x 12-bit ADC and 2x UART. It also supports WiFi 2.4 GHz wireless communication , Bluetooth 5 LE , Zigbee and Thread (802.15.4), and has a built-in antenna . The board also has a USB Type-C connector , a Qwiic connector and pins in the form of solder pads. A number of advantages also include compact dimensions, thanks to which SparkFun Qwiic Pocket Development Board can be implemented in projects with limited space, it will also work well in the implementation of IoT applications and in the case of battery-powered devices.
Also check out the user guide prepared by the manufacturer!
SparkFun Qwiic Pocket Development Board - development board with ESP32-C6 MINI-1 - SparkFun DEV-22925.
Botland is an official distributor of modules and accessories from SparkFun Electronics. This well known American maker provides a complete base for electronics projects. Our range holds original SparkFun Electronics products only.

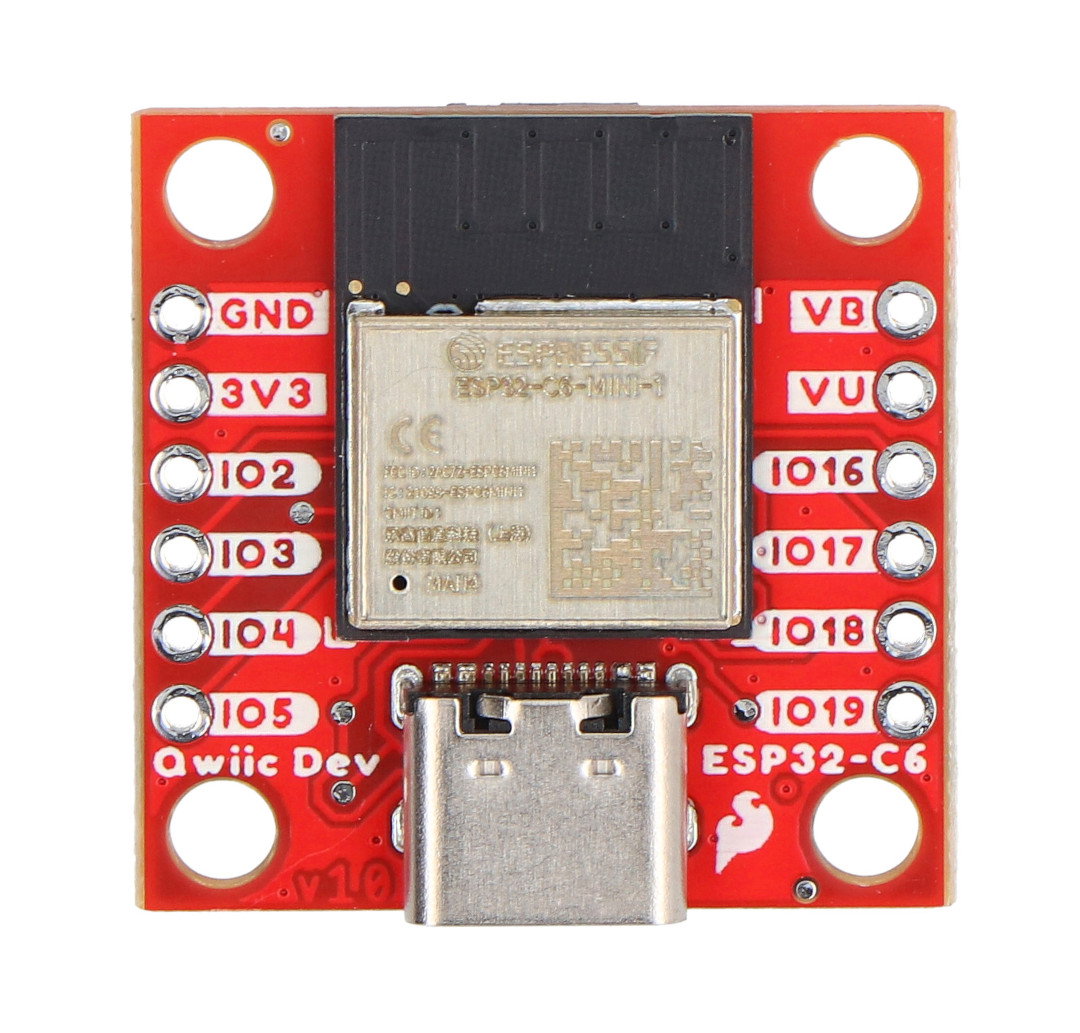

The board has a USB type C connector.
Special features of SparkFun Qwiic Pocket Development Board
- Features a 32-bit single-core RISC-V ESP32-C6 MINI-1 microprocessor with 4 MB Flash memory,
- Supports 2.4 GHz WiFi wireless communication, Bluetooth LE 5, Zigbee and Thread (802.15.4),
- Offers a range of interfaces including SPI, UART, LPUART, I2C, I2S, USB Serial/JTAG, ADC,
- It has pins in the form of solder pads, a connector compatible with the Qwiic ecosystem and a USB interface with a USB type C connector,
- It enables the implementation of IoT applications, Smart Home and portable projects.
Our offer also includes other modules with wireless communication - check it out!
Technical specifications of the board
- Built-in microcontroller: ESP32-C6 MINI-1
- 32-bit single-core RISC-V microprocessor
- 4 MB Flash memory
- Wireless WiFi 2.4 GHz, Bluetooth 5 LE, Zigbee and Thread (802.15.4)
- 23x multi-function GPIO
- Up to 7x 12-bit ADC channels
- Up to 2x UART channels
- 1x UART, 2x I2C, 1x I2S
- PWM diode
- PCB antenna
- Operation indication: LEDs (red - PWR, yellow - CHG, blue - STAT)
- User buttons: Boot, Reset
- Pinouts: solder pads, Qwiic connector, USB Type C, 2-pin JST connector for connecting a Li-Pol battery
- Mounting holes: 4x
- Board dimensions: 25.4 x 25.4 mm
The operating status is indicated by built-in LEDs.
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | ESP32-C6 |
| UC - Flash | 4 MB |
| Width | 5.5 cm |
| Height | 9.5 cm |
| Depth | 0.8 cm |
| Weight | 0.005 kg |
