M5NanoC6 Dev Kit - ESP32-C6FH4 - Developer Kit - M5Stack C125

Index: MSS-24782 EAN: 6972934175182
M5NanoC6 is a small development module with dimensions of 23.5 x 12 x 9.5 mm from the M5Stack series, equipped with the ESP32-C6FH4 chip, enabling WiFi 6, Zigbee, Thread and Matter communication. It has a built-in infrared emitter for convenient control of IoT devices, a ceramic antenna ensuring a stable connection and a Grove connector enabling the expansion of various M5Stack devices. Perfect for applications in smart homes, industrial automation, health monitoring and IoT devices.
M5NanoC6 Dev Kit - ESP32-C6FH4 - Developer Kit - M5Stack C125
€8.00
€6.50 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: M5Stack
Compatibility: M5Atom

Product description: M5NanoC6 Dev Kit - ESP32-C6FH4 - development kit - M5Stack C125

M5NanoC6 is a development module from the M5Stack series with small dimensions, half the size of an Atom module , created for users looking for a compact and at the same time versatile solution for IoT-based projects. The ESP32-C6FH4 system offers advanced wireless communication methods, WiFi 6, Zigbee, Thread and Matter , which makes it an ideal choice for applications requiring high performance and reliability in data transmission. The module is equipped with a built-in infrared transmitter , enabling convenient control of IoT devices, and the ceramic antenna ensures a stable communication connection, even in difficult environmental conditions. Additionally, M5NanoC6 has programmable RGB LEDs , which allows you to add visual effects and personalize your designs. A variety of interfaces, such as USB C and Grove connector , provide versatility in creating projects by connecting to various M5Stack devices. The M5NanoC6 is ideal for applications in smart homes , industrial automation, health monitoring and many other IoT areas, offering a comprehensive development solution for innovative projects.

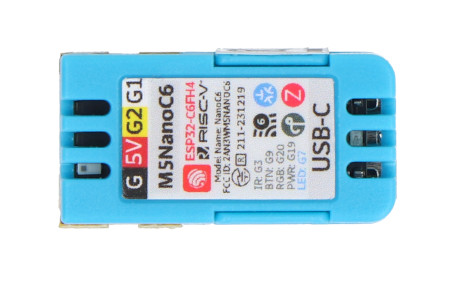

M5NanoC6 Dev Kit - ESP32-C6FH4 - development kit - M5Stack C125

M5NanoC6 Dev Kit - ESP32-C6FH4 - development kit - M5Stack C125.

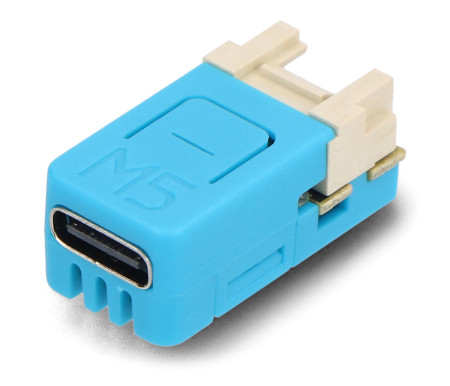

M5NanoC6 Dev Kit - ESP32-C6FH4 - development kit - M5Stack C125 M5NanoC6 is equipped with USB C and a Grove connector.

Special features of the M5NanoC6

  • Equipped with ESP32-C6FH4 chip, supports WiFi 6, Zigbee, Thread and Matter, ensuring fast and reliable wireless communication.
  • Built-in infrared transmitter enabling convenient control of IoT devices using infrared technology.
  • It has programmable RGB LEDs that add visual effects and allow you to personalize your designs.
  • The Grove connector allows flexible expansion by connecting to various M5Stack devices, such as those using UART, I2C and other protocols.
  • Small dimensions of 23.5 x 12 x 9.5 mm, making it ideal for use in projects where space is limited and portability is key.

Fast and stable network connection

The M5NanoC6 supports advanced wireless protocols including WiFi 6, Zigbee, Thread and Matter. WFi 6 2.4 GHz (802.11ax) protocol, backward compatible with 802.11b/g/n, provides higher data transmission speeds, higher bandwidth, lower latency and stronger security compared to previous versions, which is important for applications requiring high data throughput. In turn, the Zigbee, Thread and Matter protocols ensure not only reliable communication, but also enable the construction of intelligent home systems, environmental monitoring systems, industrial control and medical systems. With support for these protocols, M5NanoC6 becomes a versatile tool for creating innovative IoT designs that are both efficient and secure.

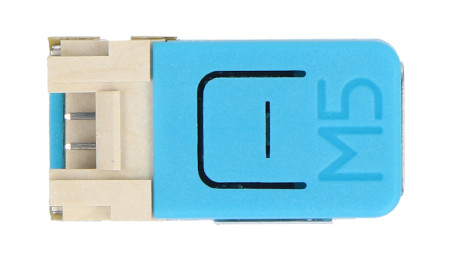

M5NanoC6 Dev Kit - ESP32-C6FH4 - development kit - M5Stack C125

The ESP32-C6FH4 chip supports WiFi 6, Zigbee, Thread and Matter communication.

M5NanoC6 Dev Kit - ESP32-C6FH4 - development kit - M5Stack C125

Development module from the M5Stack series with small dimensions of 23.5 x 12 x 9.5 mm.

Technical specifications of the module

  • On-board MCU: ESP32-C6FH4
    • 32-bit single-core RISC-V processor, clocked at 160 MHz
    • Wireless communication WiFi 6, Zigbee 3.0, Thread 1.3, Matter, CDC
    • 4 MB Flash memory
  • WiFi protocol: WiFi 6 protocol 2.4 GHz (802.11ax) and backward compatible with 802.11b /g/n
  • RGB LED: WS2812
  • IR LED: yes
  • Power connector: USB Type-C
  • Supply voltage: 5V
  • Output voltage: 3.3V
  • Operating temperature: from 0°C to 40°C
  • Module dimensions: 23.5 x 12 x 9.5 mm
  • Weight: 2.5 g

UC - Microcontroller ESP32-C6
UC - Core 32-bit RISC-V
UC - Flash 4 MB
UC - freq 160 MHz
UC - WiFi yes
UC - USB USB C
Package width 8 cm
Package height 10 cm
Package depth 1 cm
Package weight 0.012 kg
