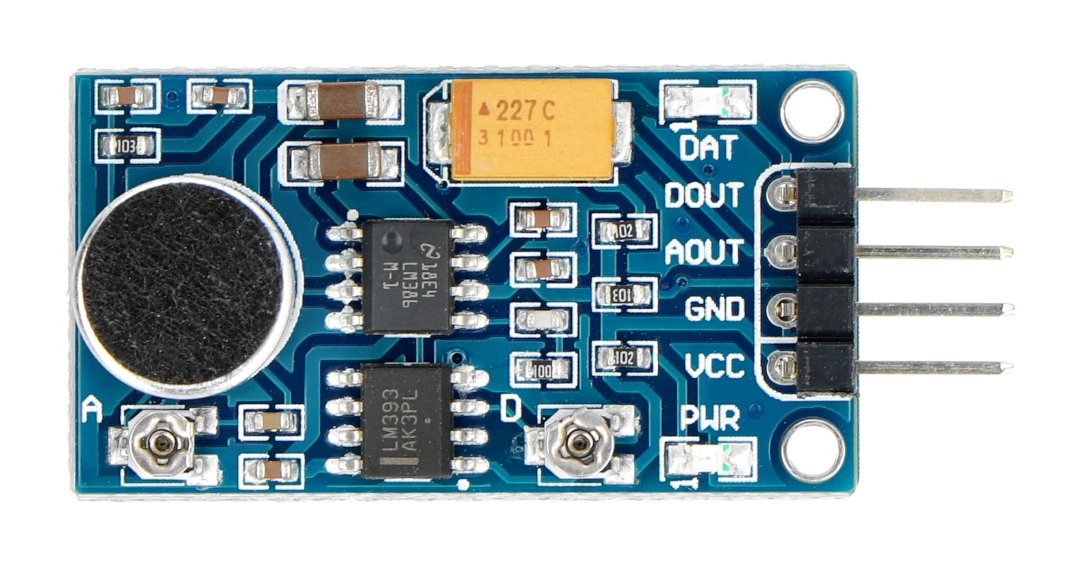

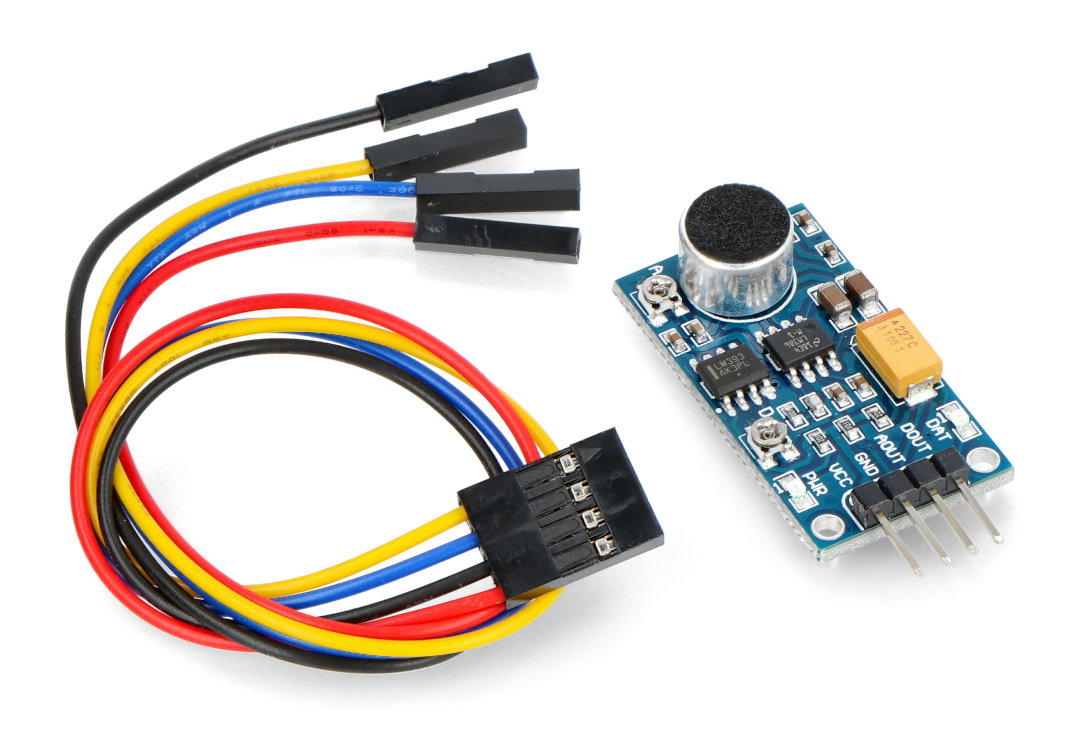

Sound sensor - analog module - Waveshare 9534
Sound sensor module with analog and digital output. It works with supply voltage from 3.3 V to 5.3 V. It allows you to detect the volume or the identification of characteristic sounds from the environment, for example clapping hands.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Sound sensor module with analog and digital output. It works with supply voltage from 3.3 V to 5.3 V. It allows you to detect the volume or the identification of characteristic sounds from the environment, for example clapping hands.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
The product is compatible with Arduino The manufacturer has prepared a user guide along withan exemplary program for Arduino and STM32. |
Specification
Inputs
The device has a 4-pin connector. The output signal can follow, for example, to an analogmodule Arduino.
| Pin | Description |
|---|---|
| VCC | Supply voltage: from 3.3 V to 5.3 V. |
| GND | The ground of the system. |
| AOUT | Analog output signal. |
| DOUT | The digital output signal, the sensitivity is adjusted using the integrated potentiometer. |
Useful links
| Name | Value |
|---|---|
| Width | 7 cm |
| Height | 0.8 cm |
| Depth | 8 cm |
| Weight | 0.008 kg |
