DFRobot Gravity: Voice Recorder Module

Index: DFR-07437 EAN: 5904422375461

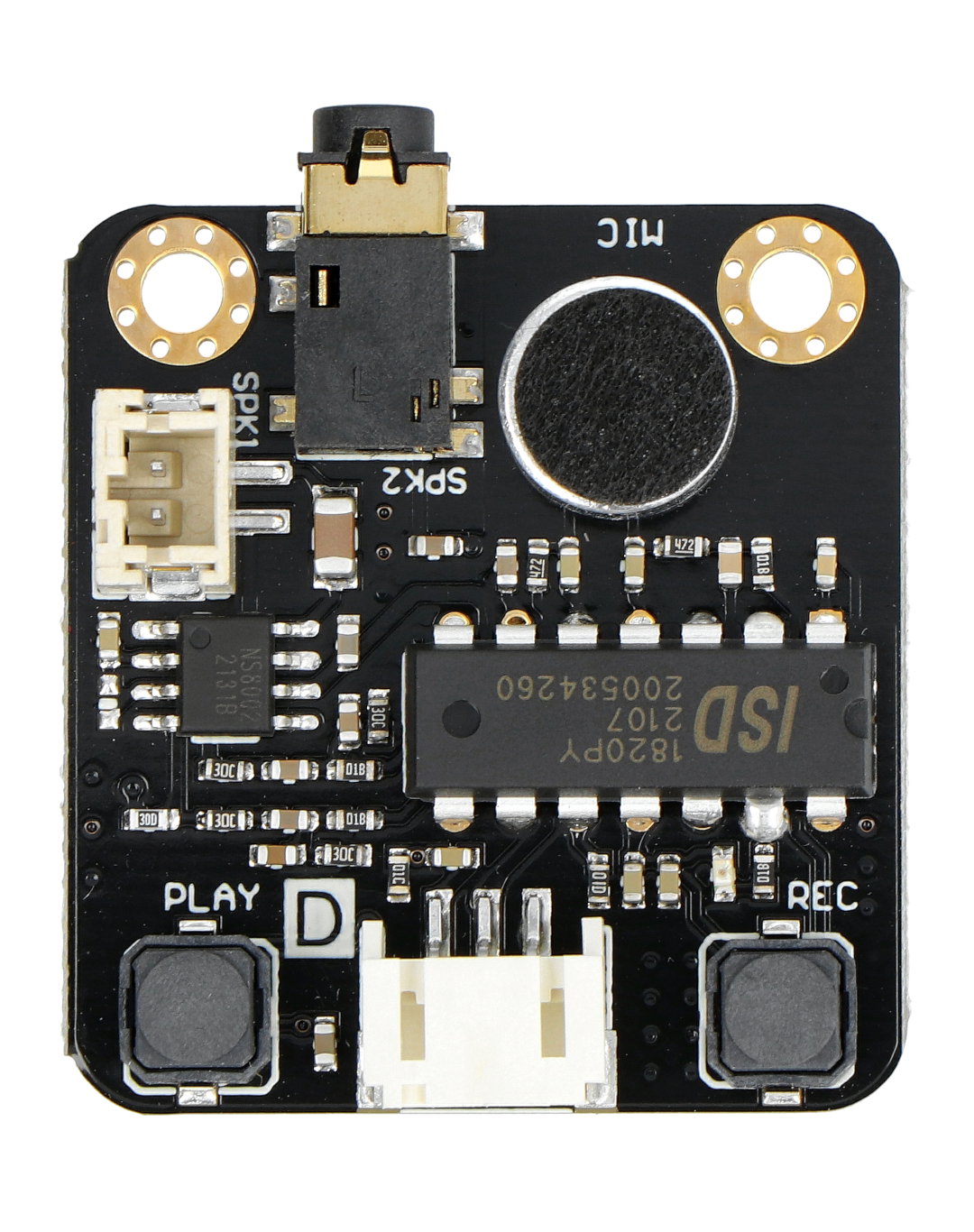

Vioce recorder module based on ISD1820. It has a built-in microphone and a jack connector for speakers or headphones. Built-in functions allow you to record and playback audio of up to 10 sec. The supply voltage is 5 V. The module operates in connection with the Arduino modules. The kit includes a cable adapted to DFRobot IO Expansion Shield.

DFRobot Gravity: Voice Recorder Module
€5.62
€4.57 tax excl.
In stock, shipping 24 hours!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Description

Vioce recorder module based on ISD1820. It has a built-in microphone and a jack connector for speakers or headphones. Built-in functions allow you to record and playback audio of up to 10 sec. The supply voltage is 5 V. The module operates in connection with theArduino modules. The kit includes a cable adapted toDFRobot IO Expansion Shield.

Moduł dźwięku - ISD1820 The module can operate as a standalone device or can be controlled through an external microcontroller.



The product is compatible with Arduino

Sample code and detailed information can be found inthe user guide.





Specification

  • Supply voltage: 5 V
  • Function buttons
    • REC - record
    • PLAY - plays the recorded sound
  • Jack connector for loudspeaker 8 Ohm / 3 To
  • Recording time: up to 10 h
  • The sampling frequency is 6.4 kHz
  • Extended system life: 100,000 records
  • 2 mounting holes 3 mm in diameter
  • Dimensions of plate: 37 x 35 x 9 mm
