Description
The module is equipped with an equalizer MSGEQ7. It allows you to add audio detection for Arduino sound. It has 7 frequency bands: 63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.25 kHz and 16 kHz. The module can be used to create a visualization of sound patterns in music or add audio activation to the microcontroller.
|
The product is compatible with Arduino Sample code and detailed information can be found inthe user guide. |
Specification
- Supply voltage: 5 V

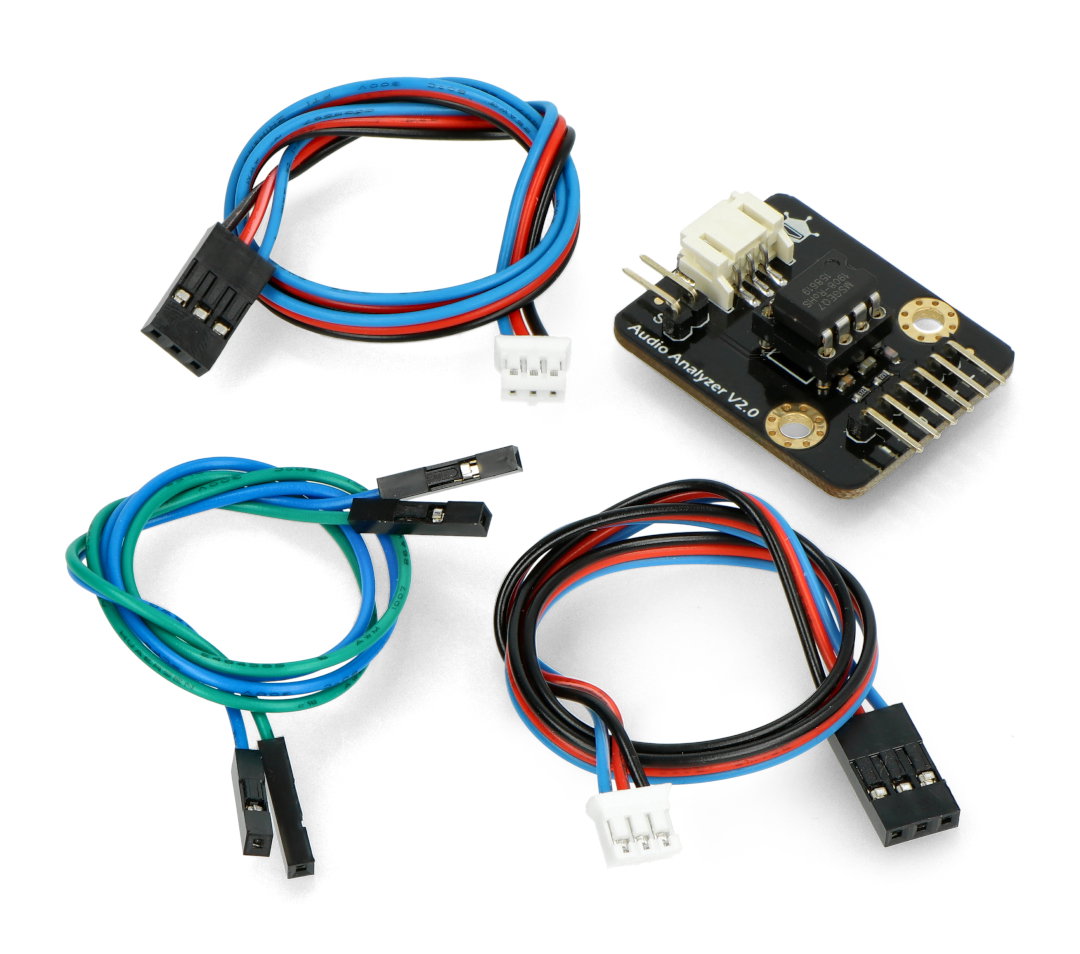

- Includes 2 x 3-pin connecting cable
- Dimensions: 30 x 20 mm
- Weight: 5 g
Example of connecting the sensor withArduino.
