Product description: Proxima SOS - 1-channel gate controller opened with siren and remote controls 433.92 MHz - 12 V / 24 V
Proxima SOS is a professional emergency gate opening controller , using acoustic signals from emergency vehicles. The system automatically opens the gate after recognizing the DOG (YELP), WILK (WEIL) or two-tone (HI_LO, LEON) signal lasting about 3 seconds. Additionally, it is possible to open the gate by a loud, continuous signal lasting 8 seconds . The controller has two channels: the SOS channel and the resident channel, supporting up to 999 local remote controls . Adjustable microphone sensitivity and the ability to secure access with a four-digit PIN guarantee convenience and safety of use.

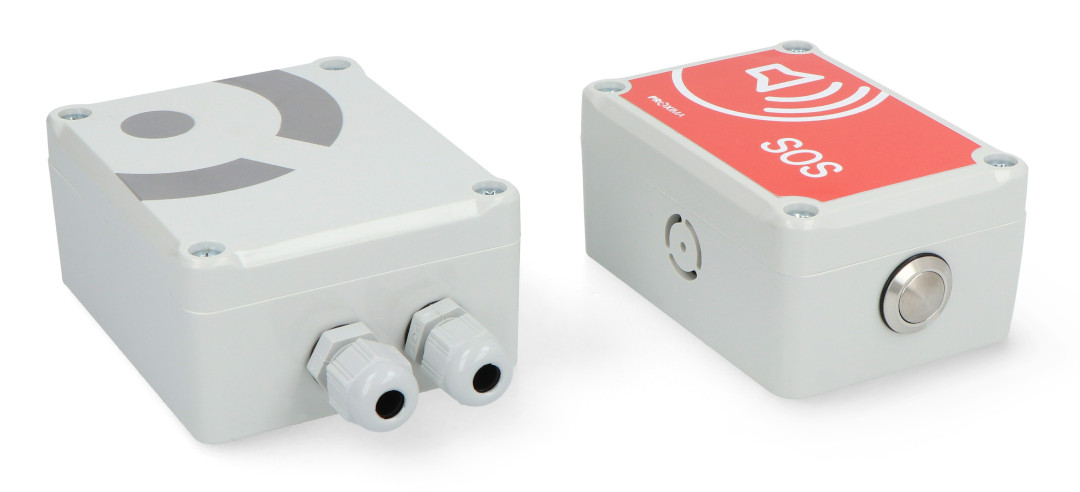

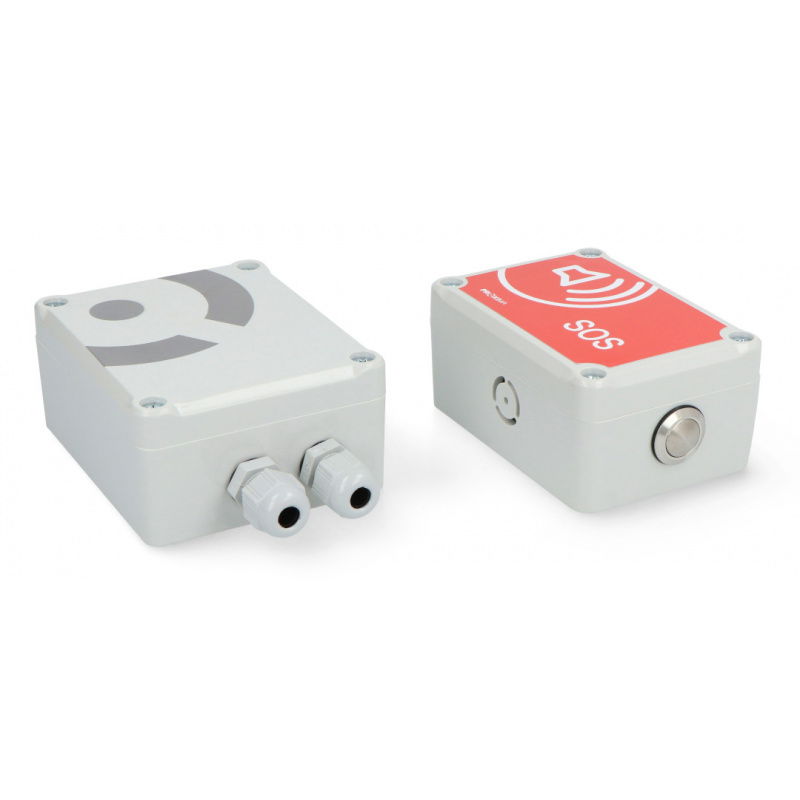

Proxima SOS - 1-channel gate controller opened with siren and remote controls 433.92 MHz - 12 V / 24 V.
The controller allows you to open the gate using acoustic signals.
Main features of the controller
- SOS technology : emergency gate opening with the siren signal of an emergency vehicle
- Residents' remote control support : memory for 999 Proxima 433.92 MHz remote controls
- Adjustable microphone sensitivity : adapts to different acoustic conditions
- Access protection : possibility to protect the configuration with a PIN code
- Two independent channels : SOS and resident channel with different operating modes
Practical applications
The Proxima SOS controller is ideal for housing estates, closed zones and industrial plants , where it is necessary to quickly and safely provide access to emergency services. It is also used in modern access control systems, increasing the safety and efficiency of operations in emergency situations.
How does the Proxima SOS controller for gates and barriers work?
The Proxima SOS controller is a modern device that allows automatic opening of gates and barriers in response to acoustic signals from emergency vehicles or signals from remote controls. It operates in two modes:
SOS mode is activated by characteristic sound signals (DOG, WOLF, TWO-TON) or a loud continuous signal. The device can also be activated using special SOS remote controls, without the need for prior registration. The relay activation time can be set from 1 second to even 60 minutes or to manual shutdown.
Resident mode allows access control using assigned remote controls (up to 999 pieces). The relay operation time after pressing the remote control is from 1 second to 2 minutes. Access to programming is protected by a four-digit PIN code.

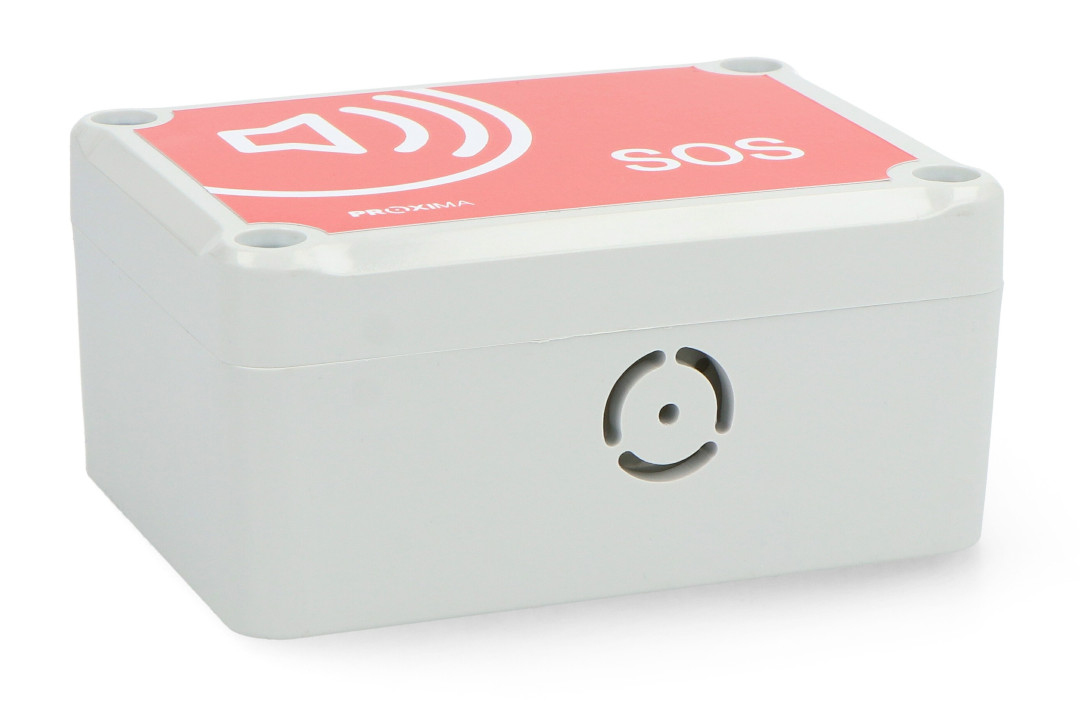

The controller is equipped with a microphone with sensitivity adjustment. It communicates at a frequency of 433.92 MHz and uses KeeLoq coding, ensuring high safety of use.
Items included in the set.
Technical specification of the Proxima SOS controller
- Supply voltage: 12 V to 24 V AC/DC
- Current consumption: 25 mA
- Remote control memory: 999 (Proxima 433.92 MHz)
- Outputs: 1 NO channel (24 V, 1 A)
- SOS channel operating modes: monostable (1 s, 3 s, 10 min, 30 min, 60 min), until further notice
- Resident channel operating modes: monostable (1 s, 3 s, 5 s, 25 s, 1 min, 2 min)

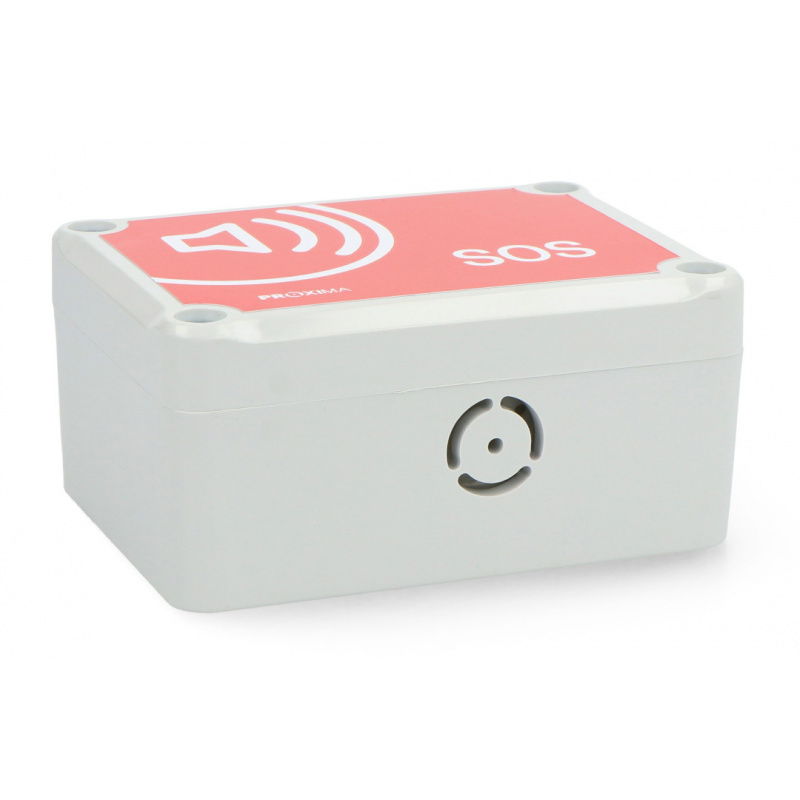

- Microphone dimensions: 60 x 84 x 23 mm
- Microphone weight: 75 g
- Controller dimensions: 65 x 122 x 30 mm
- Controller weight: 160 g

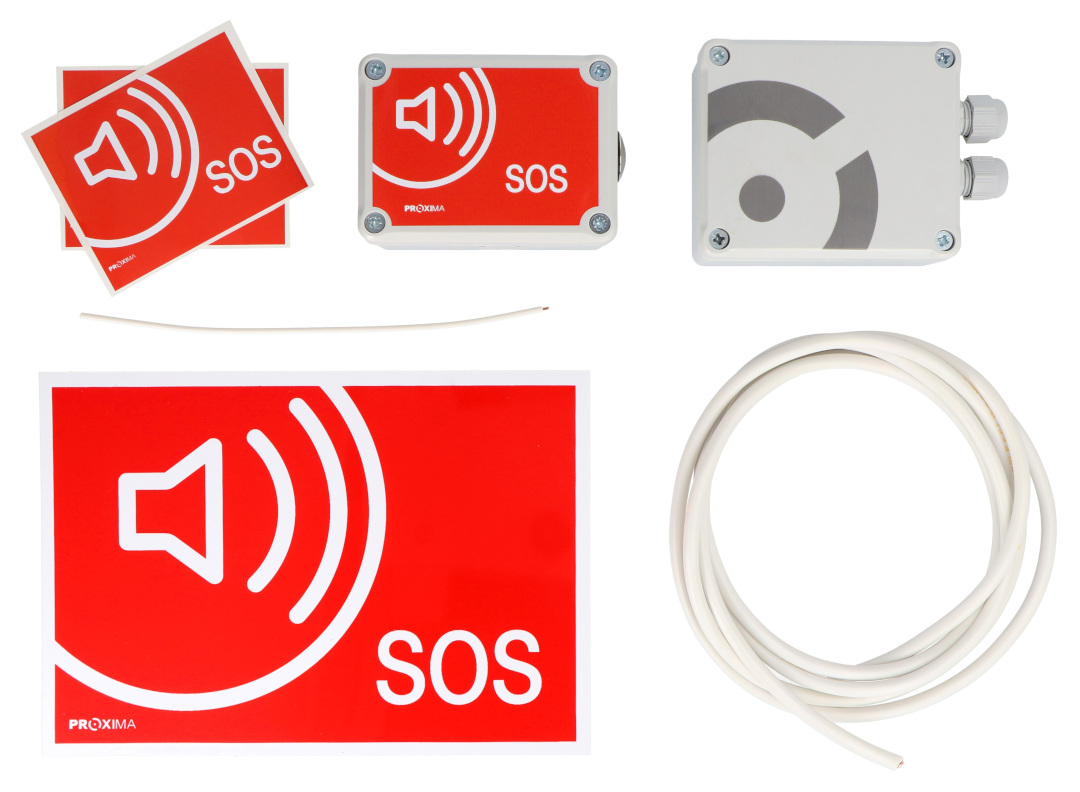

Kit Contents
- 1x Proxima SOS Controller
