Product description: boneIO ESP 8x10A gen2 - intelligent controller - Home Assistant/ESPHome
The boneIO ESP 8x10A gen2 controller is designed for use in smaller building automation installations or as an expansion module for the boneIO ESP32x10A in larger Smart Home systems. It offers 8 relay outputs with a load capacity of up to 10A , as well as Modbus and CAN interfaces . These enable central control of lighting, gates, pumps, alarm systems, and many other installation elements. Native integration with Home Assistant and ESPHome support allow users to create advanced automation scenarios, schedules, and intelligent scenes based on actions between devices, tailored to individual user needs. At the heart of the controller is a powerful ESP32 microcontroller, ensuring stable operation and extensive integration options. Built-in RS485 and CAN interfaces enable communication with additional modules, energy meters, ventilation systems, heat recovery systems, and measurement devices. A well-ventilated passive housing, along with sensors and security features, ensures stable operation for many years. The entire system operates locally, without the need for cloud services, ensuring a high level of security and reliable control over the installation.
The manufacturer has prepared a comprehensive user guide that allows you to go through the configuration in Home Assistant step by step.

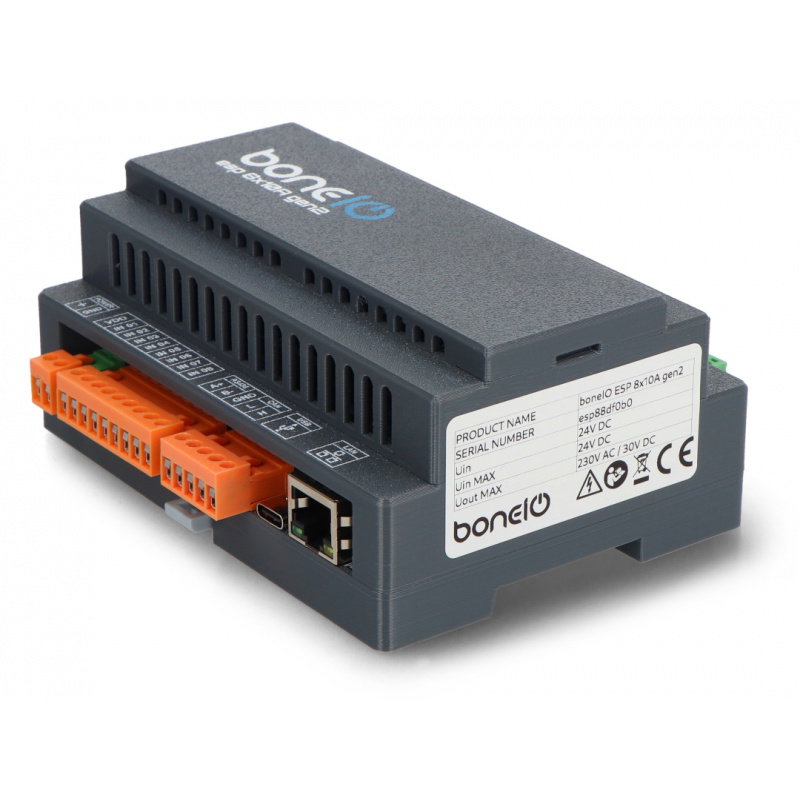

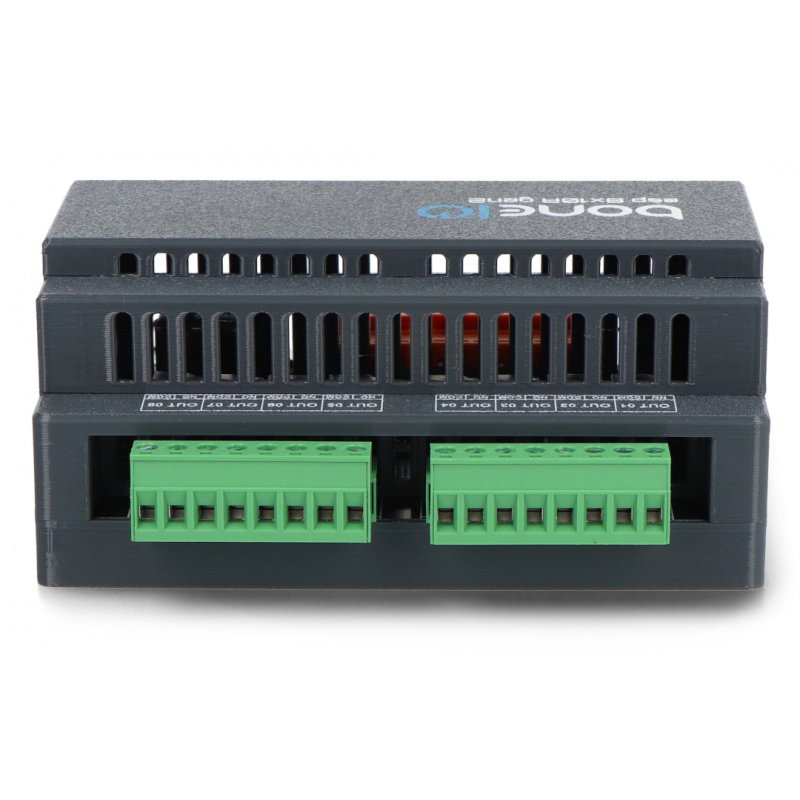

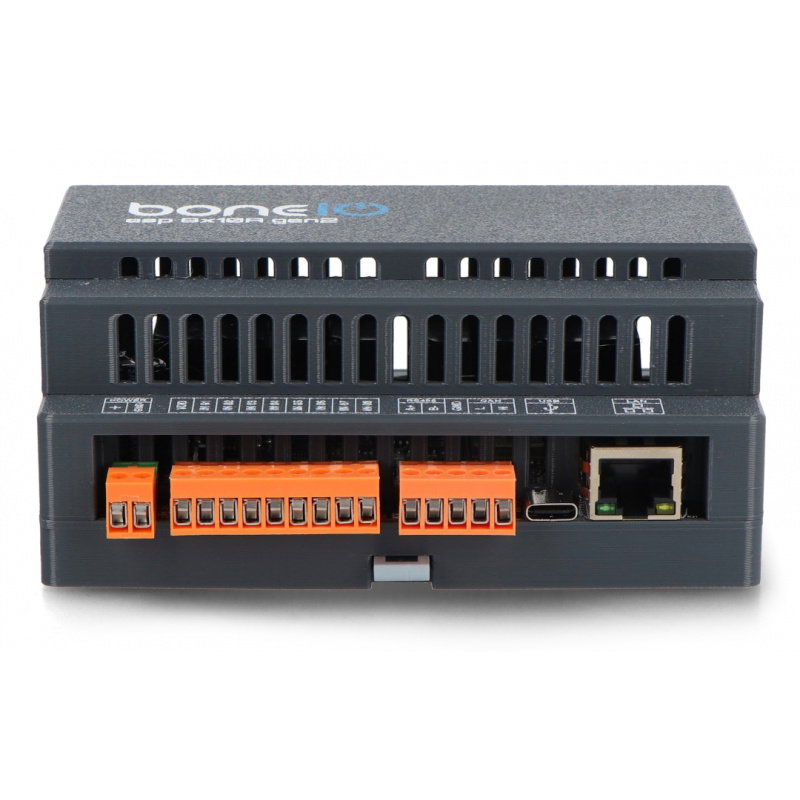

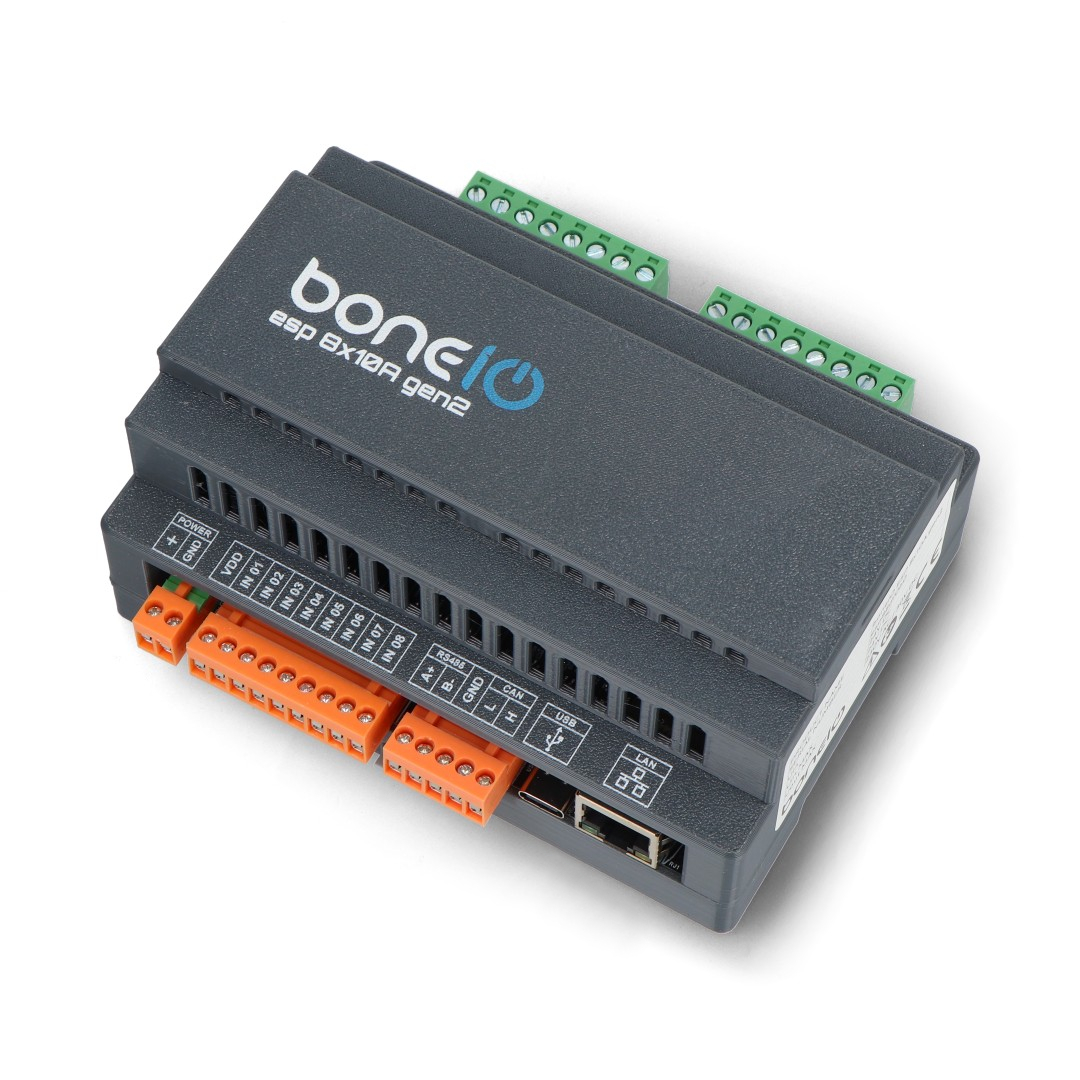

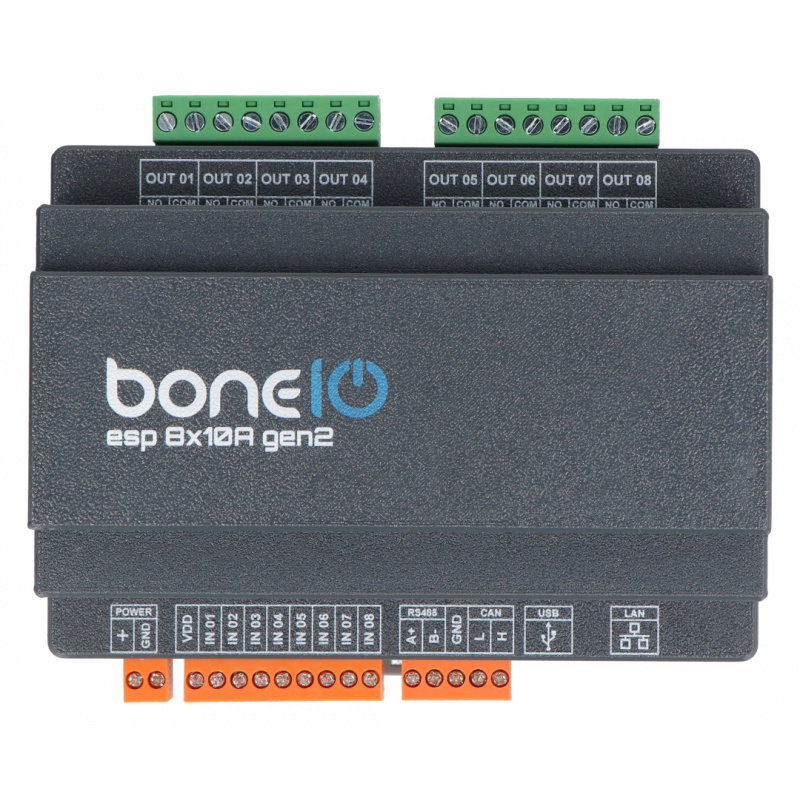

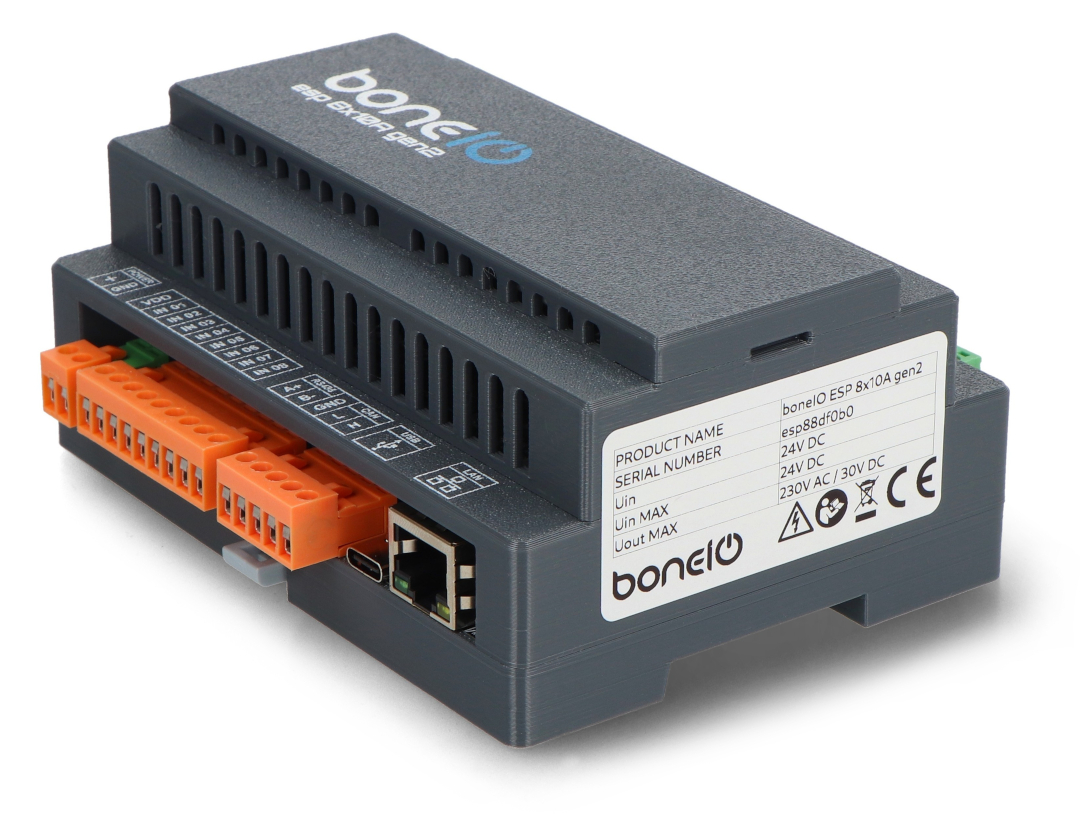

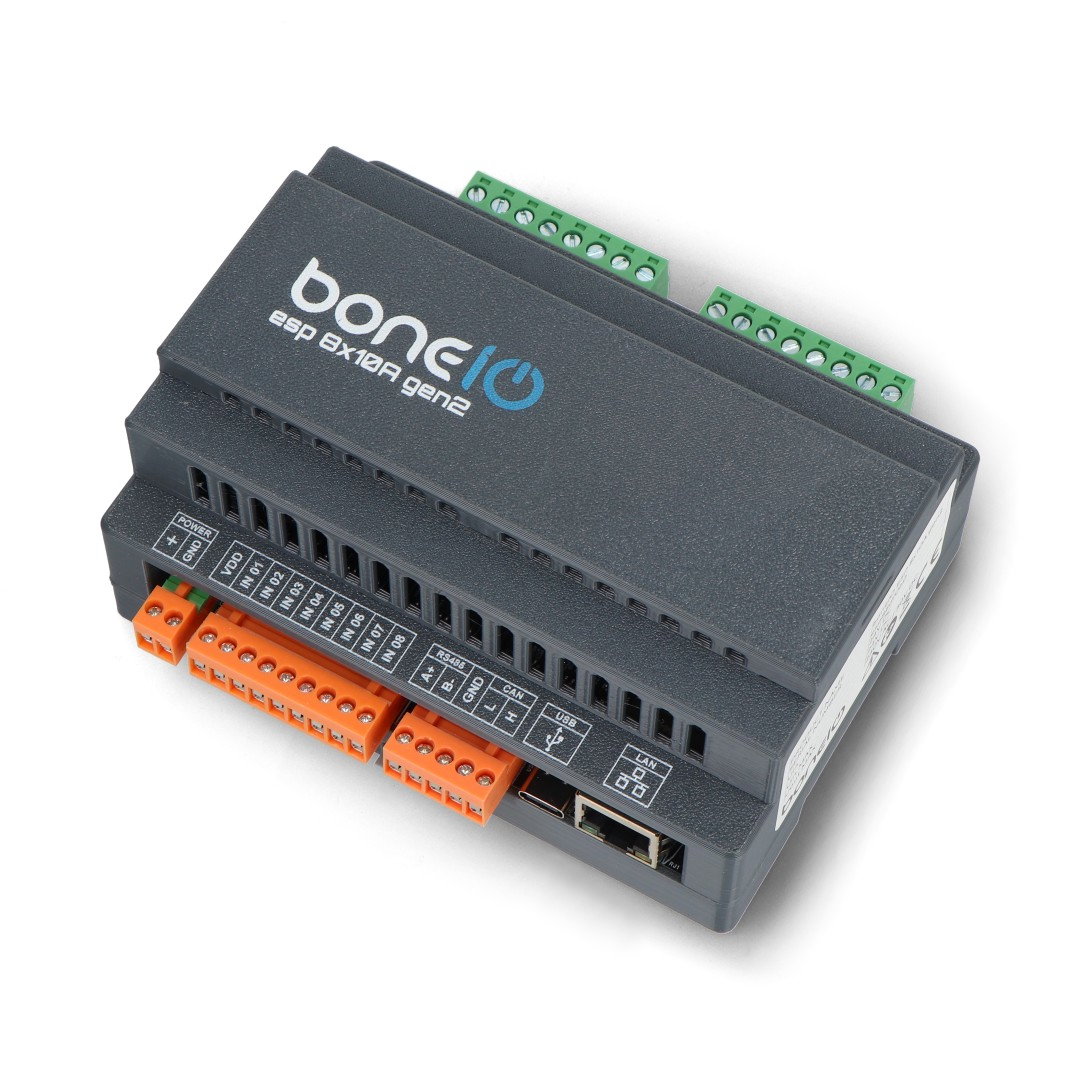

boneIO ESP 8x10A gen2 - intelligent controller.
Thanks to the pre-installed ESP Home software, the controller is detected by Home Assistant immediately after connecting to the network.
Main features of the controller
- 8 relay outputs 10 A: enabling control of lighting, gates, pumps and other electrical devices in smaller installations or the possibility of expanding the boneIO ESP 32x10A
- 8 digital inputs: support for buttons, motion sensors, reed switches and other devices with voltage up to 24 V
- Integration with pre-installed ESP Home and Home Assistant software: automatic detection by Home Assistant immediately after connecting to the network and the ability to create advanced automations and local installation management without major difficulties
- RS485 and CAN communication interfaces: easy system expansion with additional devices and sensors
- Ventilated housing: adequate protection of electronics against overheating thanks to adequate airflow and passive cooling
- Temperature Sensor: Monitors operating conditions to ensure operating temperatures are within a range that is safe for the controller.
- DIN rail mounting: ensuring convenient installation in electrical distribution boards
- Warning buzzer: emits an audible signal in the event of a device failure or overheating
- Open system architecture: enabling customization of functionality to the individual requirements of building automation installations
Standalone controller or maybe an expansion module?
The boneIO ESP 8x10A gen2 is equipped with a range of communication interfaces that enable integration with numerous devices used in modern building automation. The controller allows communication with locks, garage doors, water pumps, irrigation systems, wall switches, and various environmental sensors. Thanks to its relatively small number of inputs and outputs and its compact size, the boneIO ESP 8x10 gen2 is ideal as a central control element for a smaller installation , such as a summer house, but it can also function as an additional module in a larger smart home or office installation . The boneIO ESP 8x10A controller comes with pre-installed ESPHome software, allowing it to be automatically detected by Home Assistant upon connection. Integration with Home Assistant and ESPHome opens up access to a broad ecosystem of devices and ready-made integrations .
The controller can act as both a central element managing a smaller installation and an additional module in a larger smart home or office installation.

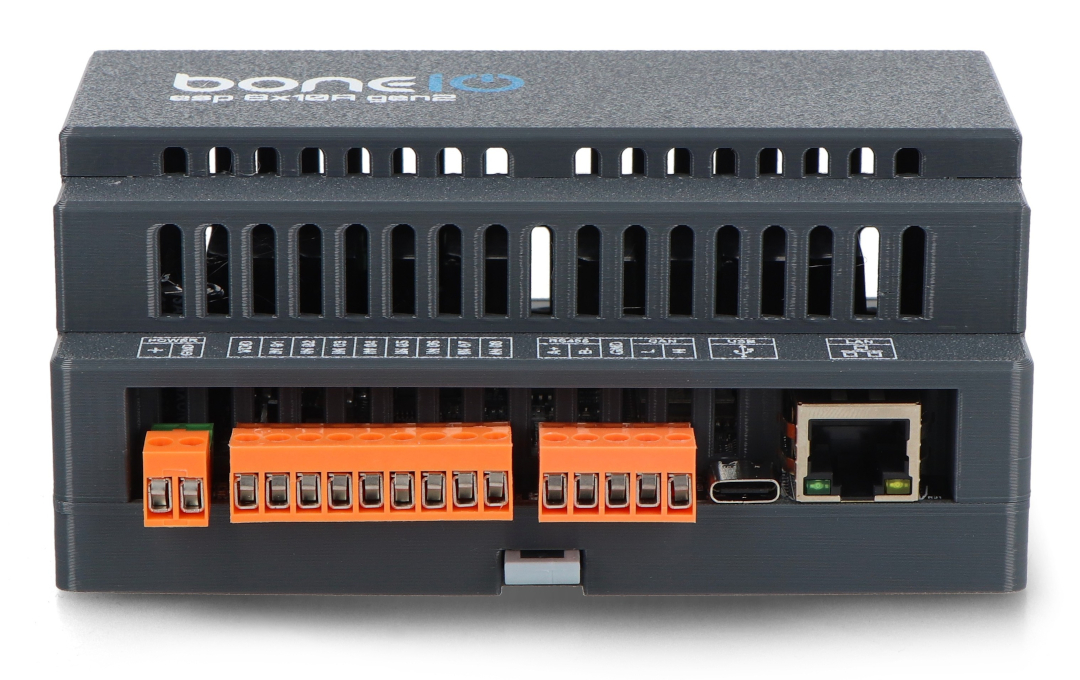

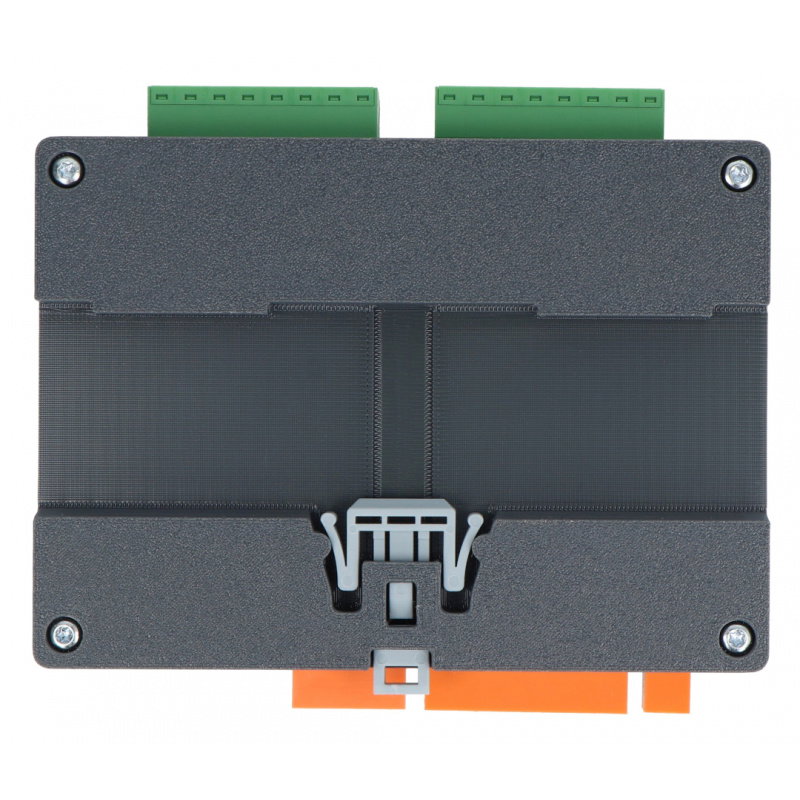

The compact housing with a width of 7 DIN modules enables convenient installation in standard electrical distribution boards.
Freedom of integration and professional installation
The boneIO ESP 8x10A gen2 intelligent controller is based on the open-source ESPHome software, which provides complete configuration freedom and the ability to customize functionality to individual needs. The open-source nature of the platform allows for integration with a wide range of devices and services without dependence on closed ecosystems or paid subscriptions. Users have access to numerous guides, ready-made configurations, and regularly updated features. The controller's compact housing, measuring 7 DIN modules, allows for convenient installation in standard electrical distribution boards. The small number of inputs and outputs contributes to the device's compact size, facilitating both the design of new installations and the modernization of existing building automation systems. DIN rail mounting allows the boneIO ESP 8x10A gen2 to be seamlessly integrated with other control cabinet components, acting as an expansion module . The device is suitable for both Smart Home systems and more complex building automation installations that require centralized management of multiple devices and circuits.
Technical specifications of boneIO ESP 8x10A gen2
| Parameter | Value |
|---|---|
| Device type | intelligent building automation controller |
| Microcontroller | ESP32 |
| Number of outputs | 8 |
| Number of digital inputs | 8 |
| Supply voltage | 24V DC |
| Energy consumption | 2 In |
| Digital input voltage | 24V DC |
| Output type | relay |
| Maximum output voltage | 230V AC / 30V DC |
| Maximum output current | 10 A |
| External interfaces | Modbus RS485, CAN |
| Communication | Ethernet 10/100 Mbit, USB Type C |
| Integration | Home Assistant, ESPHome |
| Energy measurement | Yes |
| Installation | DIN rail (7 DIN) |
| Software | ESPHome (open source) |
| Dimensions | 126 mm x 91 mm x 57 mm (without plugs), 126 mm x 108 mm x 57 mm (with plugs) |
| Mass | 230 g |
