Pimoroni Tiny 2350 4MB - development board - Pimoroni PIM721
Pimoroni Tiny 2350 development board with RP2350A microcontroller and 4 MB of QSPI (XiP) Flash memory, powered by voltage from 3 V to 5.5 V. It is equipped with a USB type C connector, used for power supply, programming and data transfer. Tiny 2350 also has a programmable LED and a Reset and BOOT button. The module provides pinouts in the form of holes to which a goldpin strip can be soldered. The product can be programmed using C/C++ or MicroPython .
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of the Pimoroni brand. This British company offers inventive solutions for electronics enthusiasts, covering modules, sensors, Raspberry Pi expansions, educational kits and prototyping accessories. The Botland range holds original Pimoroni products only.
Product description: Pimoroni Tiny 2350 4 MB - development board - Pimoroni PIM721
The Pimoroni Tiny 2350 development board with an RP2350A microcontroller and 4 MB of QSPI (XiP) Flash memory is powered by a voltage of 3 V to 5.5 V. It is equipped with a USB Type-C connector, which can be used for powering, programming and data transfer. The Tiny 2350 also has a programmable LED and a Reset and BOOT button. Although the board has fewer GPIO pins than the Raspberry Pi Pico , it still offers a wide range of possibilities for implementing various projects. The module has pinouts in the form of holes to which you can solder a goldpin strip in order to use for breadboard design. Alternatively, it is possible to solder Tiny directly to the PCB. The product can be programmed using C/C++ or MicroPython .
The Tiny 2350 can be programmed in C/C++ or MicroPython in the same way as the Raspberry Pi Pico . Optionally, you can use the CircuitPython environment, for which a user guide is provided .

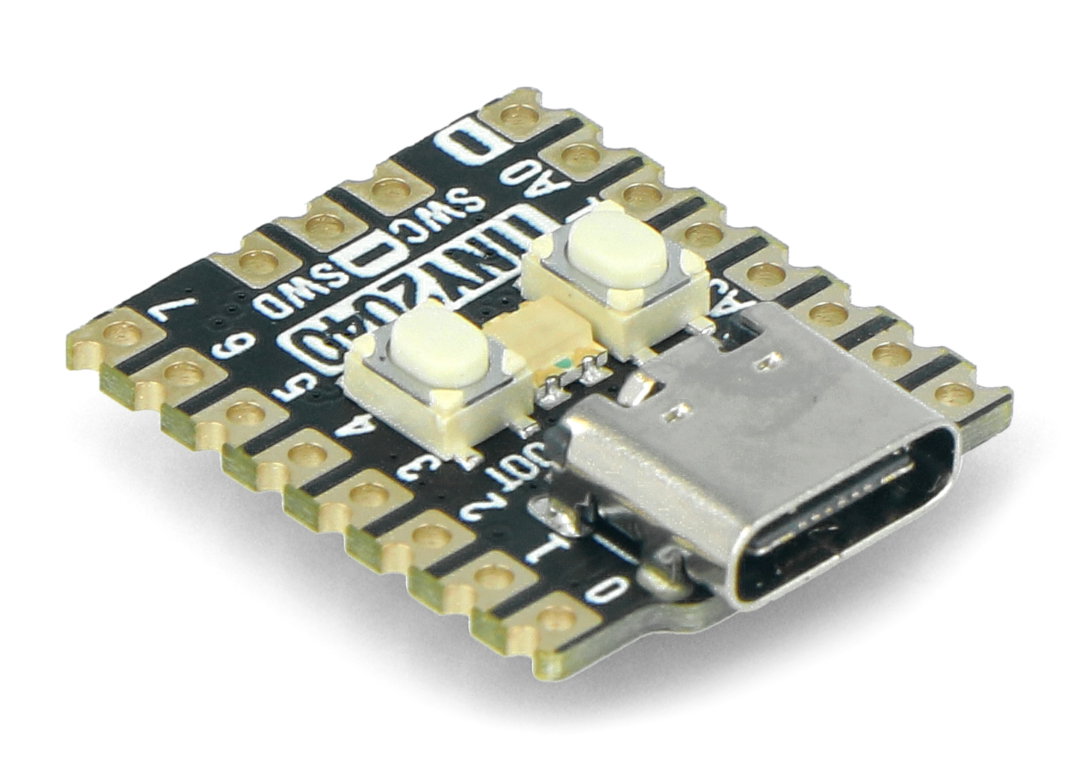

Pimoroni Tiny 2350 4 MB - development board - Pimoroni PIM721.

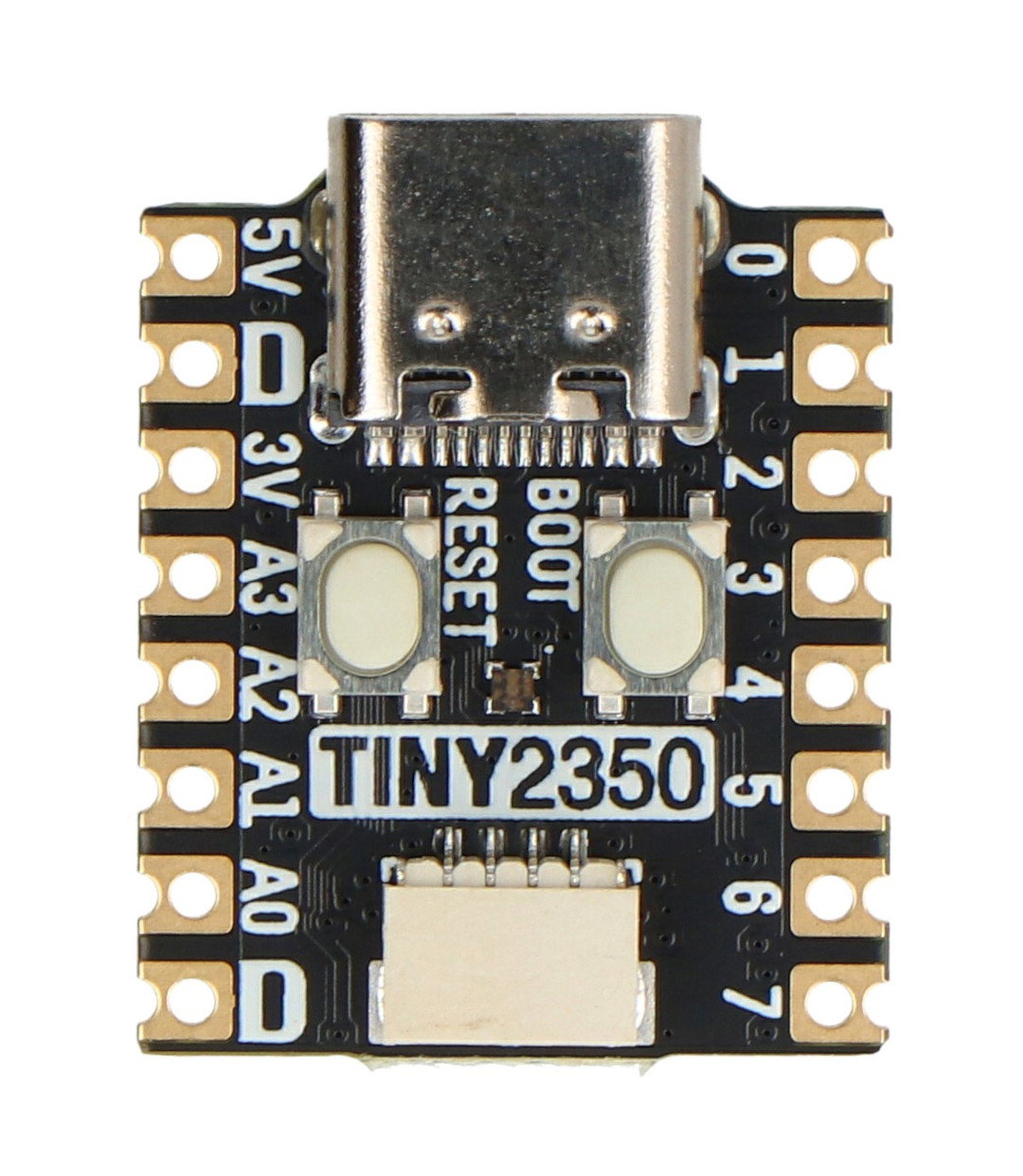

Pimoroni Tiny 2350 pinout diagram .
A tiny module with big possibilities
Despite its small board size (only 22.9 x 18 x 5.8 mm), the Pimoroni Tiny 2350 offers great possibilities for creating projects. It is equipped with the RP2350A microcontroller, a dual-core system based on the ARM Cortex M33 clocked at up to 150 MHz. Despite its small size, the Pimoroni Tiny 2350 offers a wide range of project creation options. the board managed to place as many as 12 GPIO pins. Additionally, an LED, Reset button and BOOT have been built in, which can act as a user-controlled switch.
The RGB LED is connected to pins GP18, GP19 and GP20. It is active low.
Pimoroni Tiny 2350 Specifications
- Microcontroller: RP2350A
- Supply voltage: 3 V to 5.5 V
- Processor: ARM Cortex M33 clocked at up to 150 MHz
- SRAM memory: 520 KB
- Flash Memory: 4MB QSPI (XiP)
- Number of I/O pins (inputs/outputs): 12
- 3.3V voltage regulator
- Supported communication buses: I2C, SPI, UART
- Button: Reset and BOOT
- Connectors: Qwiic / STEMMA QT, USB Type-C
- Board dimensions (including USB C socket): 22.9 x 18 x 5.8 mm

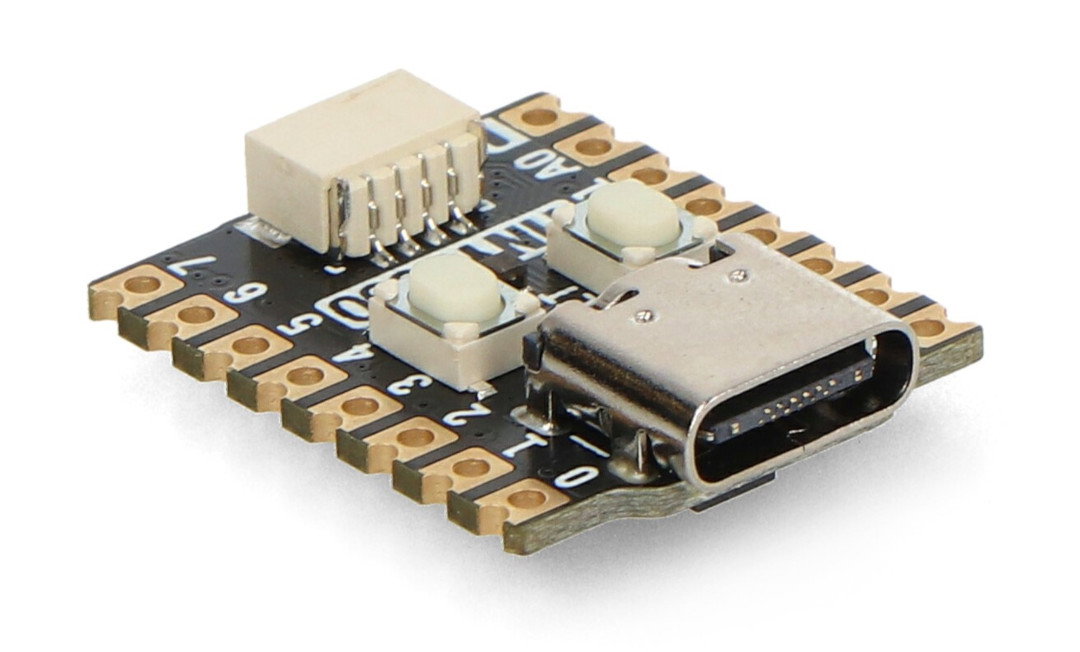

Pimoroni Tiny 2350 - PIM721.
Useful links
| Name | Value |
|---|---|
| Voltage nominal | 3.3 V |
| UC - Microcontroller | RP2350 |
| UC - Core | Cortex M33 |
| UC - Flash | 4 MB |
| UC - core | 2. Dual Core |
| UC - Digital pins | 12 |
| UC - USB | USB C |
| UC - Connector | USB typ C |
| Width | 9 cm |
| Height | 16 cm |
| Depth | 0.5 cm |
| Weight | 0.007 kg |
