Index: MCS-26866

ESP32-P4-Function-EV-Board - Development kit with 7'' LCD display and 2MPx camera - WiFi/Bluetooth - Espressif

The ESP32-P4 kit from Espressif includes a board with a dual-core RISC-V 400 MHz processor, a 7-inch touchscreen with a resolution of 1024 x 600 px and a 2 MP MIPI-CSI camera.

  • WiFi 6 and Bluetooth 5 (LE) through the ESP32-C6-MINI-1 module
  • Ethernet 10 Mb/s and 100 Mb/s, 4 USB ports, microSD slot
  • ES8311 audio codec, microphone and a 3 W amplifier
Price:
Net price:

This store sells to registered businesses only

Ordering on botland.store requires a verified business account with a VAT ID. Create one and we will confirm it shortly.

Your account is waiting for B2B approval

Ordering on botland.store opens once we have verified your company details. We will email you as soon as your account is approved.

Quantity

Over 500,000 customers already trust us. With us you get:



same-day shipping for products marked “24h shipping”



our own service centre in Poland



30 days to return and free delivery in Poland from PLN 500



4.9/5 on TrustMate and 4.9/5 on Google (almost 4,000 reviews)



VAT invoice, leasing and instalments for businesses

For businesses



individual quote for larger quantities



VAT invoice

For schools and universities



orders based on requests for quotation



help with choosing kits for your lab

ESP32-P4 with a 7-inch screen and a 2 MP camera

ESP32-P4-Function-EV-Board is an Espressif development kit with a dual-core ESP32-P4 RISC-V 400 MHz chip, a 7-inch touchscreen and a 2 MP camera included. The ESP32-P4 chip supports up to 32 MB of PSRAM, USB 2.0, MIPI-CSI and MIPI-DSI interfaces and a hardware H.264 encoder.

WiFi 6 and Bluetooth 5 (LE) in the 2.4 GHz band are provided by a separate ESP32-C6-MINI-1 module on the board, and wired networking by an RJ45 Ethernet port at 10/100 Mb/s. The manufacturer intends the kit for prototypes of video doorbells, network cameras, smart home control panels and electronic shelf labels. For a project without a screen and a camera, the smaller ESP32-S3-DEV-KIT-N8R8 board with WiFi and Bluetooth LE in the module is enough.

ESP32-P4-Function-EV-Board - Development kit with 7'' LCD display and 2MPx camera - WiFi/Bluetooth - Espressif

ESP32-P4-Function-EV-Board kit

400 MHz

clock speed of 2 RISC-V cores

1024 x 600

resolution of the 7-inch touchscreen

2 MP

MIPI-CSI camera included

WiFi 6

connectivity through the ESP32-C6 module with Bluetooth 5 (LE)

ESP32-P4-Function-EV-Board - Development kit with 7'' LCD display and 2MPx camera - WiFi/Bluetooth - Espressif

ESP32-P4-Function-EV-Board kit

7-inch screen and a MIPI camera included

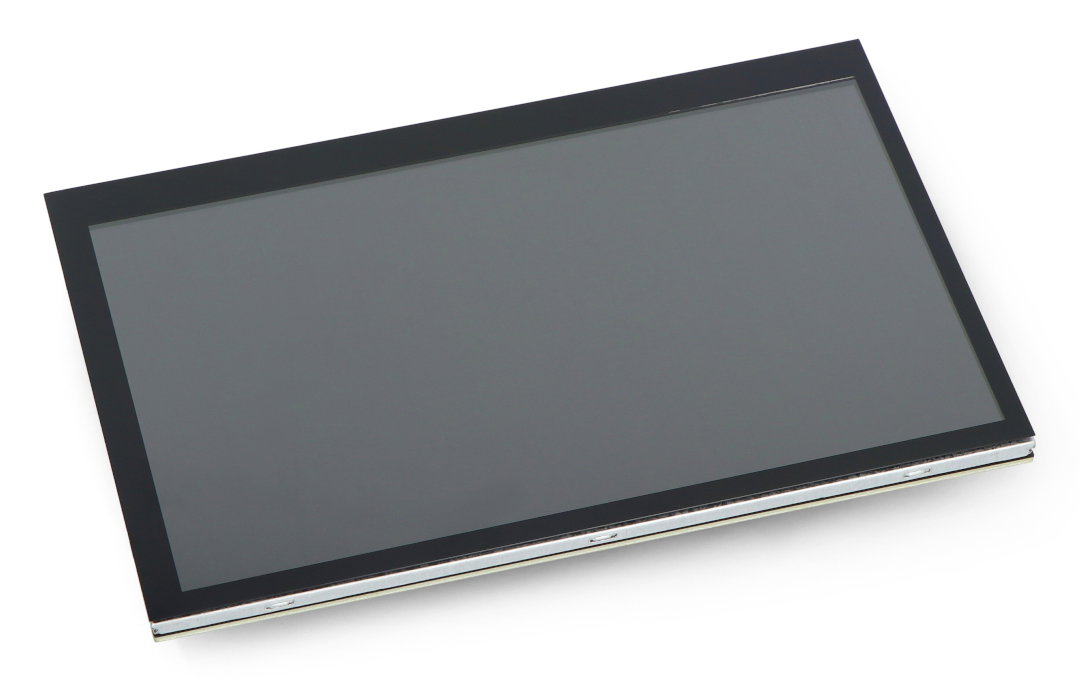

You connect the 7-inch capacitive touchscreen with a resolution of 1024 x 600 px through an adapter board to the MIPI-DSI connector, and the 2 MP camera through a separate adapter to the MIPI-CSI connector. Both FPC connectors have 15 pins with a 1 mm pitch.

For the screen you use a reverse ribbon cable, in which the contacts at both ends are on opposite sides, and for the camera a straight cable. The LVGL v8 and v9 examples and the ESP_Brookesia Phone with an Android-style interface show how to use the screen, camera, microSD card and audio.

Audio, Ethernet and 4 USB ports

The ES8311 codec with a microphone on the board processes sound, and the 3 W class D NS4150B amplifier drives a 4 Ω speaker through a 2 mm pitch connector. You play audio files from a microSD card working in 4-bit mode.

The board has 3 USB Type-C ports: USB Full-speed, USB Serial/JTAG for uploading programs and debugging, and USB 2.0 High-Speed in device mode. The USB Type-A port works as a host with a current of up to 500 mA, but does not work at the same time as the USB 2.0 Type-C port. Program memory is 16 MB of Flash on the SPI bus.

ESP32-P4-Function-EV-Board - Development kit with 7'' LCD display and 2MPx camera - WiFi/Bluetooth - Espressif

ESP32-P4-Function-EV-Board kit

ESP32-P4-Function-EV-Board - Development kit with 7'' LCD display and 2MPx camera - WiFi/Bluetooth - Espressif

ESP32-P4-Function-EV-Board kit

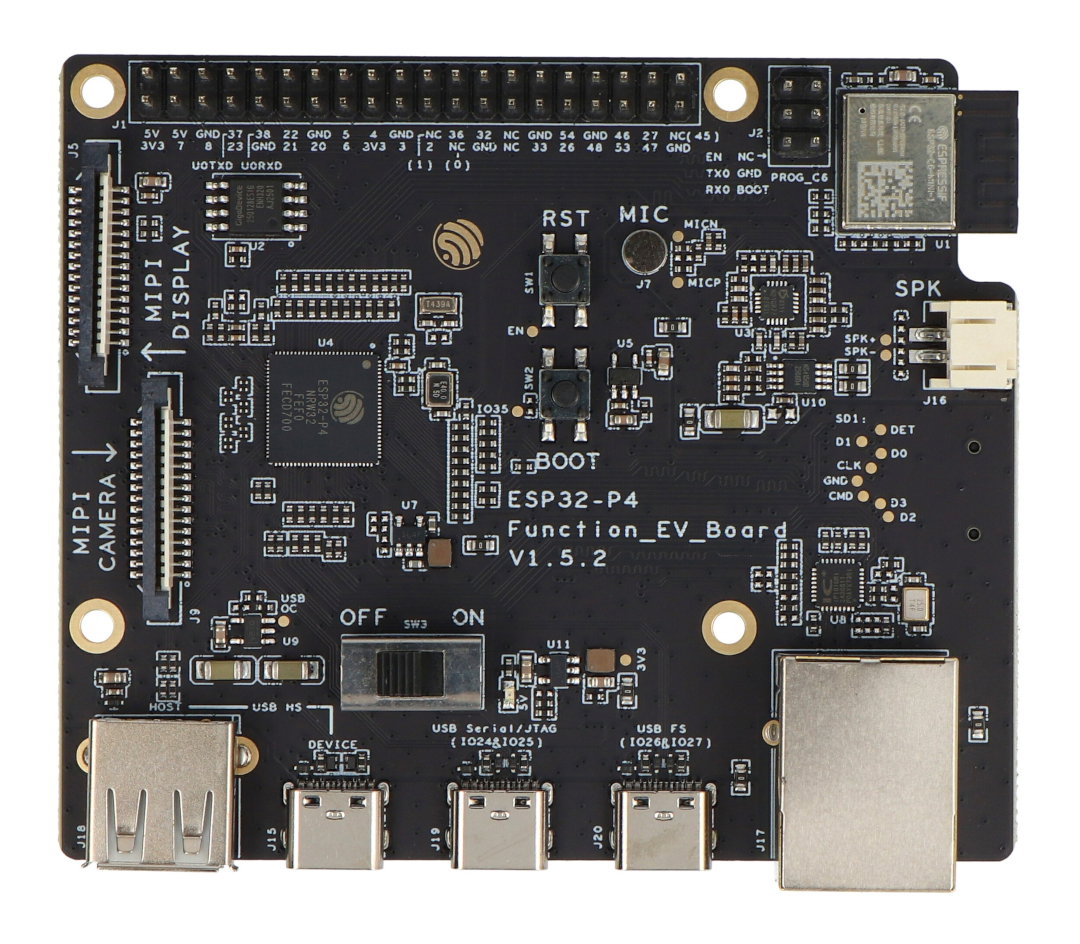

40-pin J1 connector for sensors and modules

The available GPIO pins lead to the 40-pin J1 connector, from which you can connect sensors and modules with jumper wires. The connector also carries 3.3 V, 5 V and ground lines and UART0 on GPIO37 and GPIO38.

GPIO0 and GPIO1 are occupied by default by the 32.768 kHz crystal, and GPIO45 by the microSD card power control. You can reclaim them by moving resistors according to the manufacturer's documentation.

ESP32-P4-Function-EV-Board pinout: J1 connector

J1 pinFunction
1. 3V33.3 V power
2. 5V5 V power
3. 7GPIO7
4. 5V5 V power
5. 8GPIO8
6. GNDground
7. 23GPIO23
8. 37U0TXD, GPIO37
9. GNDground
10. 38U0RXD, GPIO38
11. 21GPIO21
12. 22GPIO22
13. 20GPIO20
14. GNDground
15. 6GPIO6
16. 5GPIO5
17. 3V33.3 V power
18. 4GPIO4
19. 3GPIO3
20. GNDground
21. 2GPIO2
22. NC(1)GPIO1, occupied by default by the 32.768 kHz crystal
23. NC(0)GPIO0, occupied by default by the 32.768 kHz crystal
24. 36GPIO36
25. GNDground
26. 32GPIO32
27. NCnot connected
28. NCnot connected
29. 33GPIO33
30. GNDground
31. 26GPIO26
32. 54GPIO54
33. 48GPIO48
34. GNDground
35. 53GPIO53
36. 46GPIO46
37. 47GPIO47
38. 27GPIO27
39. GNDground
40. NC(45)GPIO45, occupied by default by the microSD card power

How to connect the screen to the board

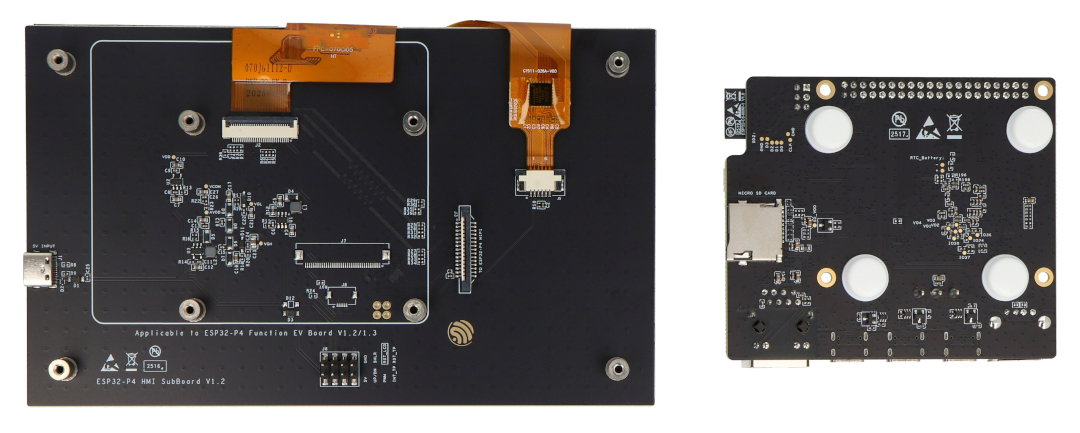

You screw the board to the screen adapter with short 8 mm standoffs, and the long 20 mm standoffs around the adapter's perimeter let you stand the screen upright. You connect the adapter's J3 connector to the MIPI-DSI connector with a reverse ribbon cable, and the RST_LCD and PWM pins with wires to GPIO27 and GPIO26 on the J1 connector.

Power the screen with a separate USB cable connected to the adapter's J1 connector. When that is not possible, connect the adapter's 5 V and GND pins to the corresponding pins of the board, as long as its power supply has enough current headroom.

ESP32-P4-Function-EV-Board - Development kit with 7'' LCD display and 2MPx camera - WiFi/Bluetooth - Espressif

ESP32-P4-Function-EV-Board kit

Is it a good choice for you?

A good choice if:

  • you are building a device with a touchscreen, a camera and sound on one chip
  • you need Ethernet, WiFi 6 and USB High-Speed in one kit
  • you write in ESP-IDF and want ready LVGL examples for a large screen

Consider another option if:

  • you need a simple sensor node, without a screen, camera and sound
  • you need a small WiFi board without a screen: choose the ESP32-S3 DevKit N8R8

ESP32-P4 vs ESP32-S3: board comparison

ESP32-P4-Function-EV-BoardESP32-S3-DEV-KIT-N8R8
ProcessorRISC-V, 2 cores, 400 MHzXtensa LX7, 2 cores, 240 MHz
WiFiWiFi 6, 2.4 GHz, ESP32-C6-MINI-1 module802.11 b/g/n, 2.4 GHz, in the ESP32-S3 module
BluetoothBluetooth 5 (LE)Bluetooth 5 (LE), Bluetooth Mesh
Flash memory on the board16 MB8 MB
Screen includedyes, 7 inches, 1024 x 600 pxno
Camera includedyes, 2 MP, MIPI-CSIno
Ethernetyes, RJ45 10 Mb/s and 100 Mb/sno
ESP32-S3-DEV-KIT-N8R8

Fun fact

Version v1.5.2 with a built-in debugger

In board version v1.5.2 the manufacturer replaced the USB-UART port from version v1.4 with the USB Serial/JTAG port built into the ESP32-P4, added a USB OTG Full-speed port on the USB Type-C connector and removed the IO24 and IO25 pins from the header.

Source: Espressif: ESP32-P4-Function-EV-Board, version history

Frequently asked questions

ESP32-P4 or ESP32-S3?

The ESP32-P4 has 2 RISC-V cores at 400 MHz, MIPI-CSI, MIPI-DSI and an H.264 encoder, so it handles a screen and a camera better. The ESP32-S3 has 2 Xtensa LX7 cores at 240 MHz with WiFi and Bluetooth LE built into the module.

Does the ESP32-P4 have WiFi?

On this board, yes. WiFi 6 and Bluetooth 5 (LE) in the 2.4 GHz band are provided by the ESP32-C6-MINI-1 module, connected to the board's main processor.

Are the screen and camera included?

Yes. The kit includes a 7-inch 1024 x 600 px touchscreen and a 2 MP MIPI-CSI camera with adapter boards, ribbon cables and standoffs.

How do I power the ESP32-P4 board?

Through any of the 3 USB Type-C ports. For uploading programs the manufacturer recommends the USB Serial/JTAG port, and for powering the screen a separate USB cable.

What do I program the ESP32-P4 in?

Program it in the ESP-IDF environment, in which Espressif provides LVGL v8, LVGL v9 and ESP_Brookesia Phone examples for this board.

Does the board have Ethernet?

Yes. The RJ45 port supports 10 Mb/s and 100 Mb/s with automatic speed negotiation by a PHY chip connected to the processor's RMII interface.

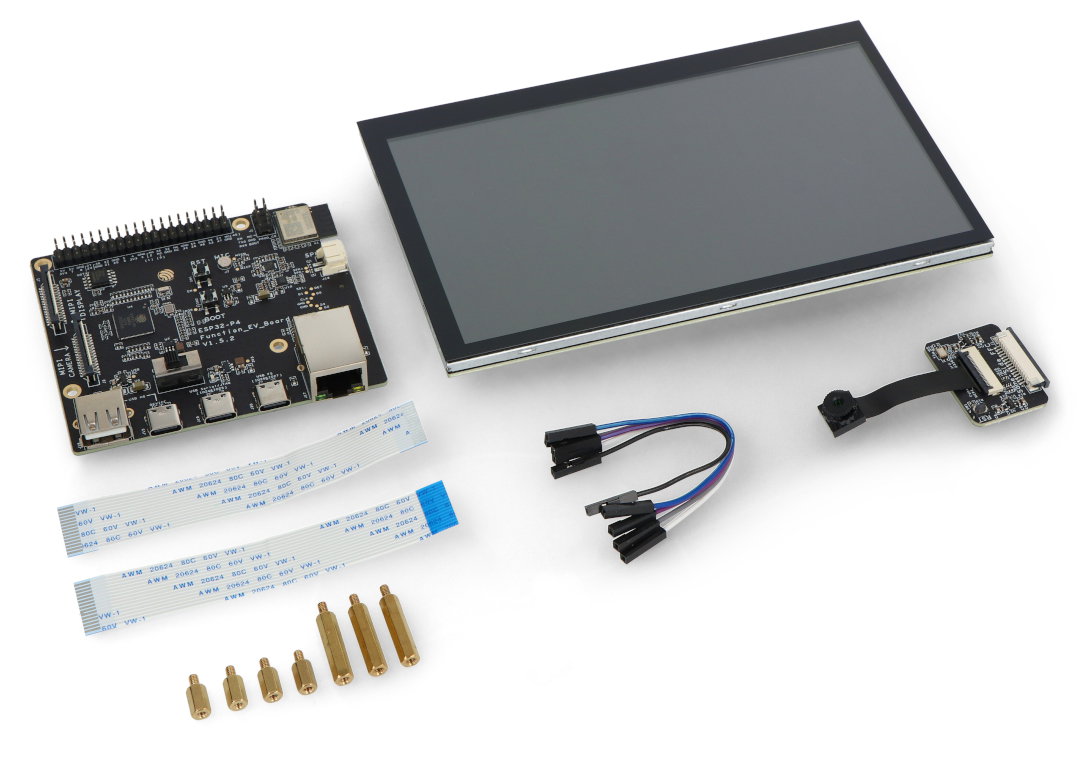

Kit contents

  • 1 x ESP32-P4-Function-EV-Board
  • 1 x 7-inch LCD touchscreen, 1024 x 600 px
  • 1 x Screen adapter board
  • 1 x 2 MP camera with a MIPI-CSI interface
  • 1 x Camera adapter board
  • 1 x Camera ribbon cable (straight)
  • 1 x Screen ribbon cable (reverse)
  • DuPont jumper wires
  • 20 mm and 8 mm brass standoffs

Technical specifications

ParameterValue
Main chipESP32-P4, RISC-V, 32-bit, 2 cores, 400 MHz, AI instruction extensions
PSRAMthe ESP32-P4 chip supports up to 32 MB
Flash memory16 MB, SPI
Radio moduleESP32-C6-MINI-1, WiFi 6 and Bluetooth 5 (LE), 2.4 GHz
Screen7-inch LCD, capacitive touch, 1024 x 600 px, MIPI-DSI
Camera2 MP, MIPI-CSI
MIPI connectors2 x FPC 15 pin, 1 mm pitch
AudioES8311 codec, microphone, NS4150B 3 W amplifier, 4 Ω speaker output
EthernetRJ45, 10 Mb/s and 100 Mb/s
USB3 x USB Type-C (Full-speed, Serial/JTAG, USB 2.0 High-Speed OTG), 1 x USB Type-A host up to 500 mA
Memory cardmicroSD, 4-bit mode
PinsJ1 connector, 40 pins
Clocks40 MHz and 32.768 kHz crystals
Power supply5 V from any USB Type-C port, power switch
Board versionv1.5.2
EnvironmentESP-IDF
Name Value
UC - Microcontroller
  • ESP32-C6
  • ESP32-P4
UC - Core 32-bit RISC-V
UC - Flash 16 MB
UC - RAM 32 MB
UC - core 2. Dual Core
UC - Digital pins 55
UC - freq 400 MHz
UC - Ethernet yes
UC - WiFi yes
UC - USB 2x USB
UC - microSD yes
UC - Bluetooth yes
UC - I2C yes
UC - UART yes
UC - SPI interface yes
UC - Camera interface yes
Width 19.8 cm
Height 13 cm
Depth 7.5 cm
Weight 0.517 kg
