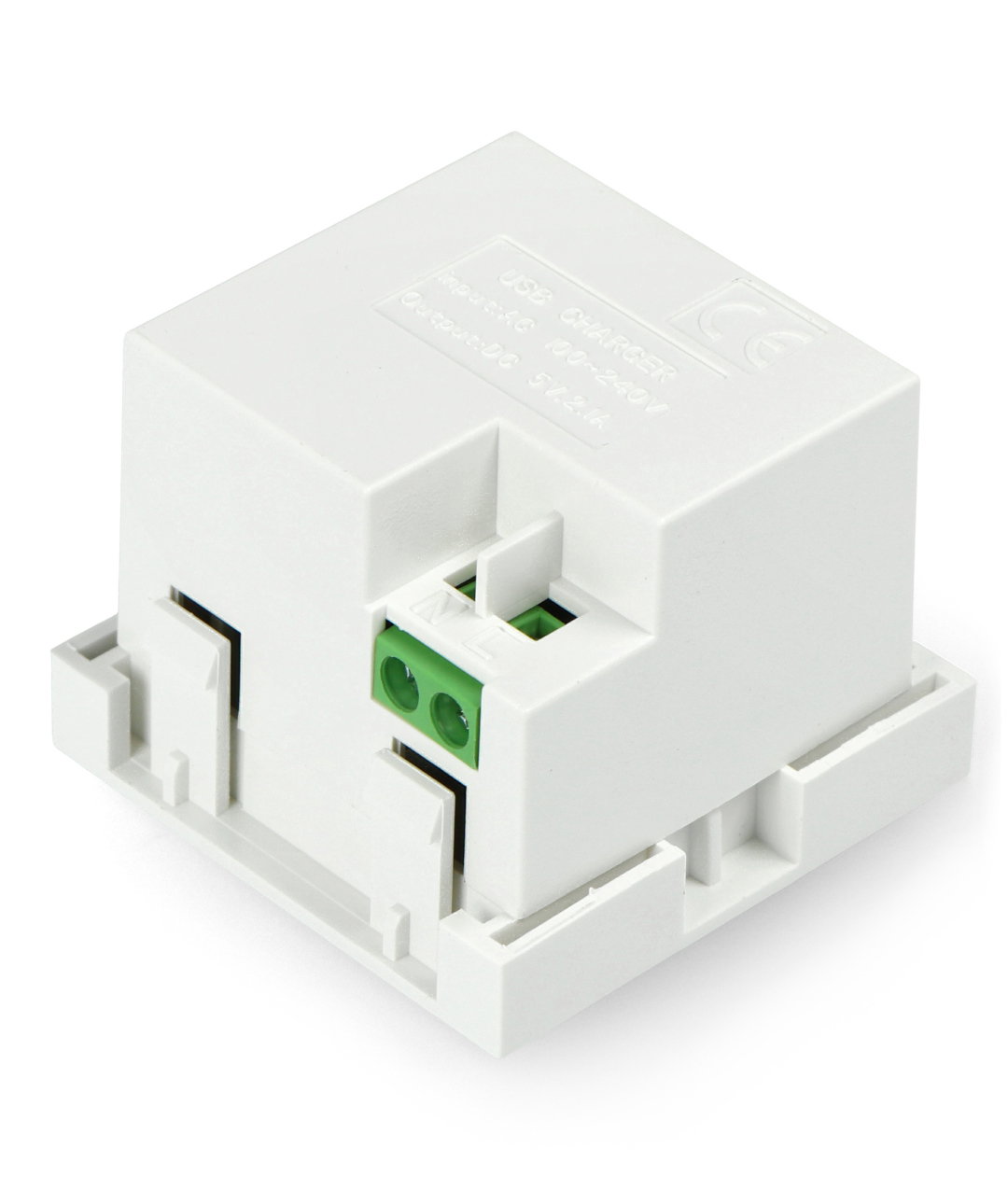

Product description: Flush-mounted socket 250 V charger 2 x USB 45 x 45 mm 2.1 A - white
Flush-mounted socketmodule equipped with two 2.1 A USB sockets in white, Lanberg brand. Designed to be mounted in frames equipped with supports, floor boxes, top-mounted columns and wall slats and boxes adapted for mounting 45 x45 mmmodular accessories. It is suitable for charging electrical devices. Socket is not earthed, supplied with 250 V,maximum output current is 2.1 A, output voltage 5 V. The dimensions of the product are 35 x45 x 45 mm. Tosecure the cables correctly, unscrew the screw on the front of the socket and remove the rear housing.
Flush-mounted socket outlet 250 V charger 2 x USB 45 x 45 mm 2.1 A - white.
Follow the operating and safety instructions in thedocumentation.
Specification of the 2 x USB charger's flush-mounted socket
- Manufacturer: Lanberg
- Manufacturer index: AC-4545-2XUSB2.1-W
- Colour: white
- Output socket type: USB-A
- USB output voltage: 5 V
- Output socket strength: 2,1 A
- For mounting in boxes with a maximum depth of 45 mm
- Tension: 250 V, 50 Hz
- Output current: maximum 16 A
- Cable fixing: screw terminals
- Grounding: none
- Material: PC - fire resistant polycarbonate
- Material of contact elements: phosphor bronze
- Dimensions: 35 x 45 x 45 mm
- Weight: 42 g
