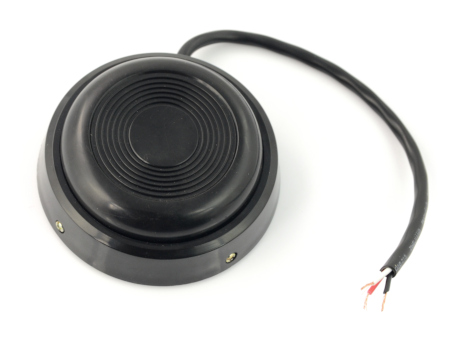

Switch ON-ON circular pedal 250V/10A - 100mm
Round, monostable switch is designed to be controlled by the leg. Diameter is equal to 100 mm and height is 35 mm. It provides you the power off without having to remove the power supply from the socket. Pins are the 3 wires with the removed insulation.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Round, monostable switch is designed to be controlled by the leg. Diameter is equal to 100 mm and height is 35 mm. It provides you the power off without having to remove the power supply from the socket.
At the rest mode, connected are the white and black wires. At the moment of pressing, connected are the white and red wires.
Specification
- Type: ON-ON, monostable
- Number of items: 2
- Number of pins: 3 wires
- Operating parameters: 250 V / 10 A
- Diameter: 100 mm
- Height: 35 mm
- Cable length: 20 cm
- Service
Service
- At rest mode, connected are the white and black wires
- At the moment of pressing, connected are the white and red wires
| Name | Value |
|---|---|
| Switch - type2 | monostable |
| Switch - type | with button |
| Switch - shape | round |
| Switch - backlight | no |
| Colour | black |
| Diameter | 100 mm |
| Height | 35 mm |
| Width | 11 cm |
| Height | 6 cm |
| Depth | 11 cm |
| Weight | 0.192 kg |
