Product Description: Universal PCB double sided 90 x 150 mm

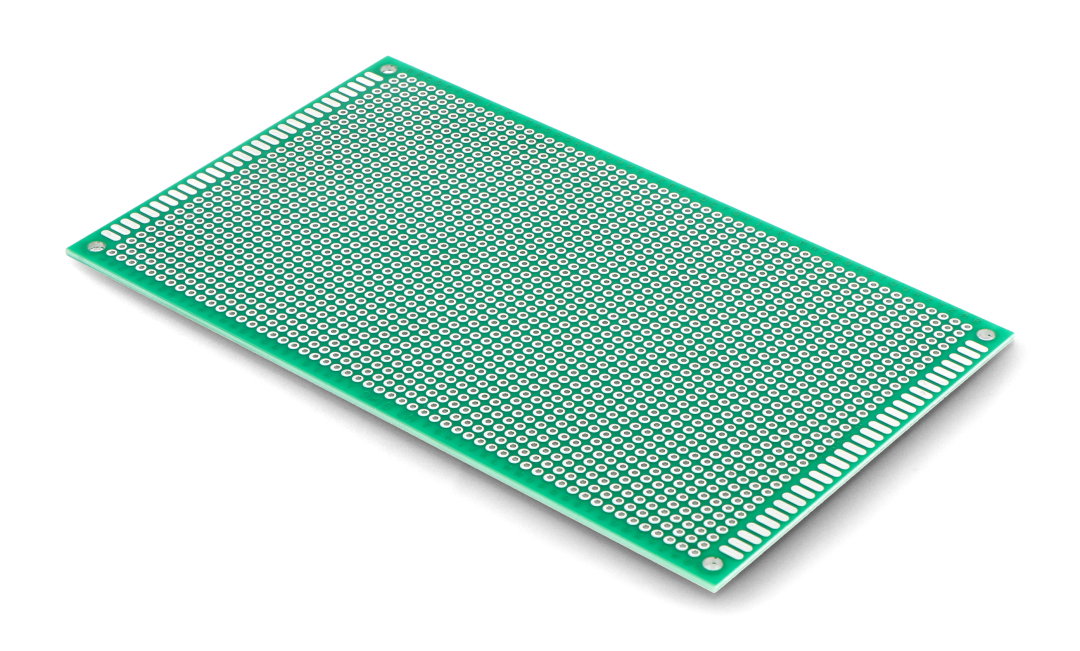

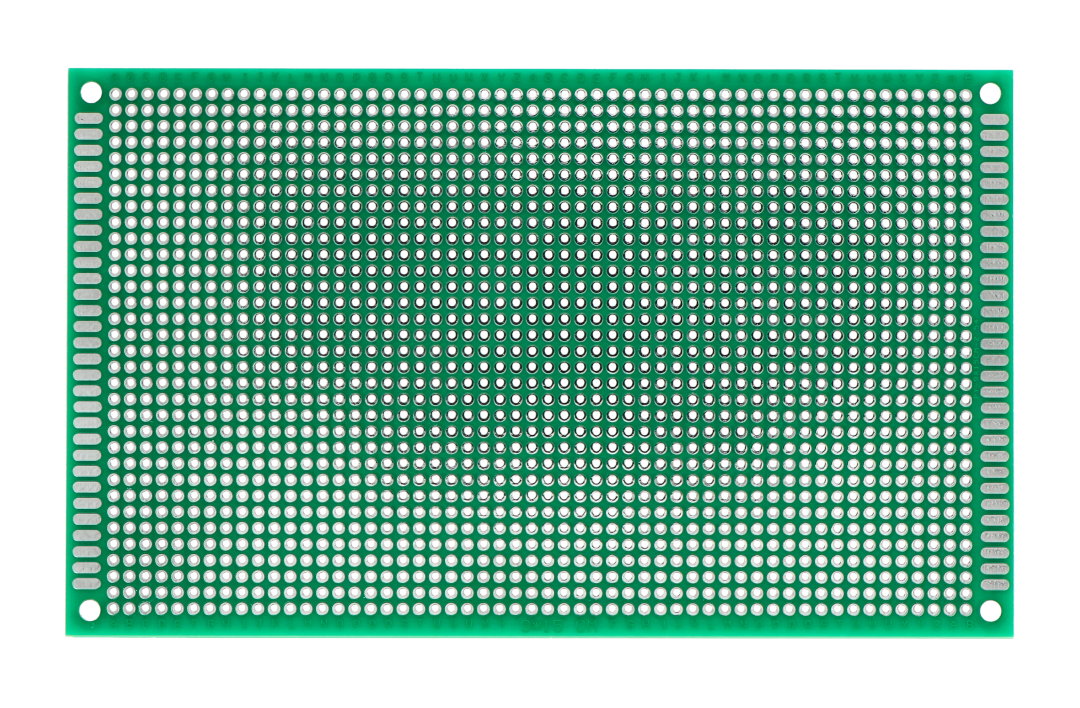

Double sided universal PCB allows to assemble any electronic circuit. It has 1782 holes (33 x 54) for mounting THT elements and 60 fields (2 x 30) for mounting SMD elements. Holes and fields have 2.54 mm raster and dimensions of the whole are 90 x 150 x 1.6 mm. Soldermask colour is green and solder fields are silver. The holes on each side are numbered with letters of the alphabet.
What are printed circuit boards?
Printed circuit boards, or PCBs(Printed Circuit Board), are used to create electronic projects. Boards are made of laminate (usually glass-epoxy) and copper, which is used to conduct signals.
There are three main methods of mounting components on a PCB: through-hole assembly, surface mount, and mixed-mode assembly.
Double-sided universal PCB 90 x 150 x 1.6 mm.
Green double-sided universal PCB.
PCB specification
- Soldermask colour: green
- Mounting: THT through-hole
- Array of holes: 2.54 mm
- Four mounting holes with 3 mm diameter
- Number of holes for through-hole mounting: 1782
- Number of surface mount holes: 60
- PCB dimensions: 90 x 150 x 1.6 mm
We also offer PCB etchers and holders with magnifying glass.
