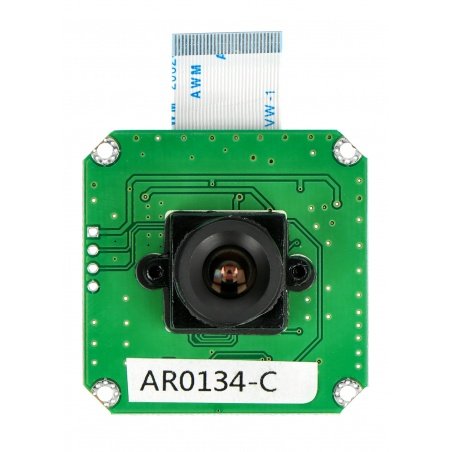

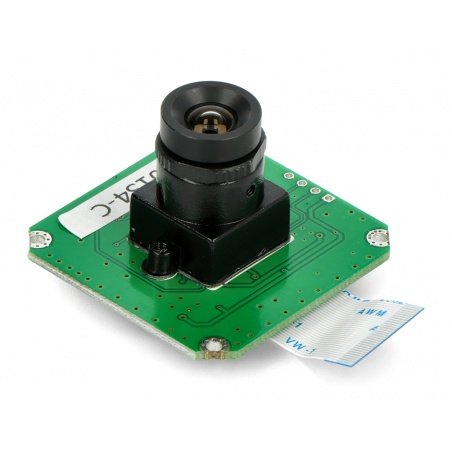

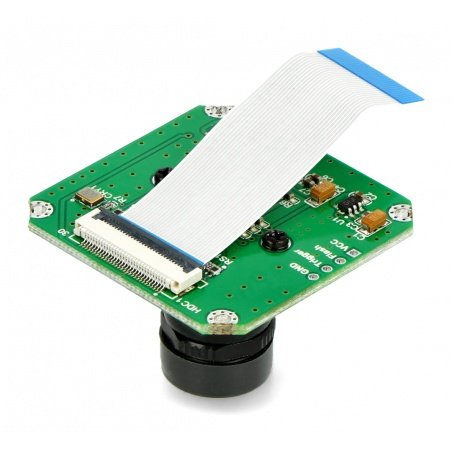

Camera ArduCam AR0134 1.2MPx CMOS with lens LS-6020 M12x0.5

Index: ACM-11733 EAN: 5904422317874

Camera module with AR0134 CMOS sensor of 1.2 MPx resolution and 1/3" size. Transmission speed at full resolution of 1280 x 960 px is 54 fps. It has global shutter, Bayer and monochrome filters.

Camera ArduCam AR0134 1.2MPx CMOS with lens LS-6020 M12x0.5
€80.50
€65.45 tax excl.
Unavailable
Discontinued product
PayPal payment
Manufacturer: ArduCam

Attention!

The product has been discontinued. Check other products in category.

Product description: ArduCam AR0134 1.2 MPx CMOS camera with LS-6020 M 12 x 0.5 lens

Camera module with AR0134 CMOS sensor of 1.2 MPx resolution and 1/3'' size. Frame rate at full resolution of 1280 x 960 px is 54 fps. The device can be operated in video (master) mode or in triggered shutter mode.

Notice!

For proper camera operation ArduCAM USB Camera Shieldoverlay is required.

kamera ArduCAM ArduCam AR0134 1.2 MPx CMOS camera with LS-6020 M 12 x 0.5 lens.

Specification

  • Supply voltage: 3,3 V
  • Sensor: AR0134 with global shutter
  • Resolution: 1280 x 960 px (1.2 MPx)
  • Frame rate: 54 fps for full resolution
  • Lens size: 1/3 "
  • Sensitivity: 5.3 V/(lux*s)
  • Pixel size: 6.0 µm x 6.0 µm
  • Dynamic range: 64 dB
  • Parallel interface
  • Lens: LS-6020 CS mount

ArduCam AR0134 1.2MPx CMOS camera with LS-6020 M12x0.5 lens

Camera for Raspberry Pi from renowned manufacturer ArduCam is an expansion module with AR0134 1.2MPx sensor at its heart. It can record video at 54 frames per second at 1280 x 960 px resolution.

The LS-6020 lens is included from the factory, but ArduCam's Raspberry Pi camera also provides an easy lens swap for other lenses compatible with the M12 mounting standard.

Simple mounting and powerful capabilities

The Raspberry camera with the AR0134 sensor is connected using a GPIO interface and requires the ArduCAM USB Camera Shield overlay for proper operation. Supply voltage of the module is 3.3V.

ArduCam can be used in many projects developed on Raspberry Pi. The camera can operate in video mode or in shutter release mode. It can be successfully used for automation systems and remote monitoring and surveillance of property.

Interface GPIO
Resolution 1,2 MPx
Camera - matrix AR0134
Camera - IR filter Yes
Camera - lens CS-mount / M12
Camera - format 1/3 ''
Camera - type module
Package width 4 cm
Package height 4 cm
Package depth 4 cm
Package weight 0.022 kg
