Fermion - 3-Axis Accelerometer - I2C H3LIS200DL - DFRobot SEN0408
Fermion series module with 3-axis accelerometer H3LIS200DL, manufactured by DFRobot. It features very low power consumption (up to 10 µA), as well as high noise immunity. The module has a user-selectable wide scale ranging from ± 100 g to ± 200 g.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Fermion - 3-axis accelerometer - I2C H3LIS200DL - DFRobot SEN0408
Fermion series module withH3LIS200DL 3-axis accelerometer , manufactured by DFRobot. It features very low power consumption (up to 10 µA), as well as high noise immunity. The module has a user-selectable broad scale ranging from ± 100 g to ± 200 g and is capable of measuring accelerations at frequencies from 0.5 Hz to 1 kHz. It communicates over an I2C interface and is powered by 3.3 V . The sensor is equipped with dedicated algorithms to detect motion.
Product compatible with Arduino
A detailed user guide is available on the manufacturer's website to help you get started with the module.

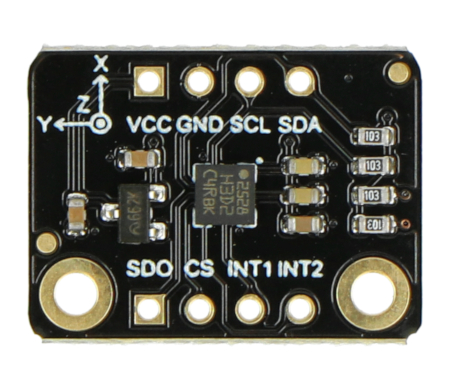

Fermion - 3-axis accelerometer - I2C H3LIS200DL - DFRobot SEN0408.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

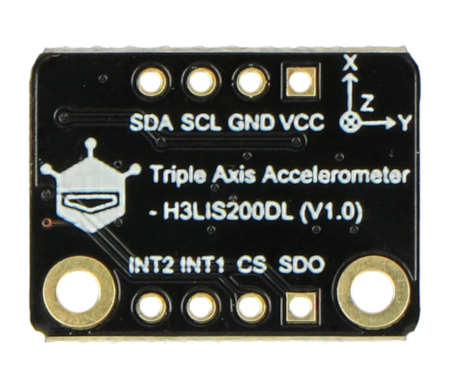

Module equipped with H3LIS200DL chip.
Module equipped with H3LIS200DL chip.
Technical specifications of the Fermion accelerometer:
- Operating voltage: 3,3 V
- Operating current
- 10 µA minimum: (low power mode)
- 0.3 mA to 0.4 mA: (normal mode)
- Interface: I2C / SPI
- I2C address: 0x19 (default) / 0x18 (selectable)
- Measuring scale: ± 100g / ± 200g
- Frequency of measurement: 0.5 Hz to 1 KHz
- 8-bit data output
- Operating temperature: from -40°C to 85°C
- Shock resistance: 10000 g
- Dimensions: 15 mm x 20 mm
Kit includes:
- 1 x: Fermion - I2C H3LIS200DL 3-axis accelerometer
- 2 x: 4-pin goldpin connector - 2.54 mm pitch
- 1 x Fermion - I2C H3LIS200DL 3-axis accelerometer
- 2 x 4-pin goldpin connector - 2.54 mm pitch
Pinout description
- VCC: - power supply pin 3.3 V
- GND: - system ground
- SCL: - I2C interface clock line pin
- SDA: - I2C data line pin
- INT2: - interrupt 2 pin
- INT1: - interrupt 1 pin
- CS: - select SPI
- SDO: - I2C address selection / SPI data line
- VCC - power supply pin 3.3 V
- GND - system ground
- SCL - I2C interface clock line pin
- SDA - I2C data line pin
- INT2 - interrupt 2 pin
- INT1 - interrupt 1 pin
- CS - select SPI
- SDO - I2C address selection / SPI data line
Overview of the module functions
- Large selectable measuring scale range: from ± 100 g to ± 200 g
- Two independent programmable interrupt outputs
- Intelligent sleep and wake-up function
- Rapid impact detection and recording
- Free fall detection
- Automotive collision test

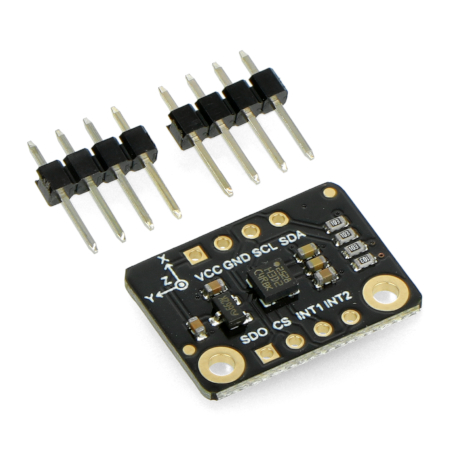

Two 4-pin goldpin strips are included - 2.54mm raster.
Two 4-pin goldpin strips are included - 2.54mm raster.
Useful links
| Name | Value |
|---|---|
| Screen - interface | SPI+I2C |
| Voltage to | 3.3 V |
| Voltage from | 3.3 V |
| Sensor - type | accelerometer |
| Width | 5.6 cm |
| Height | 2.5 cm |
| Depth | 6.2 cm |
| Weight | 0.007 kg |
