Fermion - 3-Axis Accelerometer - I2C LIS331HH - DFRobot SEN0407

Index: DFR-19906 EAN: 6959420919635
Fermion series module with LIS331HH 3-axis accelerometer, manufactured by DFRobot. It features low power consumption (10 µA). The module has a user selectable scale (±6 g / ±12 g / ±24 g).
Fermion - 3-Axis Accelerometer - I2C LIS331HH - DFRobot SEN0407
€12.90
€10.49 tax excl.
Waiting time: 4-6 weeks
Only on request
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino Raspberry Pi

Product description: Fermion - 3-axis accelerometer - I2C LIS331HH - DFRobot SEN0407

Fermion series module with LIS331HH 3-axis accelerometer, manufactured by DFRobot. It features low power consumption (10 µA). The module has a user-selectable measurement scale (±6 g / ±12 g / ±24 g) and is able to measure accelerations with a data rate of 0.5 Hz to 1 kHz. It communicates over an I2C interface and is powered by 3.3 V. The sensor features dedicated algorithms to detect motion and two independent programmable interrupt outputs.

Product compatible with Arduino

A detailed user guide is available on the manufacturer's website to help you get started with the module.

Fermion - 3-osiowy akcelerometr - I2C LIS331HH - DFRobot SEN0407.

Fermion - 3-axis accelerometer - I2C LIS331HH - DFRobot SEN0407.

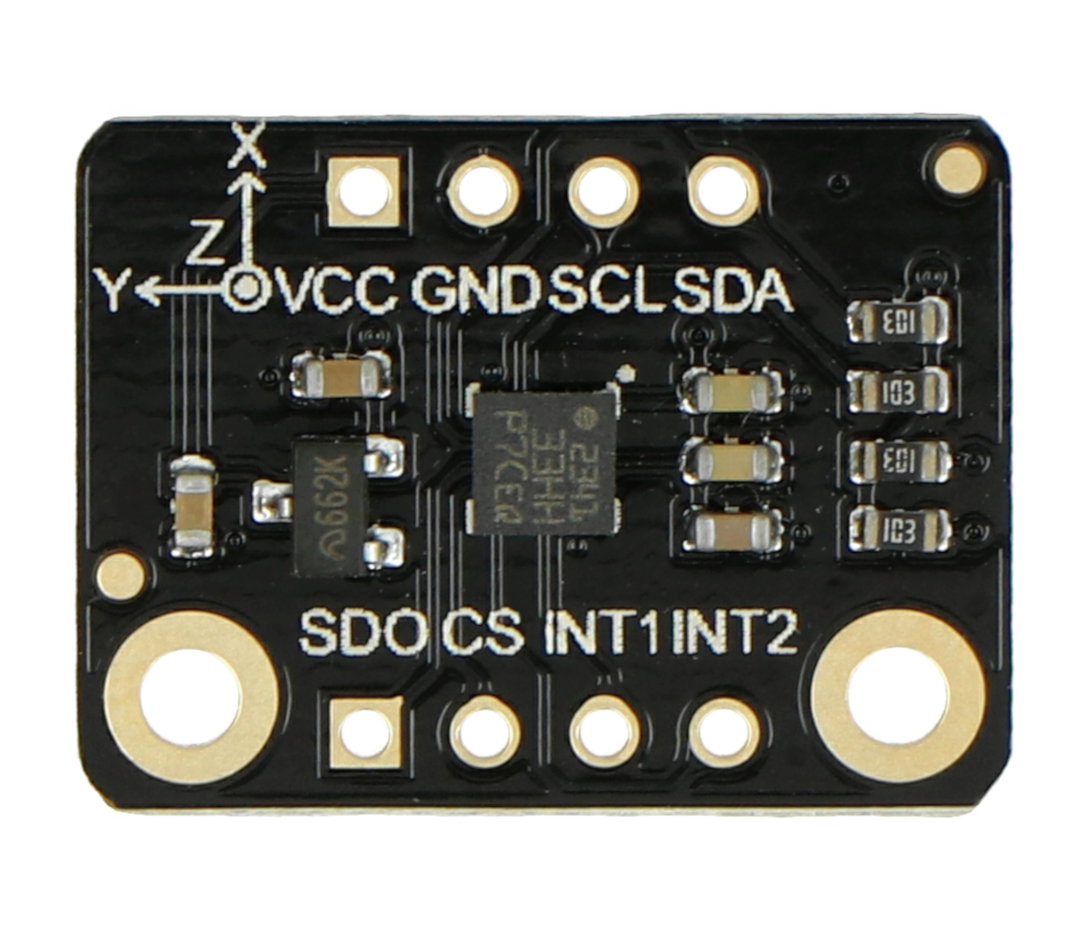

 Moduł wyposażony w układ LIS331HH.

Module equipped with LIS331HH chip.

Technical specifications of the Fermion accelerometer:

  • Operating voltage: 3,3 V
  • Operating current:
    • 10 µA to 140 μA (low power mode)
    • 0.3 mA to 0.4 mA (normal mode)
  • Interface: I2C / SPI
  • I2C address: 0x19 (default) / 0x18 (selectable)
  • Measuring scale: ±6 g / ±12 g / ±24 g
  • Transmission frequency: 0.5 Hz to 1 kHz
  • 16-bit data output
  • Operating temperature: -40°C to 85°C
  • Shock resistance 10000 g
  • Dimensions: 15 mm x 20 mm

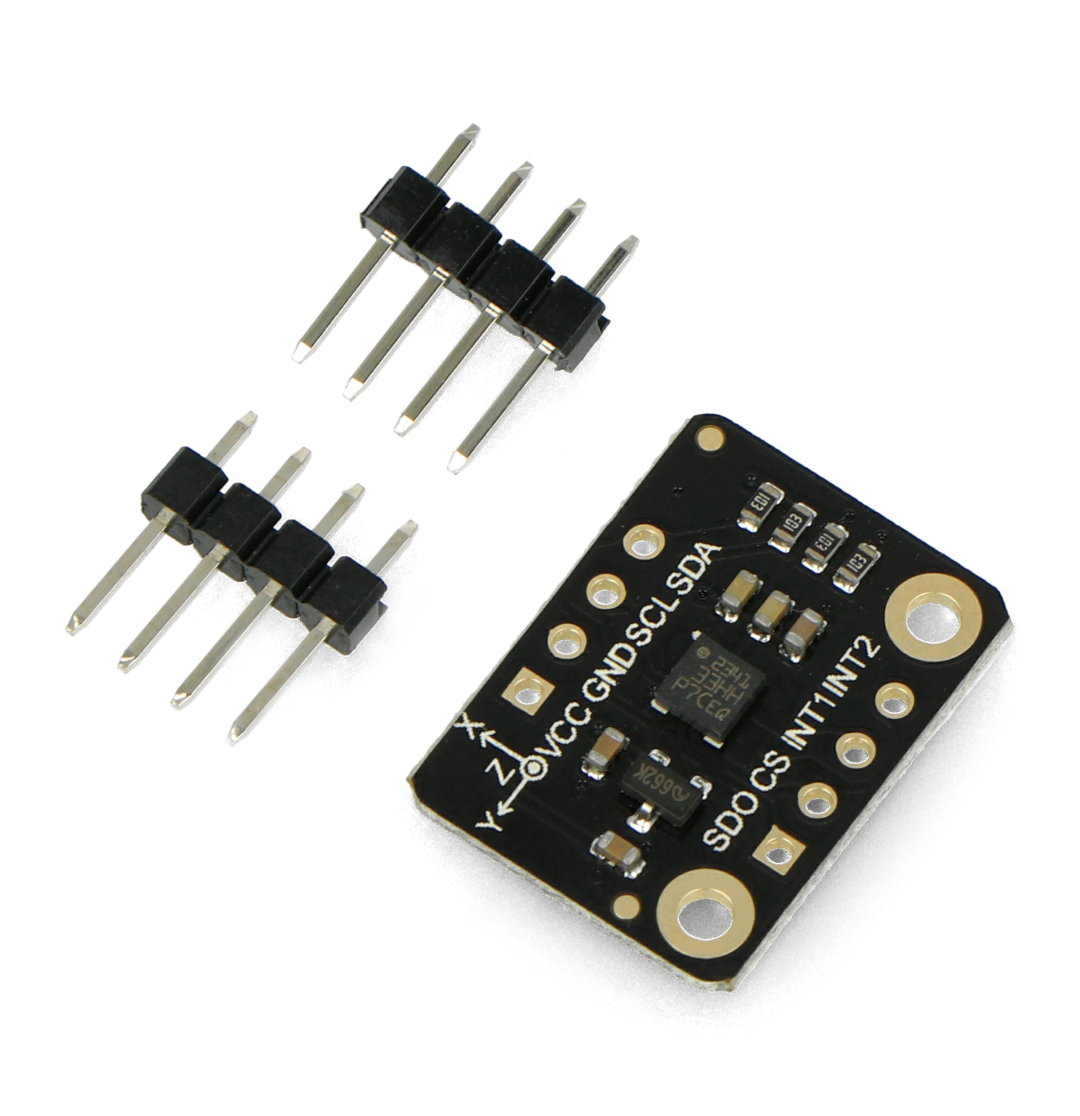

Kit includes:

  • 1 x Fermion - I2C LIS331HH 3-axis accelerometer
  • 2 x 4-pin goldpin connector - 2.54 mm pitch

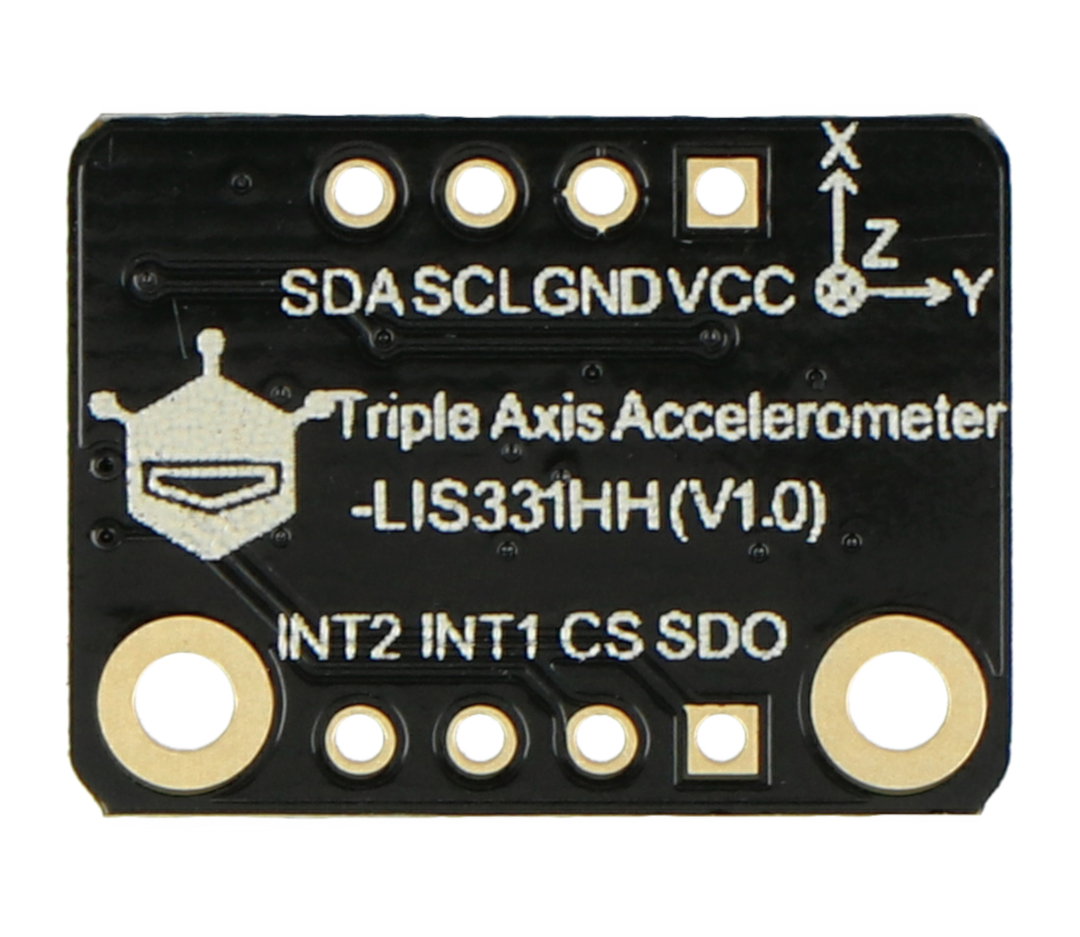

Pinout description

  • VCC - power supply pin 3.3 V
  • GND - ground
  • SCL - I2C interface clock line pin
  • SDA - I2C data line pin
  • INT2 - interrupt 2 pin
  • INT1 - interrupt 1 pin
  • CS - select SPI
  • SDO - I2C address selection / SPI data line

Overview of the module functions

  • Selectable measurement scale: ±6 g / ±12 g / ±24 g
  • Two independent programmable interrupt outputs
  • Intelligent sleep and wake-up function
  • 16-bit data output
  • Free fall detection
  • Abrupt deceleration detection
  • Rollover detection
Do zestawu dołączono dwie 4-pinowe listwy goldpin -  raster 2,54 mm.

Two 4-pin goldpin strips are included - 2.54 mm pitch.

Voltage to 3.3 V
Voltage from 3.3 V
Interface SPI / I2C
Sensor - type accelerometer
Package width 5.6 cm
Package height 2.5 cm
Package depth 6.2 cm
Package weight 0.007 kg
