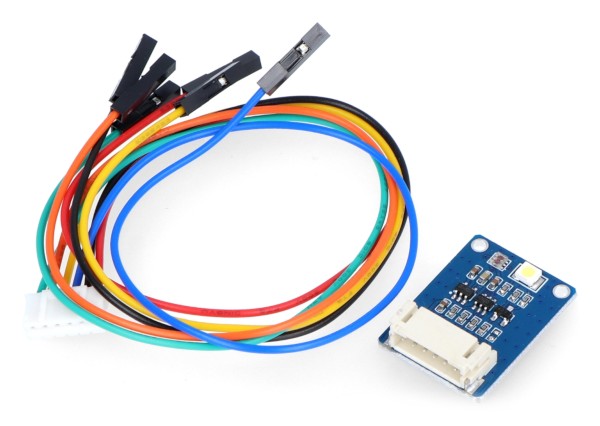

Product description: Waveshare color sensor TCS34725 I2C
Waveshare sensor allowingto detect the colours oflight. It is based on the sensorTCS34725. It has the LED backlight and a built-in IR filter. It can work with any microcontroller equipped with I2Cinterface. It runs with the voltage from 3.3 V to 5 V.
Waveshare color sensor TCS34725 I2C. In our offer, we also have othersensors.
Sensor TCS34725
Sensor, enabling the detection of colors from the RGB palette, equipped with a built-in IR filter that blocks unwanted components in the range of infrared radiation. To work with the sensor, applied was controlled through the transistor LED indicator, whose task is to illuminate the detected surface.

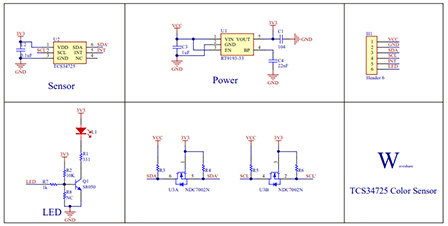

A block diagram of the sensor TCS34725.
The main functions of sensor of colors TCS34725FN
- Built-inanalog - to- digital converter
- High sensitivity and wide dynamic range
- I2C communication protocol that uses only a few pins
- Built-in IR filter reducing the spectral component of the incident light
- Illuminating LED with a smooth brightness control of PWM
Specification of the color sensor
- Sensor: TCS34725FN
- Communication interface: I2C
- Working voltage: 3.3 V / 5 V
- Resolution: 4-channel RGBC, 16 bits per channel
- The recommended distance from the measured object: 2 mm
- Dimensions: 27 x 20 mm
